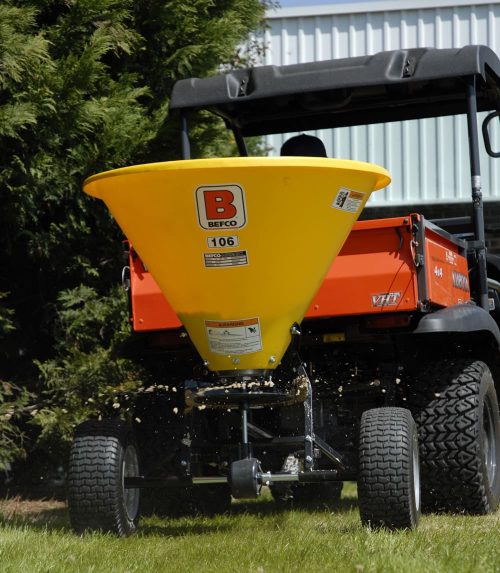

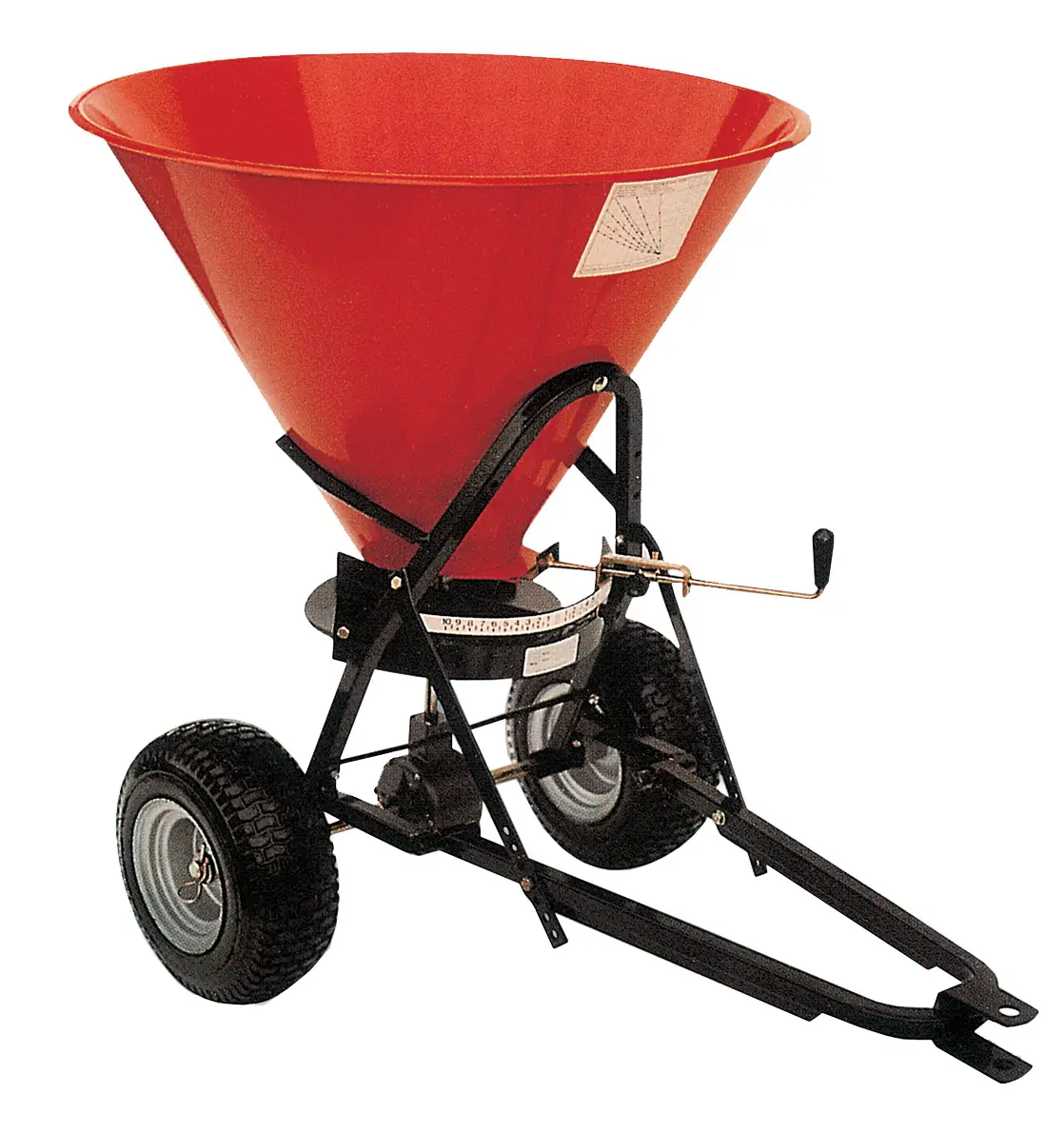

BABY-HOP
Broadcast spreaders
Lawn tractors & ATV's
Pull-type
- One piece seamless hopper
- Even left-center-right spread pattern

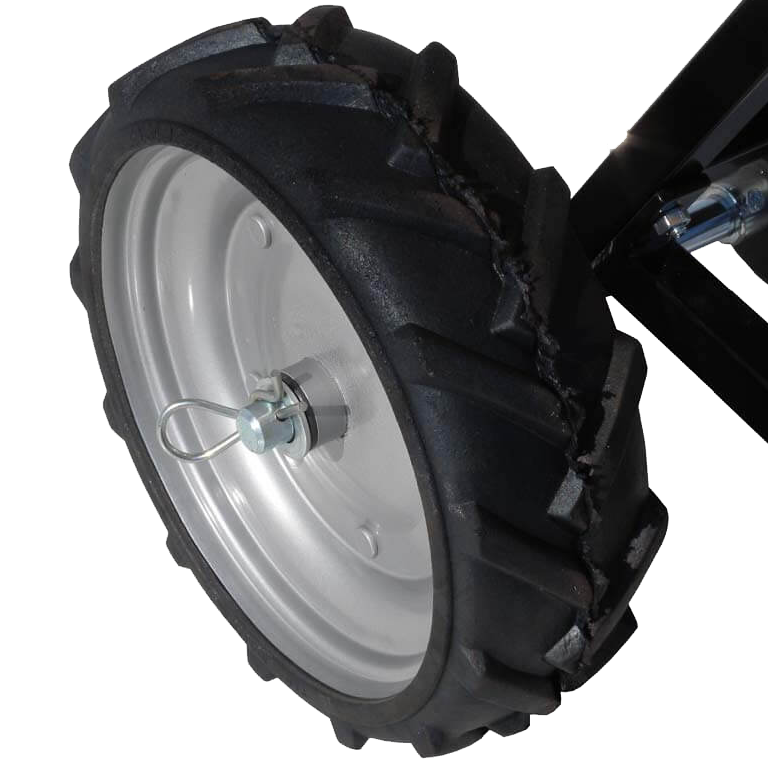

- High floatation air tires
- Easy connecting pull type hitch
- Sturdy tubular frame
- Hopper leveling adjustment
- Sealed heavy duty gearbox with metal gears
- Ground controlled distribution
- Polyethylene hopper with stainless steel bottom standard on models 103-230 & 106-230

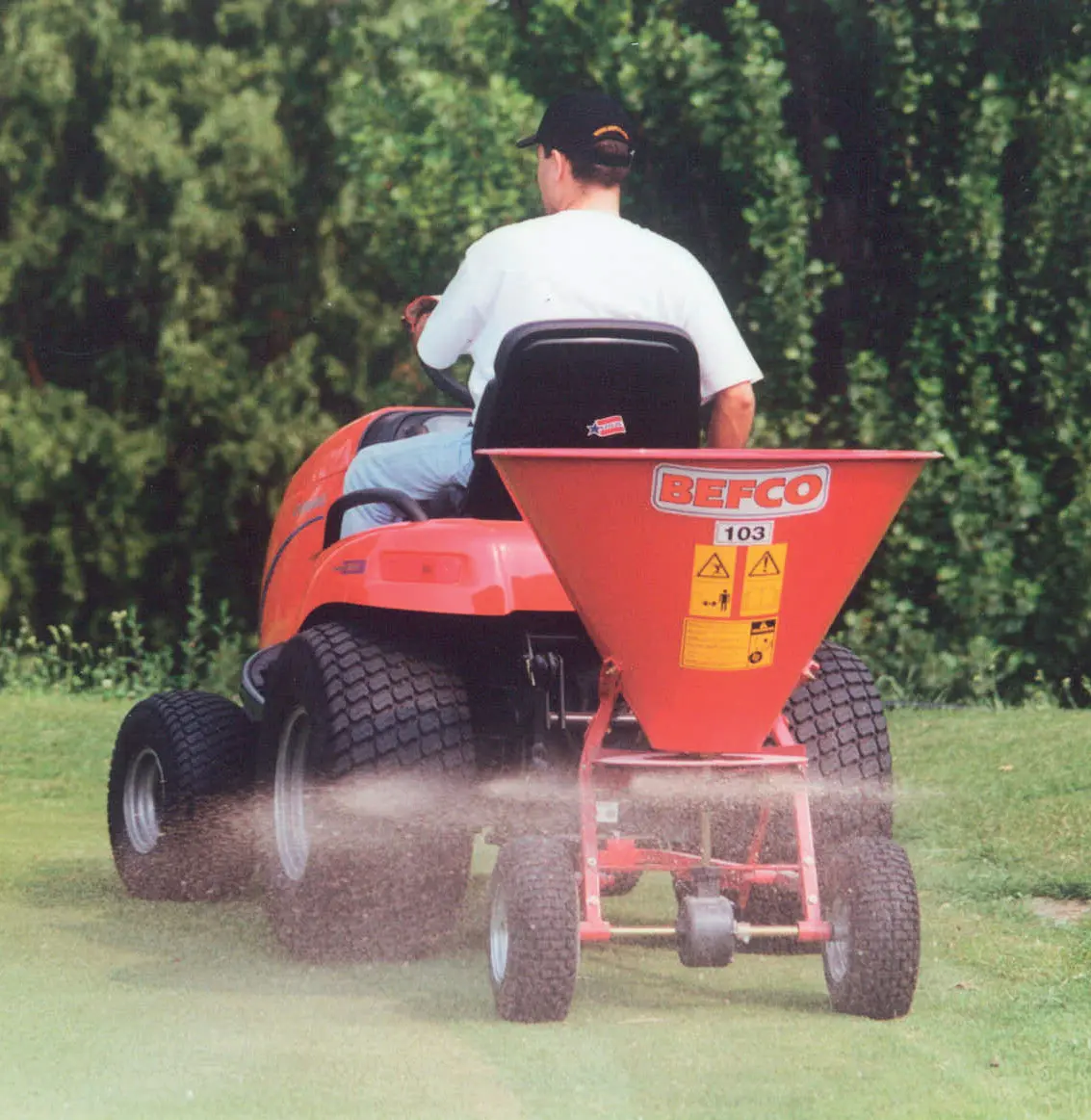

MODELS WITH STEEL HOPPER
| Model | Weight lbs | Ship lbs | Capacity cu. ft/lbs | Swath spread | Hopper width | Hopper height | # Tires & size |
|---|---|---|---|---|---|---|---|
| 103-130 | 62 | 100 | 3.71/237 | 3'-20' | 32" | 40" | 2 - 13" x 6" |
| 106-130 | 84 | 125 | 5.30/339 | 3'-20' | 35" | 45" | 2- 16" x 8" |
NOTE: Capacity in lbs. calculated @ 13-13-13 fertilizer weight of 64 lbs. per cu. ft.

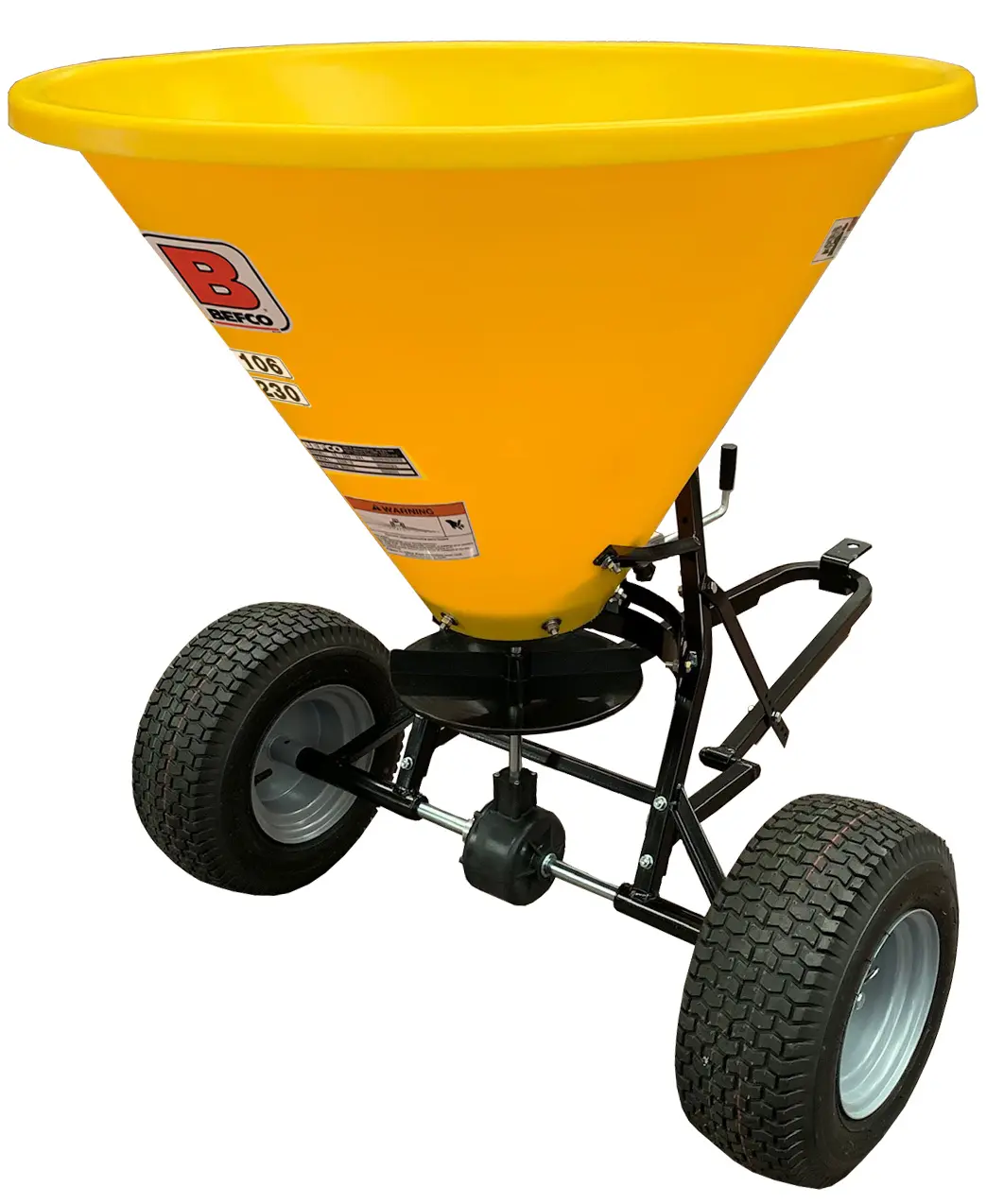

MODELS WITH POLYETHYLENE HOPPER AND STAINLESS STEEL BOTTOM
| Model | Weight lbs | Ship lbs | Capacity cu. ft/lbs | Swath spread | Hopper width | Hopper height | # Tires & size |
|---|---|---|---|---|---|---|---|
| 103-230 | 62 | 100 | 3.71/237 | 3'-20' | 32" | 40" | 2 - 13" x 6" |
| 106-230 | 84 | 125 | 5.30/339 | 3'-20' | 35" | 45" | 2- 16" x 8" |
NOTE: Capacity in lbs. calculated @ 13-13-13 fertilizer weight of 64 lbs. per cu. ft.
Adjustable spread pattern
Baby-Hop spreaders are equipped with an adjustable spread pattern that allows operator to spread, prevalently right, prevalently center or prevalently left.

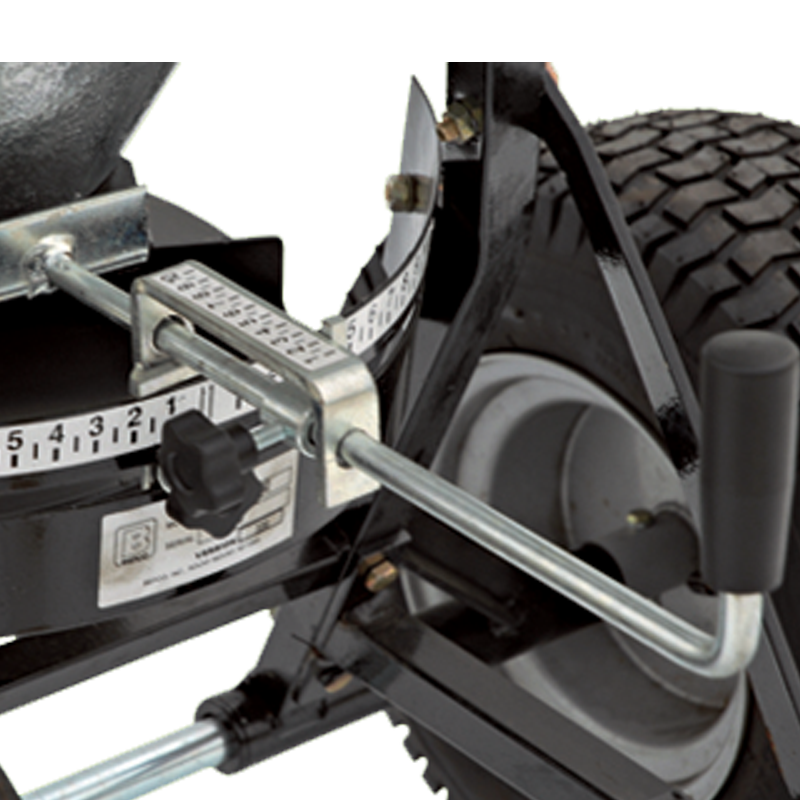

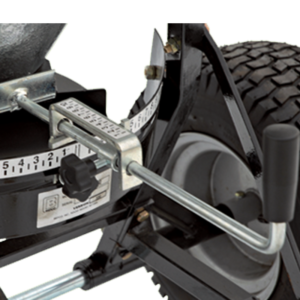

Gate opening control
Adjustable gate opening control allows operator to adjust volume of seed distributed and direction of spread.

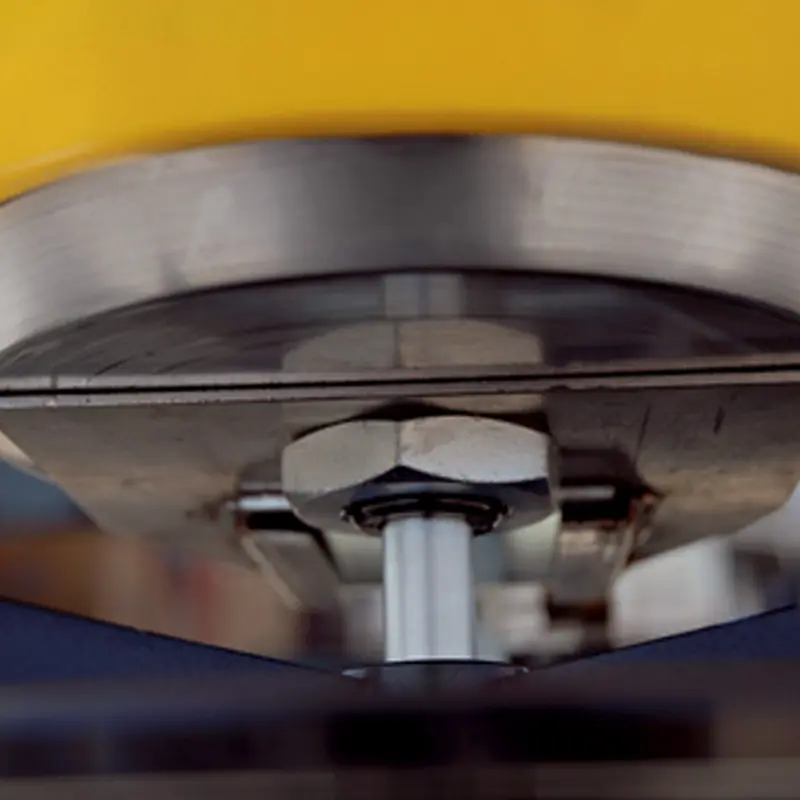

Stainless steel bottom
Models 103-230 and 106-230 feature a polyethylene hopper with a stainless steel bottom.

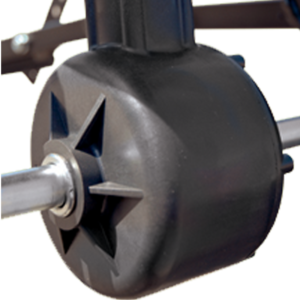

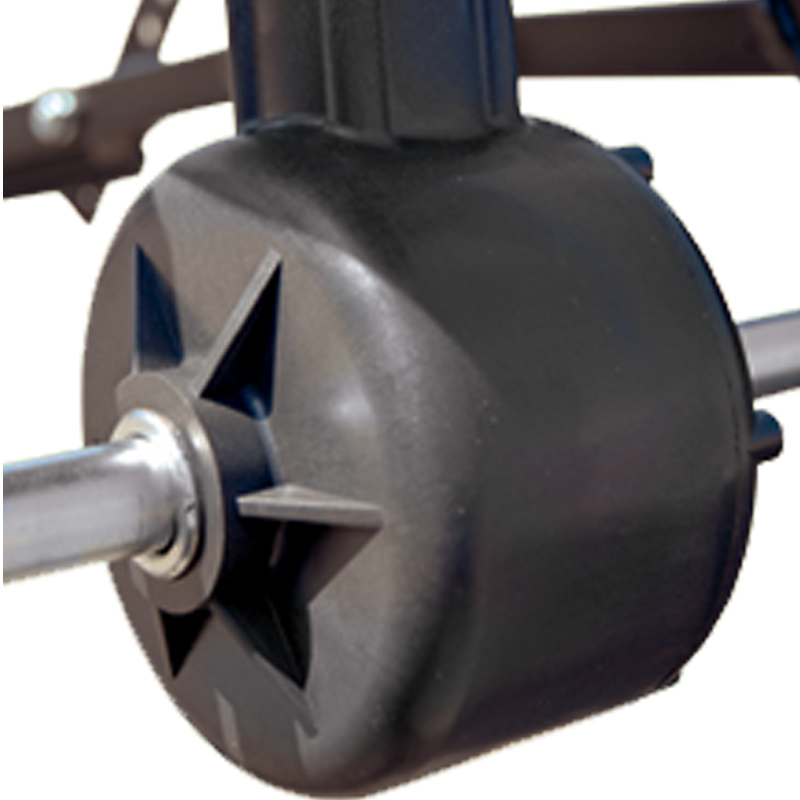

Gearbox by BEFCO
Completely sealed, maintenance free gearbox manufactured by BEFCO with all metal gears.

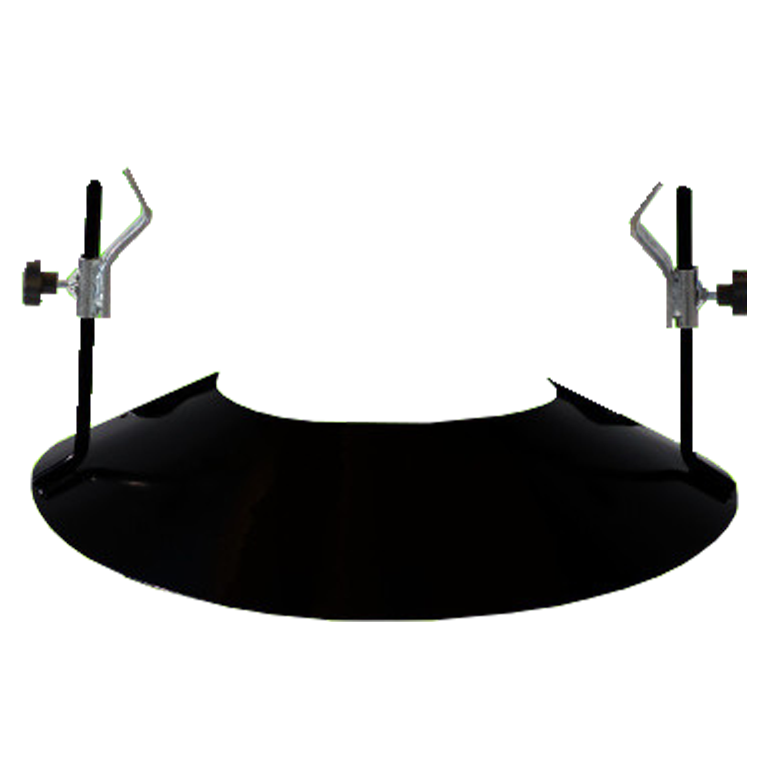

Deflector
AA1-120 Deflector shield for models 103 & 106
Remote gate control
0099856 Remote gate control for models 103 & 106
Hopper cover
0099720 Hopper cover for model 103
0099721 Hopper cover for model 106
Operator’s & Parts manual
