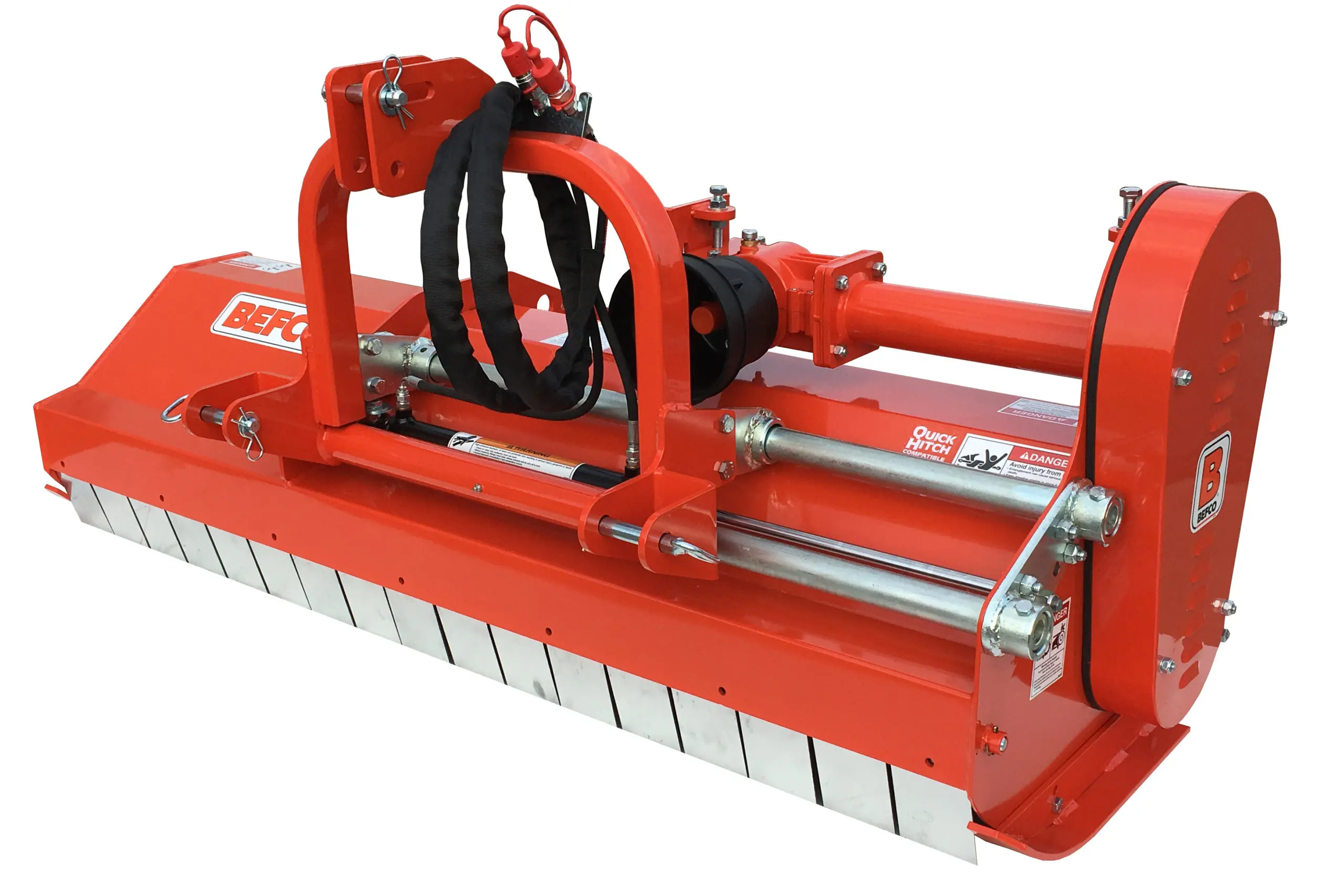

HURRICANE H40-S
Flail mowers with side-shift
16-40 HP (12-30 KW)
540 rpm - Cat. 1
- Cutting heights: from 3/4″ to 2 3/8″
- Manual or optional hydraulic side-shift up to 16″
- Dual rear roller mounting position, inside or outside the cutting chamber
- Manual belt tensioner without spring loaded idlers
- Choice of fine cut blades at 90° angles, reverse “Y” blades, paddle blades or hammer type blades
- Dethatching blades available
- Adjustable cutting height roller with scraper or self cleaning roller when mounted inside the cutting chamber
- Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 3)
- Sealed rotor bearings
- Front and rear tractor mounting
- Heavy duty, one piece balanced steel pulleys
- Two heavy duty reinforced notched belts (SPBX)
- 3 Point linkage, cat. 1
- Standard front rubber safety shielding or optional front steel deflectors
| Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blades tip speed (ft/min) | # of Blades | Cutting height | # Belts & type | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H40-S48 | 16-40 | 48" | 54" | 552 | 690 | 2,278 | 8,858 | 48 | 3/4" - 2 3/8" | 2 SPBX | ASAE cat. 3 |
| H40-S60 | 20-40 | 60" | 64" | 624 | 762 | 2,278 | 8,858 | 64 | 3/4" - 2 3/8" | 2 SPBX | ASAE cat. 3 |
| H40-S72 | 25-40 | 72" | 76" | 697 | 835 | 2,278 | 8,858 | 76 | 3/4" - 2 3/8" | 2 SPBX | ASAE cat. 3 |
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.
Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

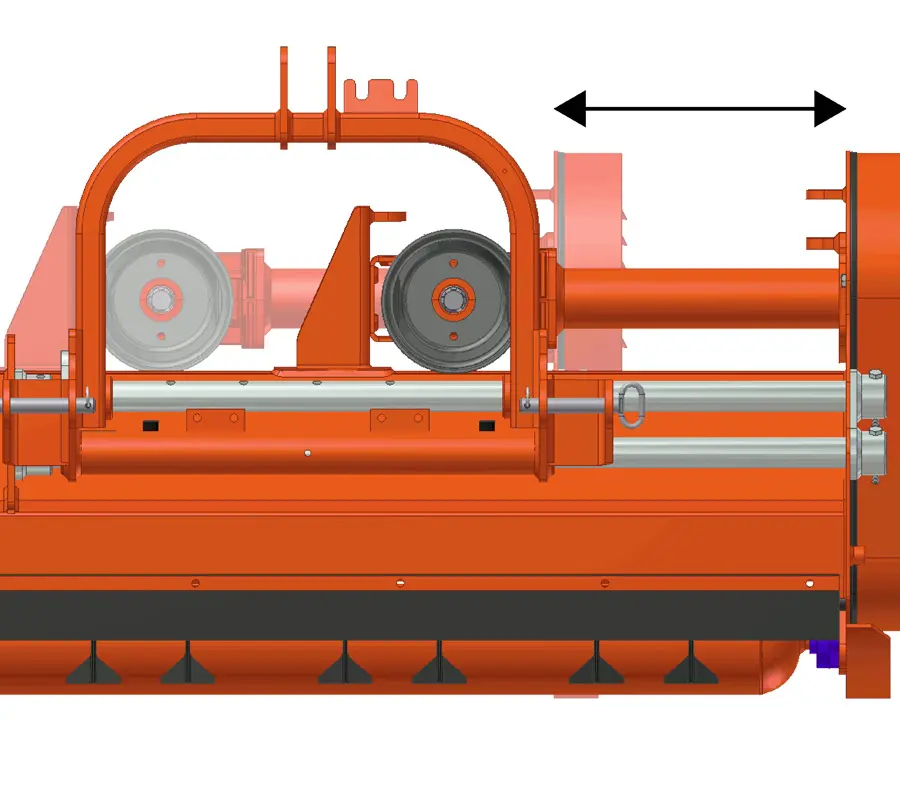

Up to 16″ of side shift
H40-S is equipped standard with a manual or optional hydraulic side-shift that allows mower to be offset up to 16″. With the standard manual offset the operator can choose one of five different pre-set positions, while with the optional hydraulic side shift, the operator has infinite adjustments.

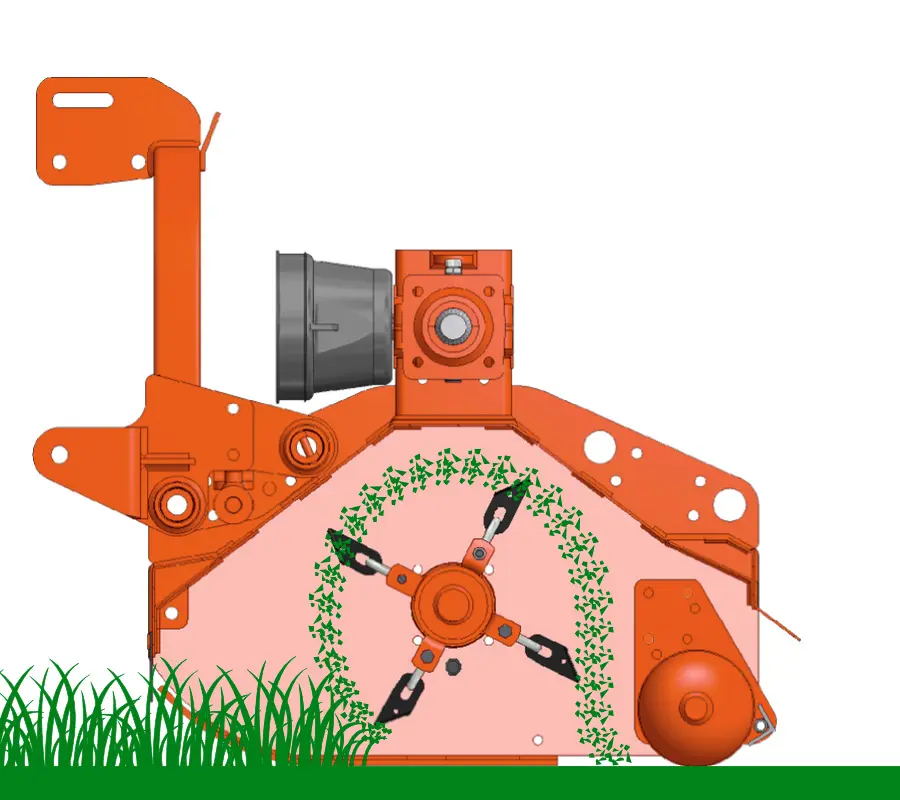

Roller mounted in standard position
When roller is mounted in the standard position most of the cut grass will be discharged in front of the roller.

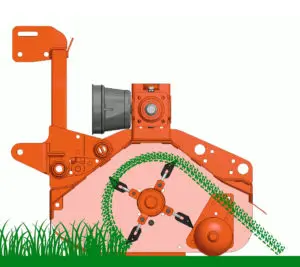

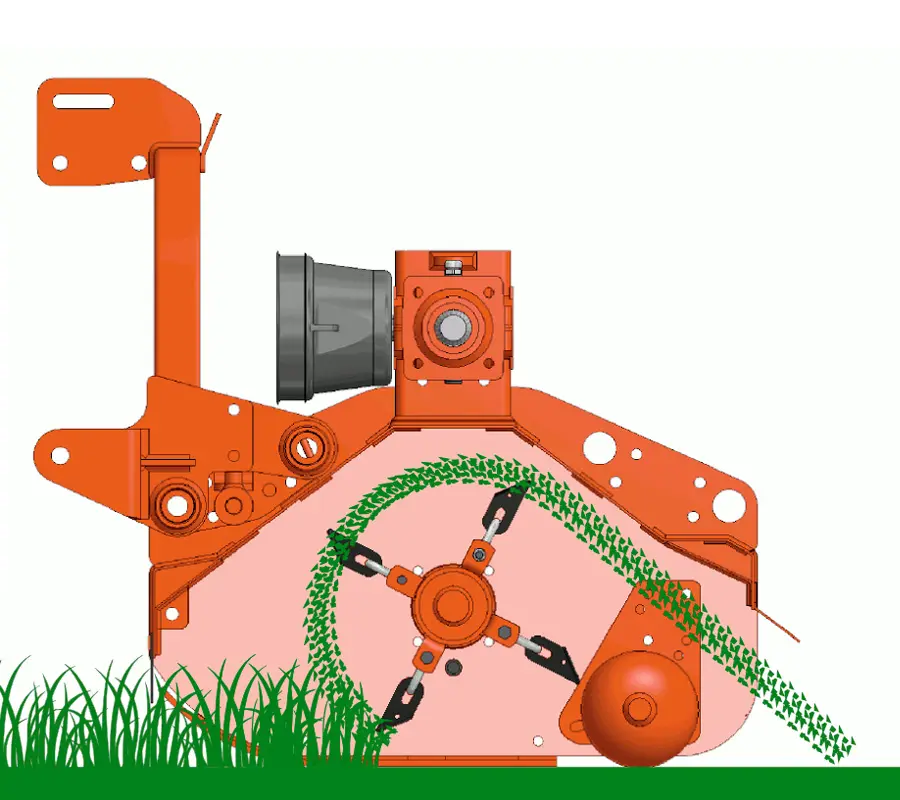

Roller mounted in forward position
If the roller is mounted in the forward position, most of the cut grass will
be discharged behind the roller. Mounting the roller in the forward position allows for the blades to prevent grass build up on the rear roller.
Note: When using rear roller in the forward position, the roller scraper will need to be removed.
Manually loaded belt tensioners
Our manually loaded belt tensioning system has allowed us to remove idlers which often turn out to be the root cause of most belt failures.

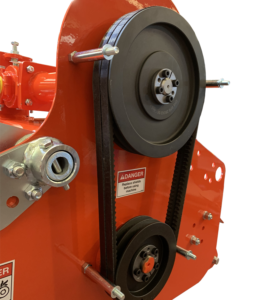

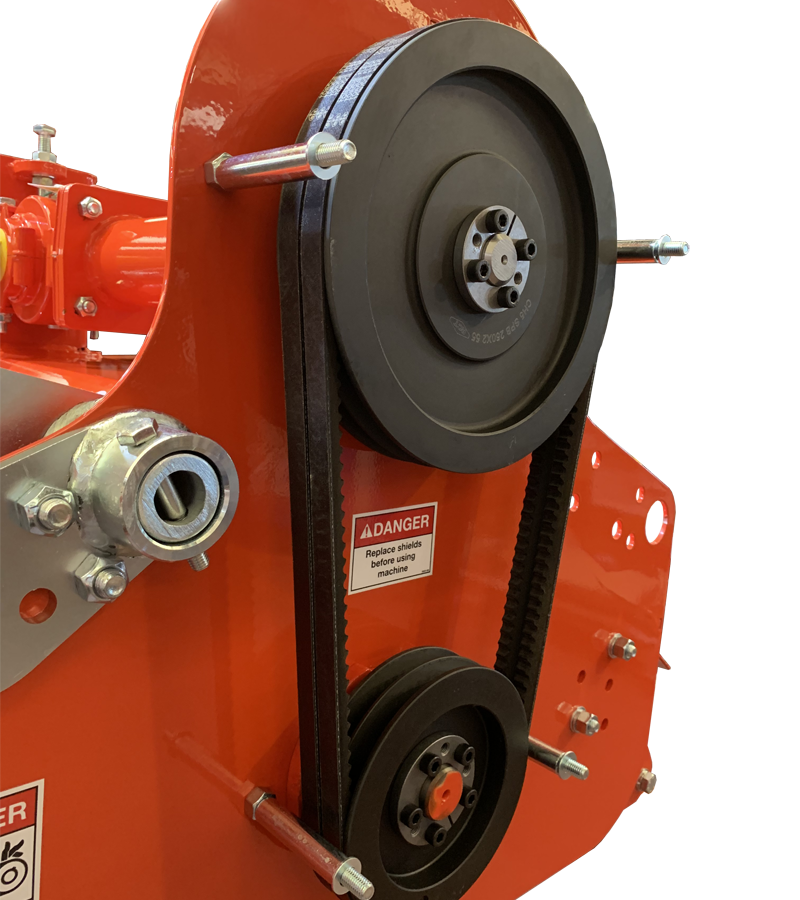

Heavy duty, pulleys and belts
H40-S mowers are equipped standard with heavy duty individually balanced steel pulleys and SPBX type reinforced notched belts. Pulleys have over 180˚ belt coverage without the use of idlers.

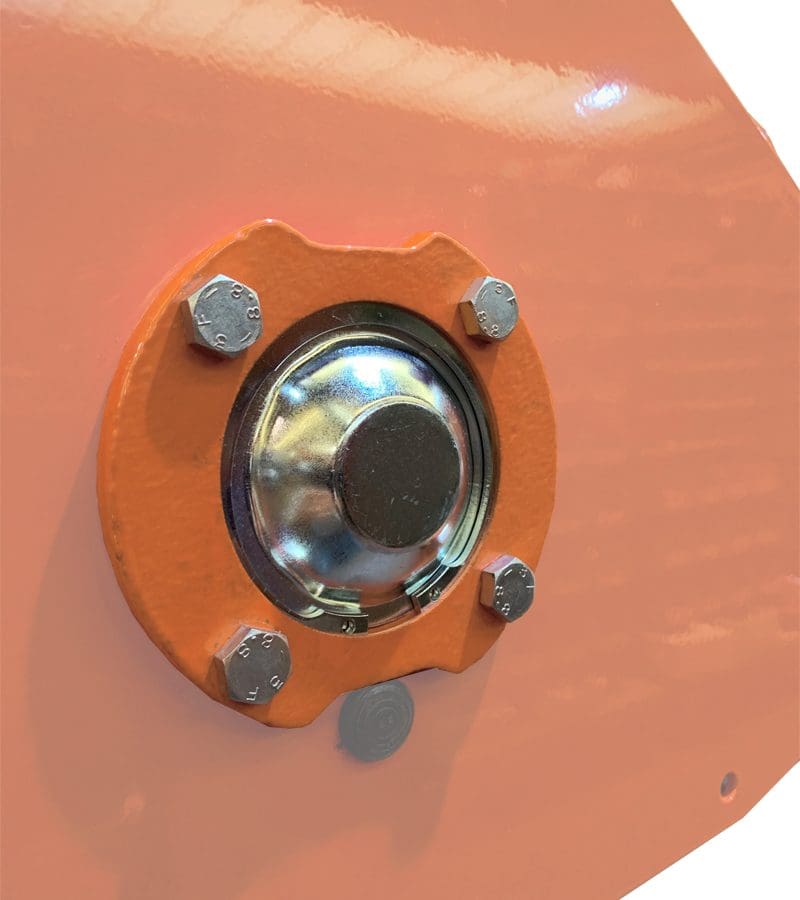

Sealed rotor bearings and low profile rotor supports
Rotor bearings are self-aligning insuring a longer lifespan (up to 30% longer than traditional roller bearings) and high resistance to heavy workloads. Our sealed rotor bearings also never require maintenance.
The low profile of the rotor supports means the operator can mow closer to obstacles without risking to impact the supports against foreign objects.
Clockwise rotor rotation
Clockwise rotor rotation allows cut debris to be thrown up and around the rotor and then straight down into the ground, reducing the risk caused by thrown objects.
Specific blades for any application
Only BEFCO offers you the choice of fine cut blades, dethatching blades, reverse “Y” blades, paddle blades or hammers blades allowing the operators to set up the unit specifically for their application.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.
Dethatching blades (factory installed)
DBD48H40 rotor with dethatching blades for H40-S48
DBD60H40 rotor with dethatching blades for H40-S60
DBD72H40 rotor with dethatching blades for H40-S72
Reverse “Y” blades (factory installed)
YBD48H40 rotor with reverse “Y” blades for H40-S48
YBD60H40 rotor with reverse “Y” blades for H40-S60
YBD72H40 rotor with reverse “Y” blades for H40-S72
Triangular paddle blades (factory installed)
TBD48H40 rotor with triangular paddle blades for H40-S48
TBD60H40 rotor with triangular paddle blades for H40-S60
TBD72H40 rotor with triangular paddle blades for H40-S72
Hammer blades (factory installed)
HBD48H40 rotor with hammer blades for H40-S48
HBD60H40 rotor with hammer blades for H40-S60
HBD72H40 rotor with hammer blades for H40-S72

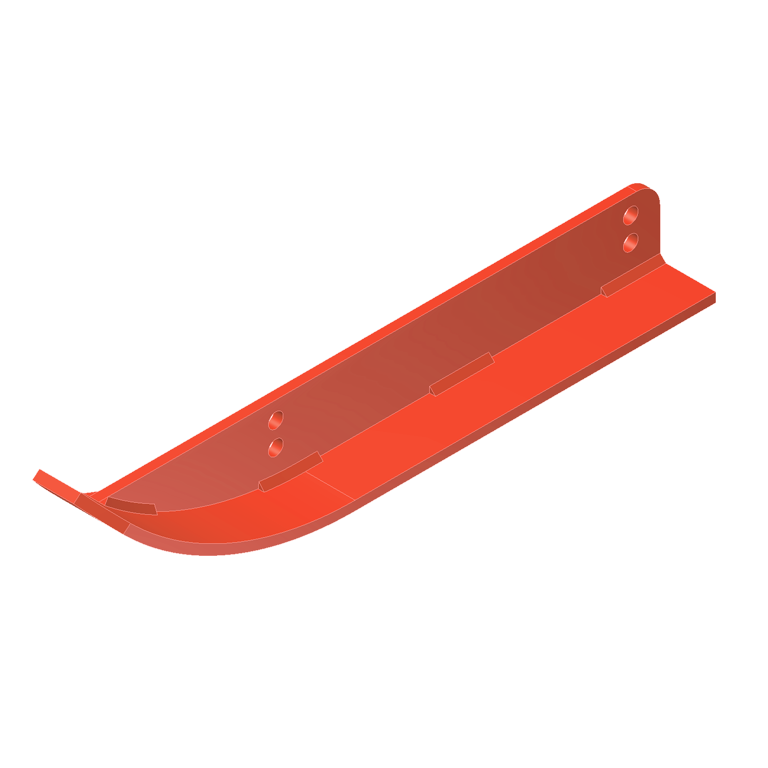

Side skids
009-9206

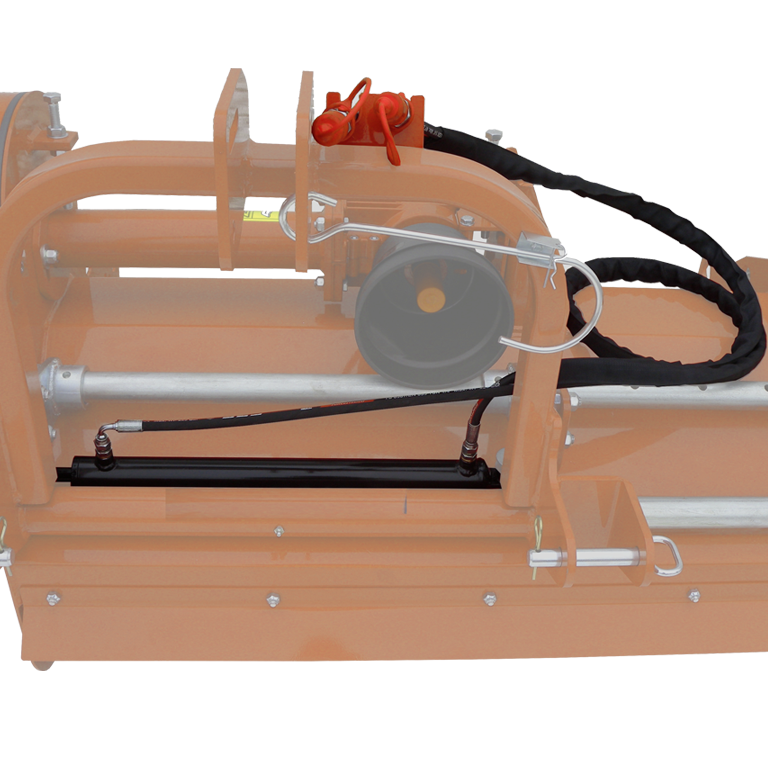

Hydraulic cylinder for side shift
009-9207
Front steel deflectors
009-9208 for H40-S48
009-9209 for H40-S60
009-9210 for H40-S72

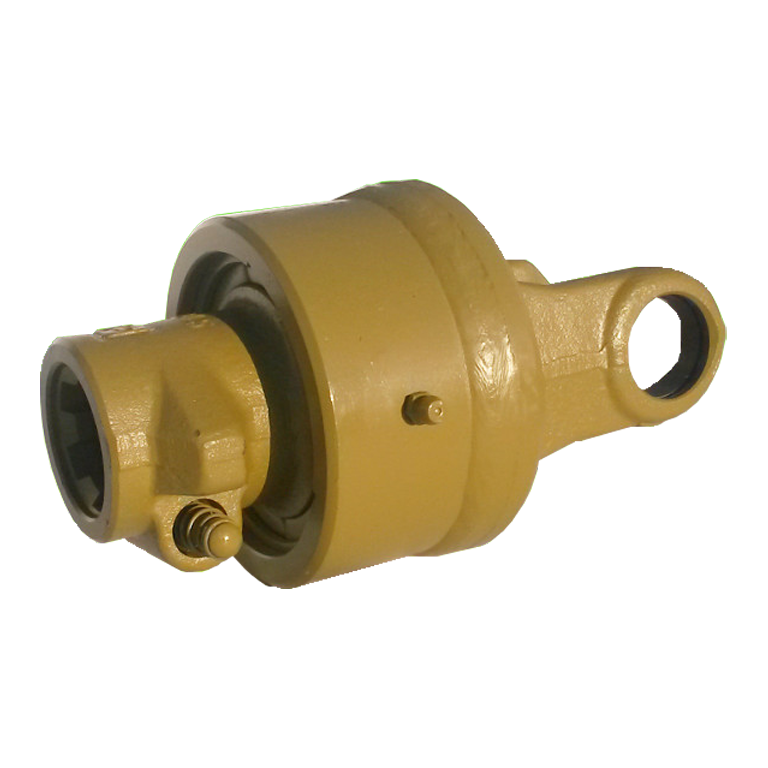

Overrunning clutch
009-9560

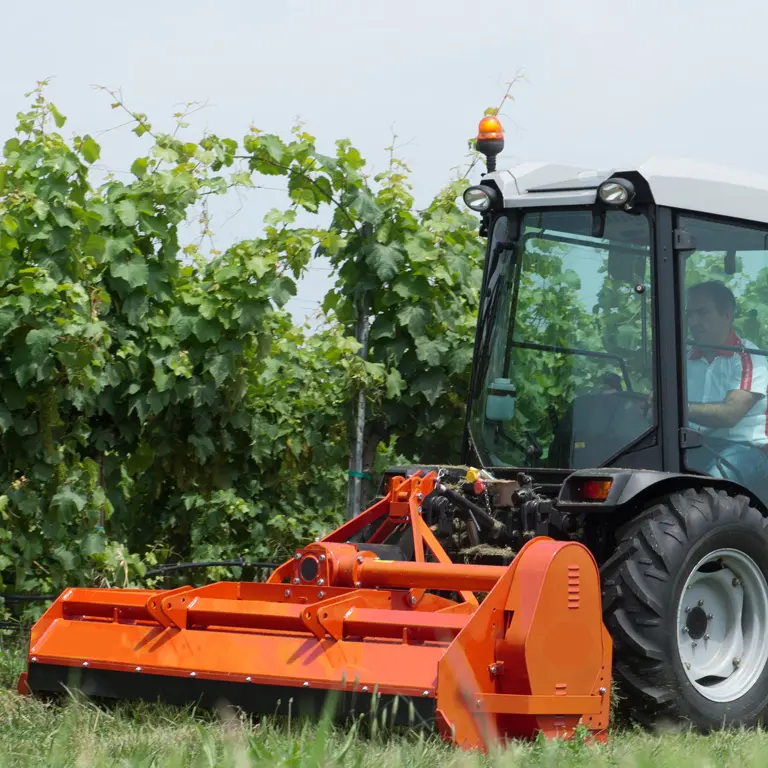

Front mount (factory installed)
FRTXXH40 Front mount
Reverse rotation (factory installed)
RVRXXH40 Reverse rotor rotation (counter clock-wise)
