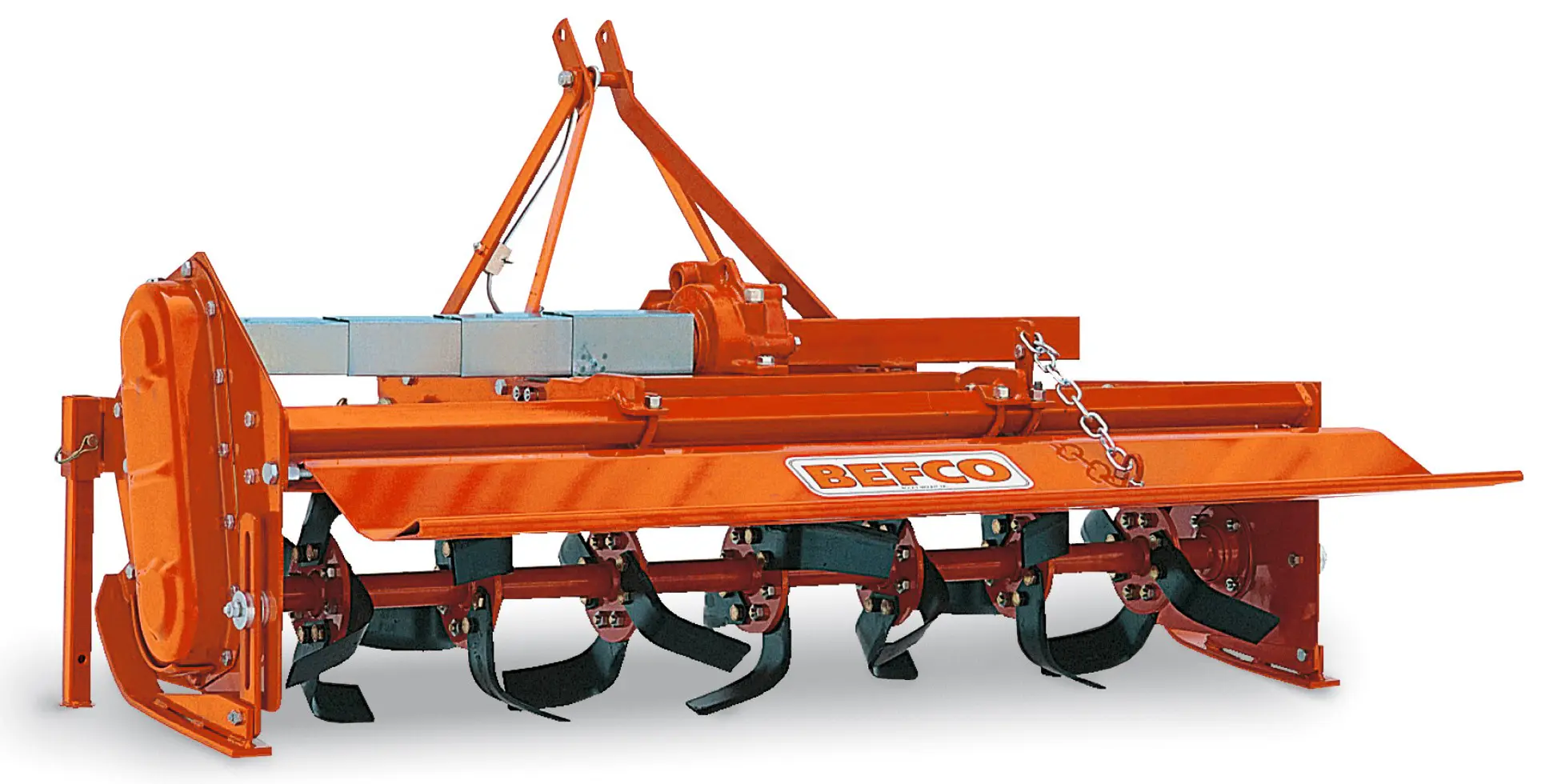

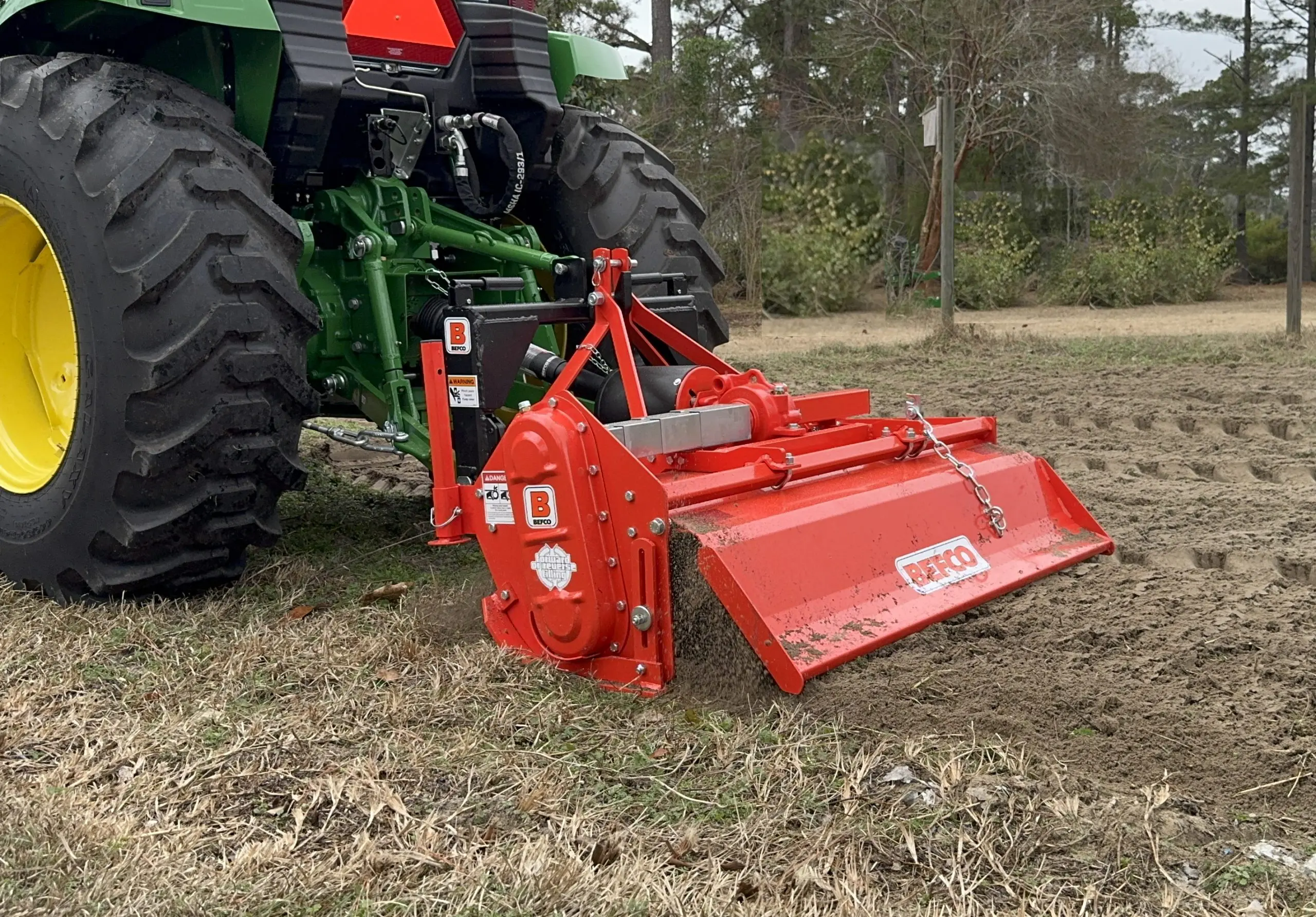

TILL-RITE T40
Rotary tillers with side-shift
20-40 HP (15-30 KW)
540 rpm - Cat. 1
- Highly engineered & rugged gearbox
- Smooth manual side-shift system
- Adjustable side skids for working depth control
- Heavy duty shielded PTO shaft with shear bolt coupling (1 3/8″ ASAE cat. 3)
- Exchangeable sprockets for two working speeds
- Parking stand
- 3 point linkage, cat. 1
- Lateral ASA #80 chain drive transmission in oil bath
- Four blades per flange
- High carbon solid steel round rotor shaft allows for a deeper working depth
- Outward turned blades keep the rotor supports clean and maximize working width
- Heavy duty full size blades
- Wear protection on chain case
- Max. working depth 7 1/4″
MODELS WITH SHEAR BOLT
| Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Side-shift | # Flanges | # Blades | Chain sprockets | Rotor rpm | Maximum Working depth | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T40-142 | 20-40 | 42" | 47" | 363 | 481 | 10" | 5 | 20 | 11-14 | 231/375 | 7 1/4" | ASAE cat. 3 shear bolt |
| T40-150 | 25-40 | 50" | 55" | 407 | 519 | 14" | 6 | 24 | 11-14 | 231/375 | 7 1/4" | ASAE cat. 3 shear bolt |
| T40-158 | 30-40 | 58" | 63" | 451 | 540 | 18" | 7 | 28 | 11-14 | 231/375 | 7 1/4" | ASAE cat. 3 shear bolt |
| T40-166 | 32-40 | 66" | 72" | 518 | 607 | 22" | 8 | 32 | 11-14 | 231/375 | 7 1/4" | ASAE cat. 3 shear bolt |
MODELS WITH SLIP CLUTCH
| Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Side-shift | # Flanges | # Blades | Chain sprockets | Rotor rpm | Maximum Working depth | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T40-242 | 20-40 | 42" | 47" | 373 | 491 | 10" | 5 | 20 | 11-14 | 231/375 | 7 1/4" | ASAE cat. 3 slip clutch |
| T40-250 | 25-40 | 50" | 55" | 417 | 529 | 14" | 6 | 24 | 11-14 | 231/375 | 7 1/4" | ASAE cat. 3 slip clutch |
| T40-258 | 30-40 | 58" | 63" | 461 | 550 | 18" | 7 | 28 | 11-14 | 231/375 | 7 1/4" | ASAE cat. 3 slip clutch |
| T40-266 | 32-40 | 66" | 72" | 530 | 619 | 22" | 8 | 32 | 11-14 | 231/375 | 7 1/4" | ASAE cat. 3 slip clutch |
Built-in manual side shift
BEFCO tillers feature a built-in manual side shift system that allows operator to either keep the tiller center mounted behind the tractor, like a traditional unit, or offset the tiller to the right of the tractor. This is particularly beneficial when trying to till over the right tractor tire and closer to obstacles.
Forward or reverse tilling rotation
BEFCO tillers may be set up with either a forward or reverse rotating rotor. When the rotor rotates forward the tiller will have a tendency to bury the rocks while when the tiller rotates backwards it will have a tendency to bring any rocks to the surface.

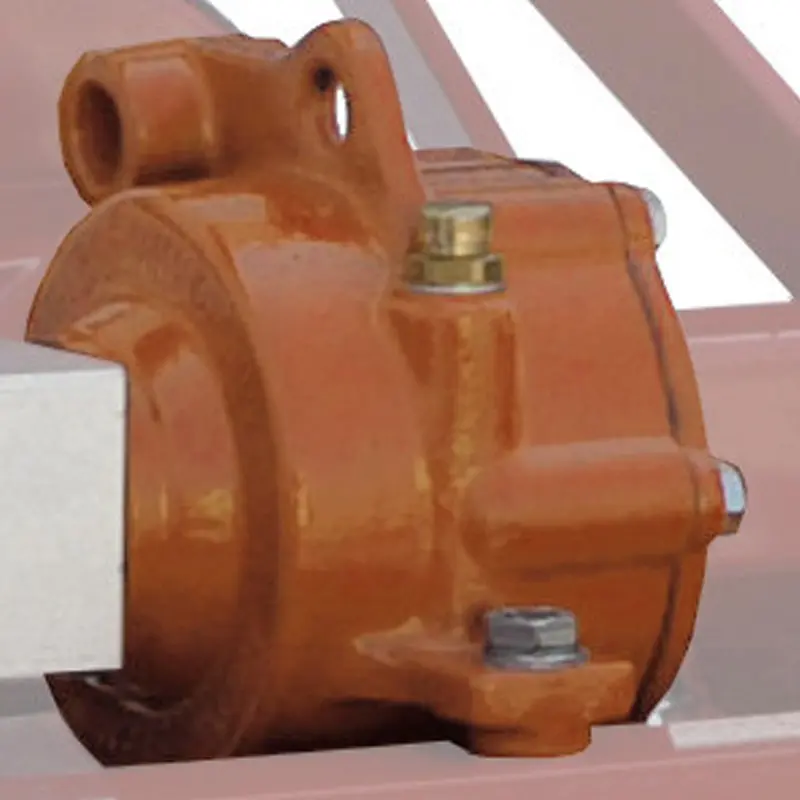

Gearbox manufactured by BEFCO
Unlike other manufacturers who purchase gearboxes from outside suppliers, BEFCO utilizes a gearbox built in-house using high strength steel for its gears and top of the line bearings and seals.

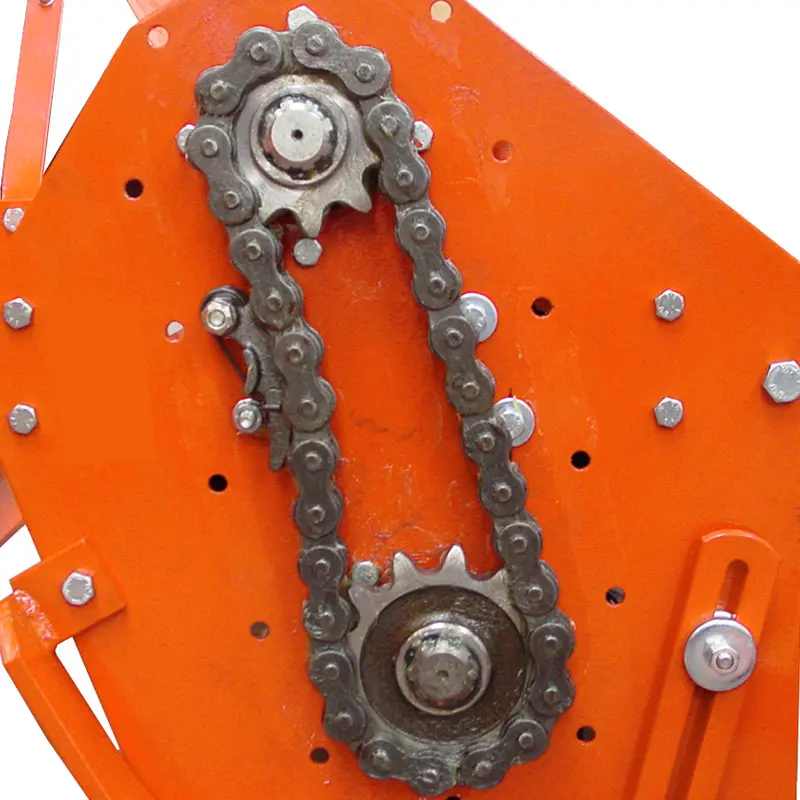

ASA 80 Chain drive
Lateral ASA 80 chain drive transmission in oil bath. Our chain transmissions are oversized specifically to avoid any downtime due to maintenance. Our Chain transmissions also offer over 180° gear coverage resulting in a smoother and better distributed power transmission.
Reversible sprockets
Model T40 tillers are equipped with reversible sprockets that allow you obtain two tillage speeds: Standards speed is 231 rpm, Increased speed is 375 rpm.
Rotor supports
Rotor supports are made out of stamped steel.
Flanged rotor shaft
The flanged rotor shaft allows operator to quickly disassemble the rotor from the tiller for easy and comfortable blade service and replacement.

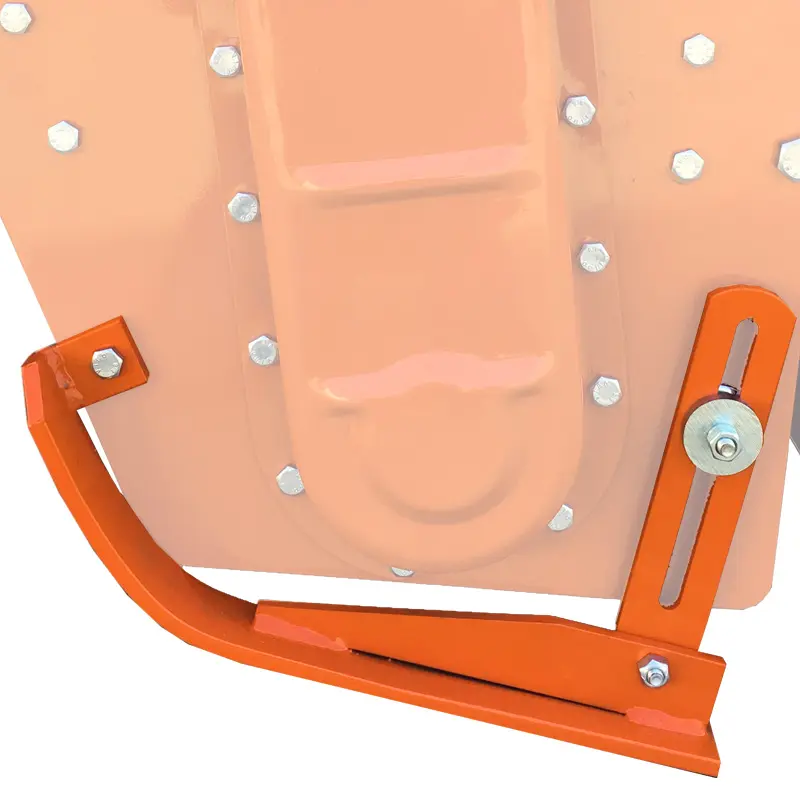

Side skids with Infinite adjustments
Side skids allow for tiller depth adjustment to be set anywhere from 0″ to 7 1/4″.
Reverse rotation (factory installed)
RVRXXT40 reverse rotation.
With this option ordered, unit will arrive from the factory assembled with a reverse rotating tiller rotor.
Aerator rotor
0099852 aerator rotor for models T40-150 and T40-250
0099853 aerator rotor for models T40-158 and T40-258
0099854 aerator rotor for models T40-166 and T40-266
