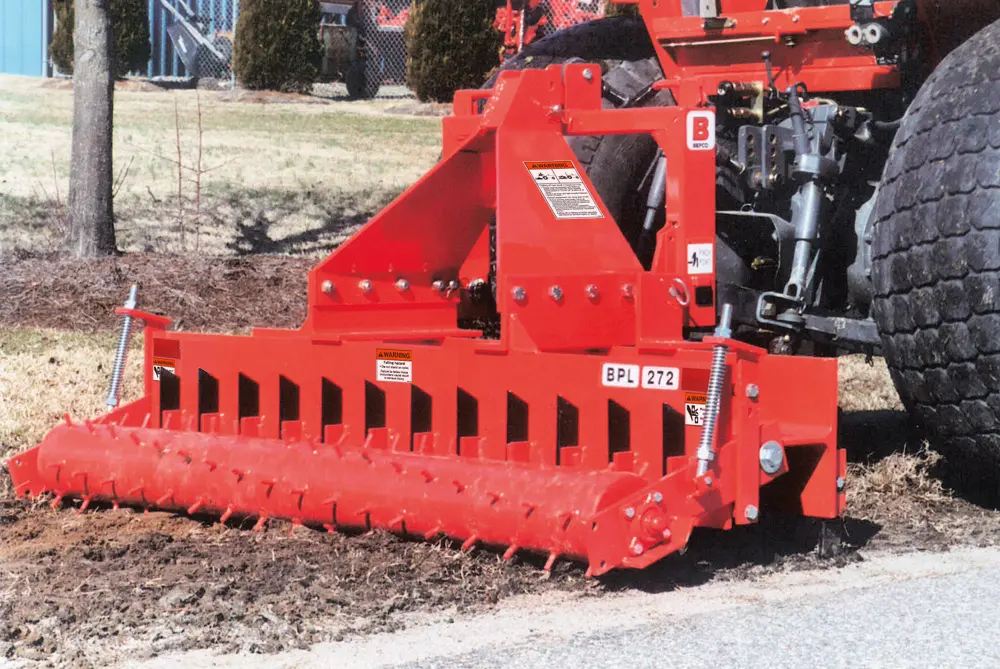

BPL HD
Soil pulverizers
40-90 HP (30-60 KW)
Cat. 1
- 3/8″ steel spikes fully welded in a timed scroll pattern on a heavy walled roller with two 160 lbs. compression springs
- 12″ (59.4 lb/ft) frame beam
- Reversible heat treated 1/2″ x 2″ shanks
- 3 point linkage, cat. 1
- 6 5/8″ diameter spiked roller tube
- Self aligning 1″ bearings on roller
- Formed plate “A” frame
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | # of shanks | # of roller spikes | Shank spacing | Shank penetration | Spring pressure lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|
BPL-272 | 40-90 | Cat. 1 | 72" | 76" | 781 | 846 | 25 | 106 | 2 13/16" | 4 1/2" | 160 ea. |
BPL-284 | 40-90 | Cat. 1 | 84" | 88" | 875 | 940 | 29 | 124 | 2 13/16" | 4 1/2" | 160 ea. |

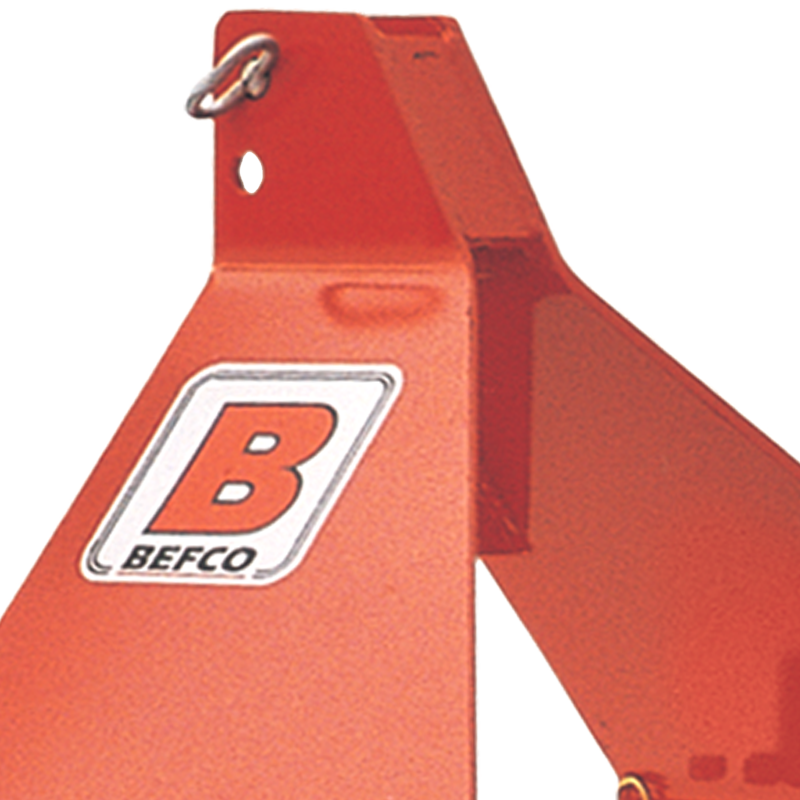

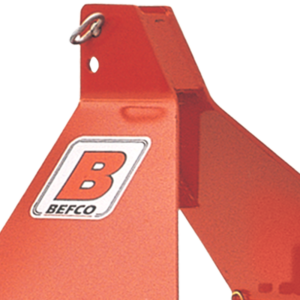

Heavy duty formed plate “A” frame
Our fully welded and formed heavy duty “A” frames resist the toughest working conditions.

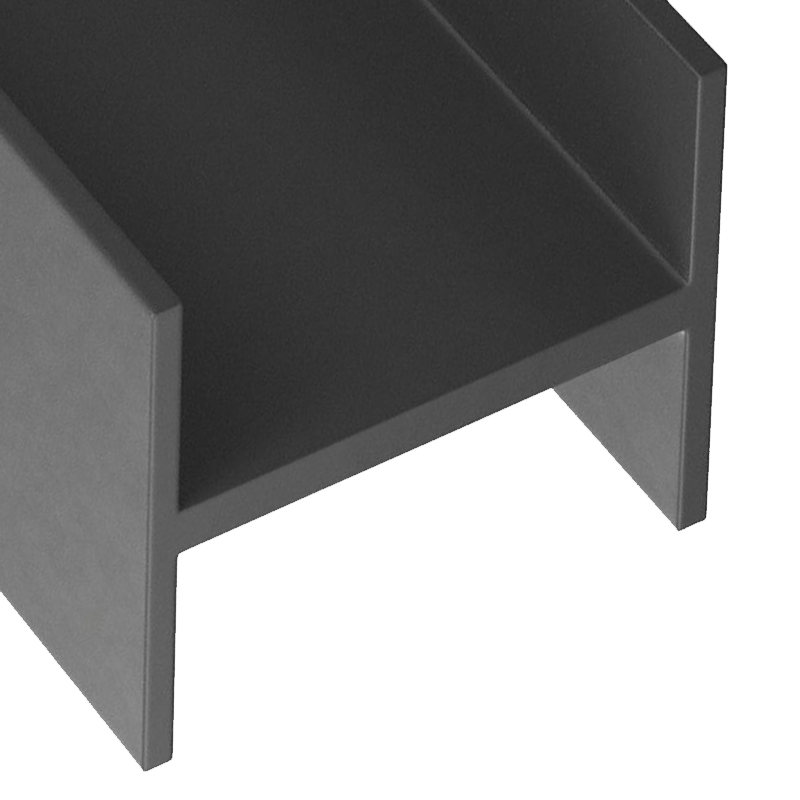

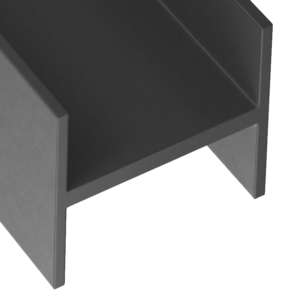

Massive 12″ I beam frame construction
Heavy duty pulverizers utilize a 12″ (59.4 lbs/ft) frame I beam as the main frame structure. You will not find a heavier built soil pulverizer on the market.

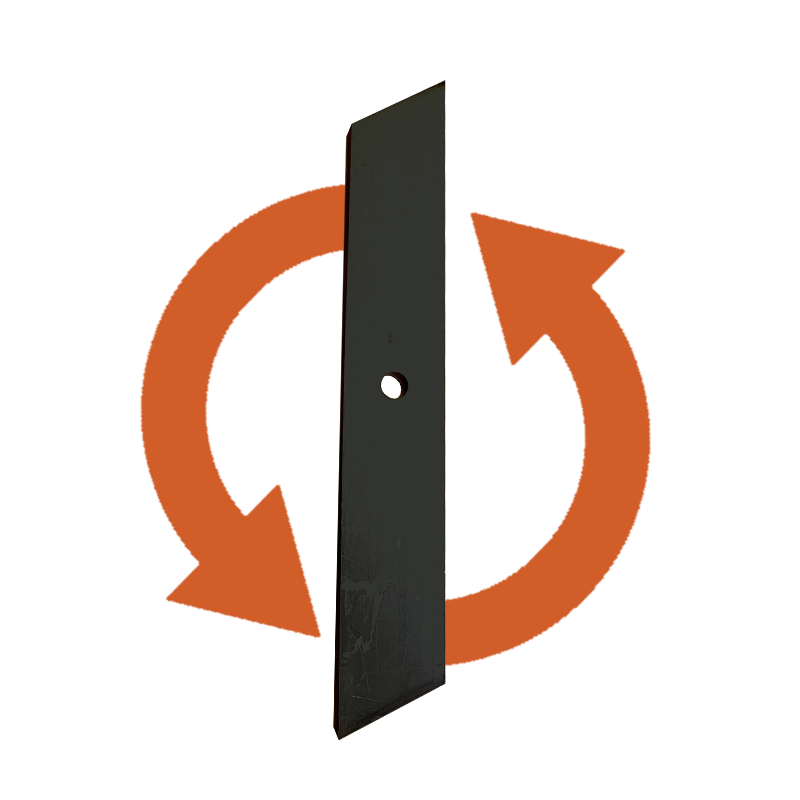

Reversible shanks
Heat treated 1/2″x2″ shanks are heavier duty than the spikes often used by the competition and are reversible giving you twice the use out of them.

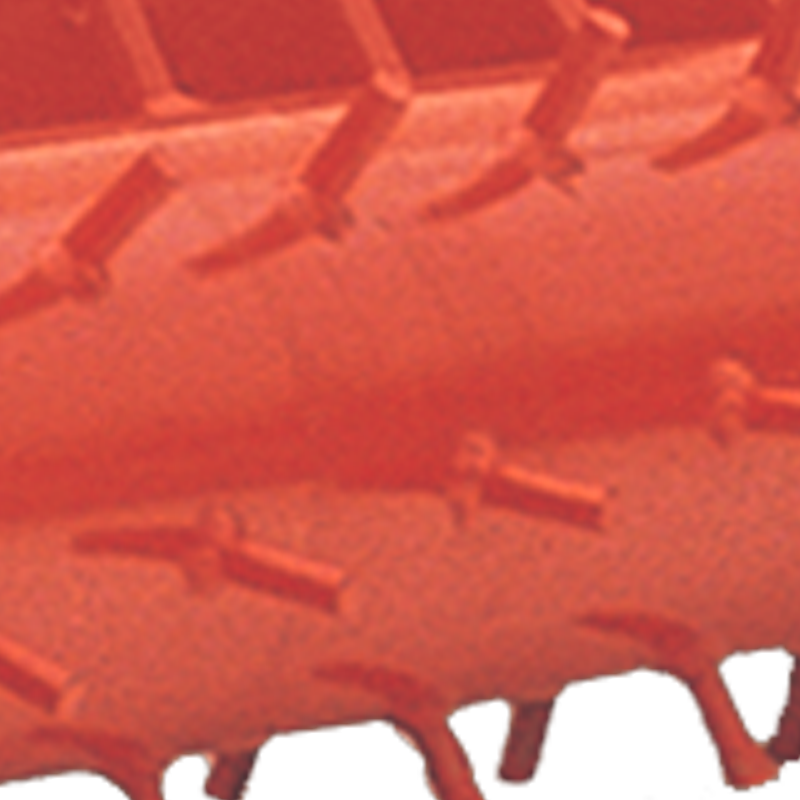

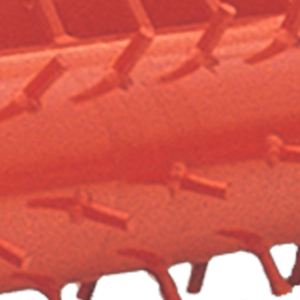

Heat treated spikes
3/8″ steel spikes fully welded in a timed scroll pattern on a heavy walled roller.

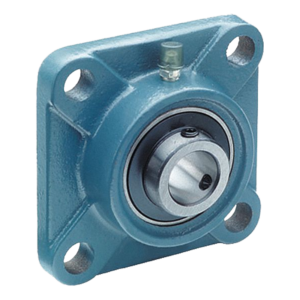

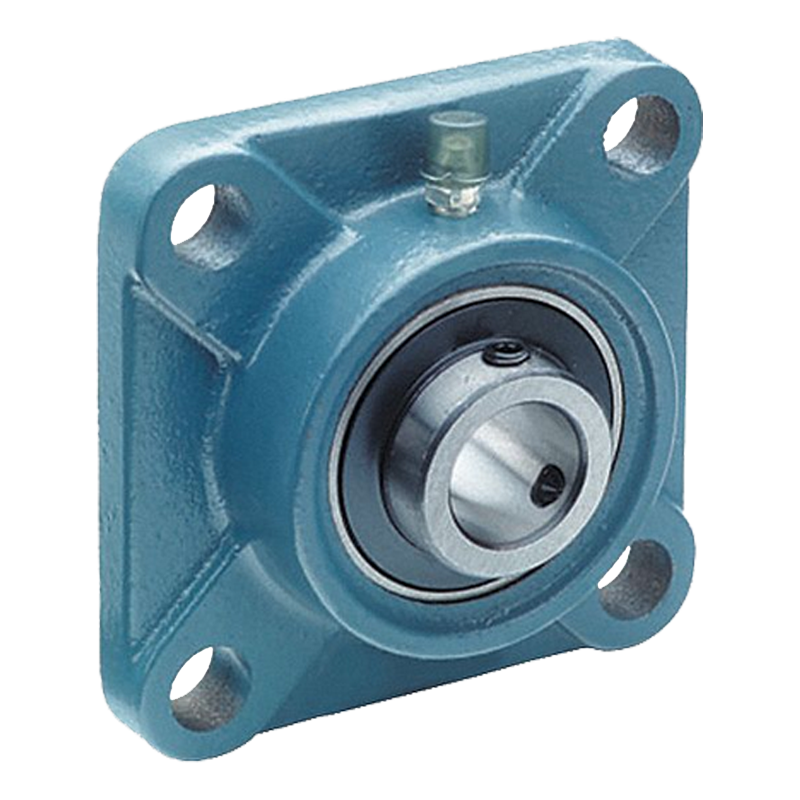

Self aligning roller bearings
Greasable self angling 1″ roller bearings allow the rear roller to spin freely over the ground.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.

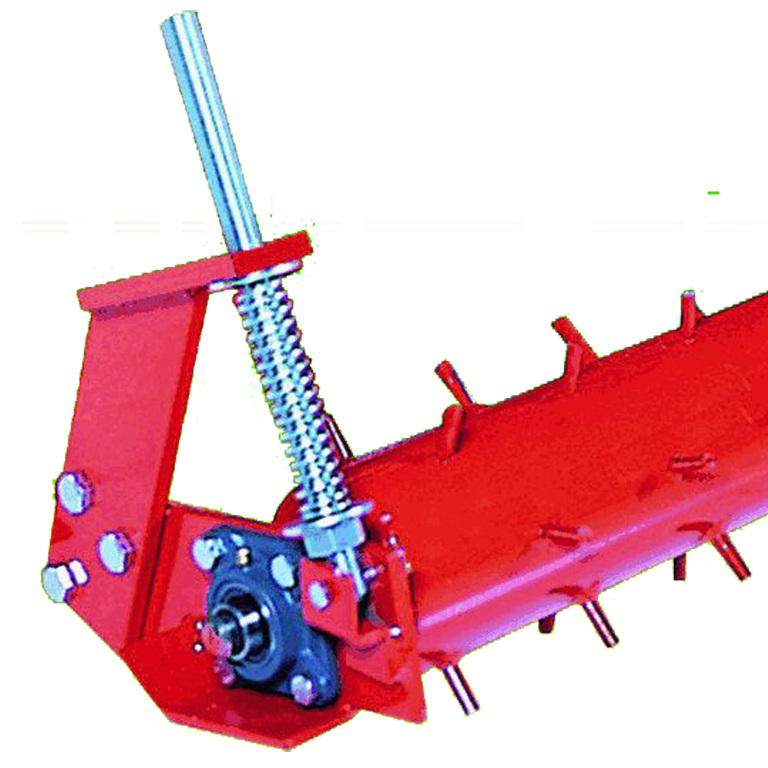

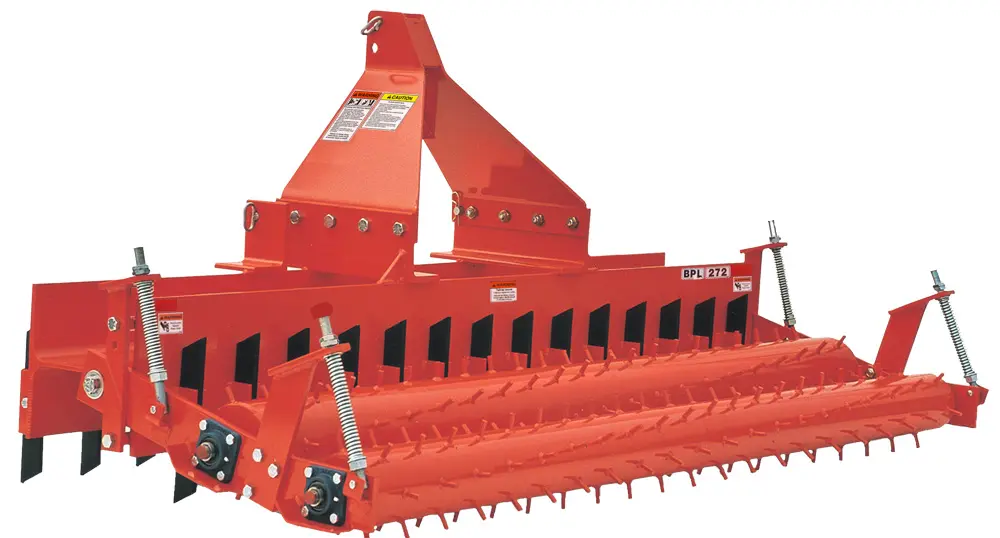

Second spiked roller
0099646 Second spiked roller assembly (Ø 5 9/16″) with up to 126 lbs of pressure for BPL-272
0099647 Second spiked roller assembly (Ø 5 9/16″) with up to 148 lbs of pressure for BPL-284
