BRB SD
Rear blades
16-50 HP (12-37 KW)
Cat. 1
- 5 forward & 5 reverse positions on Standard duty series
- 3 forward and 3 reverse on Subcompact series
- Sturdy frame construction
- Left or right offset
- 3 tilt positions on Standard duty series
- 1/2″ x 6″ heat treated reversible cutting blade
- 1/4″ thick moldboard
- 3 point linkage, cat. 1
SUB-COMPACT MODELS
| Model | HP | Hitch | Working width | Weight lbs | Ship lbs | Tilt adjustment | Blade angling | Offset adjustment |
|---|---|---|---|---|---|---|---|---|
BRB-C48 | 16-30 | Cat. 1 | 48" | 139 | 189 | - | 16° | 6" |

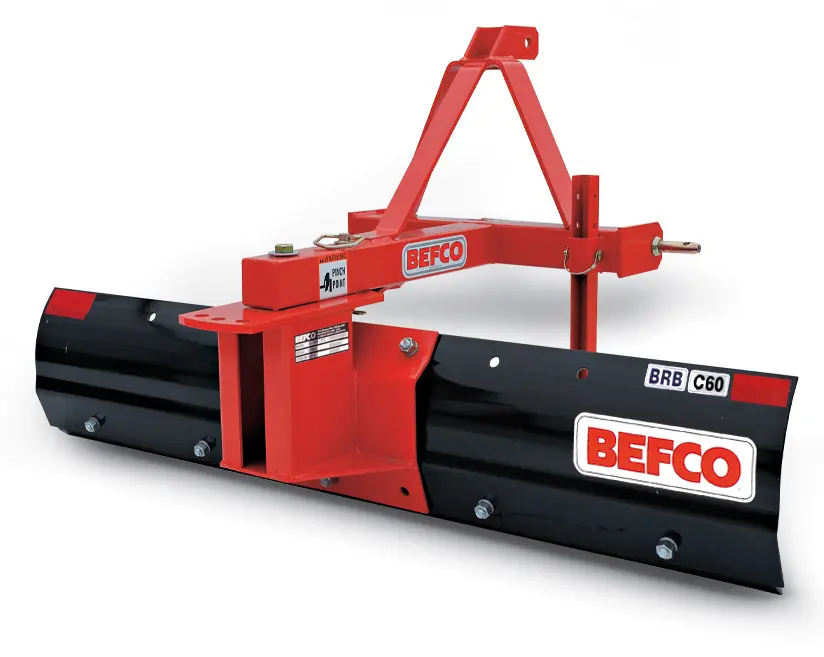

BRB-C60 | 16-30 | Cat. 1 | 60" | 158 | 208 | - | 16° | 6" or 12" |
STANDARD DUTY MODELS
| Model | HP | Hitch | Working width | Weight lbs | Ship lbs | Tilt adjustment | Blade angling | Offset adjustment |
|---|---|---|---|---|---|---|---|---|

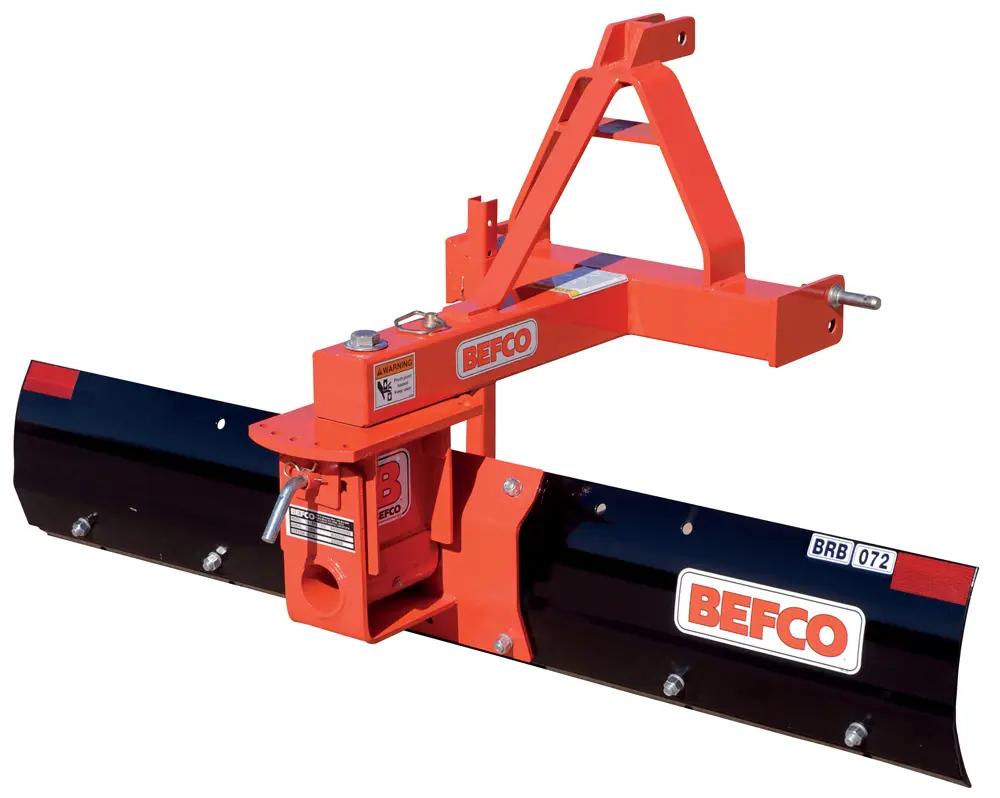

BRB-072 | 25-50 | Cat. 1 | 72" | 275 | 325 | 14° | 16° & 32° | 6" or 12" |
BRB-084 | 25-50 | Cat. 1 | 84" | 294 | 344 | 14° | 16° & 32° | 6" or 12" |

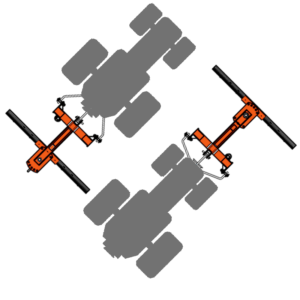

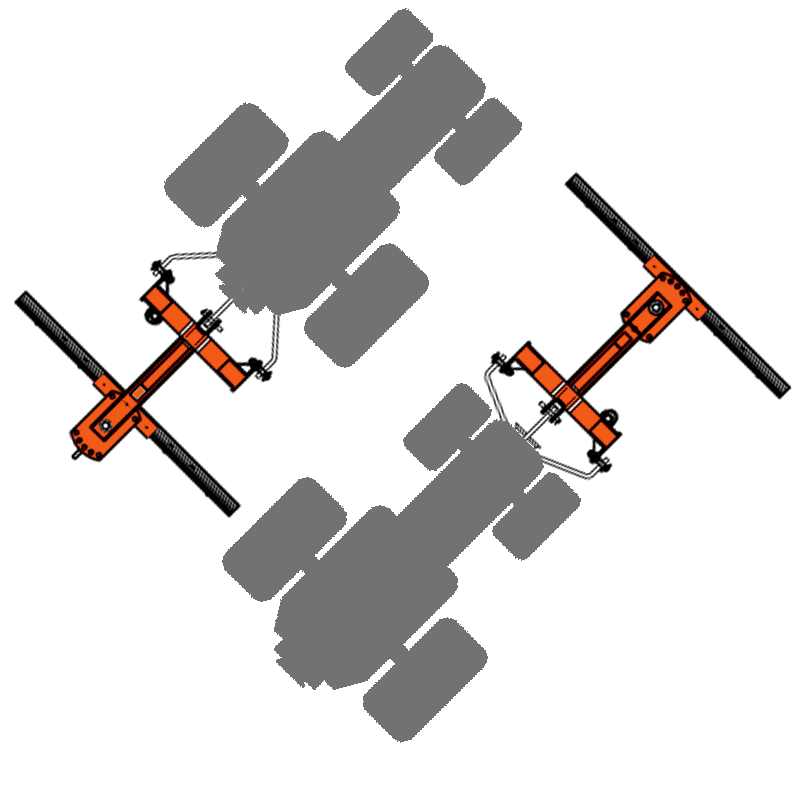

Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

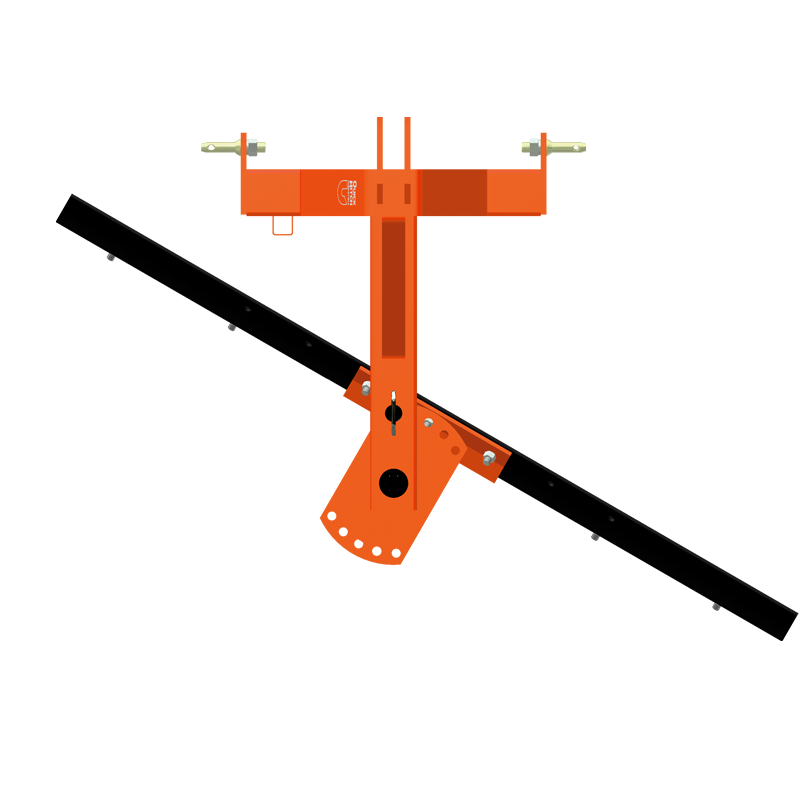

Angling
Up to 32° angling on Standard duty models with 5 forward and 5 reverse positions.
16° angling on Sub-compact models.

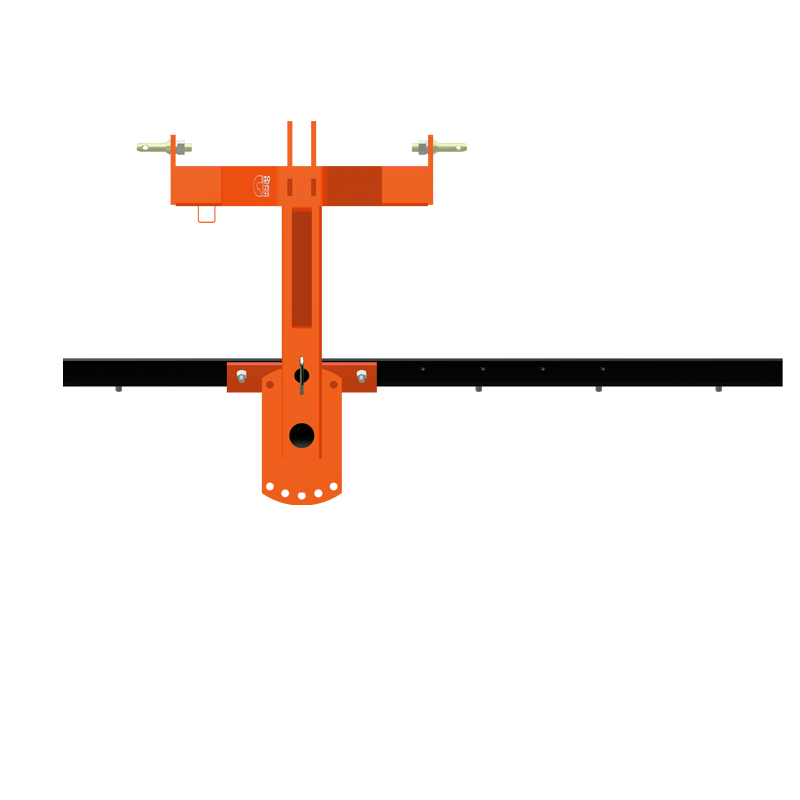

Offset
Up to 12″ right or left offset adjustment on Standard duty models.
6″ right or left offset adjustment on Sub-compact models.

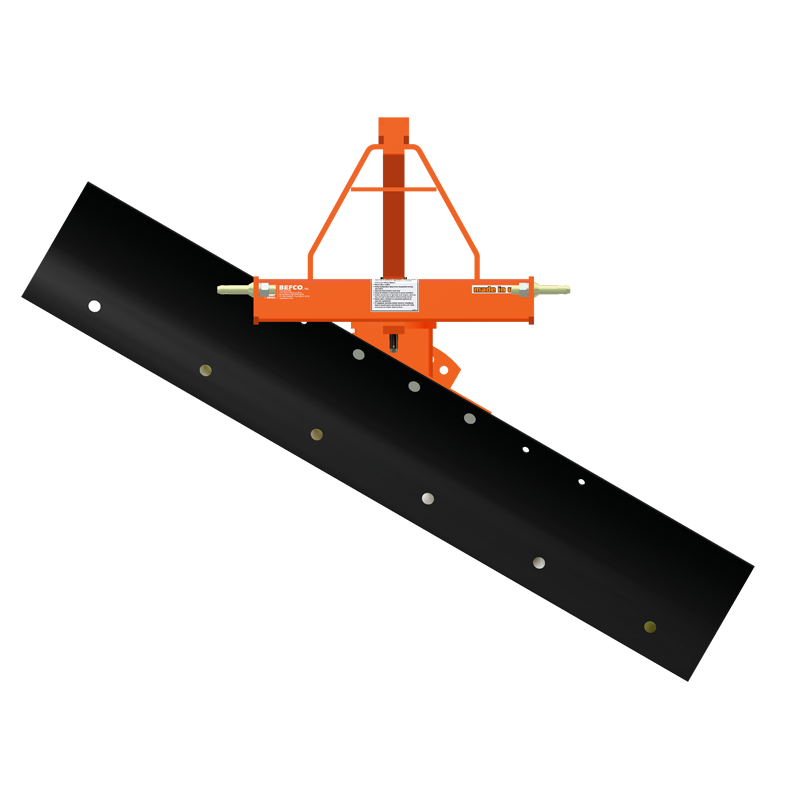

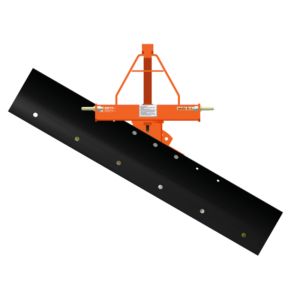

Tilt
Up to 14° right or left tilt adjustment on Standard duty models with 3 tilt positions to choose from.
1/2″x6″ heat treated blades
All BRB models are equipped with two 1/2″x6″ heat treated blades with reversible cutting edge.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.

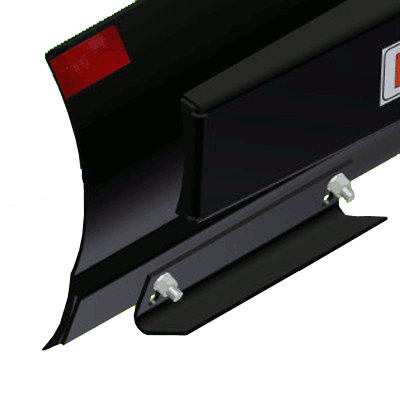

Skid shoes
BRB001 Skid shoes
Operator’s & Parts manual
