BLR

Landscape rakes
16-65 HP (12-48 KW)
Cat. 1

  • 5 forward & 5 reverse positions on Standard duty series
  • 3 forward and 3 reverse positions on Subcompact series
  • Sturdy frame construction
  • 2″ center tine spacing
  • 2 hole tine 5/16″ x 1″ on Standard duty series
  • 1 hole tine 5/16″ x 1″ on Subcompact series
  • 3 point linkage, cat. 1

SUB-COMPACT MODELS

ModelHPHitchWorking width Weight lbs Ship  lbs

Rake angling

# of Tines

BLR-C48

16-30

Cat. 1

48"

135

180

16°

24

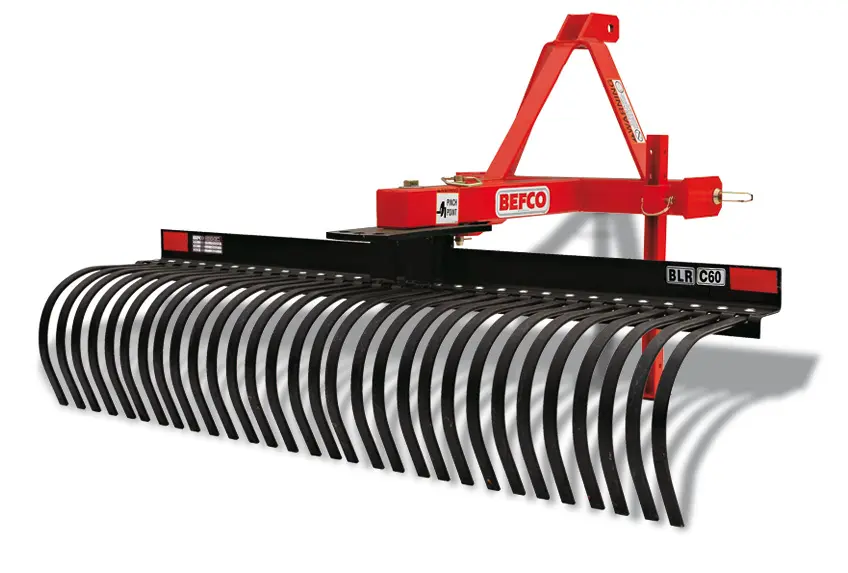

BLR-C60

16-30

Cat. 1

60"

156

198

16°

30

STANDARD DUTY MODELS

ModelHPHitchWorking width Weight lbs Ship  lbs

Rake angling

# of Tines

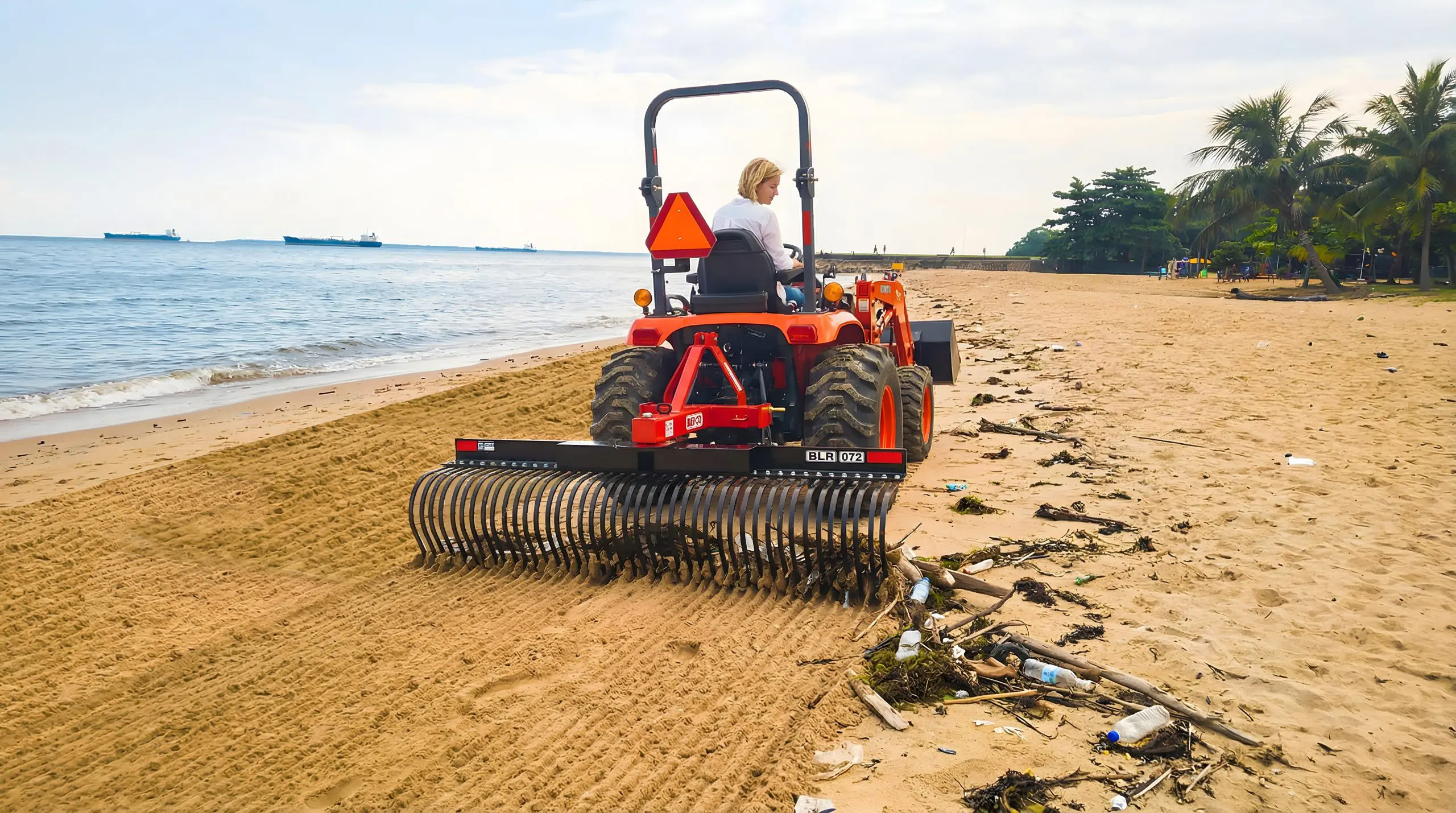

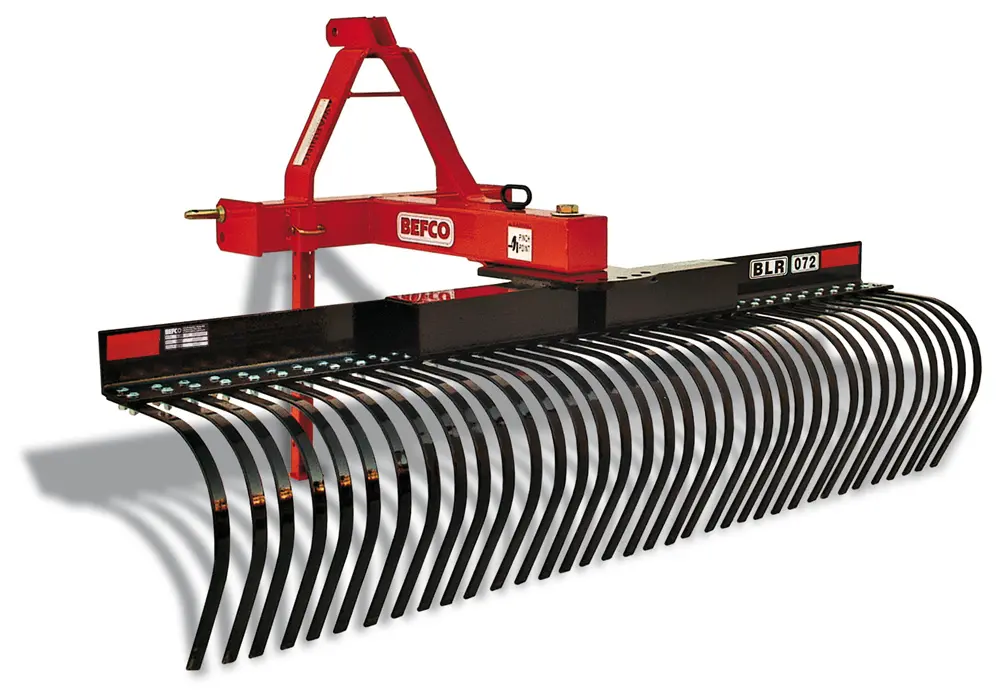

BLR-072

25-65

Cat. 1

72"

248

293

16° & 32°

36

BLR-084

25-65

Cat. 1

84"

274

319

16° & 32°

42

BLR-096

25-65

Cat. 1

96"

314

359

16° & 32°

48

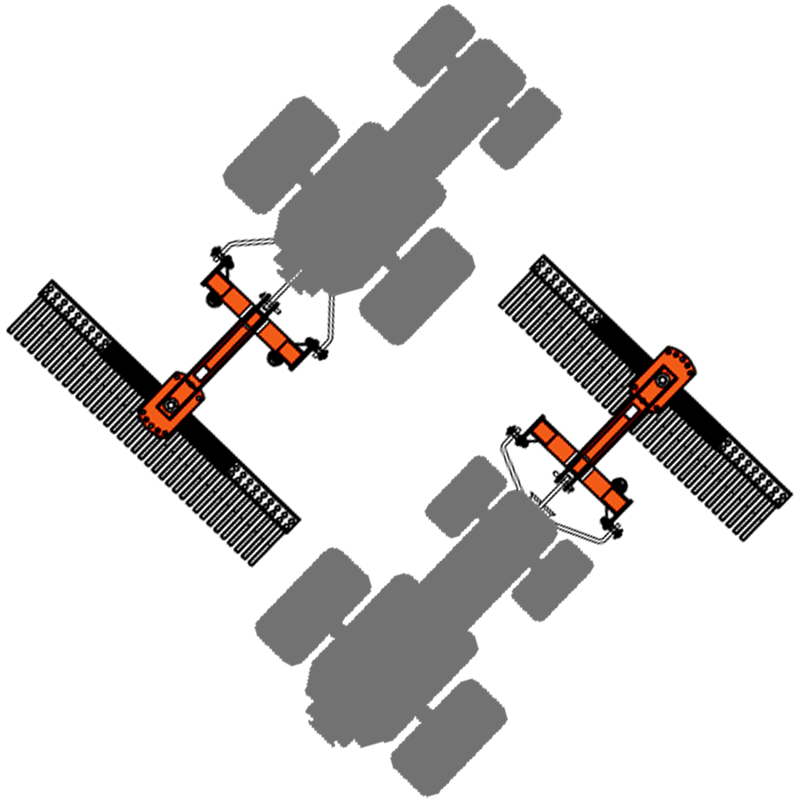

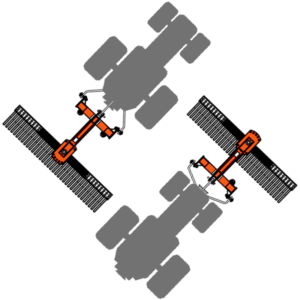

Reversible hitch for front and rear mounting

Reversible three point hitch for front and rear tractor mounting.

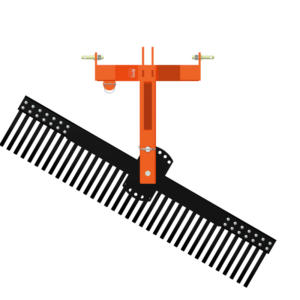

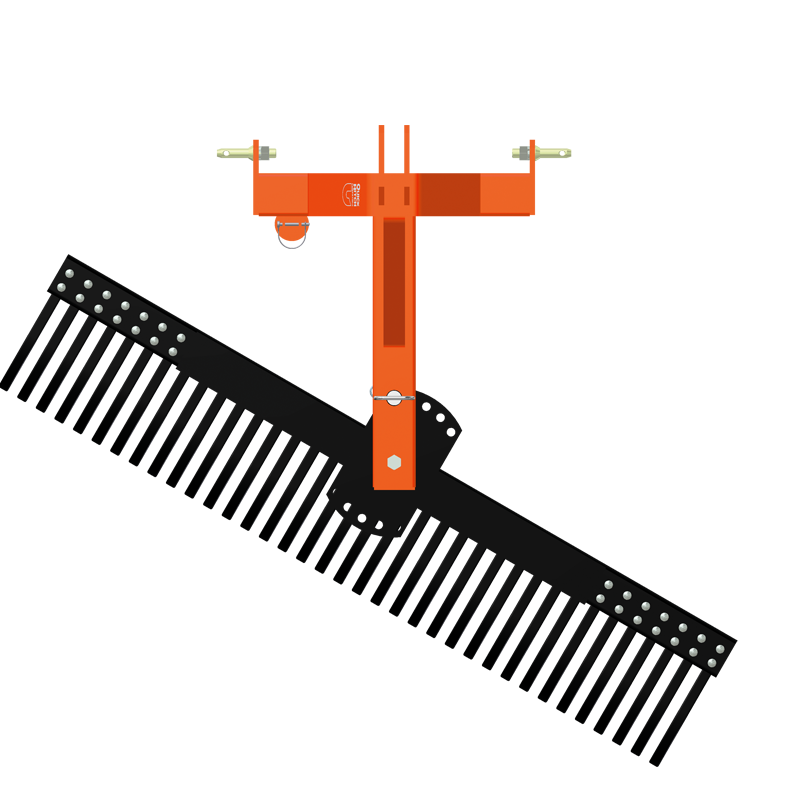

Angling

Up to 32° angling on Standard duty models with 5 forward and 5 reverse positions.
16° angling on Sub-compact models with 3 forward and 3 reverse positions.

ASAE Cat. 1 quick hitch compatible

Compatible with ASAE Cat. 1 quick hitches.

Gauge wheels

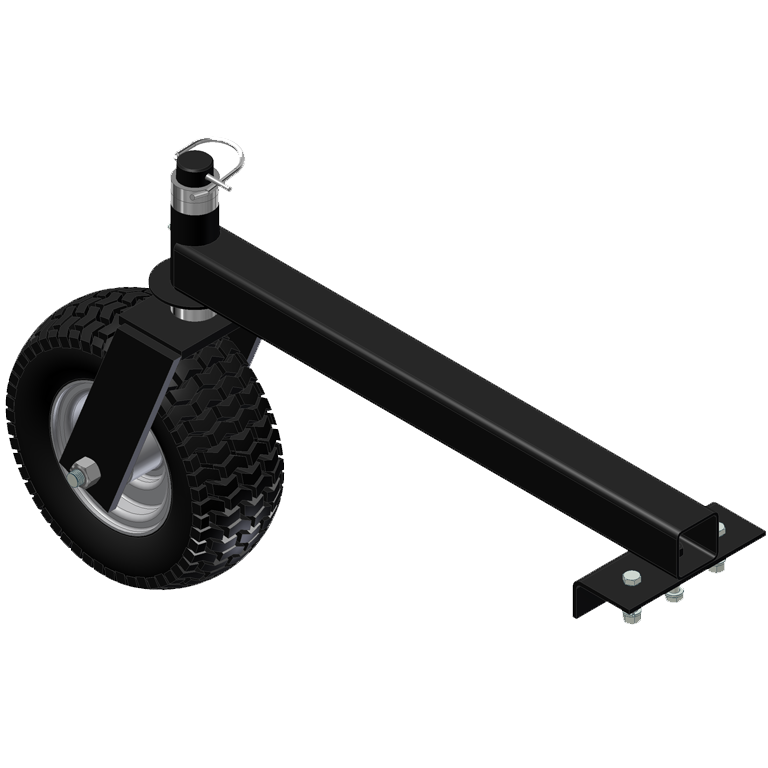

BLR002 Gauge wheels with pneumatic tires size 11″x4″ (fits Sub-compact models)

Gauge wheels

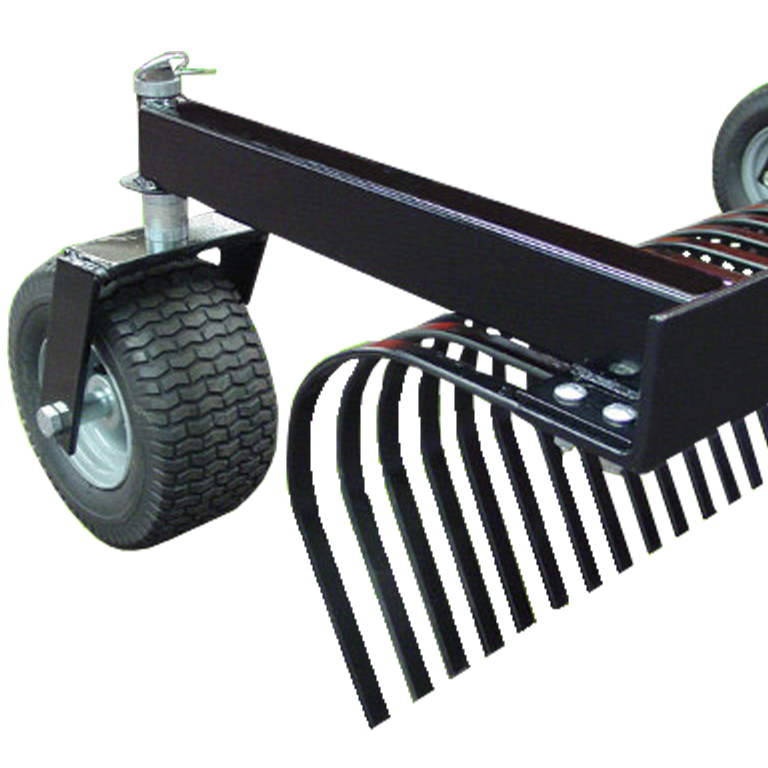

0099159 Gauge wheels with pneumatic tires size 13″x6.5″(fits Standard duty models)

Operator’s & Parts manual
