25-70 HP (19-52 KW)
- 3 Point linkage, cat. 1
- 74″ seeding width.
- Heavy duty frame
- Heavy duty lid with seed splash guard
- Ground drive system for seed hopper
- Hopper capacity 7.00 cu. ft.
- Seed box with steel shaft agitator
- 10 high precision metering seed cups
- Two lift hooks
- Wide range of calibration settings per acre
- Wind guarded seed drop

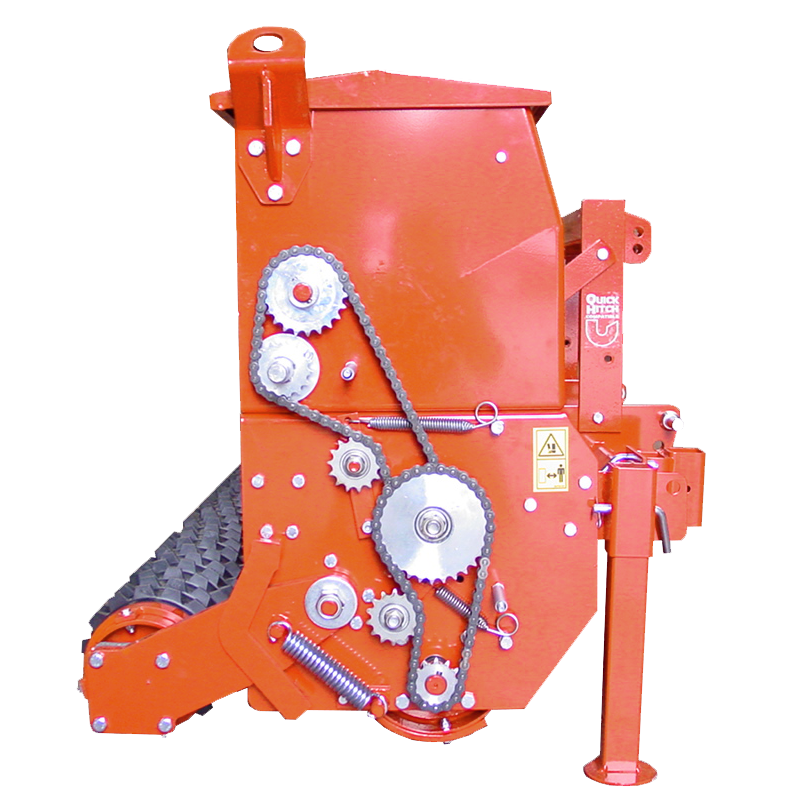

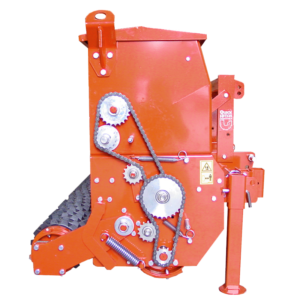

- ANSI #50 chains with chain tensioners

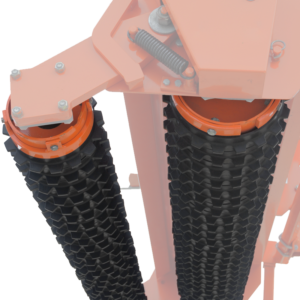

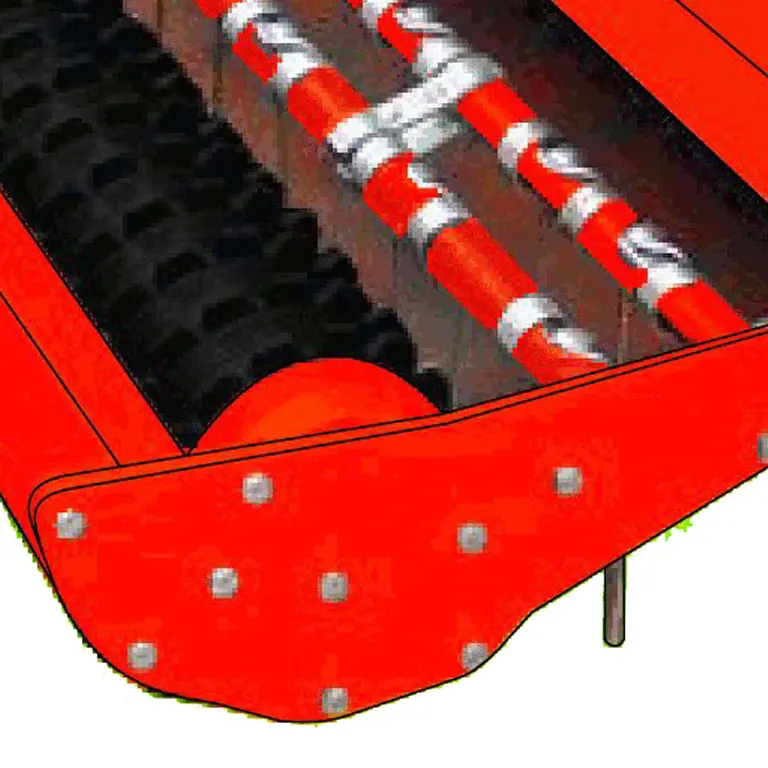

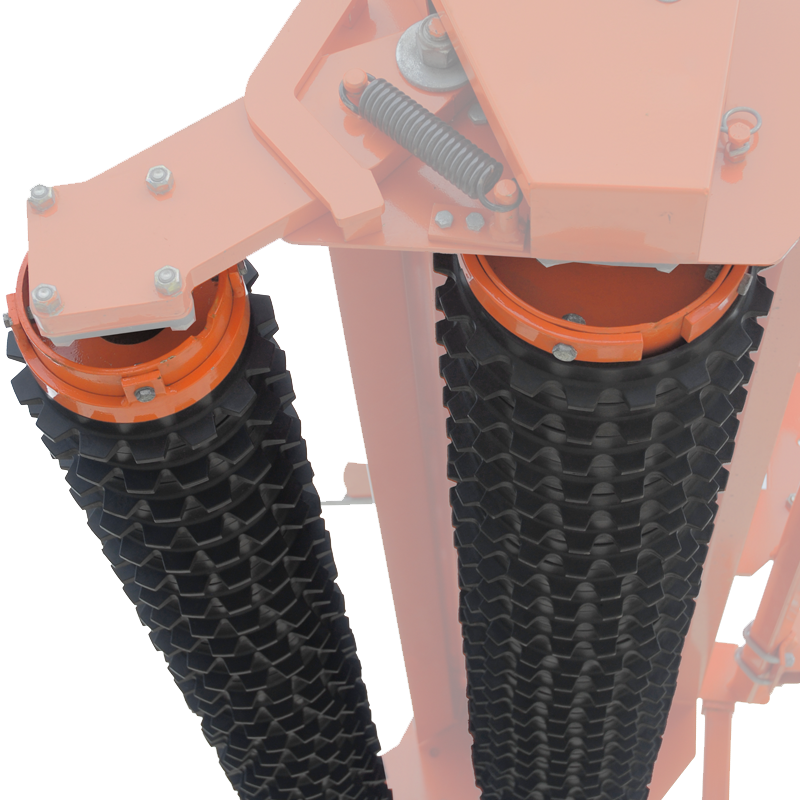

- Rear corrugated roller with 29 – 9 1/2″ diameter rings made with low weight with nylon/fiberglass
- Roller spindles: 1 3/8″ front and rear, with greasable bearings

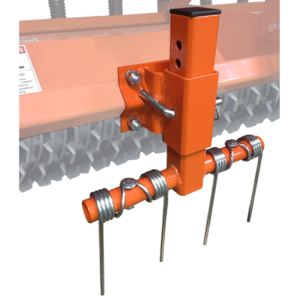

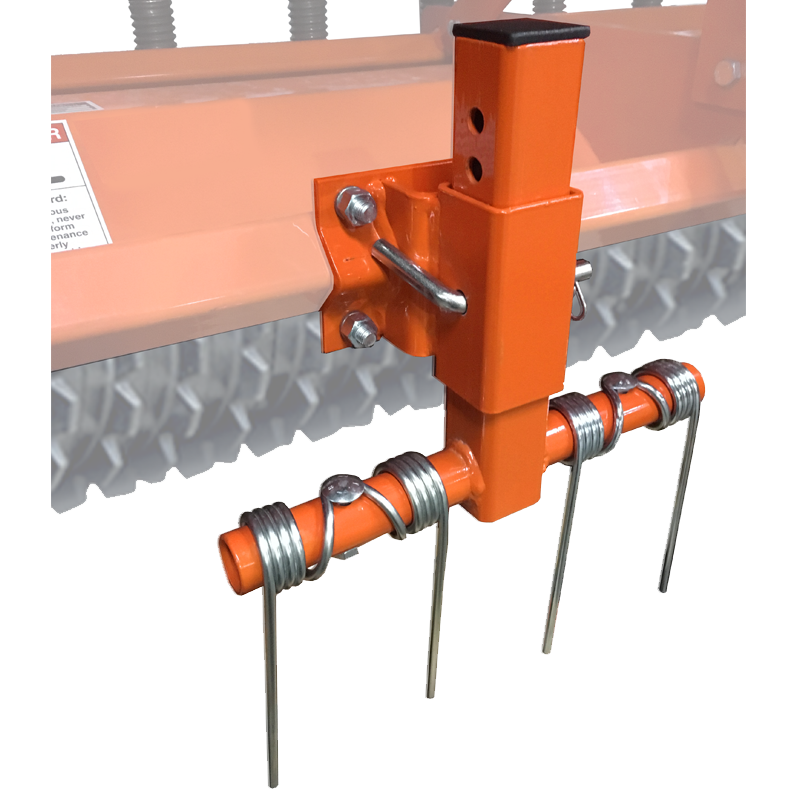

- Two spring-tine track removers
|Model||HP||Hitch||Working width||Overall width||Weight lbs||Ship lbs|
# Seed cups
Capacity cu. ft.
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.
