MOLE
Post hole diggers
15-90 HP (11-67 KW)
540 rpm - Cat. 1 & 2
- Heavy duty boom and yoke for extra strength and long lasting service.
- Choice of 6″, 9″, 12″, 18″, 24″ & 30″ augers.
- Rugged dependable gearbox at 540 rpm provides constant digging power.
- Individually replaceable knives and point.
- Fully welded flighting on all augers.
- Reinforced mounting collar on all augers.
- Safety shielding around auger & PTO.
- 2″ output shaft on 200, 300 & 400 series.
- 1 3/8″ output shaft with 5/8″ adapter bushing on 100 series.
- Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 3) on 200, 300 & 400 series.
- Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 2) on 100 series.
- Fish-tail point standard.
POST HOLE DIGGERS
| Model | HP | Hitch | Boom OD | Yoke OD | Auger rpm | Gear ratio | Weight lbs | Ship lbs | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|

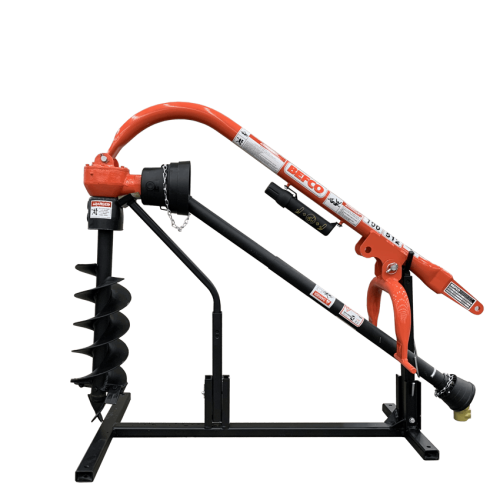

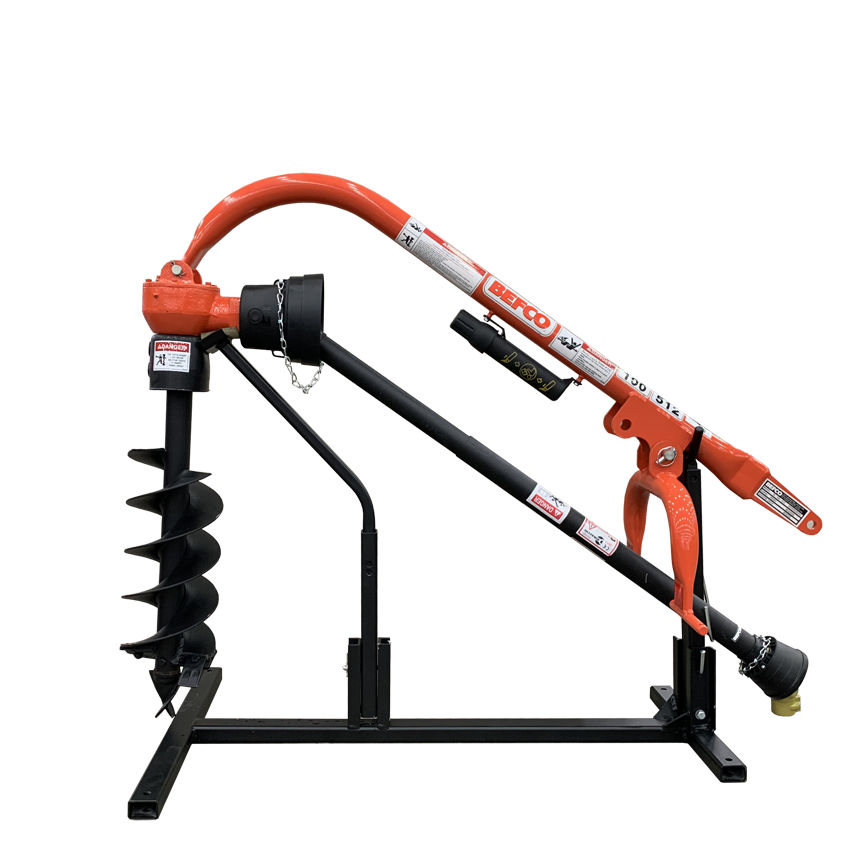

| 100-512 | 15-25 | Limited Cat. 1 | 2 7/8" | 2 3/8" | 180 | 3:01 | 112 | 165 | ASAE cat. 2 shear bolt |

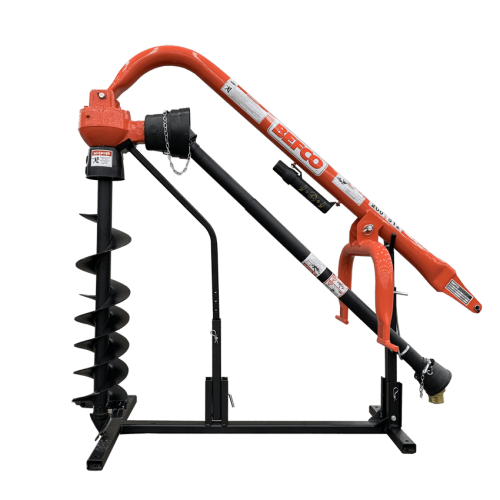

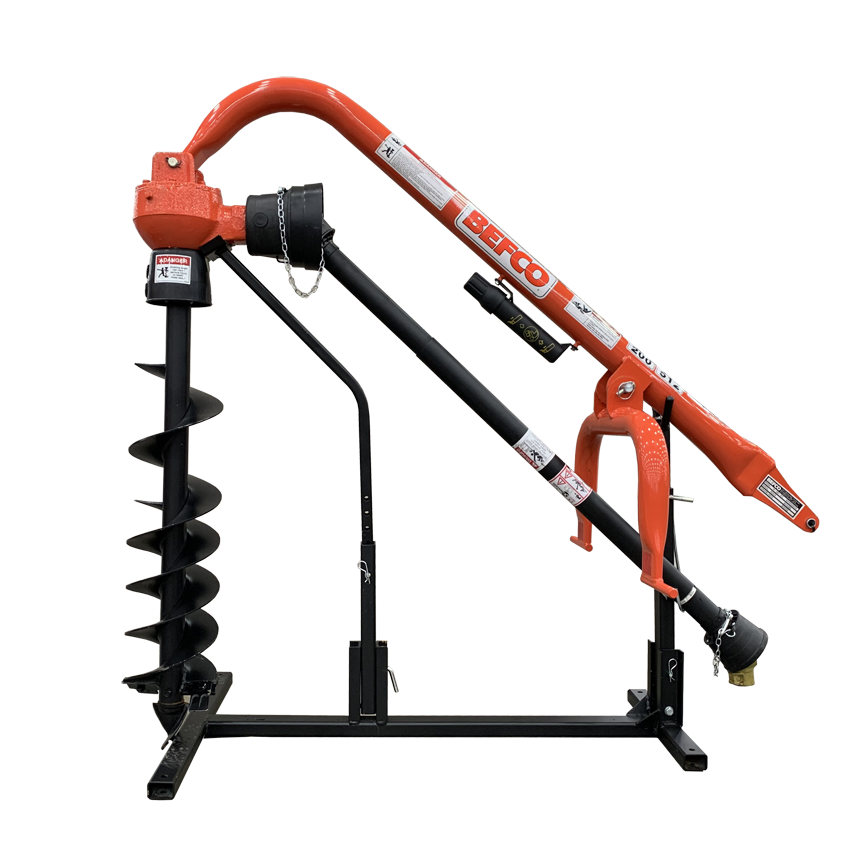

| 200-512 | 18-40 | Cat. 1 | 3 1/2" | 2 7/8" | 180 | 3:01 | 200 | 235 | ASAE cat. 3 shear bolt |

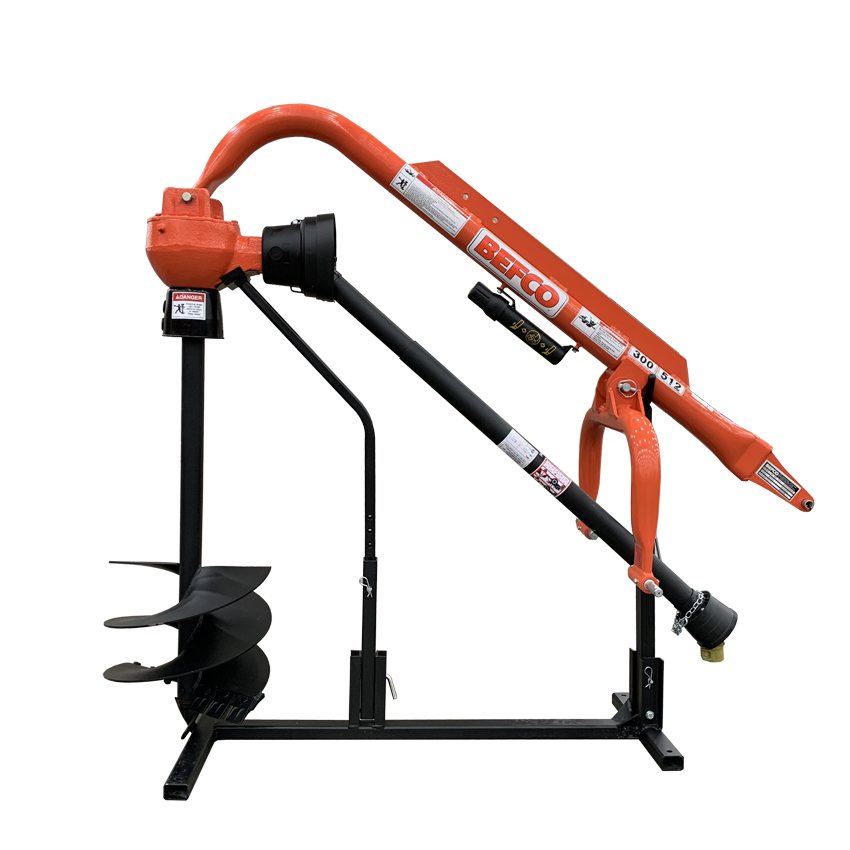

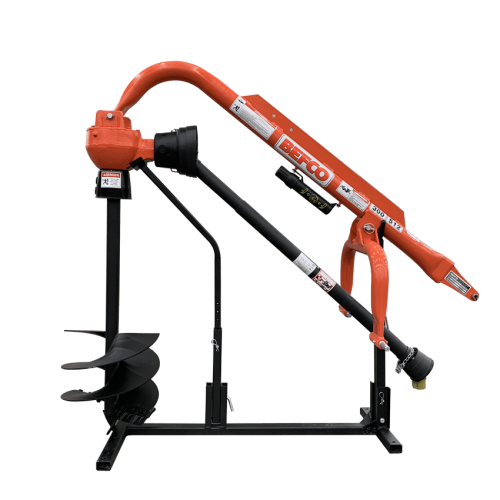

| 300-512 | 18-50 | Cat. 1 & 2 | 3 1/2" reinforced | 2 7/8" reinforced | 154 | 3.5:1 | 230 | 275 | ASAE cat. 3 shear bolt |

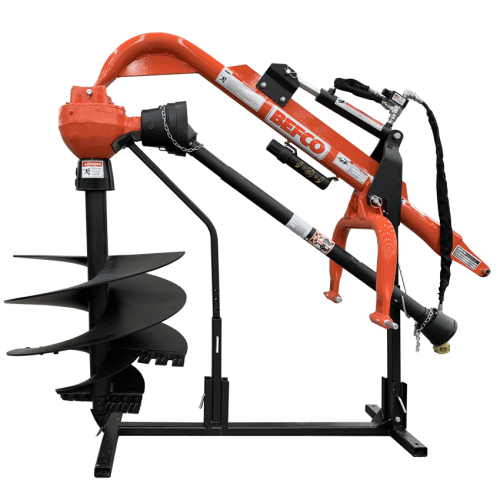

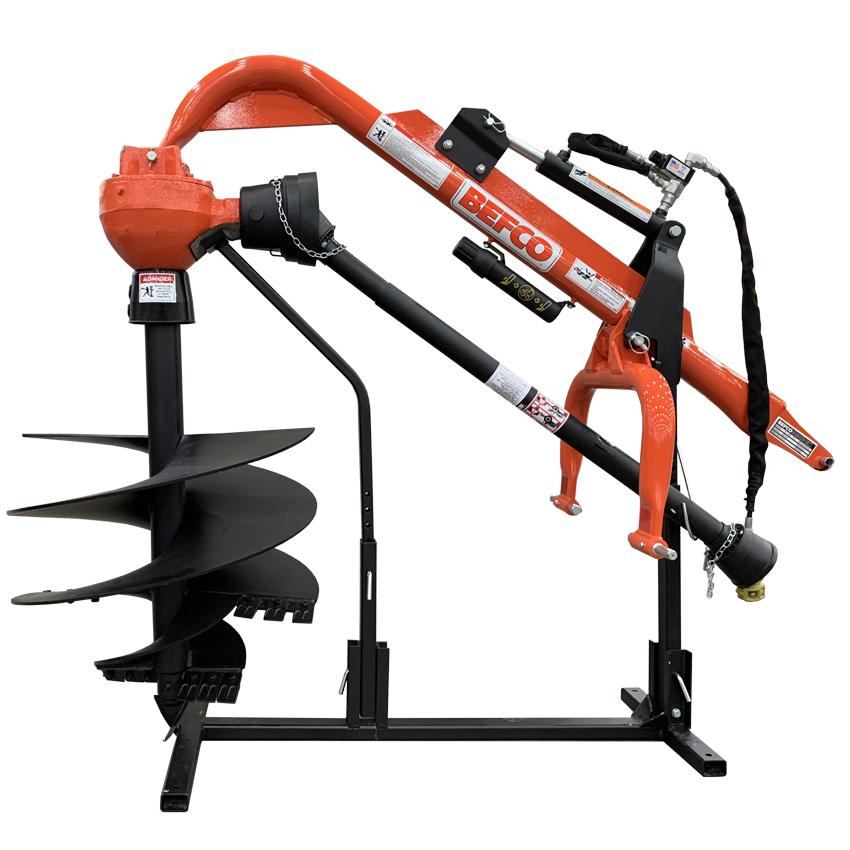

| 400-512 | 18-90 | Cat. 1 & 2 | 3 1/2" reinforced | 2 7/8" reinforced | 135 | 4:01 | 256 | 305 | ASAE cat. 3 shear bolt |
AUGERS
| Model | Fits models | Size | Length | Weight lbs | Flighting type | Flighting thickness |
|---|---|---|---|---|---|---|
106-531 | 100, 200, 300, 400 | 6" | 36" | 23 | Single | 3/16" |
109-531 | 100, 200, 300, 400 | 9" | 36" | 40 | Double | 3/16" |
112-531 | 100, 200, 300, 400 | 12" | 36" | 44 | Double | 3/16" |
| 206-531 | 200, 300, 400 | 6" | 48" | 30 | Single | 3/16" |
| 209-531 | 200, 300, 400 | 9" | 48" | 52 | Double | 3/16" |
| 212-531 | 200, 300, 400 | 12" | 48" | 58 | Double | 3/16" |
218-531 | 300, 400 | 18" | 48" | 67 | Double | 1/4" |
224-531 | 300, 400 | 24" | 48" | 100 | Double | 1/4" |
230-531 | 300, 400 | 30" | 44" | 214 | Double 15" & 30" | 5/16" |

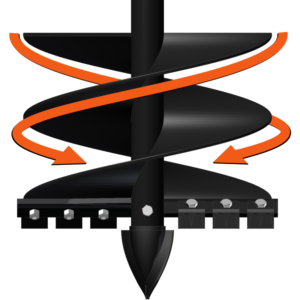

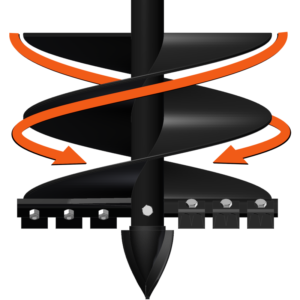

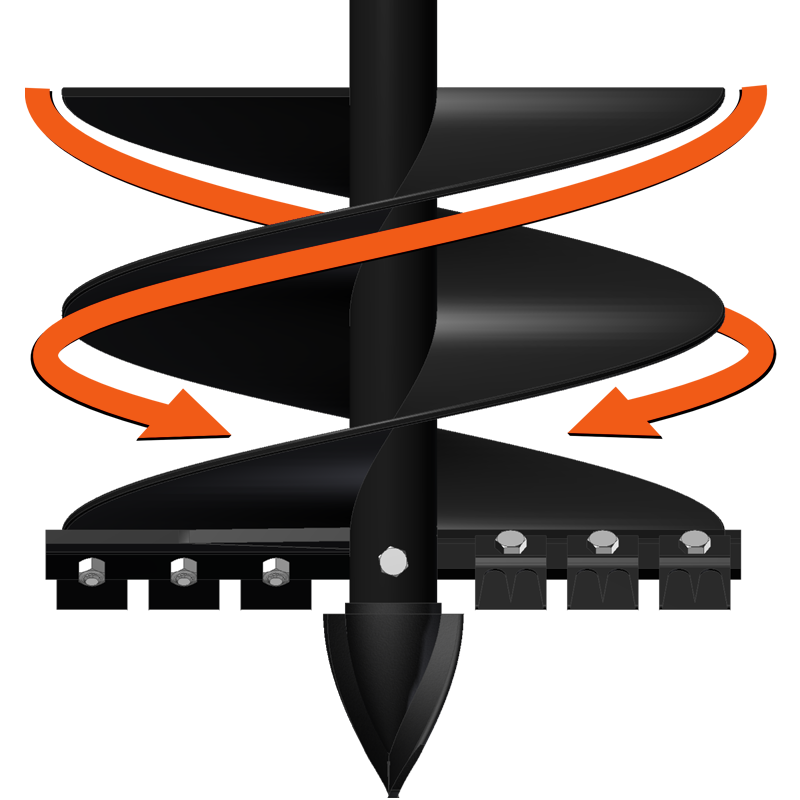

Double flighting
Heavy duty fully welded double flighting on all 9, 12, 18, 24 and 30″ augers.

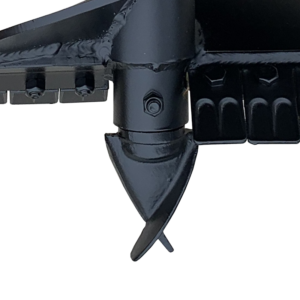

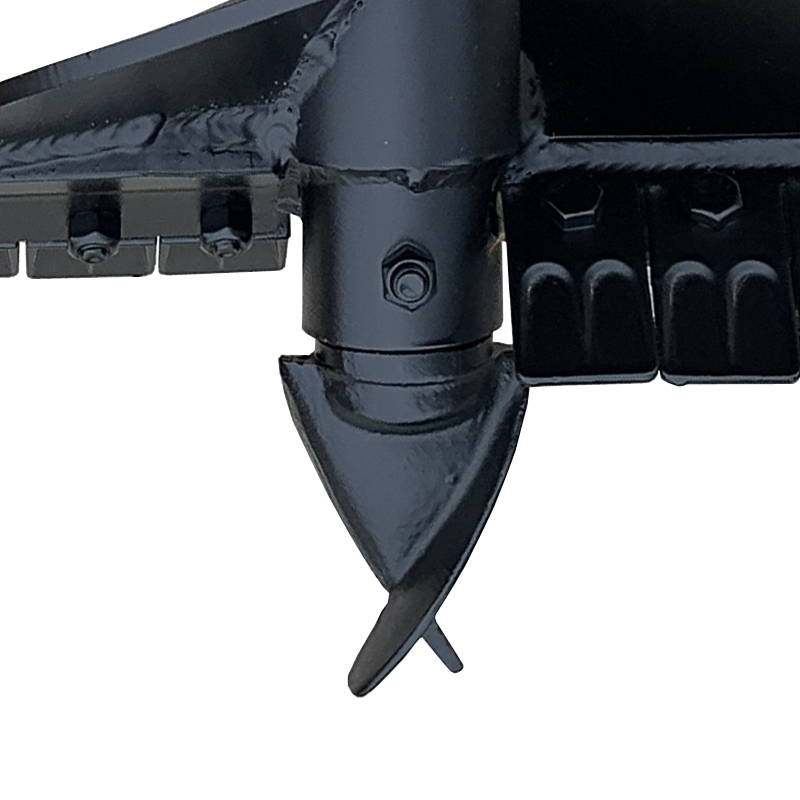

Fish tail auger point
Fish tail auger point is standard on every auger size

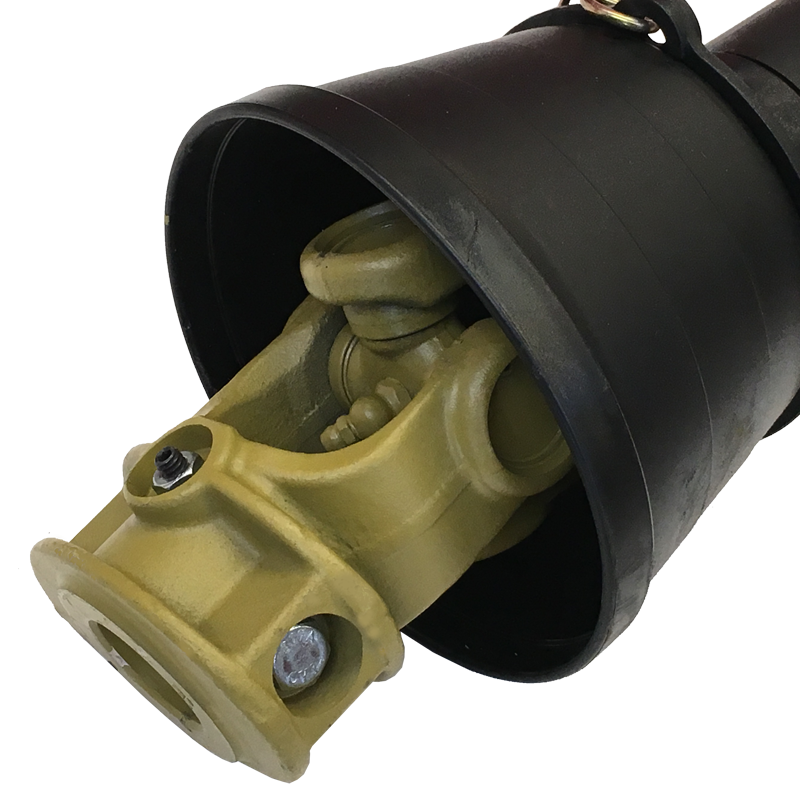

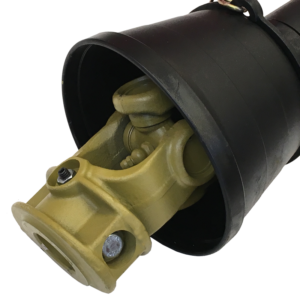

Fully enclosed shear pin safety
Our driveline yokes have the industries first fully enclosed shear pin safety.

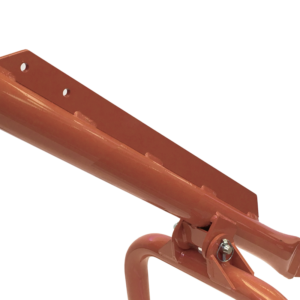

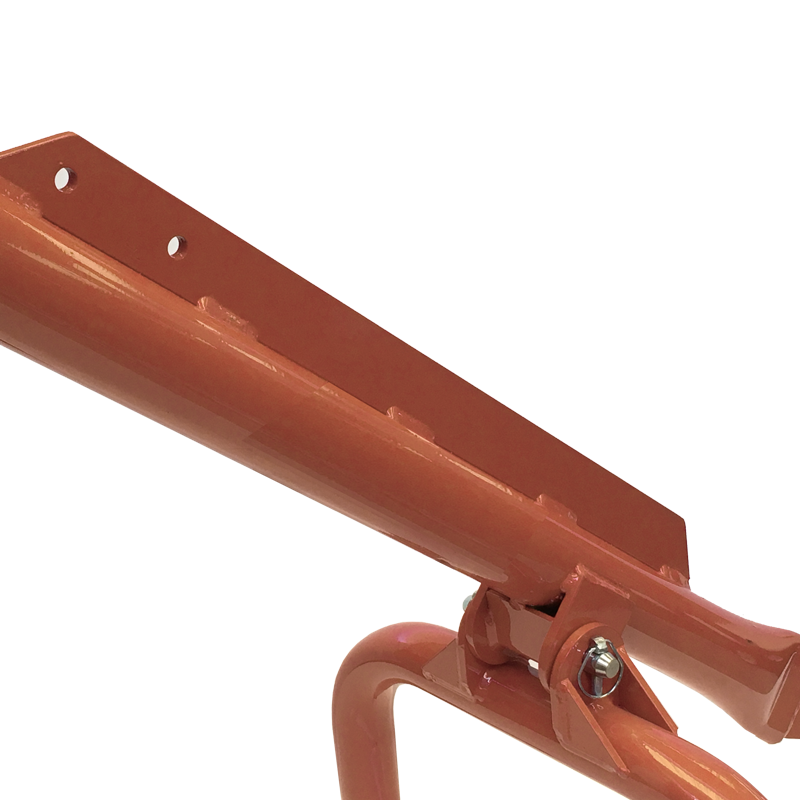

Reinforced boom
Models 300-512 and 400-512 have a reinforced boom and three point hitch.

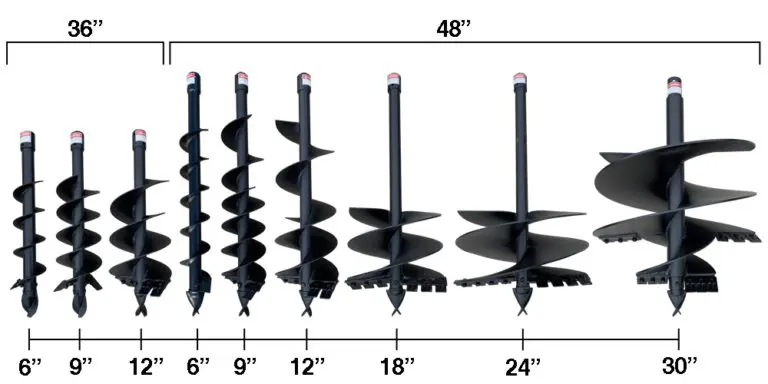

A complete line of augers
Choice of 6, 9, 12, 18, 24 & 30″ augers and 36″ or 48″ auger lengths

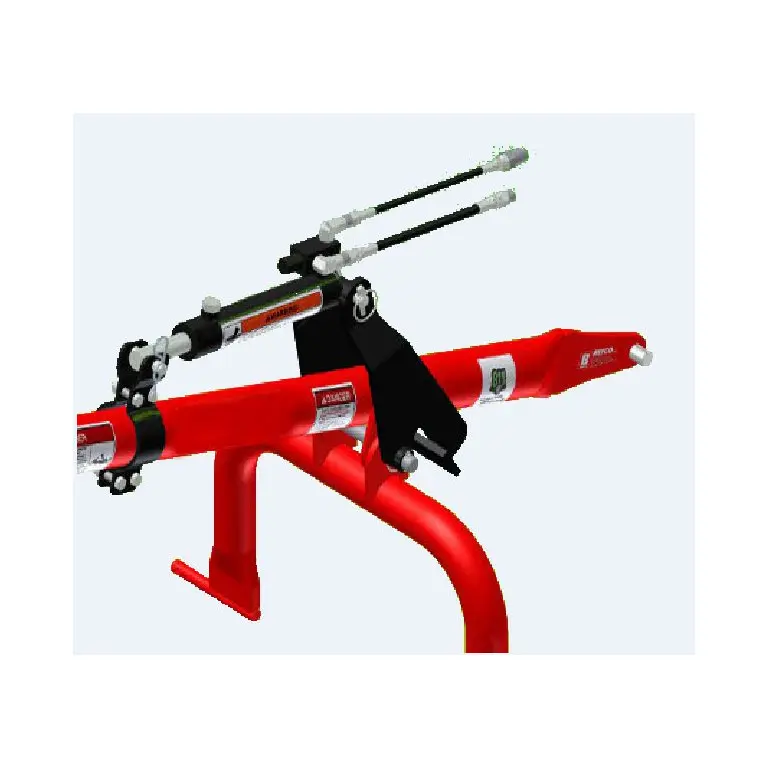

Hydraulic downforce kit
0099154 Hydraulic downforce kit for model 200-512

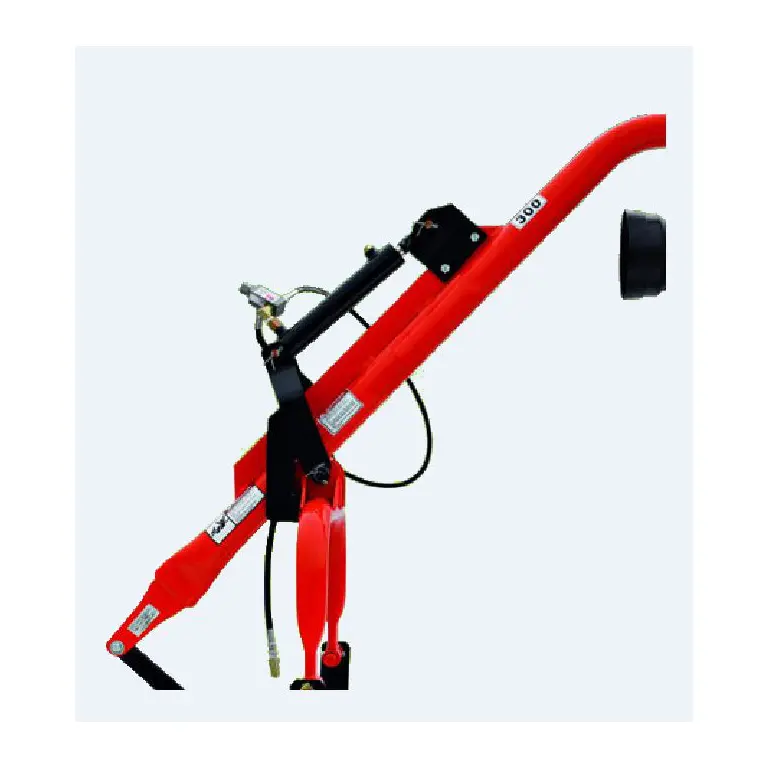

Hydraulic downforce kit
0099155 Hydraulic downforce kit for model 300-512

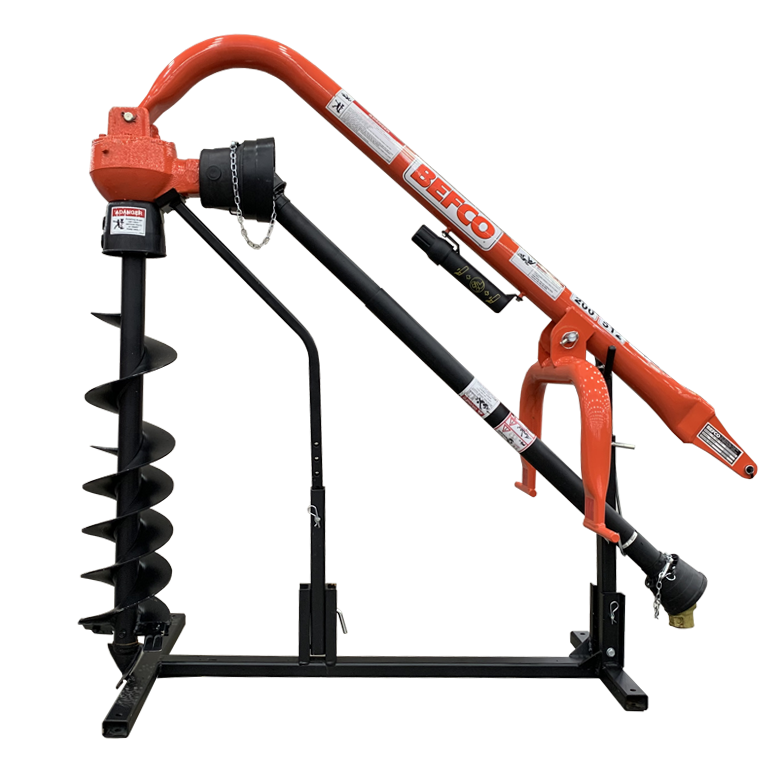

Hook-up stand
0099851 Hook-up stand fits all models of BEFCO post hole diggers

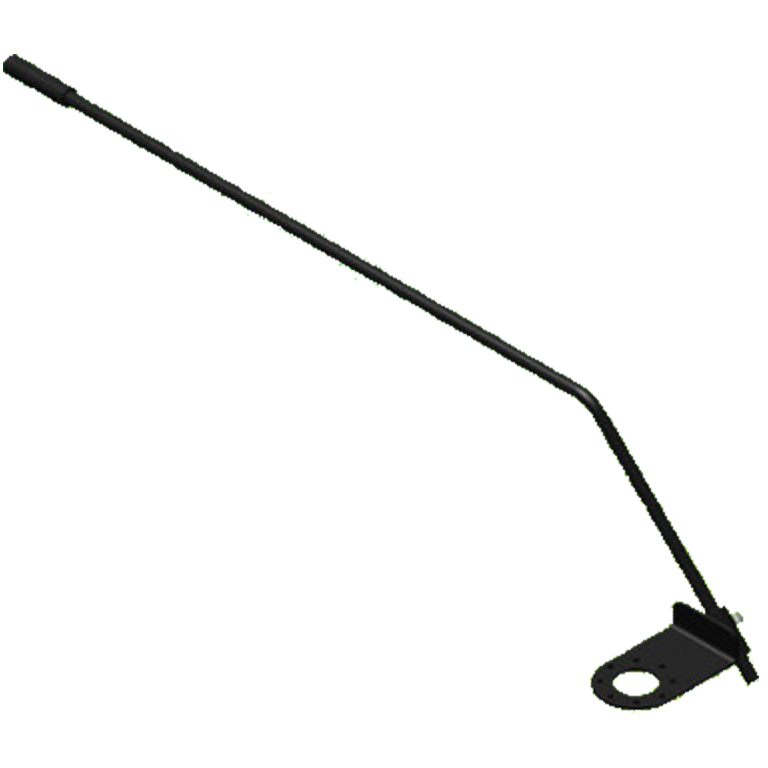

Auger positioning handle
PHD003 Auger positioning handle fits all models of BEFCO post hole diggers
