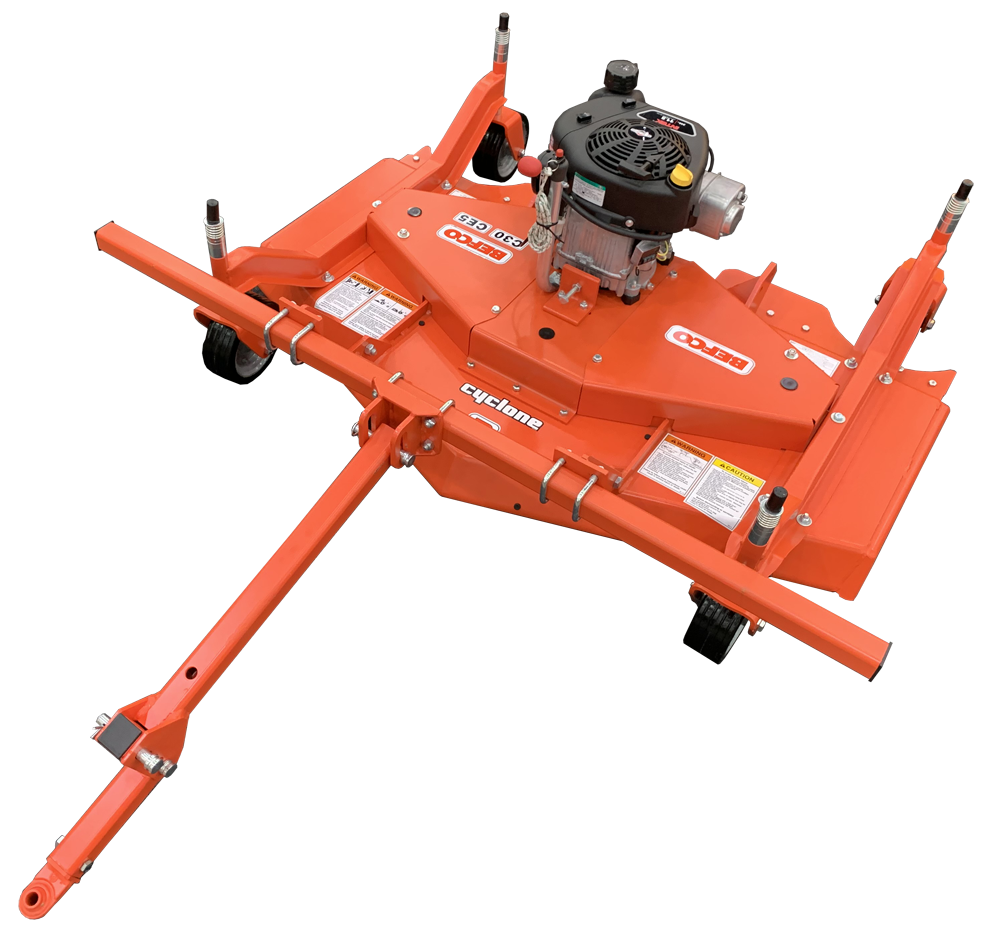

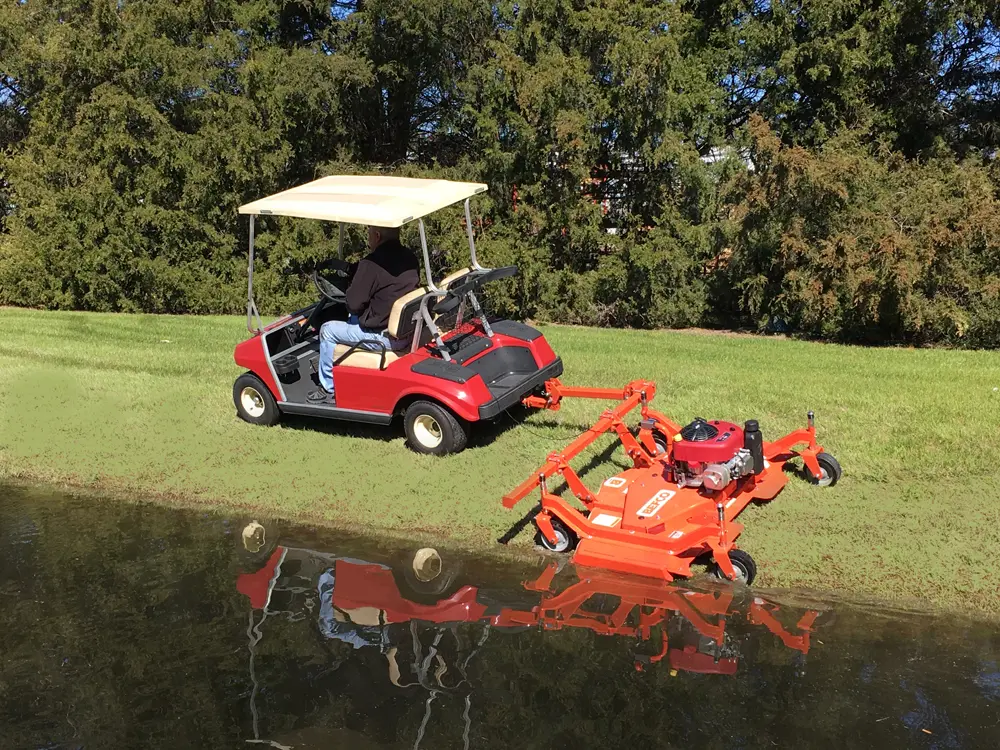

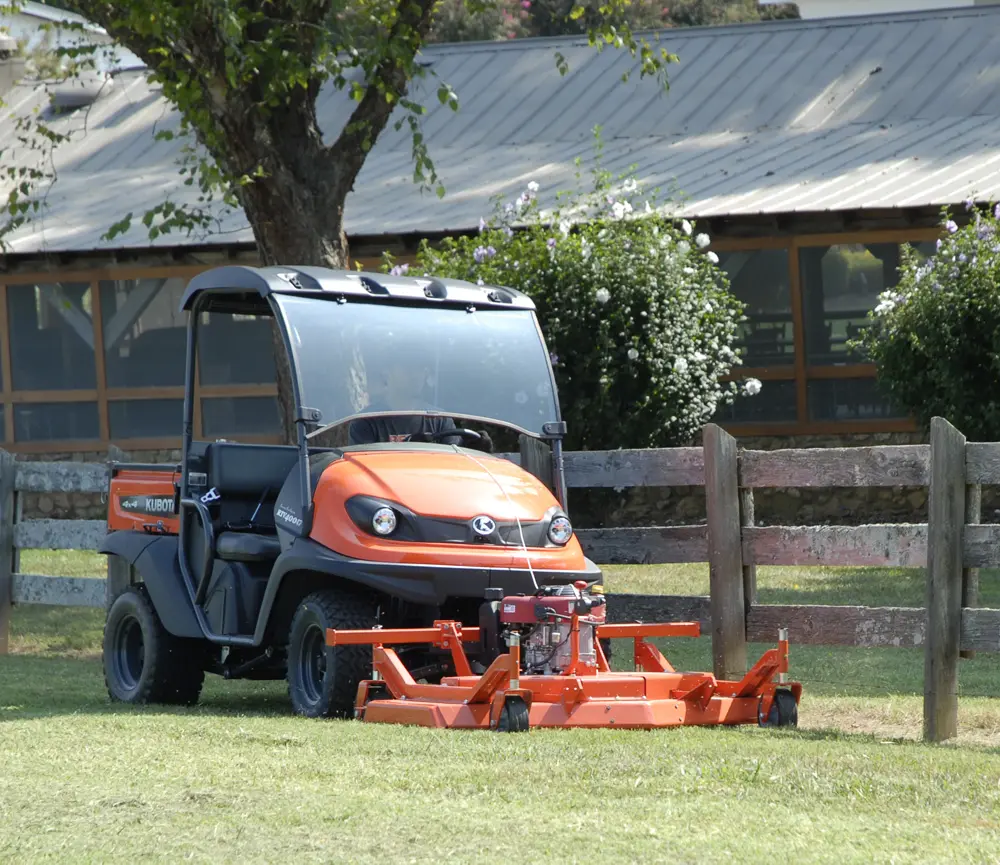

CYCLONE C30-CE5H

Grooming mowers
Lawn tractors & ATV's
11.5 Hp Briggs & Stratton motor

  • Ideal for lawn tractors, ATVs & UTVs
  • Rear discharge
  • 4 rubber tires to guarantee a perfectly level cut
  • Stamped steel reinforced wheel arms attached by 5 bolts for maintaining a consistent cutting height
  • Spindle shafts greased from the top for easy service
  • Hitch: Cat. 1 ball and 2″ receiver
  • 10 gauge reinforced mower deck
  • Cutting heights: from 1″ to 4″.
  • Heavy duty reinforced belts (BX).
  • Powerful 11.5 Hp Briggs & Stratton® I/C engine with centrifugal clutch
  • Safety kill switch
  • Heavy duty, one piece, balanced steel pulleys
  • Stamped steel wheel yokes

MODELS WITH SOLID TIRES (SIZE 8.4"x3.2")

Model

Working width

Overall width

Offset

Weight lbs

Ship lbs

Rotor rpm

Blade tip speed (ft/min)

# of bladesCutting height# Belts & type

Motor

C30-RD5H

60"

62"

0-75"

460

600

2,673

14,173

3

1"-4"

2 BX

11.5 Hp Briggs & Stratton

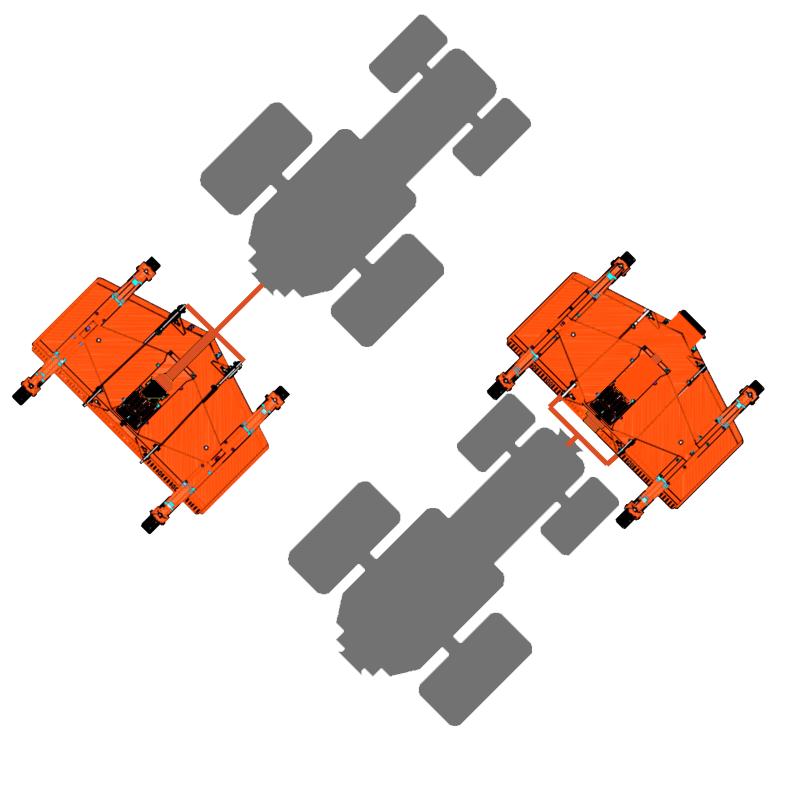

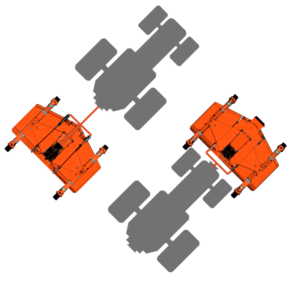

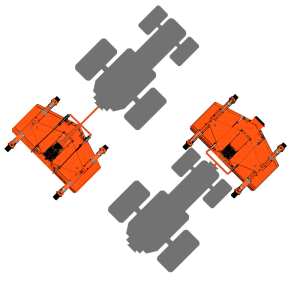

Reversible hitch for front and rear mounting

Reversible three point hitch for front and rear mounting on any lawn tractor, ATV or UTV.

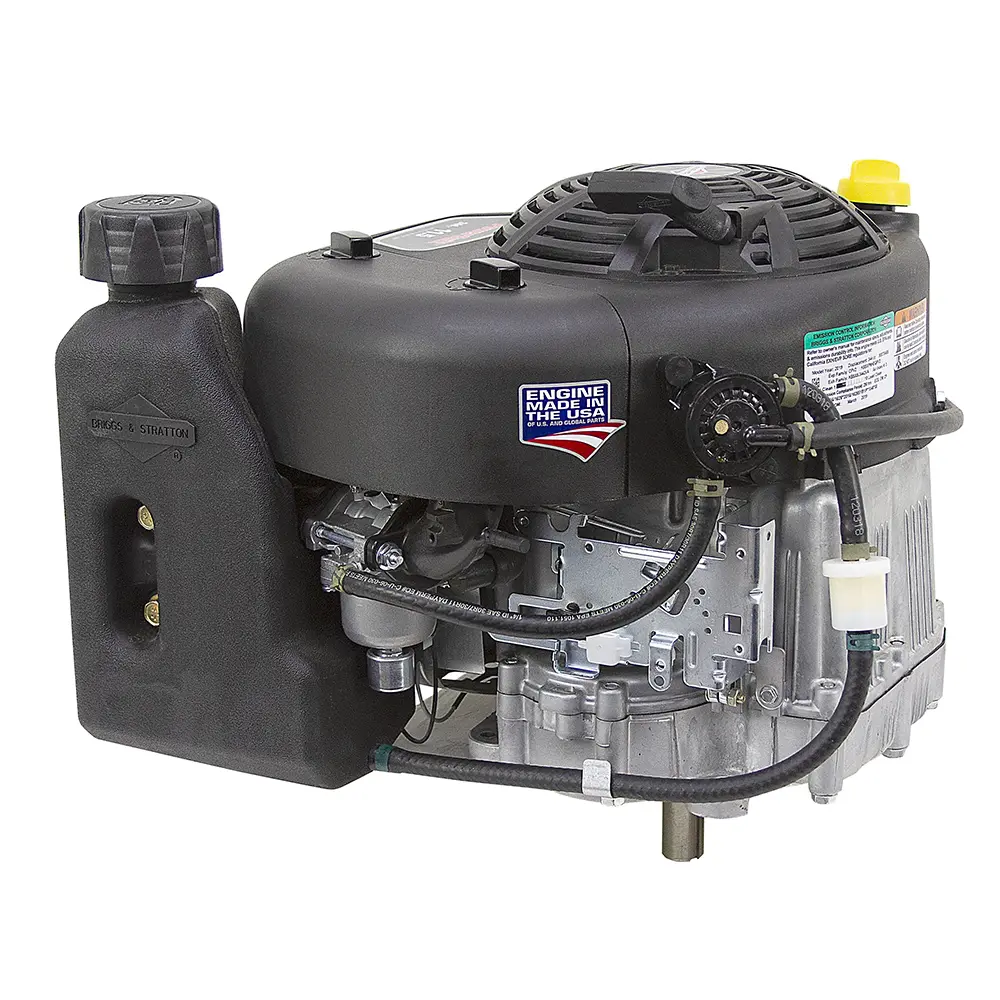

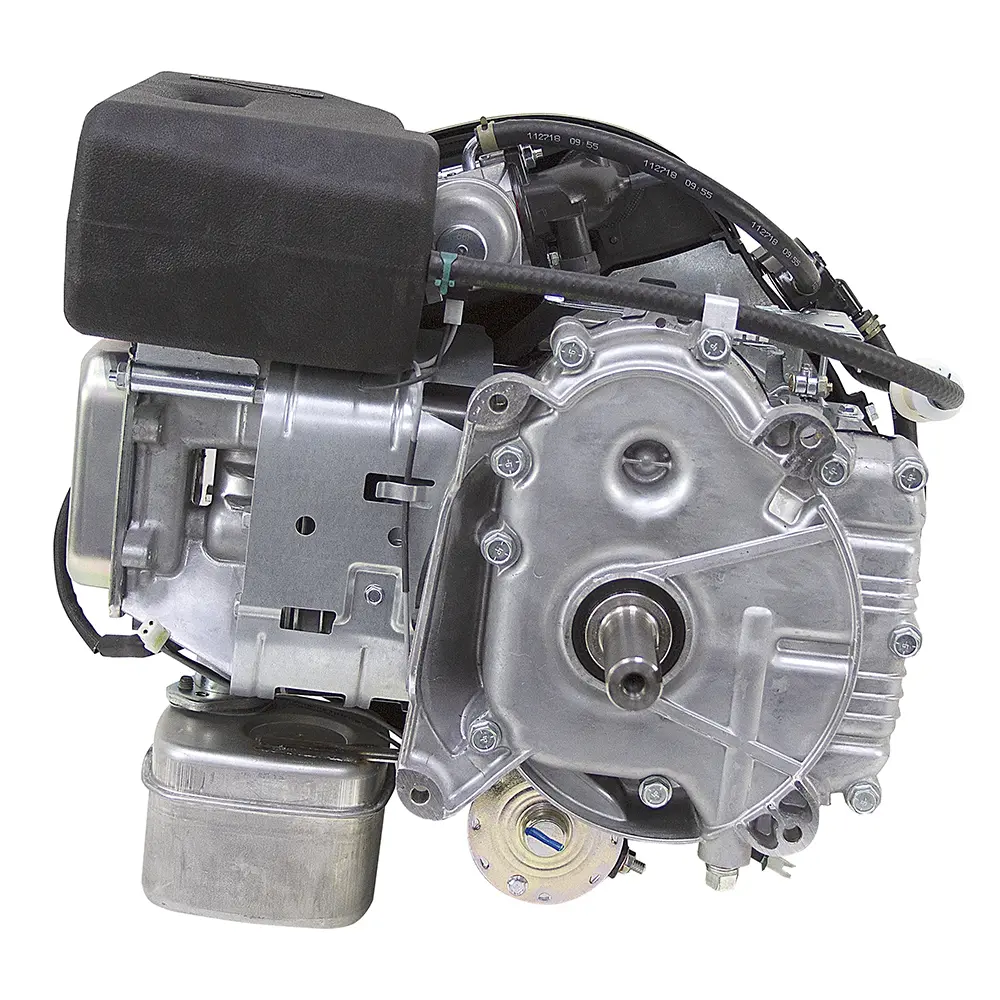

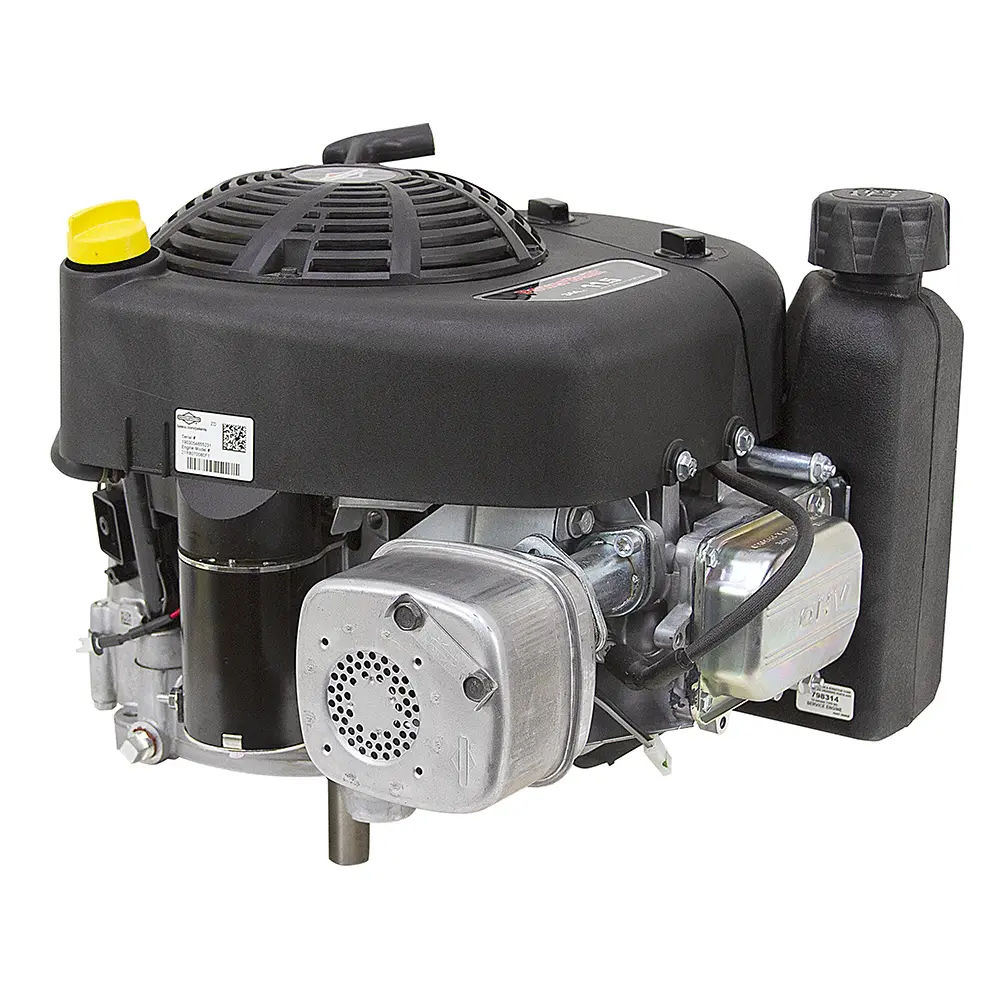

Briggs & Stratton 11.5 Hp motor

Powerful 11.5 Hp Briggs & Stratton OHV motor with centrifugal clutch, accelerator and safety kill switch.

Model 21R807, Power 11.5 HP, Disp. 344cc, Start recoil, Shaft Orientation Vertical, Shaft 1″ dia. x 3.16″ w/ 1/4″ keyway and tapped 7/16-20, Mount 10″ bolt circle, Fuel Tank 2.8 qt., Size 16″ x 16-1/2″ x 16″

Front 2″ receiver hitch and rear Cat. 1 ball hitch included

Mowers are delivered both with 2″ receiver hitches for front mount applications and Cat. 1 ball hitch for when the mower is being towed behind a tractor.

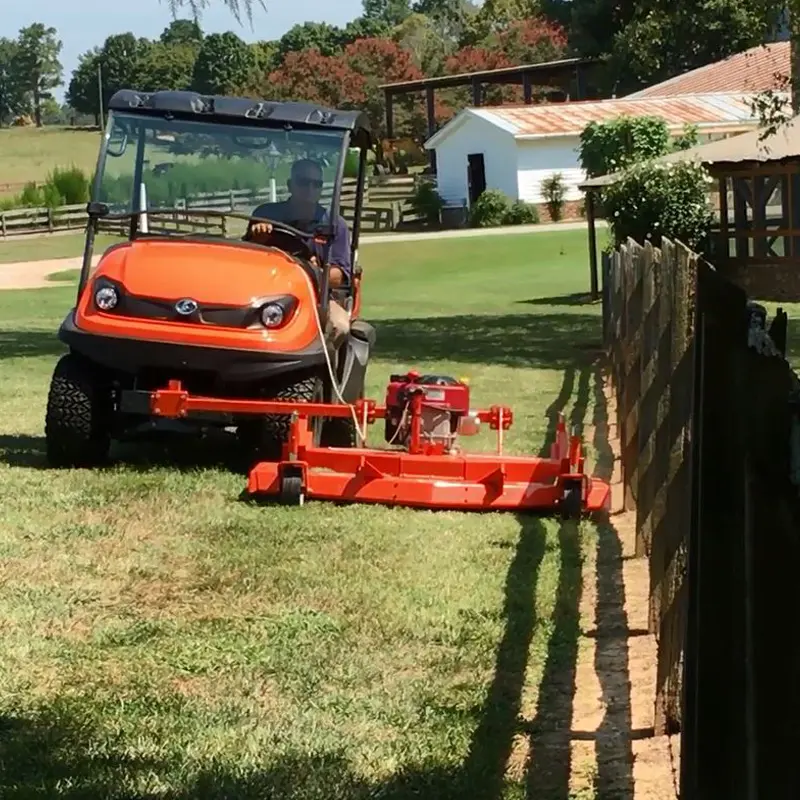

UP to 75″ offset

Hitch allows operator to offset mower up to 75″ left or right of center.

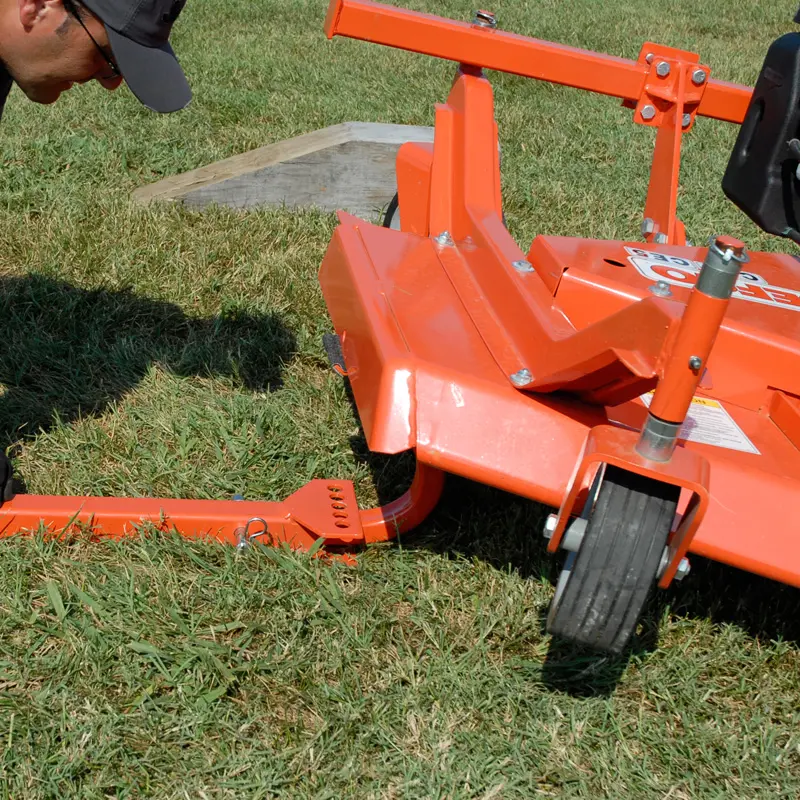

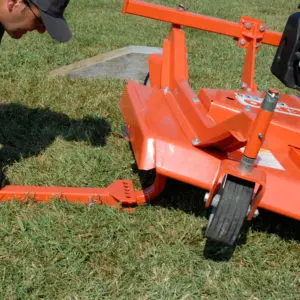

Height adjustment bar

Tow bar doubles as height adjustment bar allowing operator to quickly set the cutting height of the mower.

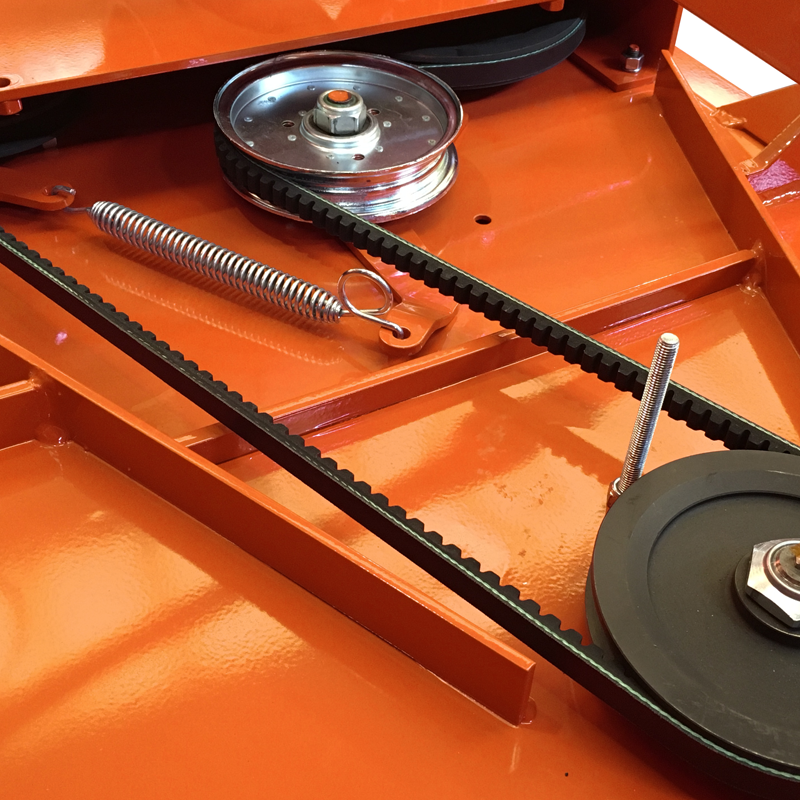

Double belt transmission

Heavy duty reinforced belts (BX) with spring loaded tensioner provide over 180° coverage of all pulleys.

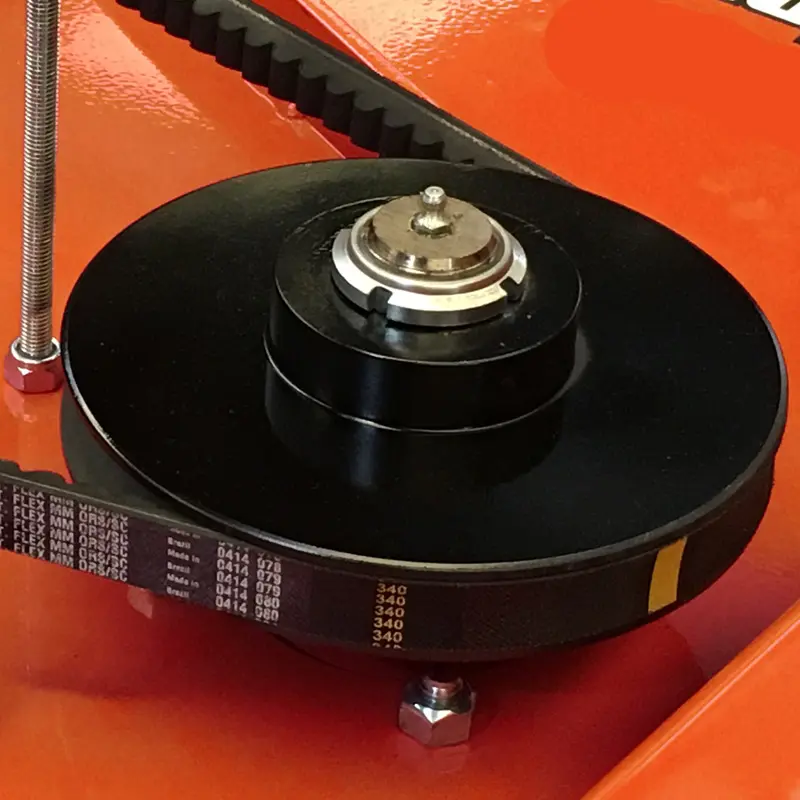

Cast iron pulleys

Heavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.

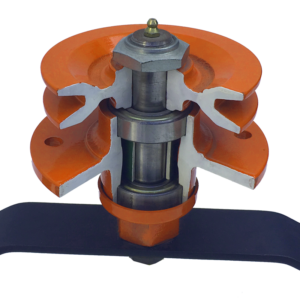

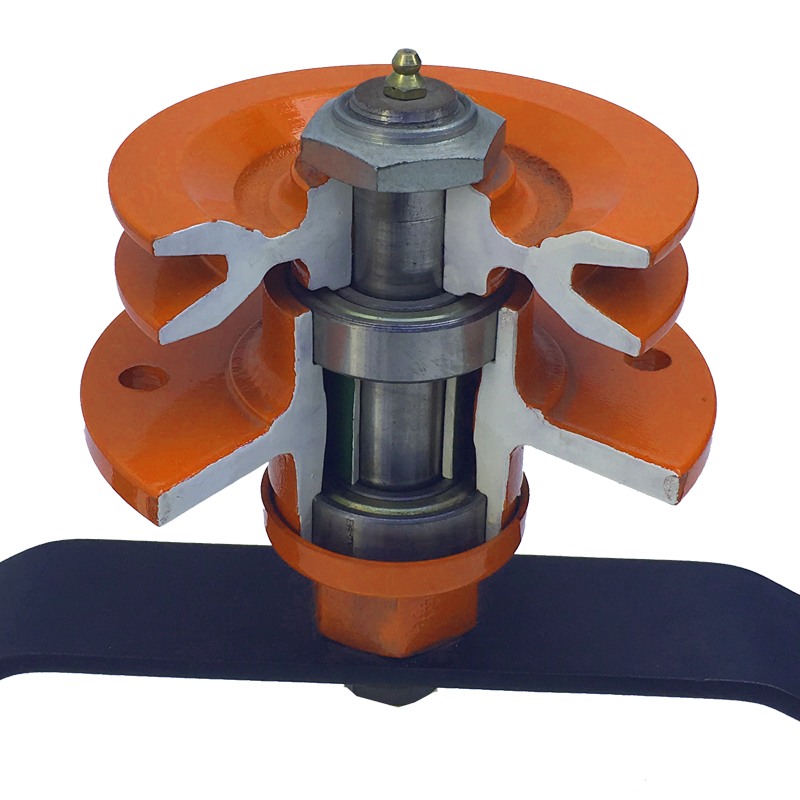

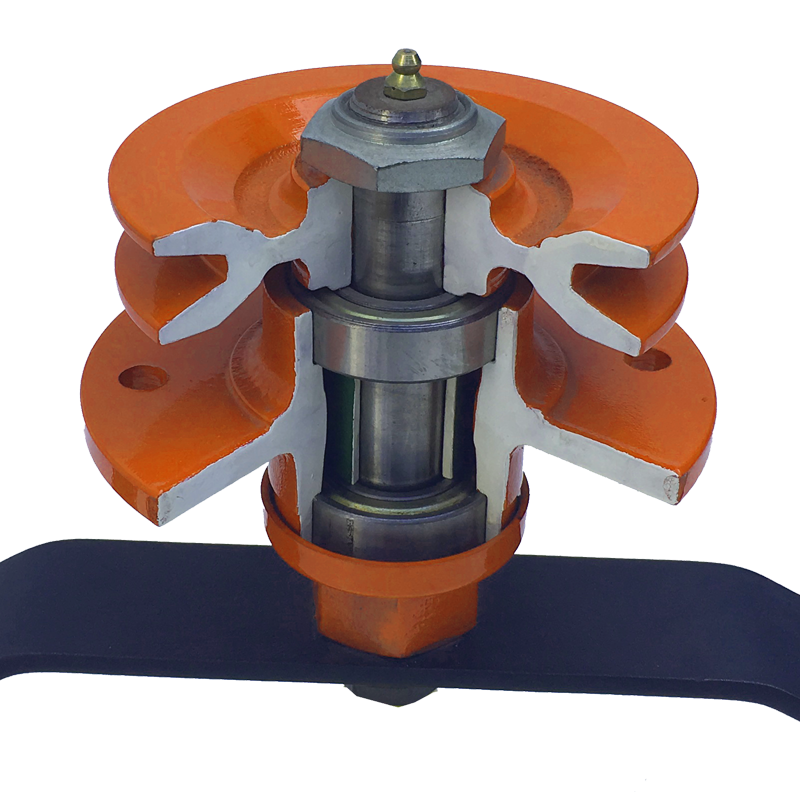

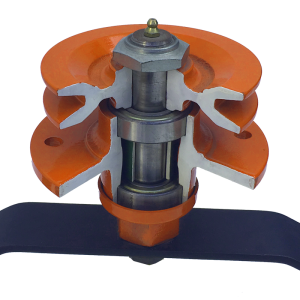

Axial grease fittings

Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.

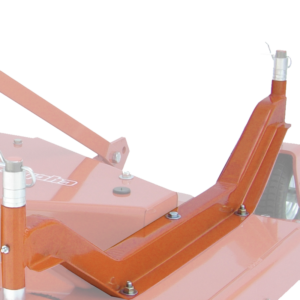

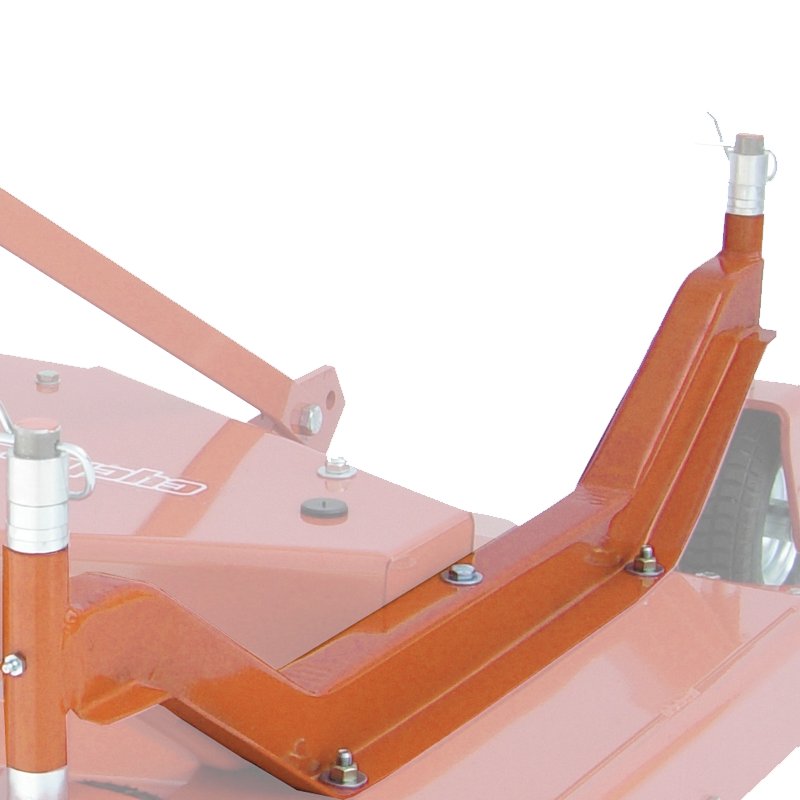

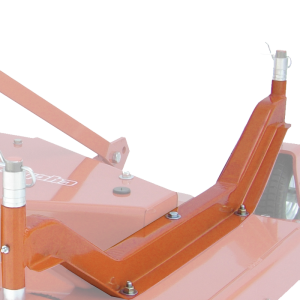

Stamped steel reinforced wheel arms

Only BEFCO mowers are equipped with reinforced stamped steel wheel arms. These wheel arms are stronger than the ones made of bent tubing used by the competition and always guarantee a perfectly even surface for the mower to rest on.

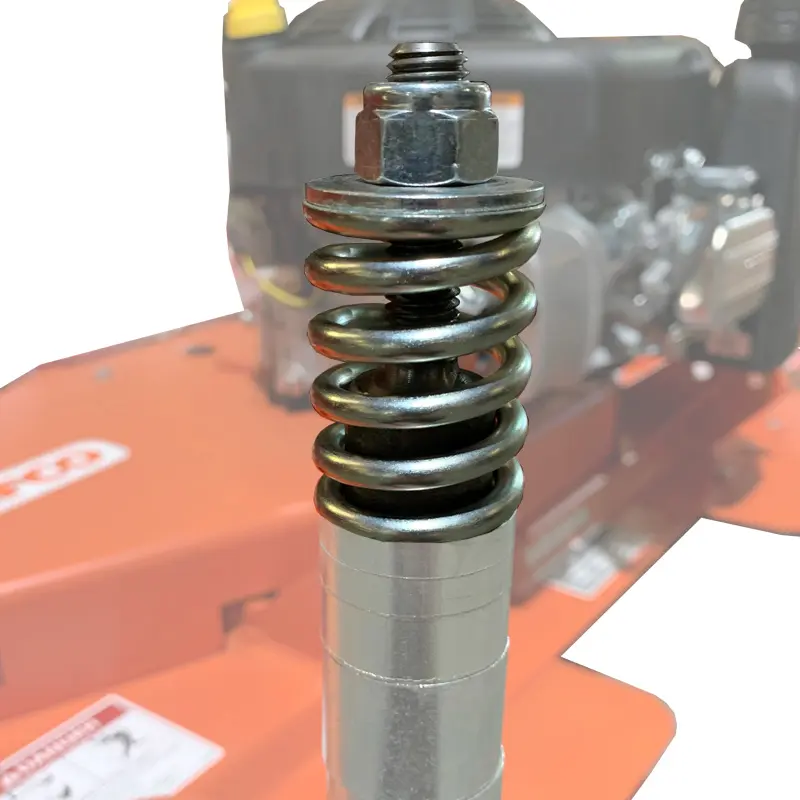

Wheel yokes with adjustable swivel

All four wheel yokes on the C30-CE5H are equipped with spring loaded nuts that may be tightened down to reduce or eliminate wheel swivel.

Mulching kit

005600 Mulching kit for model C30-CE5H
Note: Mulching blades are also included in Mulching kits

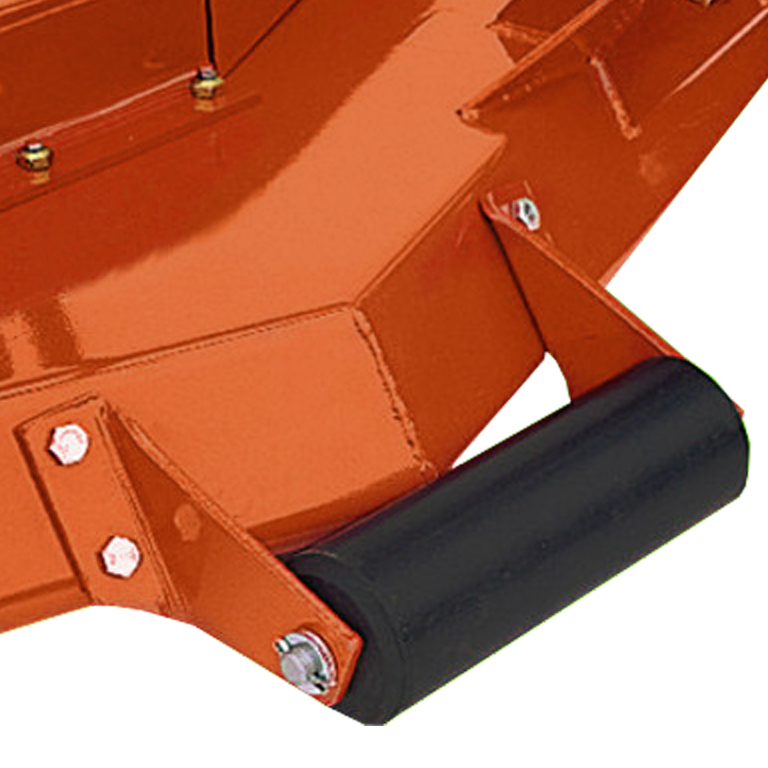

Front antiscalp roller

001600 Front antiscalping roller

Low lift blades

0006641F Low lift blade for model C30-CE5H

Standard blades

0006641 Standard blade for model C30-CE5H

High lift blades

0006641B High lift blade for model C30-CE5H

Mulching blades

0006641M Mulching blade for model C30-CE5H
Note: Mulching blades are also included in Mulching kits
