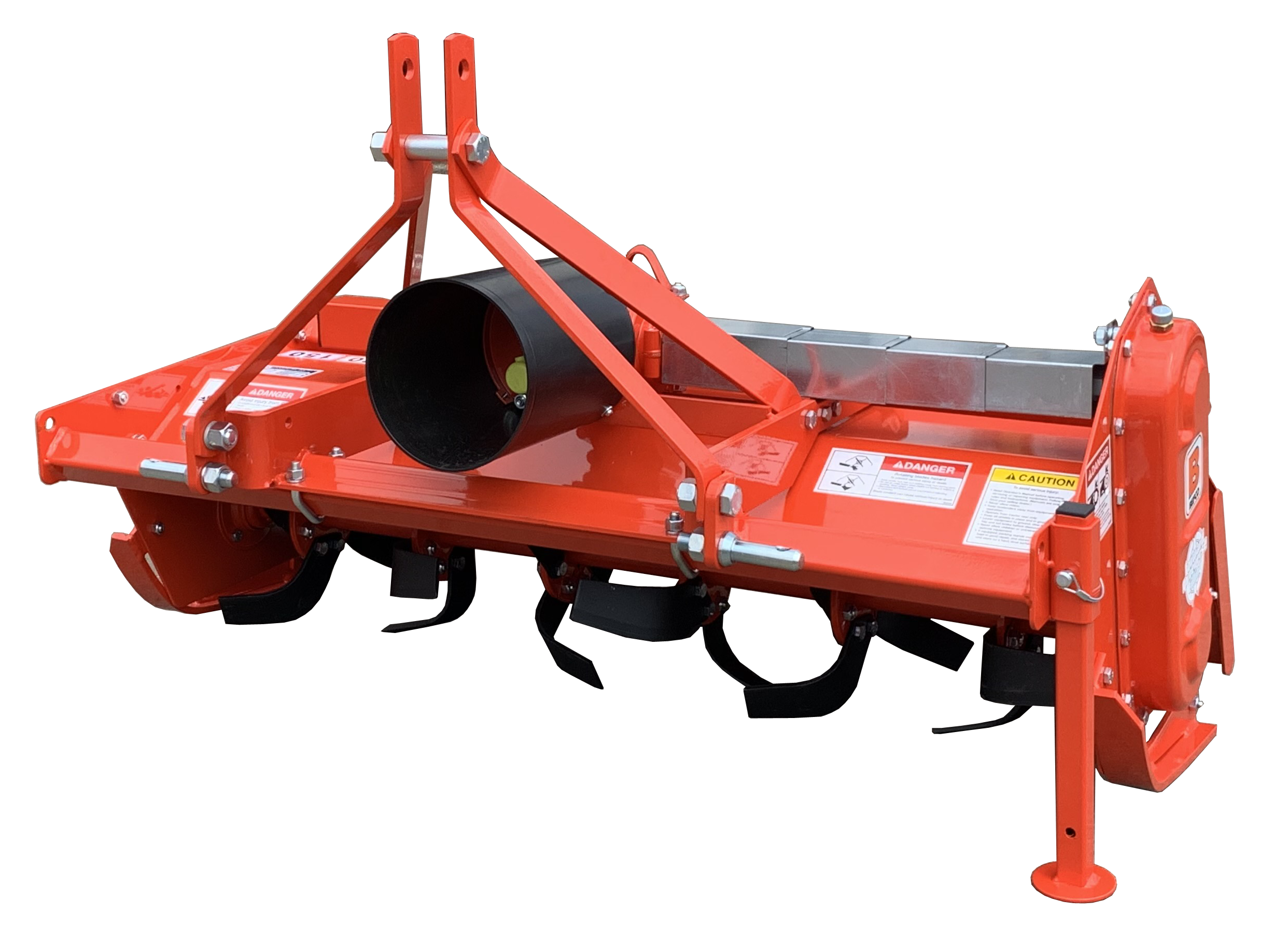

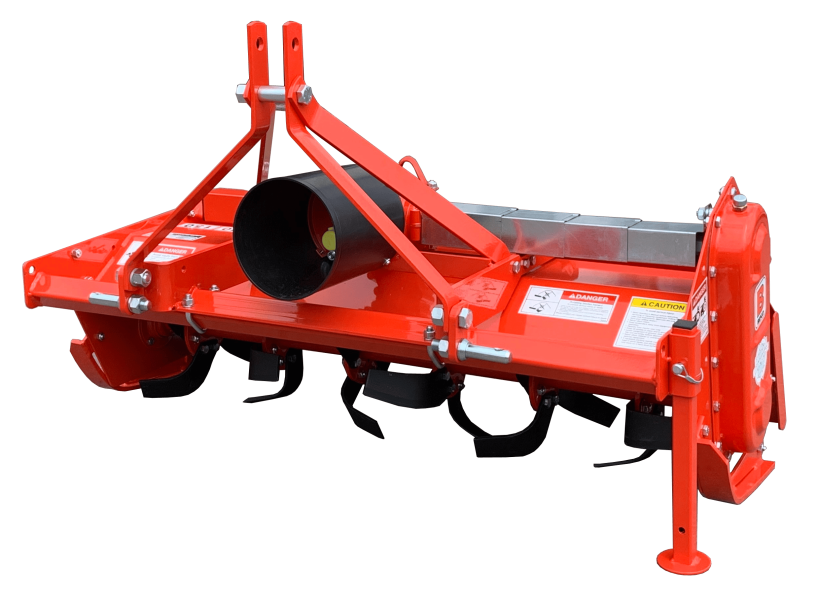

TILL-RITE T30
Rotary tillers with side-shift
16-30 HP (12-22 KW)
540 or 2000 rpm - Cat. 1
- Highly engineered & rugged gearbox with cooling fins.
- Smooth manual side-shift system.
- Adjustable side skids for working depth control
- Heavy duty shielded PTO shaft with shear bolt coupling (1 3/8″ ASAE cat. 2) or slip clutch safety (1 3/8″ ASAE cat. 3)
- Max. working depth 7 1/4″
- Parking stand
- Reinforced lateral ASA #60 chain drive transmission in oil bath
- Four blades per flange
- High carbon solid steel round rotor shaft allows for a deeper working depth
- Outward turned blades keep the rotor supports clean and maximize working width
- Heavy duty full size blades
- 3 point linkage, cat. 1
MODELS WITH 540 RPM GEARBOX AND SHEAR BOLT
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | Side-shift | # Flanges | # Blades | Chain sprockets | Rotor rpm | Maximum Working depth | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T30-134 | 16-30 | Cat.1 | 34" | 39" | 297 | 387 | 6" | 4 | 16 | 14-16 | 205 | 7 1/4" | ASAE cat. 2 shear bolt |
| T30-142 | 20-30 | Cat.1 | 42" | 47" | 341 | 430 | 10" | 5 | 20 | 14-16 | 205 | 7 1/4" | ASAE cat. 2 shear bolt |
| T30-150 | 25-30 | Cat.1 | 50" | 55" | 374 | 463 | 14" | 6 | 24 | 14-16 | 205 | 7 1/4" | ASAE cat. 2 shear bolt |
MODELS WITH 540 RPM GEARBOX AND SLIP CLUTCH
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | Side-shift | # Flanges | # Blades | Chain sprockets | Rotor rpm | Maximum Working depth | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
T30-234 | 16-30 | Cat.1 | 34" | 39" | 308 | 398 | 6" | 4 | 16 | 14-16 | 205 | 7 1/4" | ASAE cat. 3 slip clutch |
T30-242 | 20-30 | Cat.1 | 42" | 47" | 352 | 441 | 10" | 5 | 20 | 14-16 | 205 | 7 1/4" | ASAE cat. 3 slip clutch |
T30-250 | 25-30 | Cat.1 | 50" | 55" | 385 | 474 | 14" | 6 | 24 | 14-16 | 205 | 7 1/4" | ASAE cat. 3 slip clutch |
MODELS WITH 2000 RPM GEARBOX AND SHEAR BOLT
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | Side-shift | # Flanges | # Blades | Chain sprockets | Rotor rpm | Maximum Working depth | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
T30-534 | 16-30 | Cat. 1 | 34" | 39" | 297 | 387 | 6" | 4 | 16 | 9-22 | 237 | 7 1/4" | ASAE cat. 2 shear bolt |
T30-542 | 20-30 | Cat. 1 | 42" | 47" | 341 | 430 | 10" | 5 | 20 | 9-22 | 237 | 7 1/4" | ASAE cat. 2 shear bolt |
T30-550 | 25-30 | Cat. 1 | 50" | 55" | 374 | 463 | 14" | 6 | 24 | 9-22 | 237 | 7 1/4" | ASAE cat. 2 shear bolt |
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.
Built-in manual side shift
BEFCO tillers feature a built-in manual side shift system that allows operator to either keep the tiller center mounted behind the tractor, like a traditional unit, or offset the tiller to the right of the tractor. This is particularly beneficial when trying to till over the right tractor tire and closer to obstacles.
Forward or reverse tilling rotation
BEFCO tillers may be set up with either a forward or reverse rotating rotor. When the rotor rotates forward the tiller will have a tendency to bury the rocks while when the tiller rotates backwards it will have a tendency to bring any rocks to the surface.

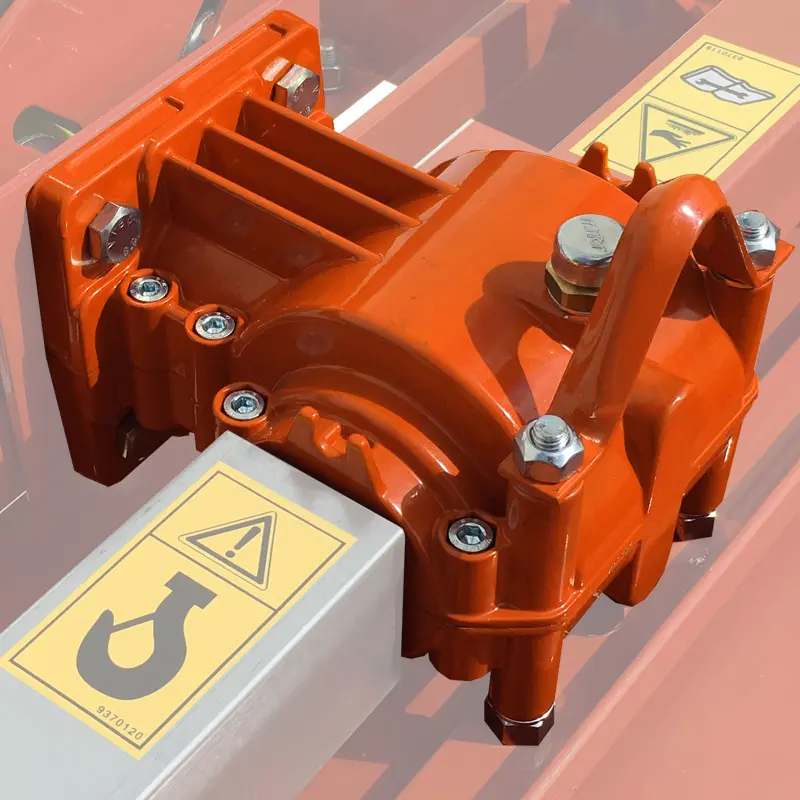

Gearbox manufactured by BEFCO
Unlike other manufacturers who purchase gearboxes from outside suppliers, BEFCO utilizes a gearbox built in-house using high strength steel for its gears and top of the line bearings and seals. Cooling fins on the gearbox reduce heat build up.
ASA 60 Chain drive
Lateral ASA 60 chain drive transmission in oil bath. Our chain transmissions are oversized specifically to avoid any downtime due to maintenance. Our Chain transmissions also offer over 180° gear coverage resulting in a smoother and better distributed power transmission.
Side skids with Infinite adjustments
Side skids allow for tiller depth adjustment to be set anywhere from 0″ to 7 1/4″.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.
Reverse rotation (factory installed)
RVRXXT30 reverse rotation.
With this option ordered, unit will arrive from the factory assembled with a reverse rotating tiller rotor.
