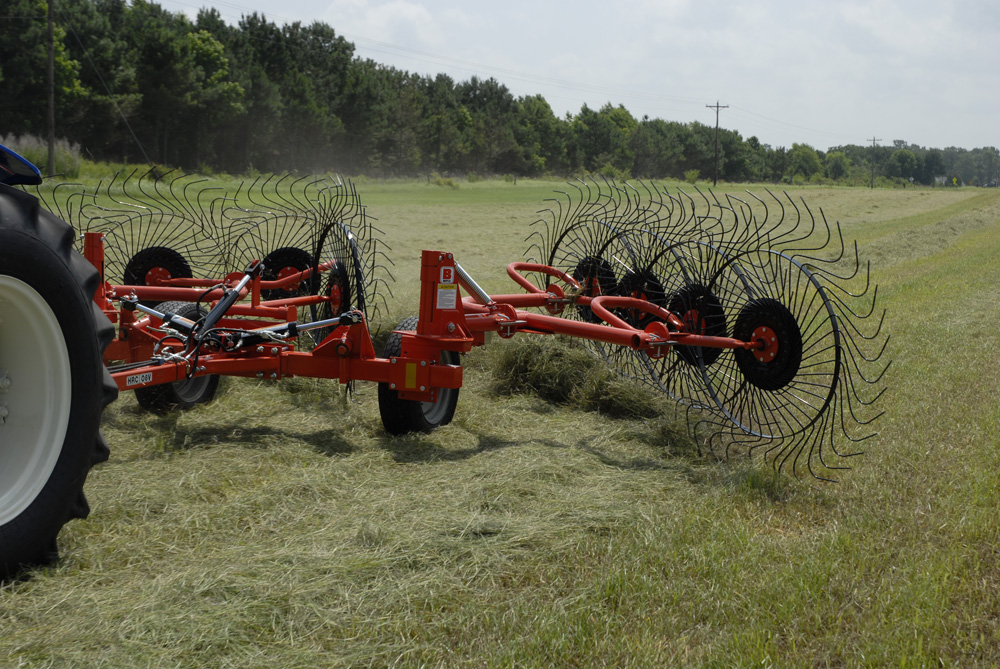

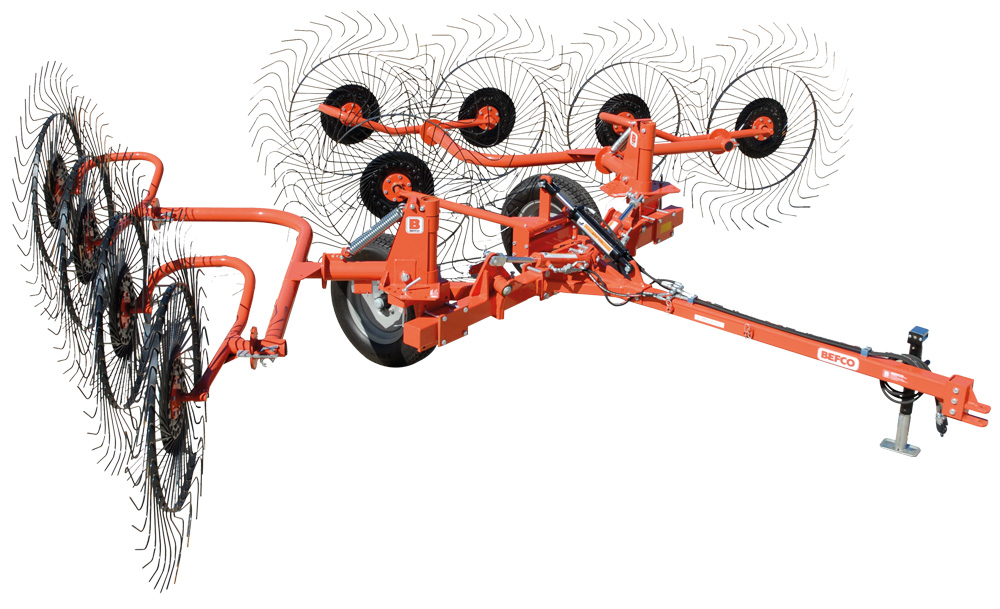

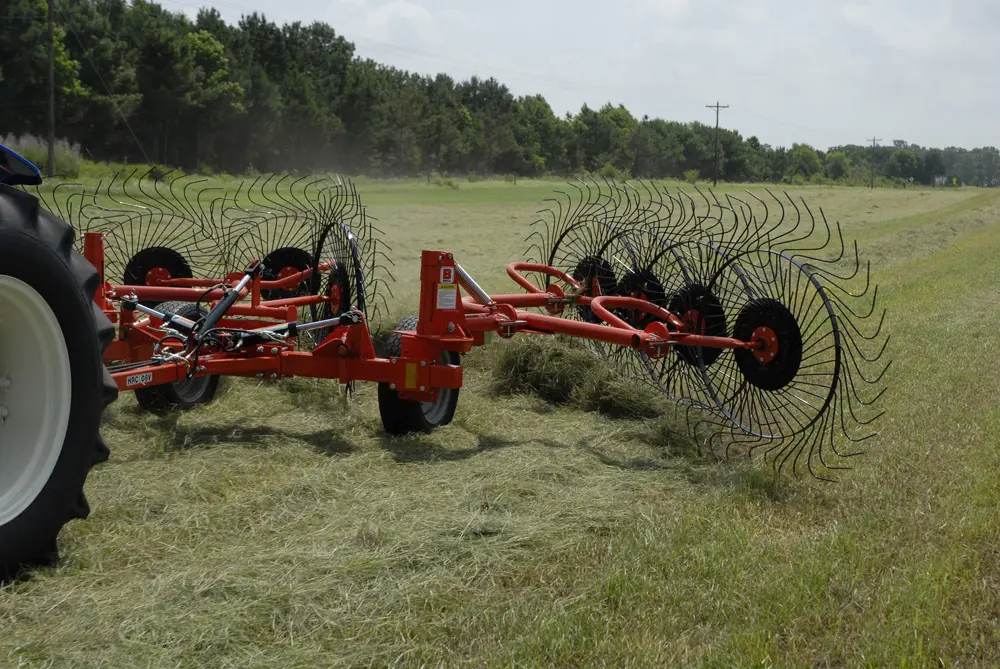

HRC

Ground driven "V" wheel rakes
16-80 HP (12-60 KW)
Pull-type

  • Working speed of up to 14 mph, low cost of maintenance and ease of use make these units indispensable for raking hay.
  • Floating rake wheels with spring steel tines follow ground contour evenly.
  • Multiple adjustment capabilities allow operator to adjust raking width, windrow width and raking angle.
  • Pull type 8, 10 and 12 wheel rakes with double action hydraulic cylinders for easy transportation and storage.
  • Hydraulic ball valves allow for single side operation and lock pull type rakes during transport and storage.
  • Narrow 8′ transport width allows pull type rakes to be easily transported to different work locations.
  • 8 & 12 wheel rakes may also be adjusted to spread or turn crop.
  • TECHNICAL FEATURES
  • STANDARD FEATURES
  • OPTIONAL EQUIPMENT
  • MANUALS

"V" GROUND DRIVEN HAY RAKES

ModelHPHitch

# of Wheels

Wheel Ø

Teeth per wheel

Tooth Ø

Working width

Transport width

Transport height

Working speed mph

Weight lbs

HRC-08V

30-80

Pull-type

8

56"

40

9/32"

21'4"

8'

8'10"

14

1,290

HRC-10V

30-80

Pull-type

10

56"

40

9/32"

23'4"

8'

10'

14

1,457

HRC-12V

30-80

Pull-type

12

56"

40

9/32"

25'7"

8'

12'1"

14

1,623

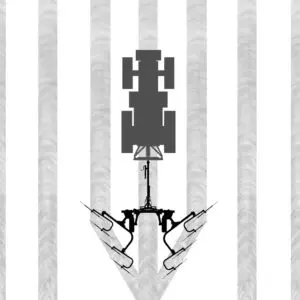

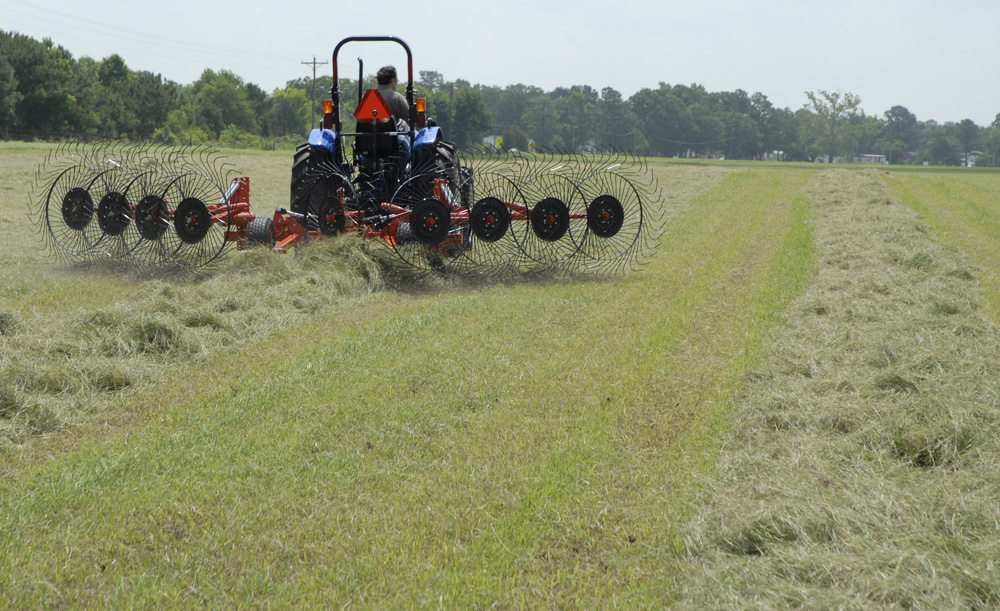

Raking (all models)

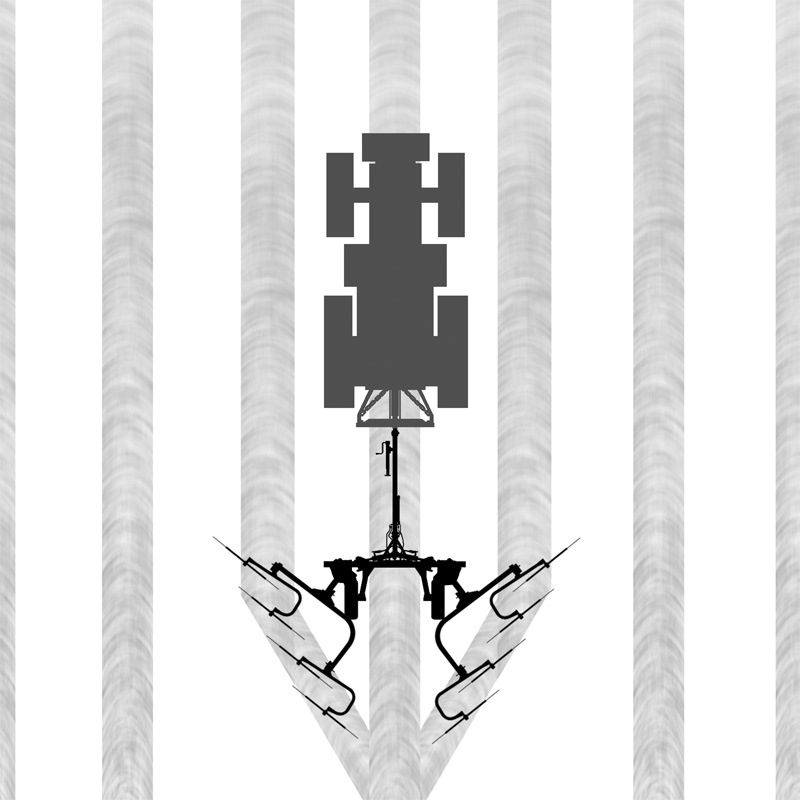

In the raking position, the rake wheels overlap front to back moving the crop to the center. Proper raking is obtained by positioning the bends, on both the
support arm and the arms with hubs, towards the back of the unit.

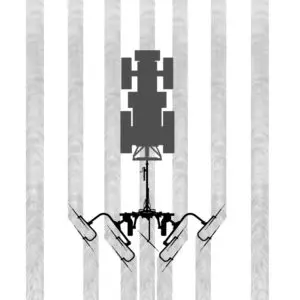

Turning (models HRC-08V, HRC-12V)

Hay rakes can be used to spread hay that has already been raked. This is

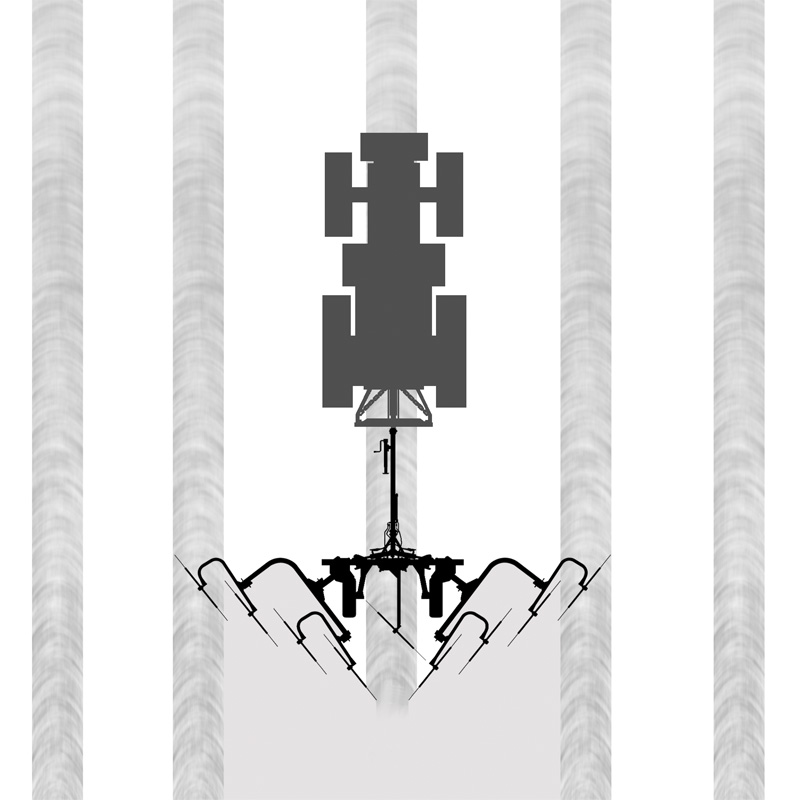

normally done to help wet hay dry faster. If the machine is assembled in the spreading position, all rake wheels will be aligned causing them to spread the hay across the width of the machine. Proper spreading is obtained by positioning the bends on both the support arm and the arms with hubs towards the tractor.

Spreading (models HRC-08V, HRC-12V)

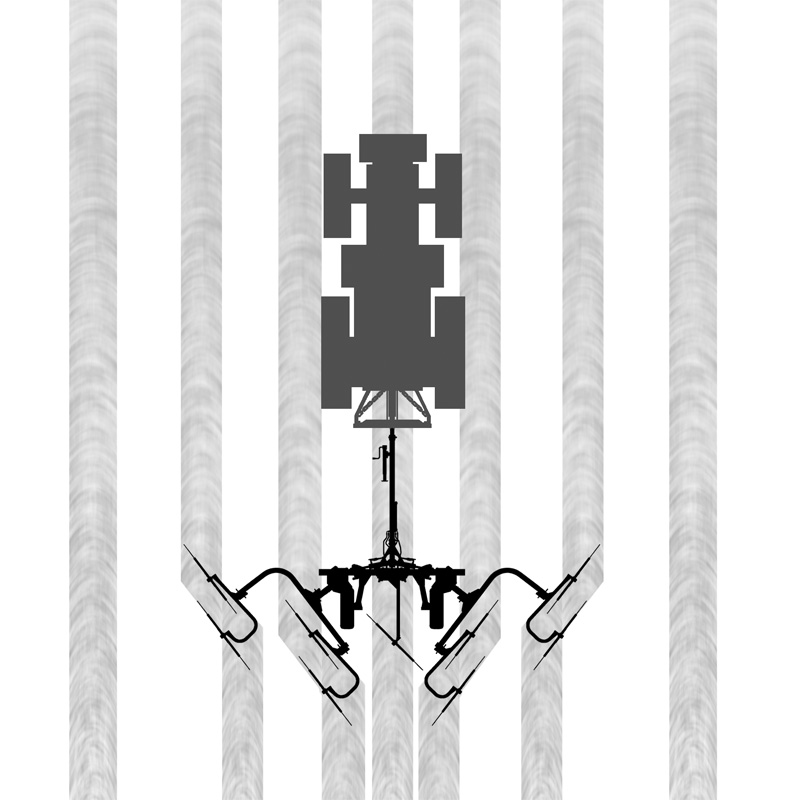

In the turning position, each pair of rake wheels overlap front to back turning the forage crop and allowing it to dry faster. In the turning position, the finger wheels are set to work in pairs turning two windrows in each pass. Proper turning is obtained by positioning the bend on the support arm towards the tractor and bends on the arms with hubs towards the back of the unit

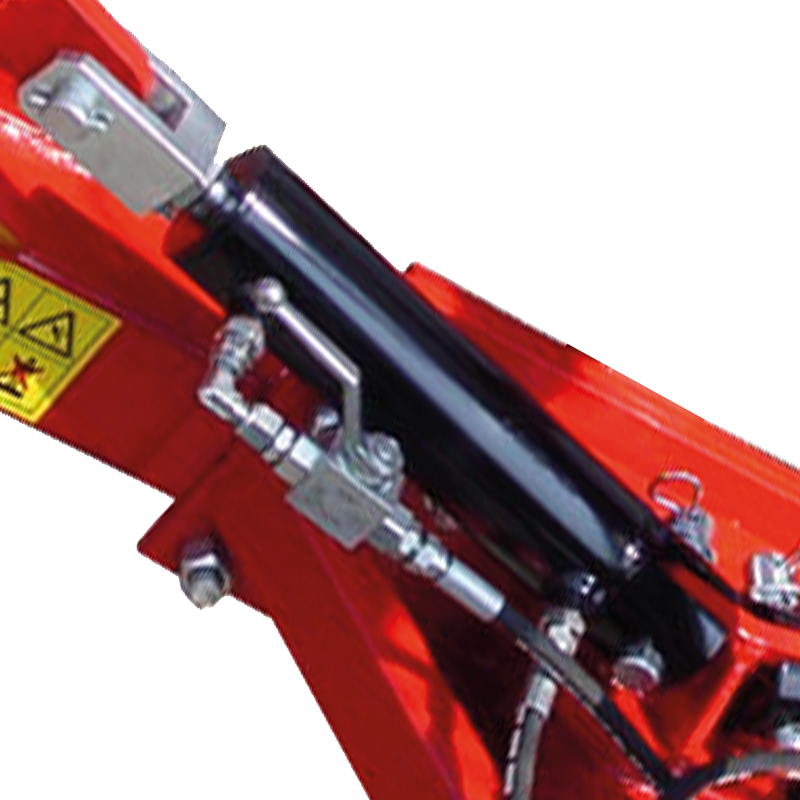

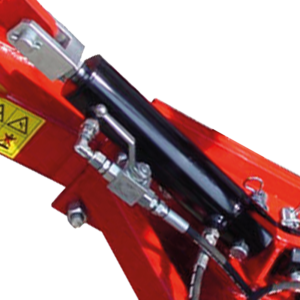

Ball valves on cylinders

All HRC wheel rakes are equipped with ball valves at the cylinders.  Ball valves may  be used to rake only on one side or for closing the hydraulic system for transport.

Springs

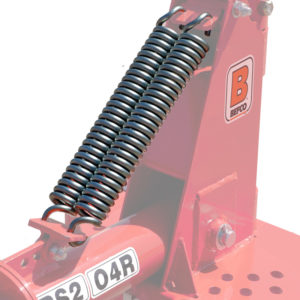

Springs allow for the wheel rakes to have sufficient ground pressure to rake the hay correctly and prevent excessive pressure from lifting up dirt onto the hay.

Tapered roller bearings

All wheel rakes are equipped tapered roller bearing mounted in cast steel, greasable hubs. The tapered roller bearings are more durable than the traditional bearings often used by the competition.

Upwards bent wheel elbows

RS2 rakes are equipped with upwards bent wheel elbows that allow for increased flow of raked hay through the wheel rake.

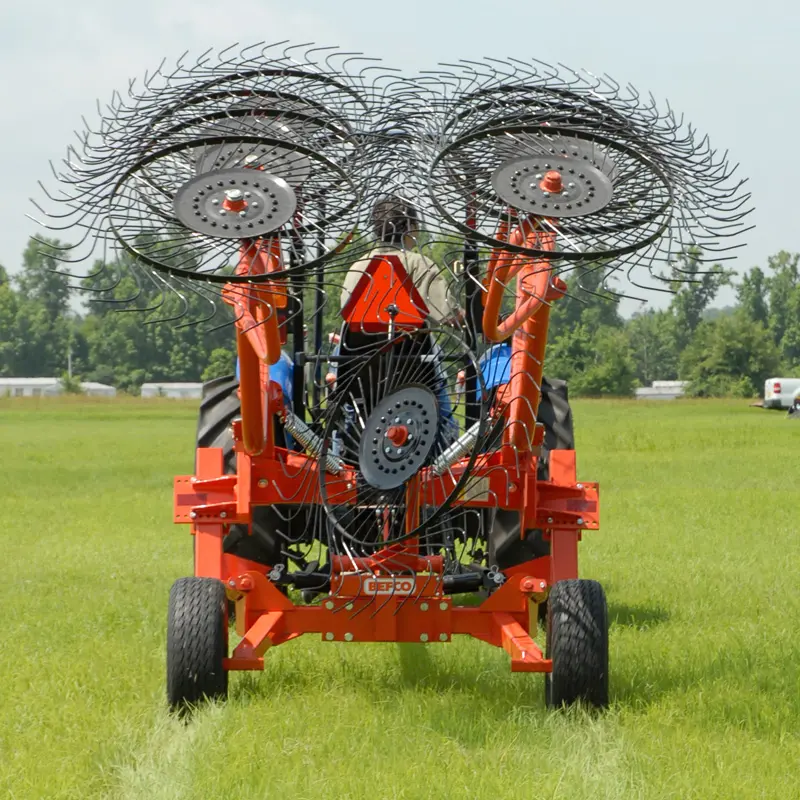

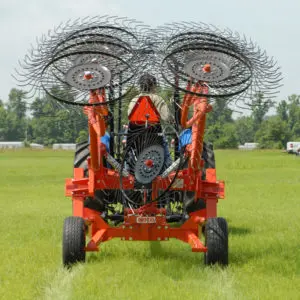

8′ transport width

Thanks to it’s frames design, HRC rakes hydraulically fold to an 8′ wide transport width.

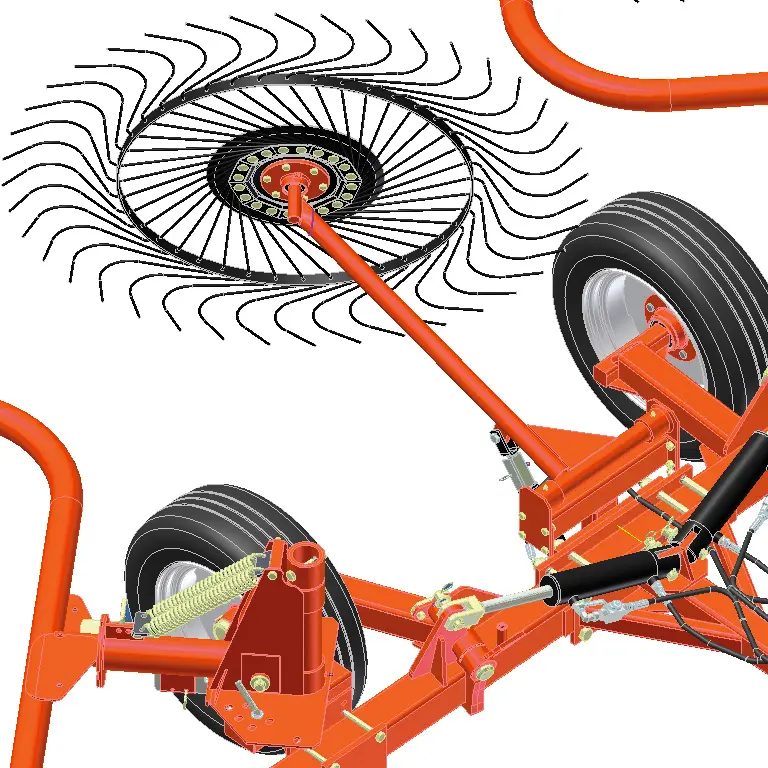

Center kicker wheel

0099982 Center kicker wheel  for all HRC model rakes (includes hydraulic cylinder)
