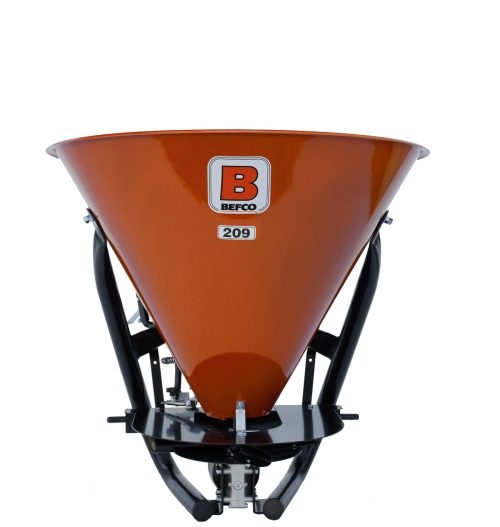

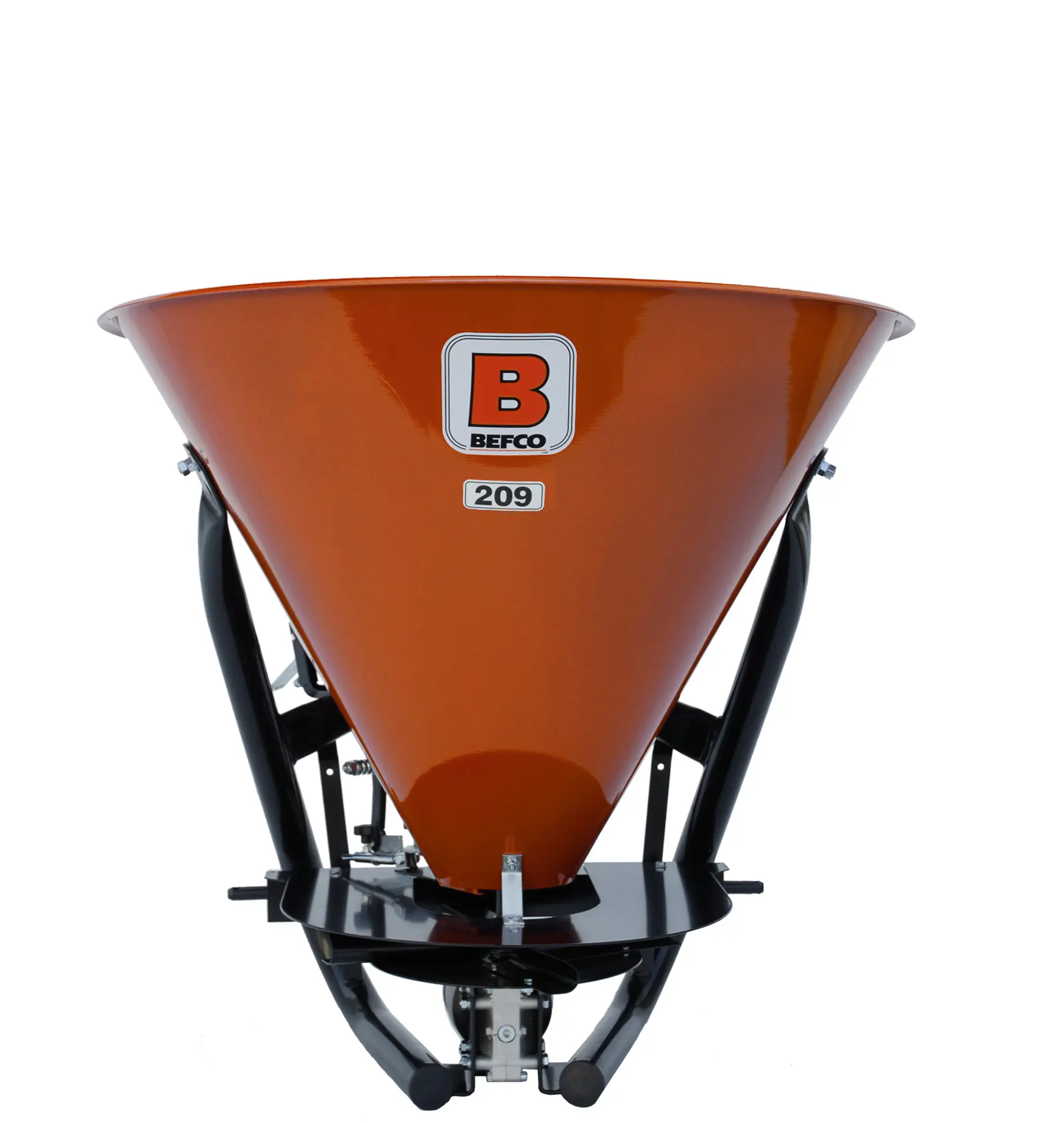

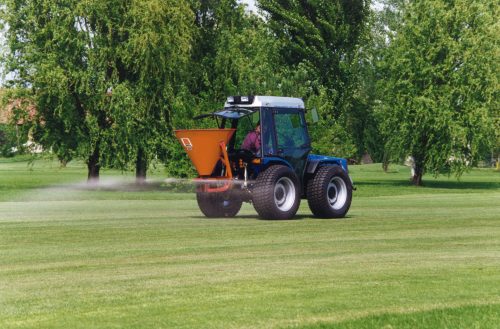

HOP
Broadcast spreaders
16-50 HP (12-37 KW)
540 rpm - Cat. 1
- One piece seamless hopper
- Adjustable ejector spoon to center spread on 203 model
- Sealed heavy duty gearbox
- Fixed agitator
- Adjustable spreading fins on 209 & 212 models.
- Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 1)
- Sturdy tubular frame
- Selective double gate opening on 206, 209 & 212
- 3 point linkage, limited cat. 1 on 203 & 206 models, cat. 1 on 209 & 212 models
- Quick hitch compatible on models 209 & 212
| Model | HP | Weight lbs | Ship lbs | Capacity cu. ft/lbs | Swath spread | Hopper width | Hopper height | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|

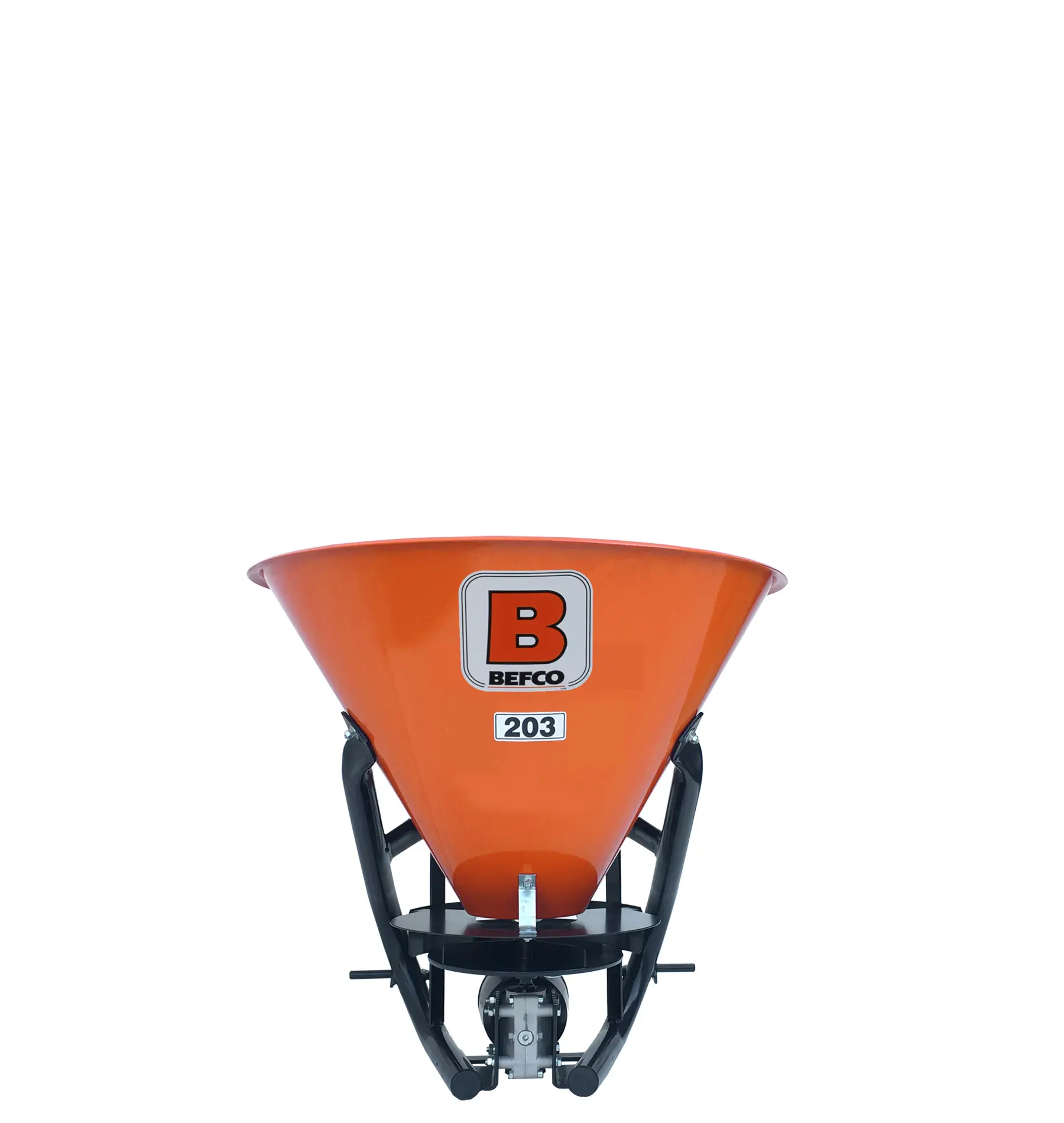

203-120 | 16-30 | 81 | 116 | 3.71/237 | 23' | 32" | 31" | ASAE cat. 1 |

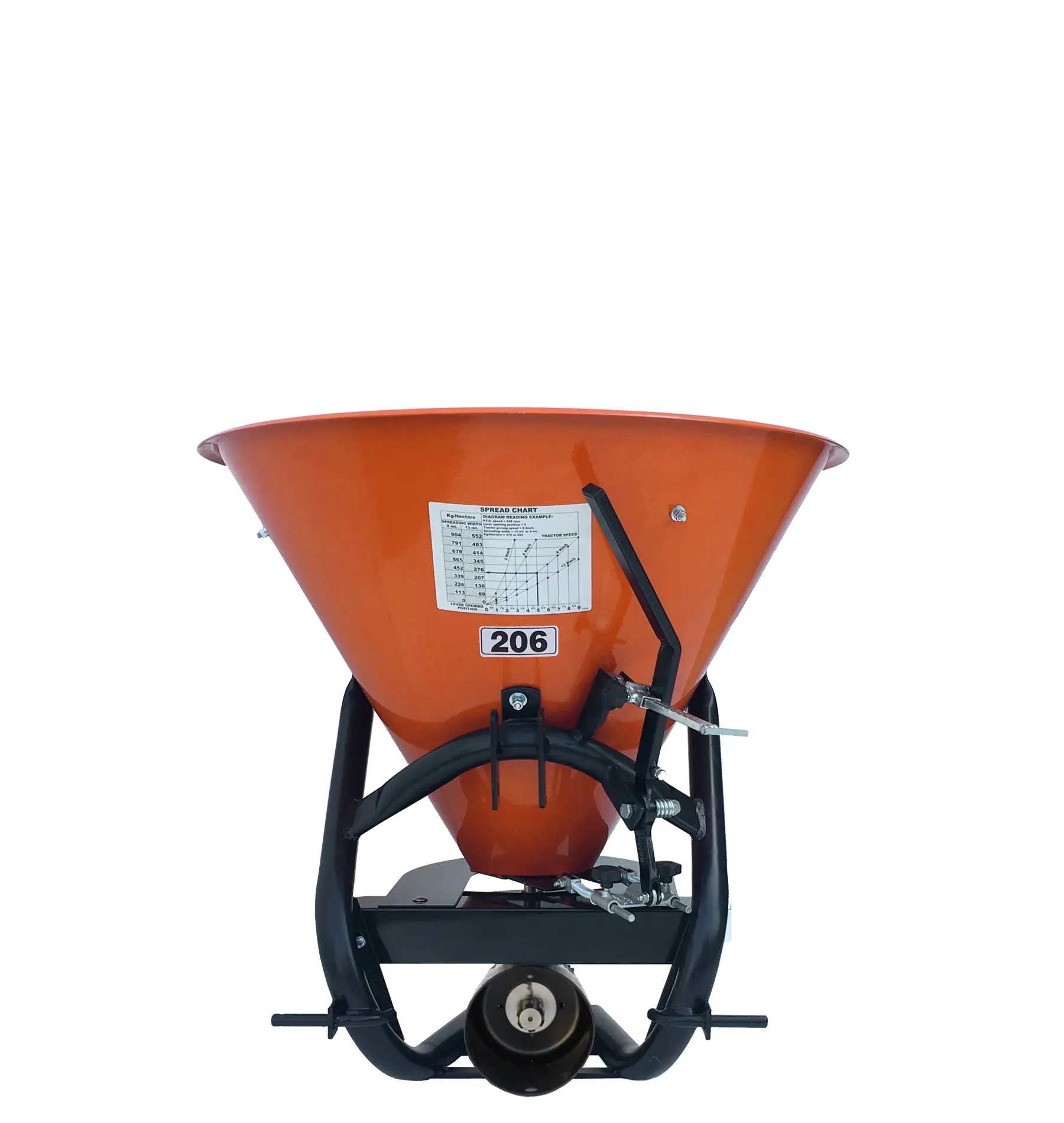

206-121 | 16-30 | 102 | 145 | 5.30/339 | 23' | 35" | 34" | ASAE cat. 1 |
209-121 | 20-50 | 125 | 160 | 8.58/549 | 46' | 42" | 40" | ASAE cat. 1 |

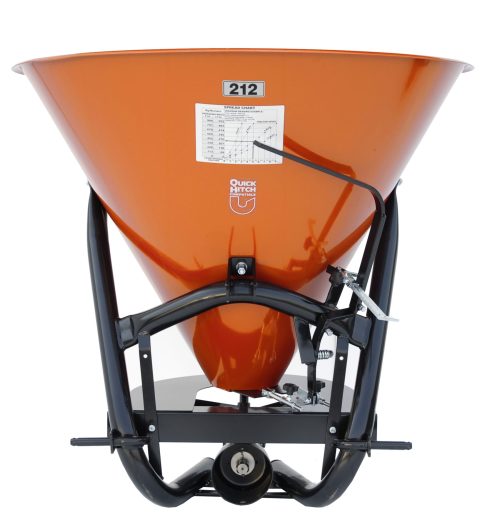

212-121 | 20-50 | 136 | 171 | 11.95/765 | 46' | 48" | 46" | ASAE cat. 1 |
NOTE: Capacity in lbs. calculated @ 13-13-13 fertilizer weight of 64 lbs. per cu. ft.
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.

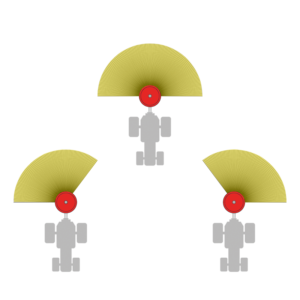

Adjustable spread pattern
Hop spreaders are equipped with an adjustable spread pattern that allows operator to spread, prevalently right, prevalently center or prevalently left.

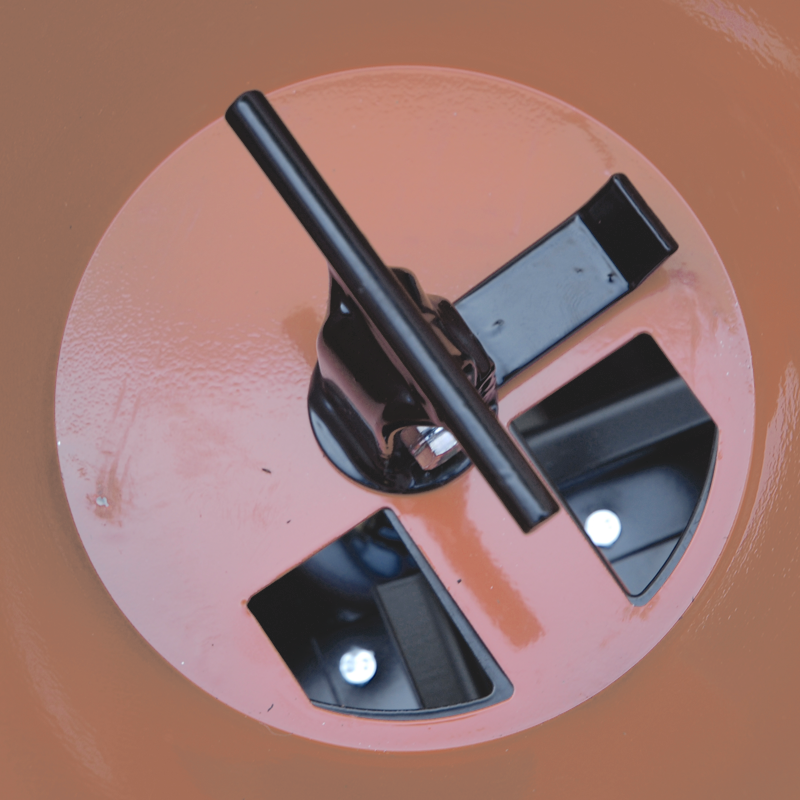

One piece seamless steel hopper with opening gates on bottom
All Hop spreaders have a one piece seamless steel hopper with opening gates on the bottom to improve flow of material to the spreader disc.

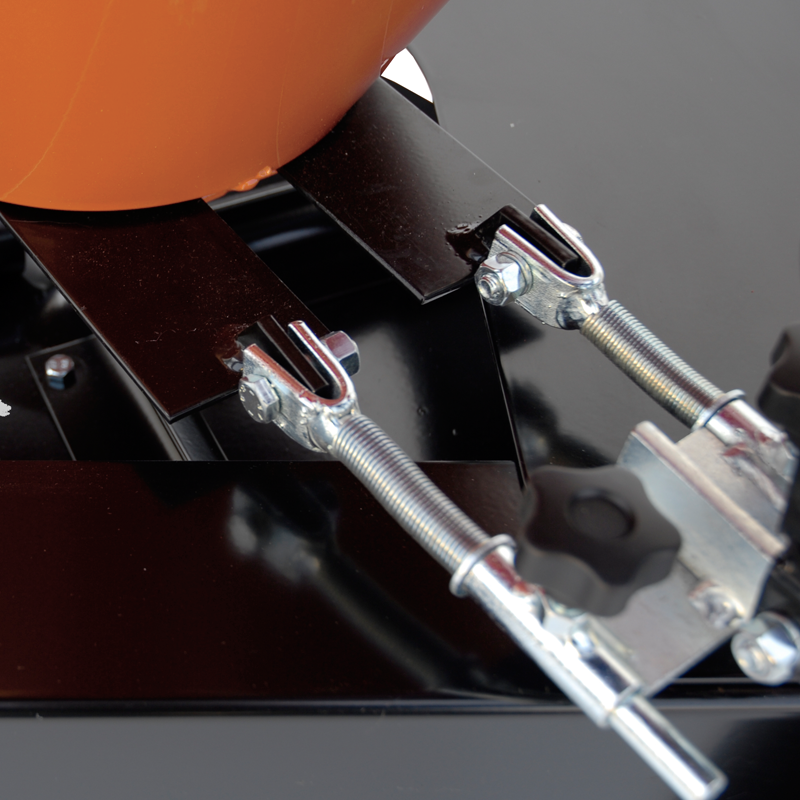

Steel gates
Steel gates opening control on models 206-121, 209-121 and 212-121 allow you to open one or both gates at a time to help direct material in the desired direction.

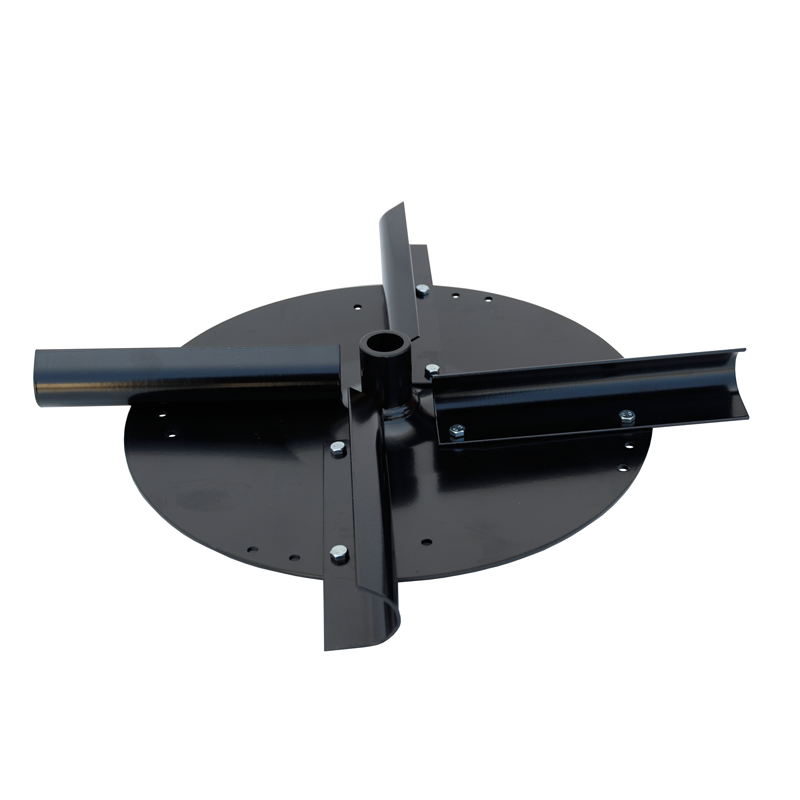

Steel wings and disc
Adjustable Steel spreader wings and disc on models 209-121 and 212-121

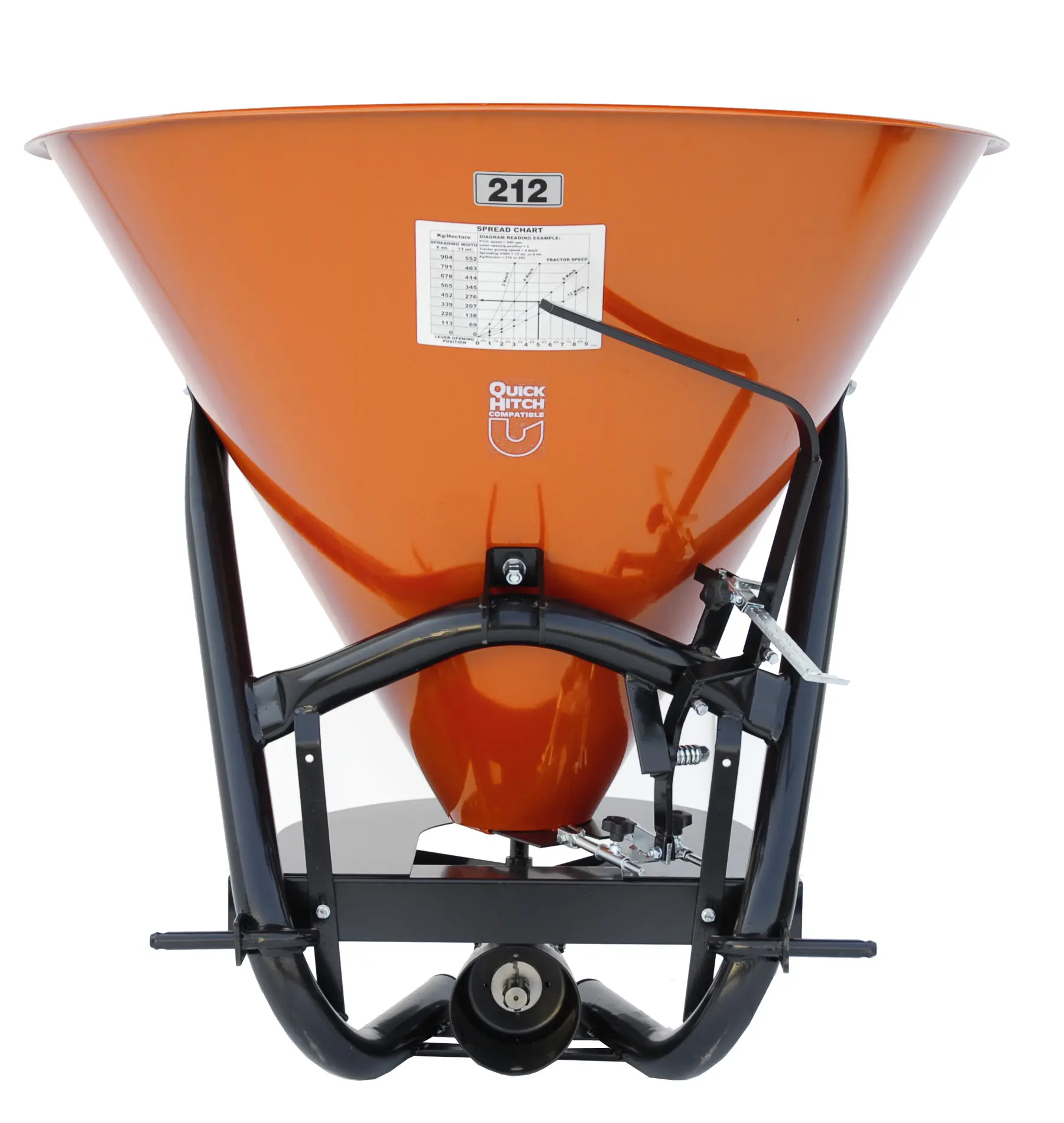

ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.
Models 209-121 and 212-121 are Quick hitch compatible ready.
Model 203-120 requires optional quick hitch adapter to be quick hitch compatible.

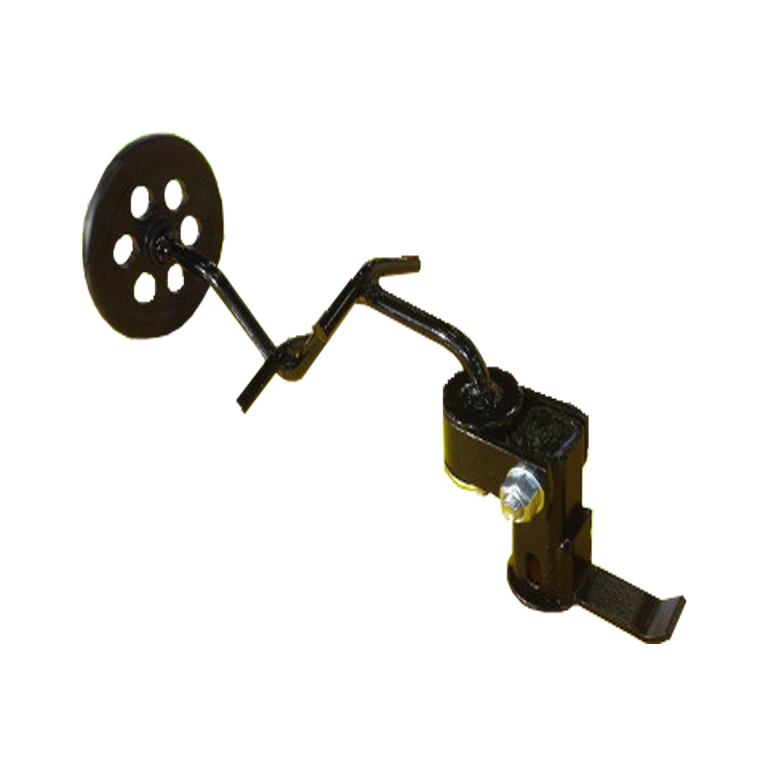

Tumbling style agitator
0099978 Tumbling style agitator for models 206, 209 & 212 (Assembly Instructions video)0099979 Tumbling style agitator for model 203

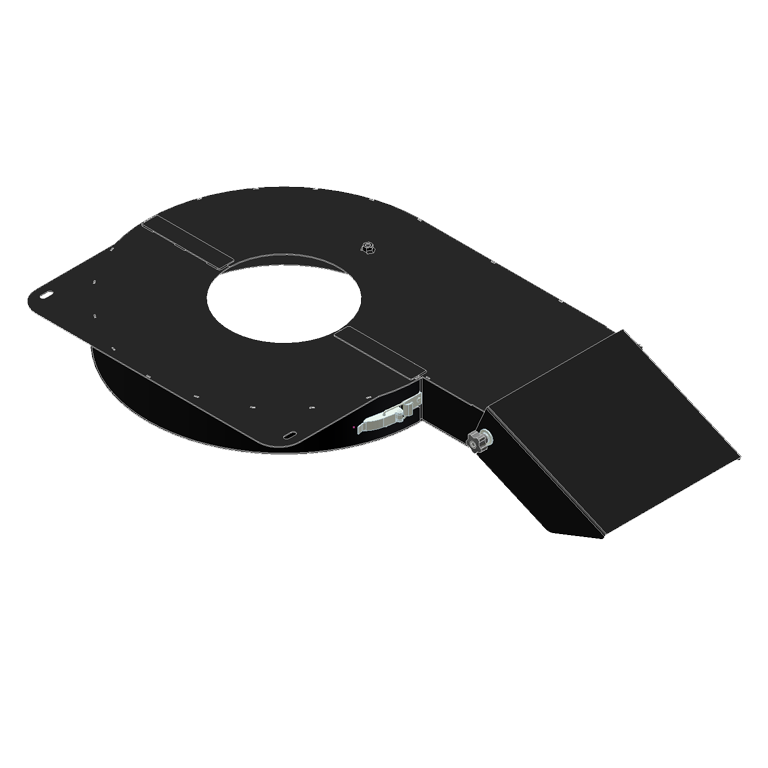

Siderow discharge
0099458 Siderow discharge for models 209 & 212 models (Assembly Instructions video)

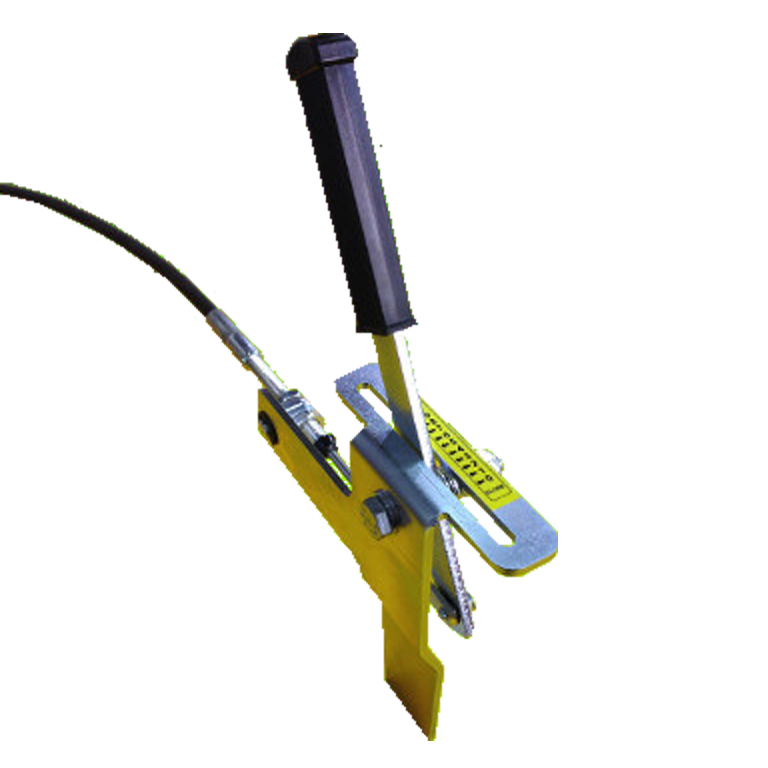

Remote gate control
0099850 Remote gate control for models 206, 209 & 212
0099856 Remote gate control for model 203

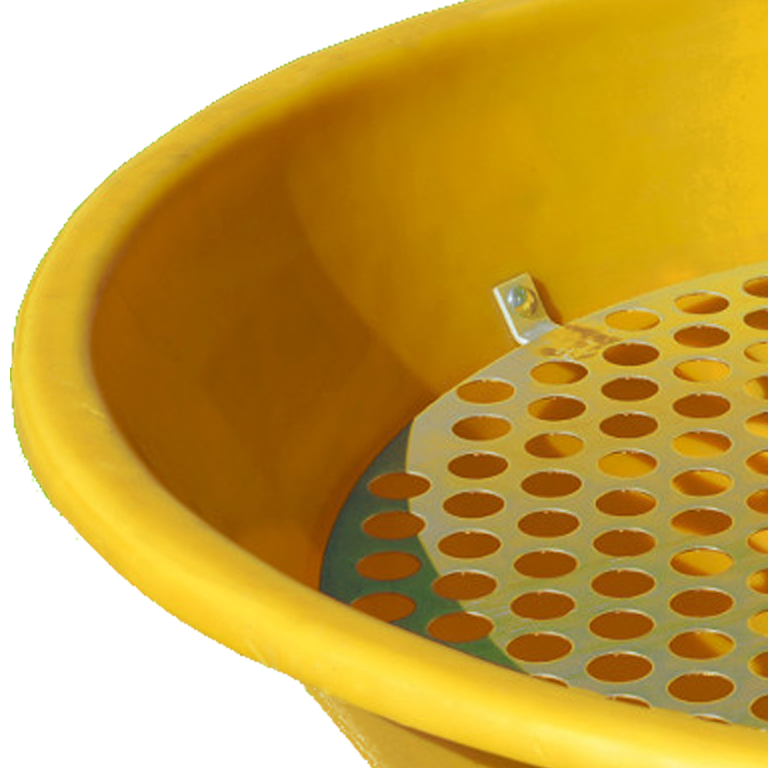

Filter grate
0099913 Filter grate for models 209 & 212

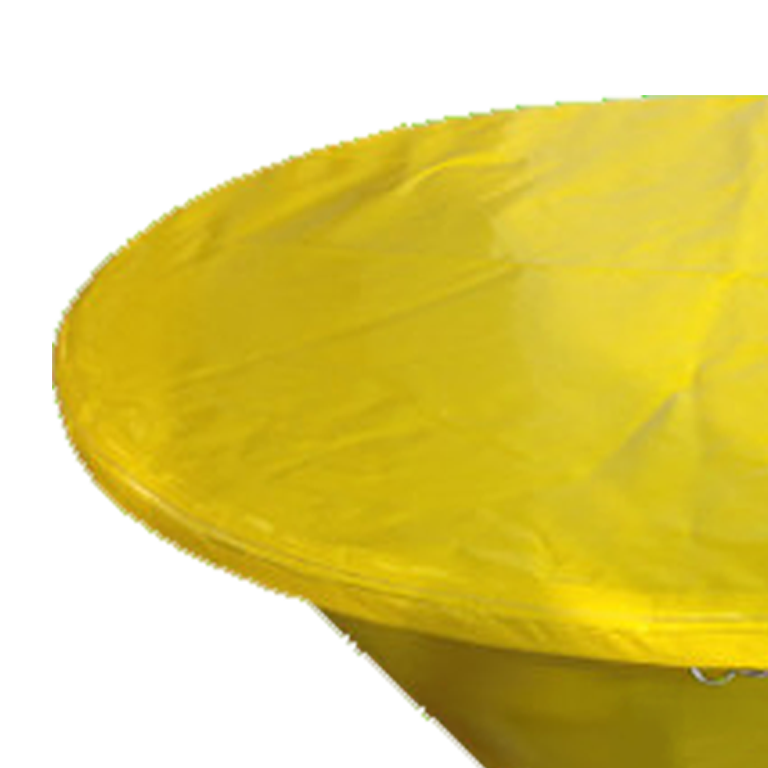

Hopper cover
0099720 Hopper cover for model 203
0099721 Hopper cover for model 206
0099722 Hopper cover for model 209
0099723 Hopper cover for model 212

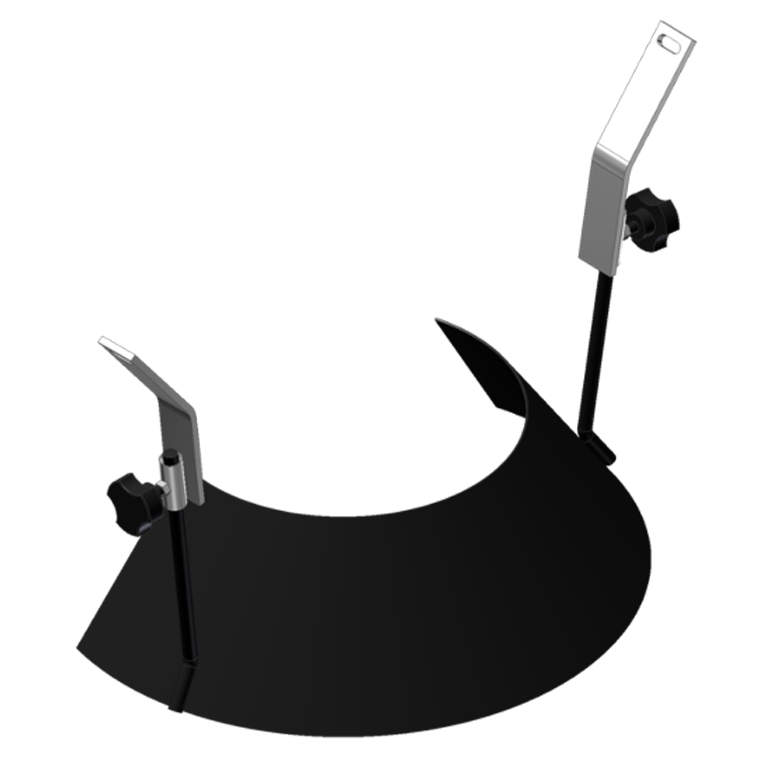

Deflector
0099524 Deflector complete for models 203 & 206

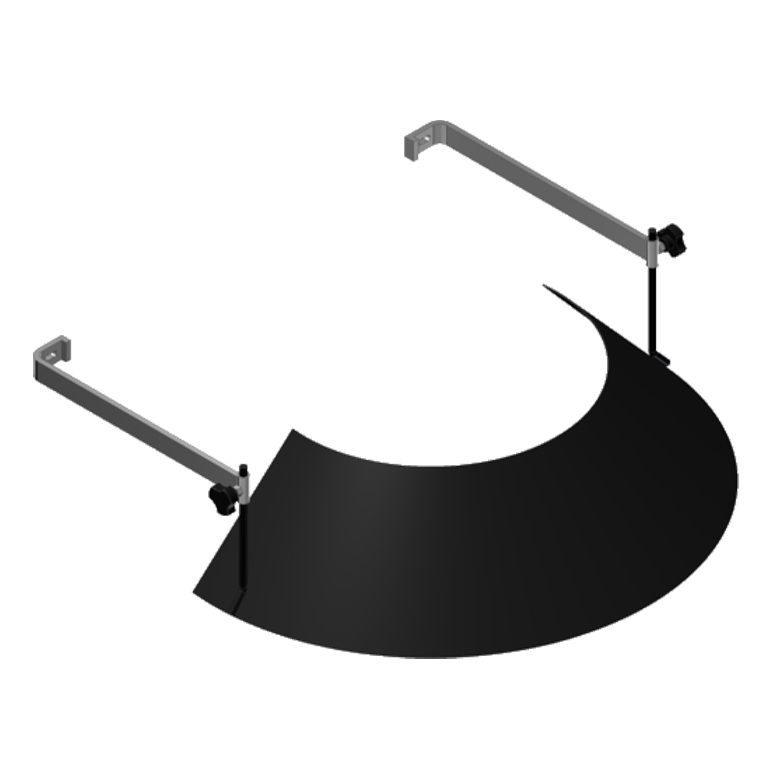

Deflector
0099638 Deflector complete for models 209 & 212

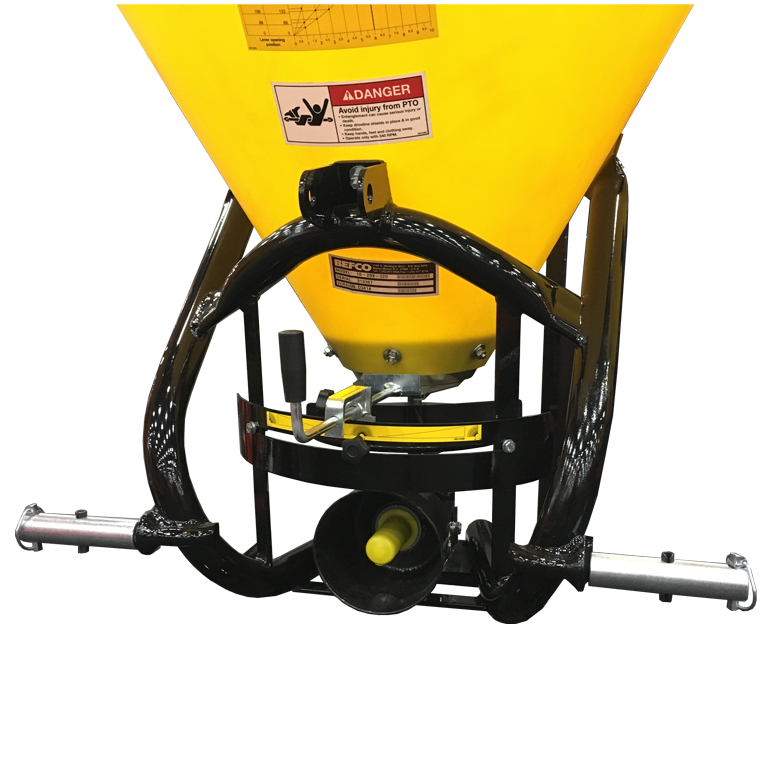

Quick hitch adapter
0099239 Quick hitch adapter for model 203
