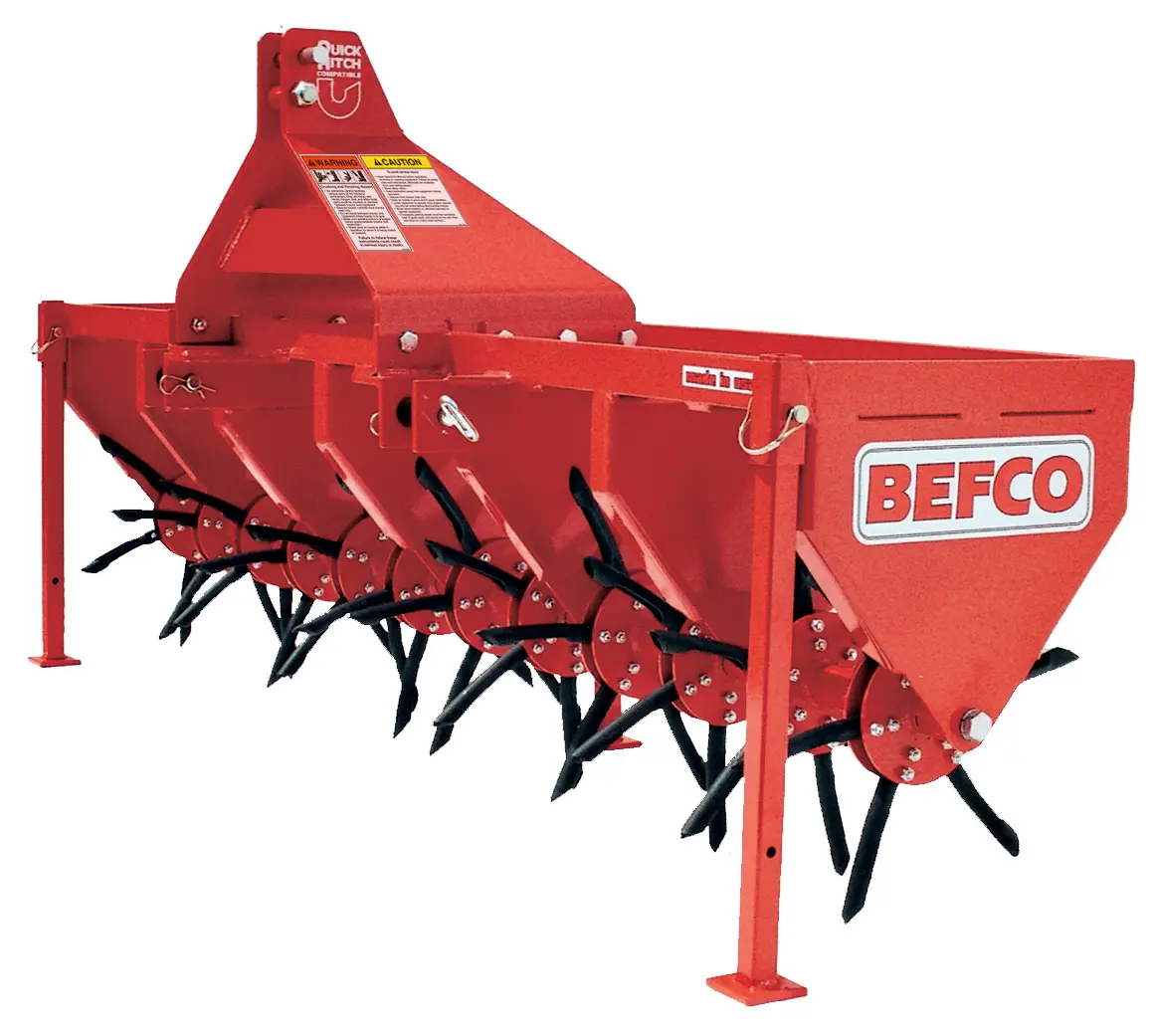

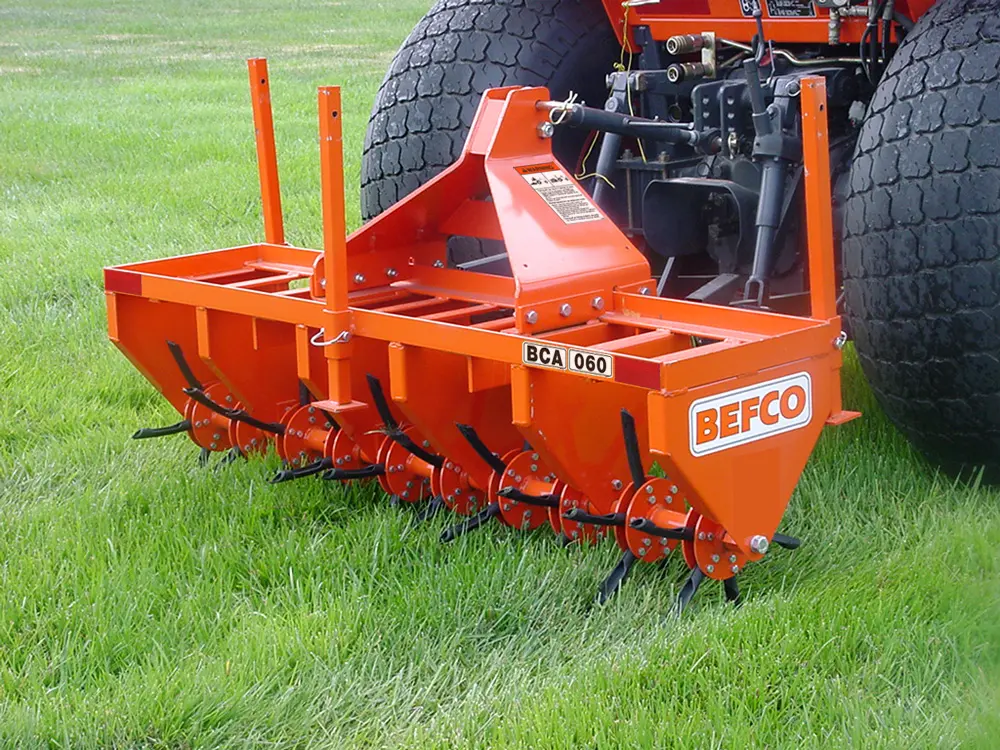

BCA SD
Core aerators
20-50 HP (15-37 KW)
Cat. 1
- Hub spacing 6 1/2″
- Special high quality steel shafts on the rotors
- 2 bronze bushings per rotor
- 8 guage formed steel support panels
- All panels support rotors from all sides
- 1 1/4″ rotor support shaft
- 3/8″ formed cat. 1 “A” frame
- Machine equipped with spikes instead of spoons is available on request
- 3 point linkage, Cat. 1
- 6 spoons per hub
- All flanges are welded to rotors
- Flange thickness 3/16″
- 3 support stands
- 3/4″ hardened steel spoons
- Front or rear tractor mounting
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | # of rotors | # of hubs | # of spoons | Spoon penetration | Weight area | Additional weight lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
BCA-048 | 20-50 | Cat. 1 | 48" | 54" | 284 | 389 | 4 | 8 | 48 | 4 1/2" | 12"x15" | 156 |
BCA-060 | 20-50 | Cat. 1 | 60" | 65" | 357 | 437 | 5 | 10 | 60 | 4 1/2" | 19"x15" | 250 |
BCA-072 | 20-50 | Cat. 1 | 72" | 78" | 401 | 515 | 6 | 12 | 72 | 4 1/2" | 25"x15" | 320 |

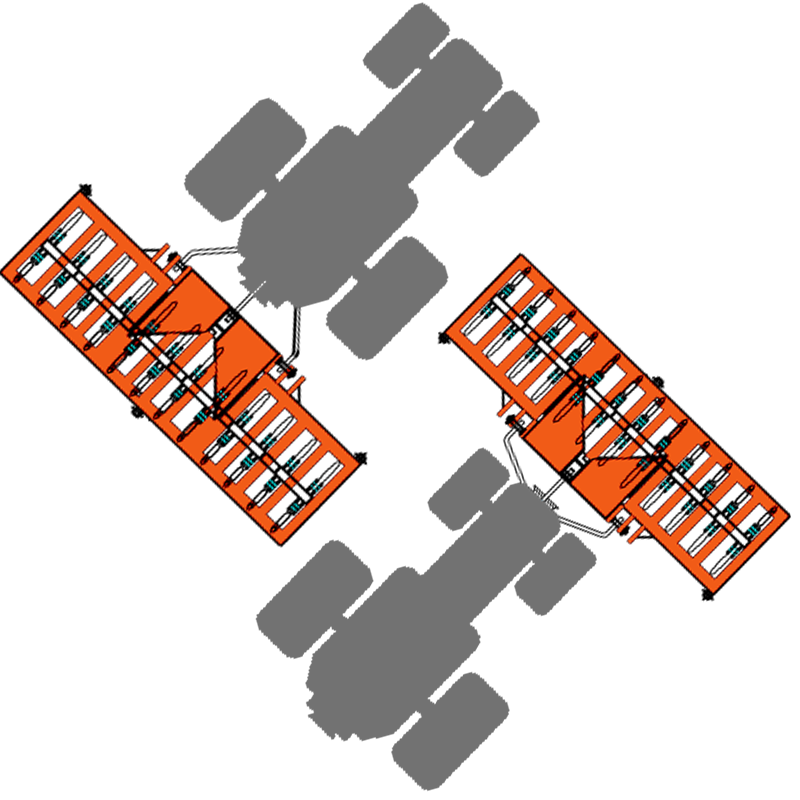

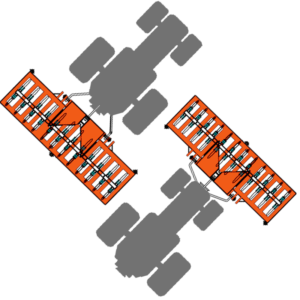

Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

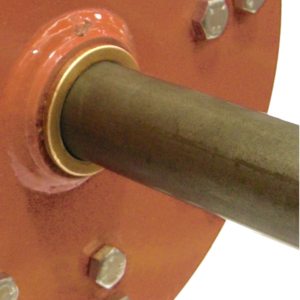

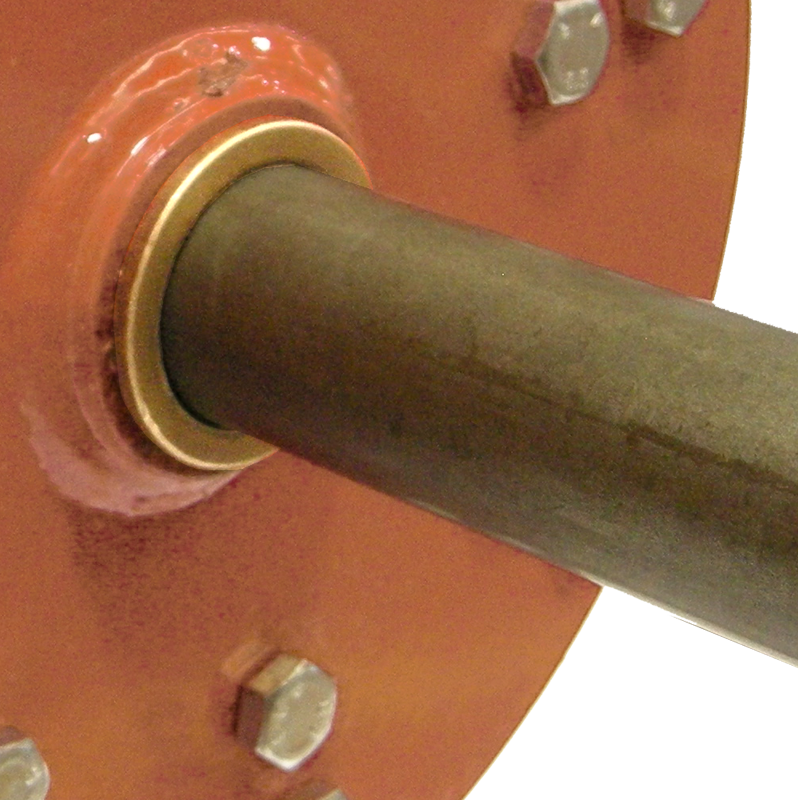

Bronze bushings
All flanges are fully welded. Unlike other units that have no bushings, BEFCO core aerators have two bronze bushings per rotor making maintenance and repairs easier and less costly.

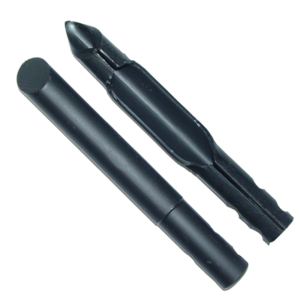

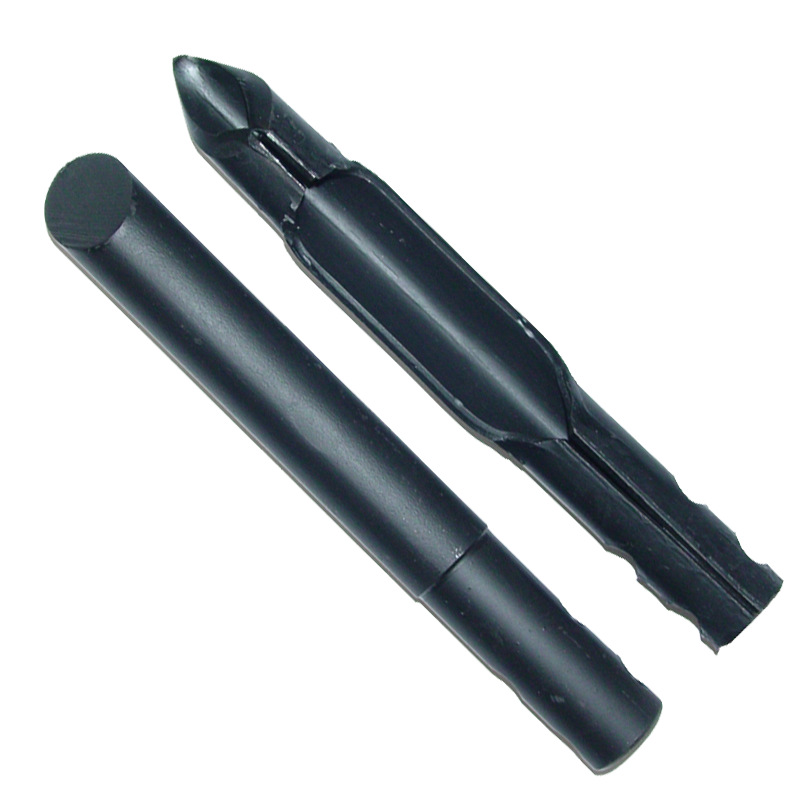

Spoons and spikes
Core aerators are equipped standard with hollow spoons but on request may be assembled with solid spikes.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.

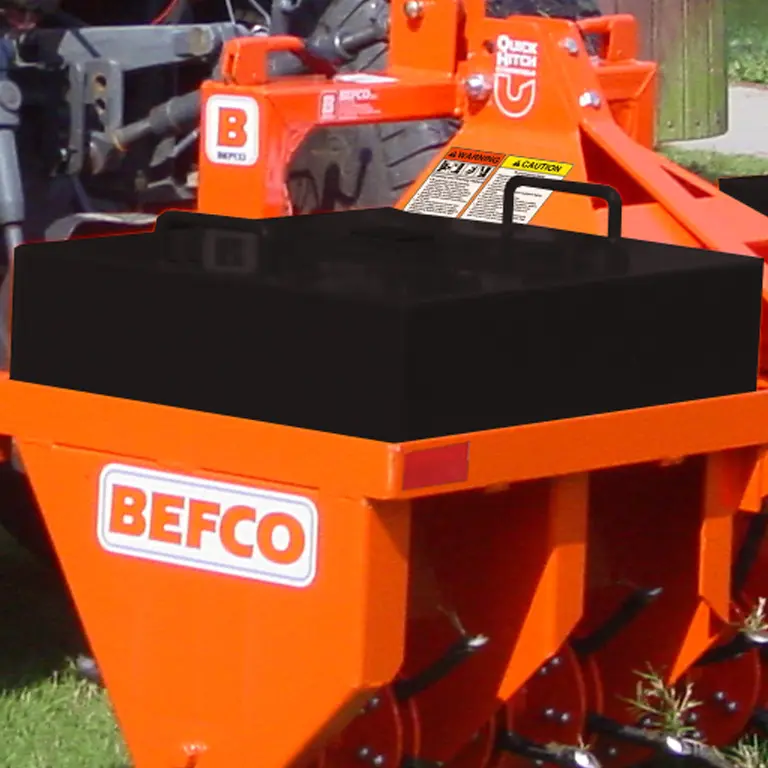

Steel weight tank
0099731 Steel weight sand tank for BCA-048 (up to two per unit)
0099732 Steel weight sand tank for BCA-060 (up to two per unit)
0099733 Steel weight sand tank for BCA-072 (up to two per unit)

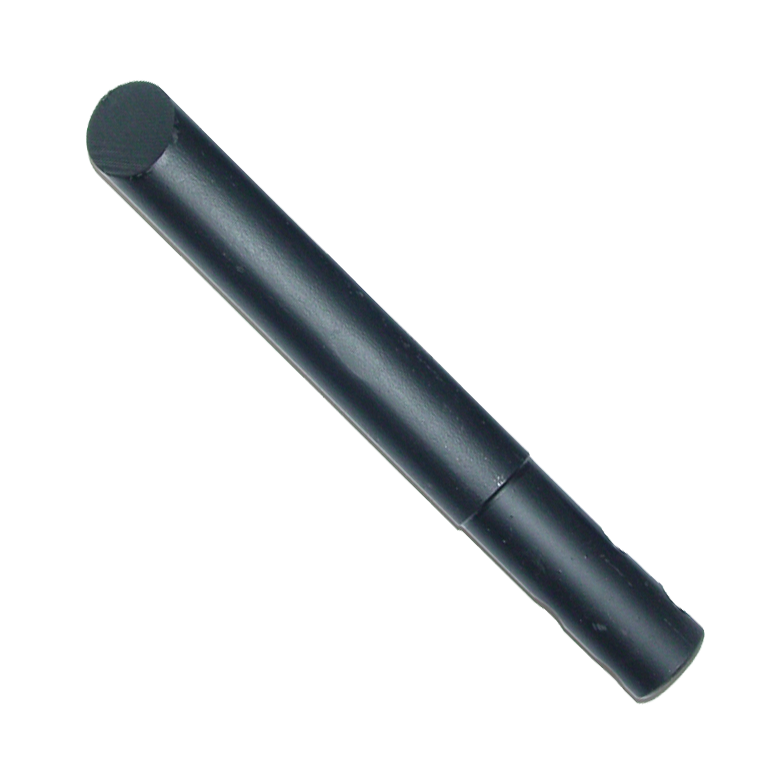

Solid spikes (factory installed)
SP048BCA BCA-048 with solid spikes instead of spoons
SP060BCA BCA-060 with solid spikes instead of spoons
SP072BCA BCA-072 with solid spikes instead of spoons

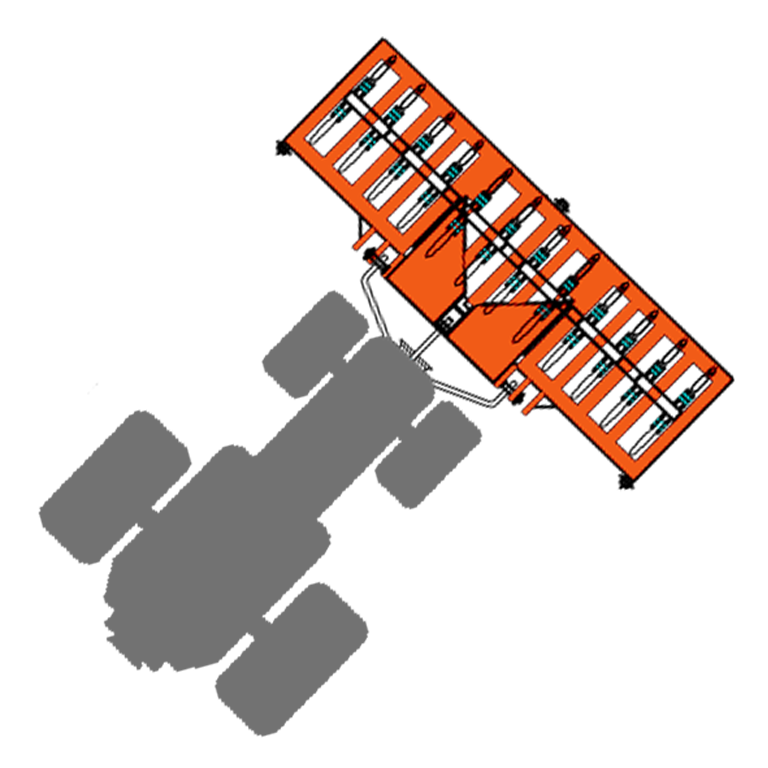

Front mount (factory installed)
FRTHDBCA Front mount
Operator’s & Parts manual (English)
Operator’s & Parts manual (French)
