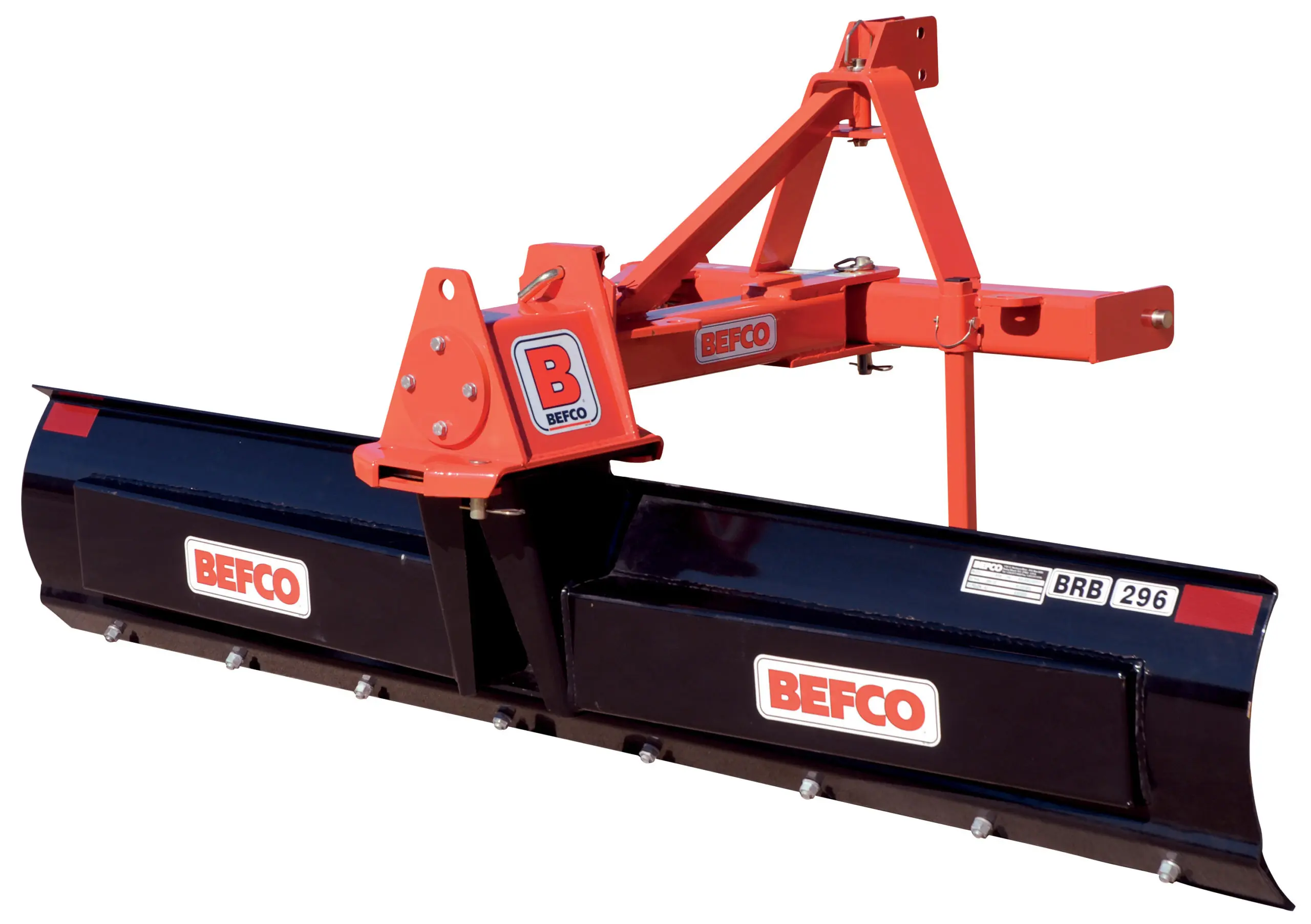

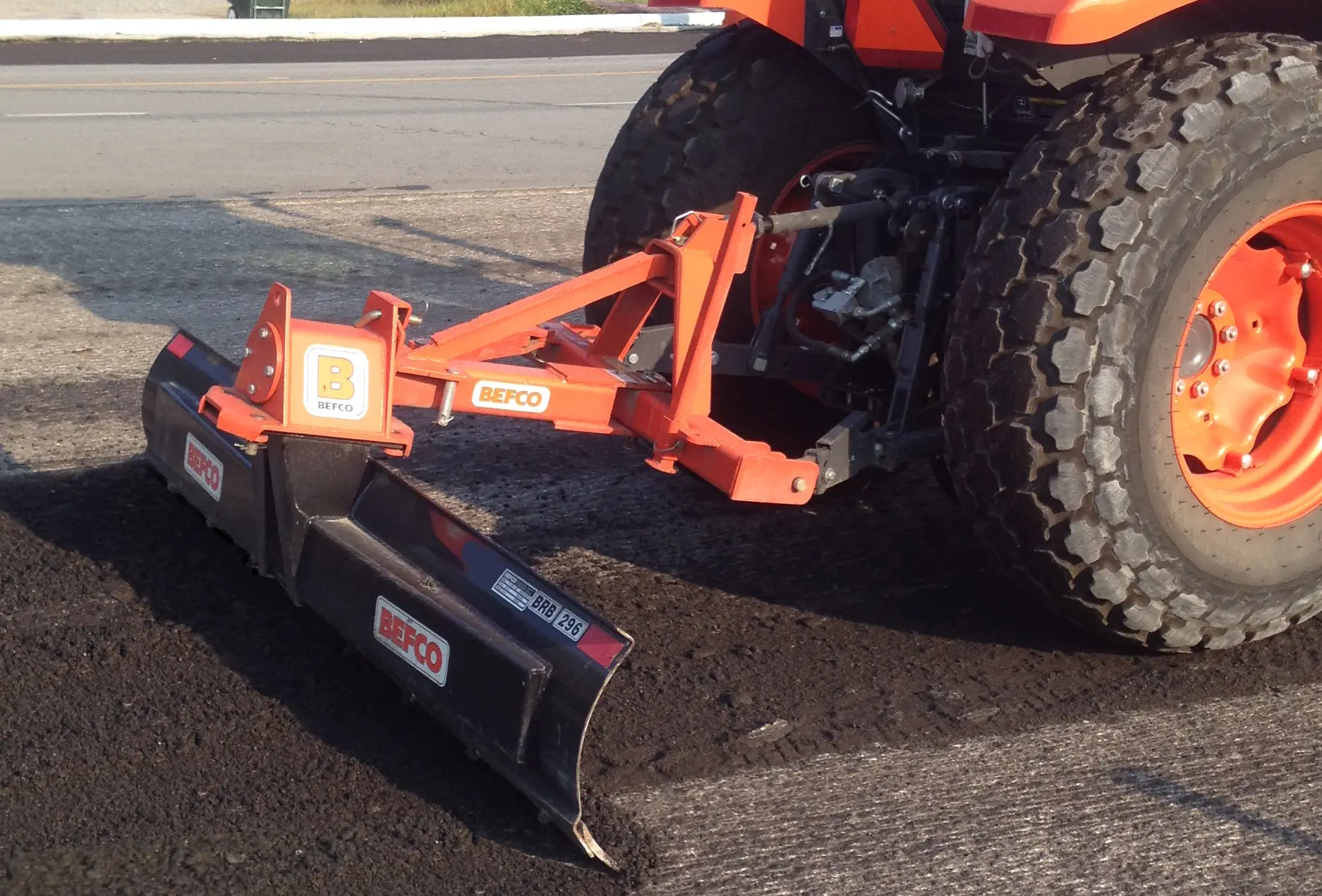

BRB HD
Rear blades
30-80 HP (22-60 KW)
Cat. 1 & 2
- 16 forward 16 reverse positions.
- Left or right offset.
- 5 tilt positions.
- 3 point linkage, cat. 1 & 2.
- 1/2″ x 6″ heat treated reversible cutting blade.
- 1/4″ thick moldboard.
- Reinforced moldboard for increased strength.
Previous
Next
| Model | HP | Hitch | Working width | Weight lbs | Ship lbs | Tilt adjustment | Blade angling | Offset adjustment |
|---|---|---|---|---|---|---|---|---|
| BRB-284 | 30-80 | Cat. 1 & 2 | 84" | 524 | 602 | 15° & 30° | up to 60° | up to 21" |
| BRB-296 | 30-80 | Cat. 1 & 2 | 96" | 561 | 644 | 15° & 30° | up to 60° | up to 21" |
Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

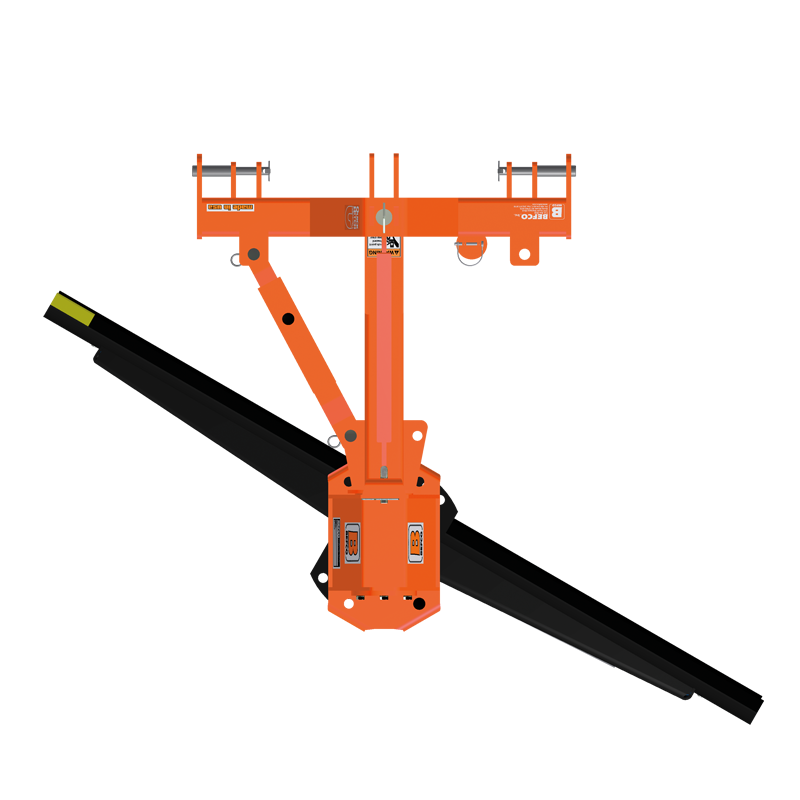

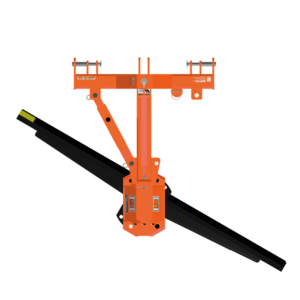

Angling
Up to 60° angling with 16 forward and 16 reverse positions.

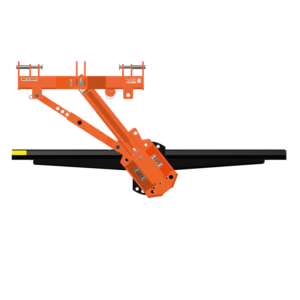

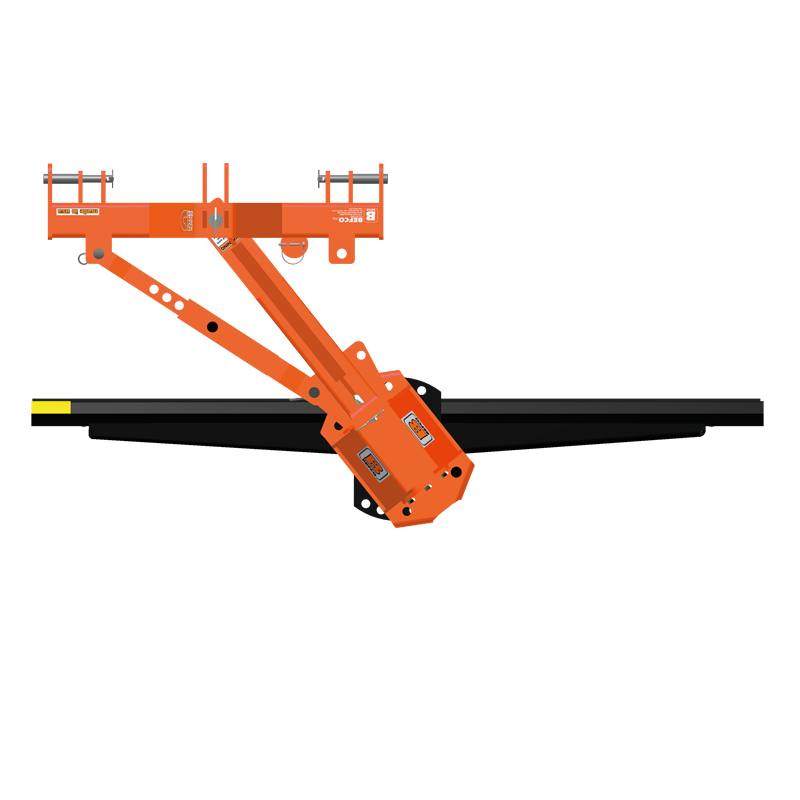

Offset
Up to 21″ right or left offset adjustment

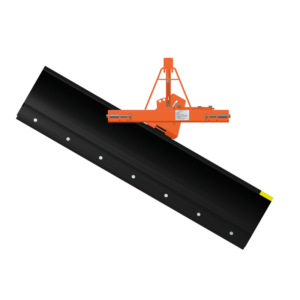

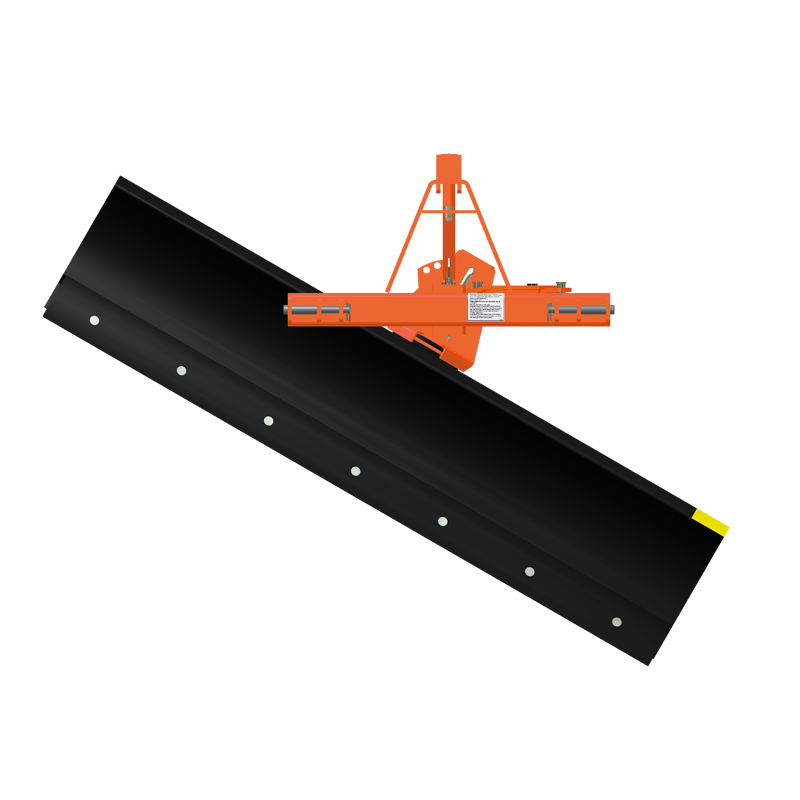

Tilt
Up to 30° right or left tilt with 5 tilt positions to choose from.
1/2″x6″ heat treated blades
All BRB models are equipped with two 1/2″x6″ heat treated blades with reversible cutting edge.
ASAE Cat. 1 & 2 quick hitch compatible
Compatible with ASAE Cat. 1 and 2 quick hitches.
Skid shoes
BRB001 Skid shoes

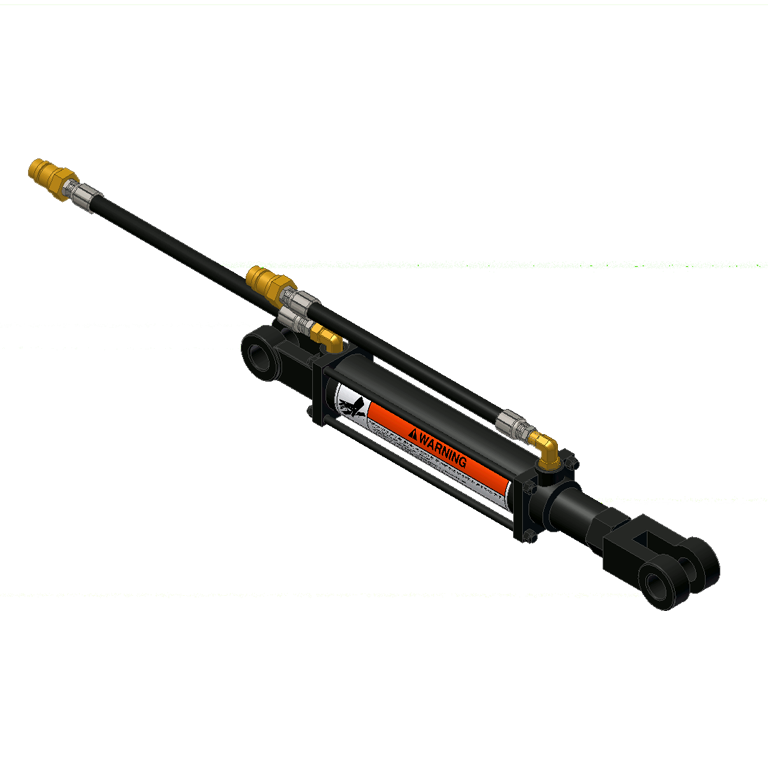

Hydraulic angling kit
BRB002 Hydraulic angling control
Operator’s & Parts manual
