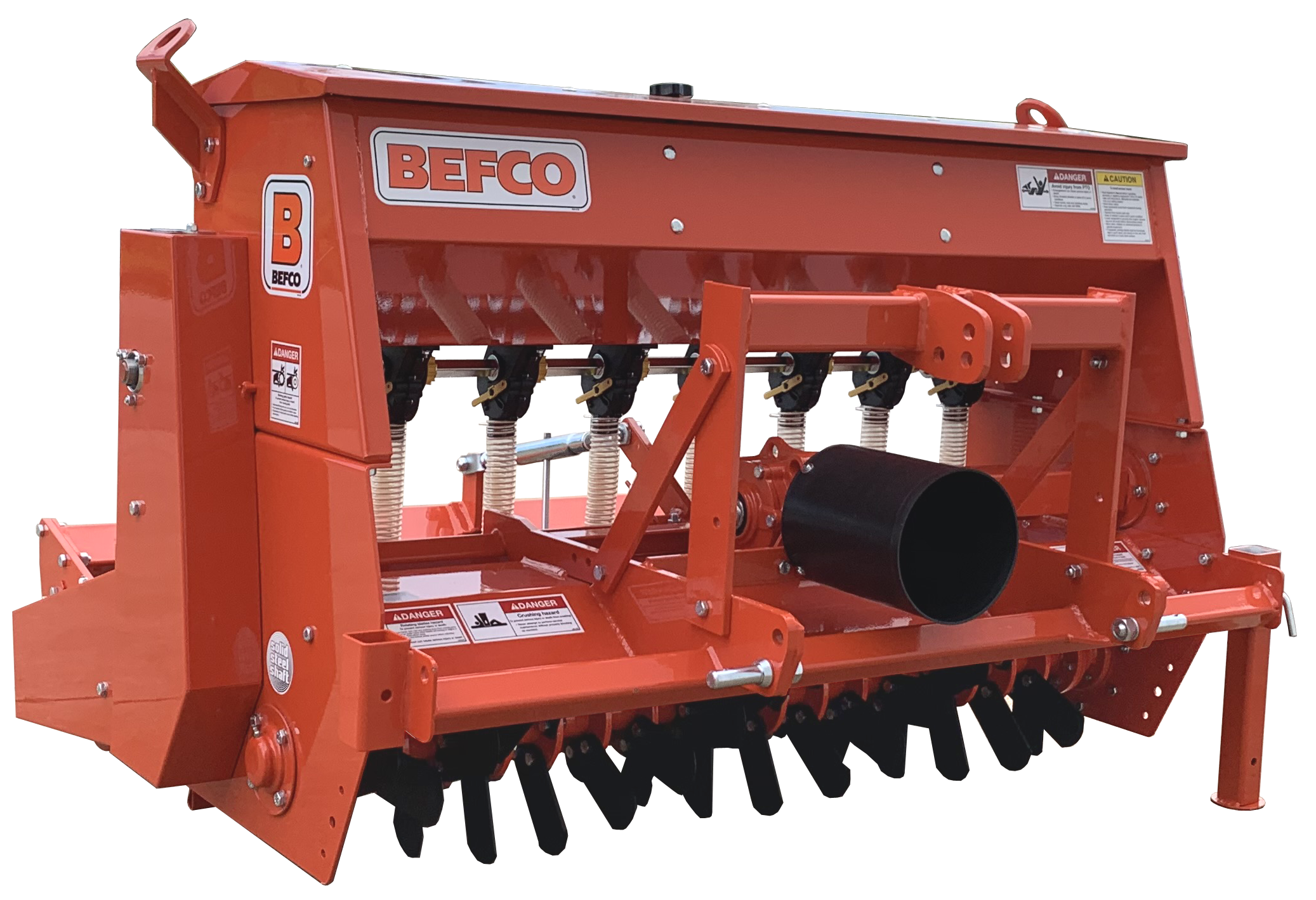

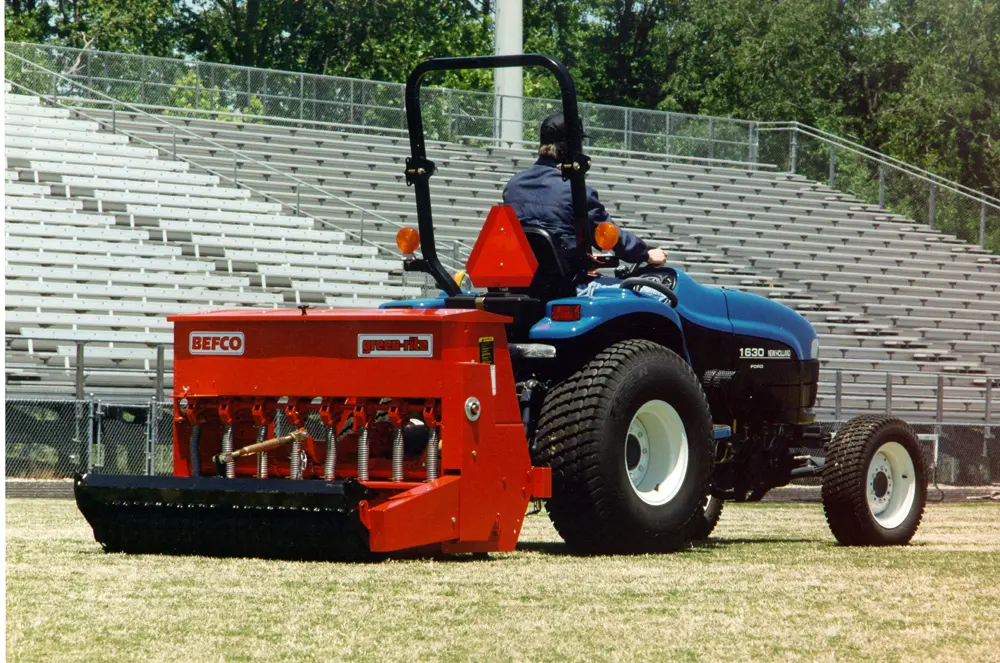

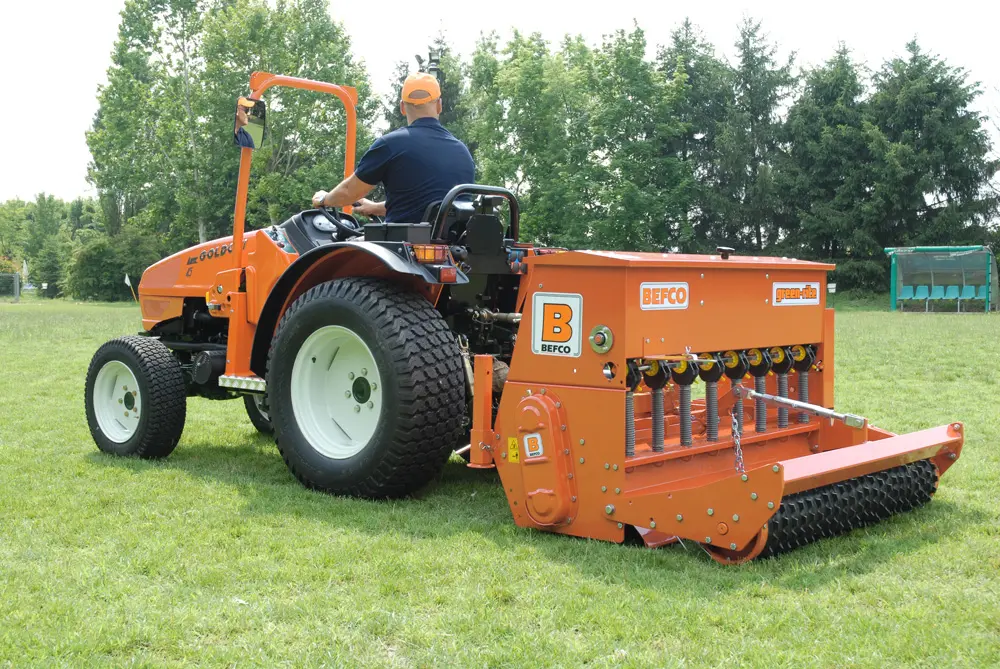

GREEN-RITE
Overseeders & aerators
25-70 HP (19-52 KW)
540 rpm - Cat. 1
- Special 2.8″ spacing on rotor for aerating with 3 knives per flange; 4 knives on 82″
- 2″ to 3″ suggested working depth with aerator rotor, 7 1/4″ working depth with tiller rotor; 8 3/4″ on 82″
- Seed covering/dethatching adjustable tickler tines
- High precision metering seed cups made from a nylon/fiberglass composite
- Parking stand
- Ground drive system for seed hopper
- Large capacity seed hopper with agitator
- Heavy duty shielded PTO shaft with slip clutch safety (1 3/8″ ASAE cat. 3 for models 250, 258 & 266, cat. 6 for model 282)
- Corrugated depth control roller made with low weight nylon/fiberglass roller rings
- Double sided, extra thin profile razor blades reduce impact when aerating over exisiting turf (available on request)
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | Capacity cu. ft. | # Seed cups | # Flanges | # Blades | Chain sprockets | Rotor rpm | Maximum working depth | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GRT-250 | 25-45 | Cat. 1 | 50" | 57" | 910 | 1,160 | 4.6 | 7 | 15 | 43 | 11-14 | 231 | 7 1/4" | ASAE cat. 3 slip clutch |
| GRT-258 | 30-45 | Cat. 1 | 58" | 66" | 998 | 1,245 | 5.3 | 8 | 18 | 52 | 11-14 | 231 | 7 1/4" | ASAE cat. 3 slip clutch |
| GRT-266 | 32-45 | Cat. 1 | 66" | 74" | 1,170 | 1,390 | 6 | 9 | 21 | 61 | 11-14 | 231 | 7 1/4" | ASAE cat. 3 slip clutch |
| GRT-282 | 40-70 | Cat. 1 | 82" | 89" | 1,500 | 1,760 | 7.6 | 11 | 26 | 104 | 12-14 | 221 | 8 3/4" | ASAE cat. 6 slip clutch |
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.

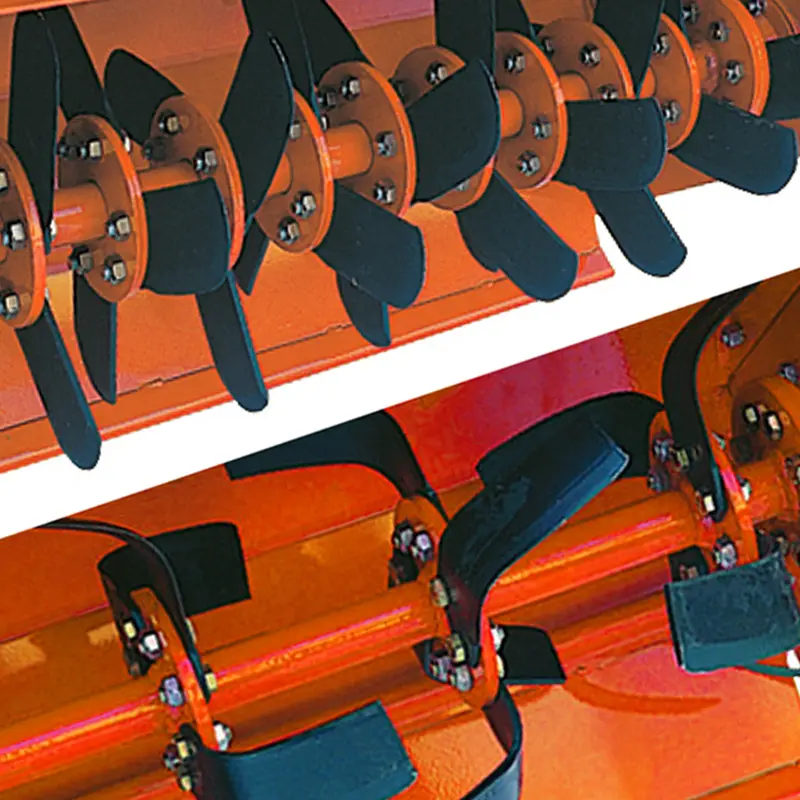

Aerator and tiller rotor adaptable
Green-Rite is the only overseeder that in a matter of minutes, simply by replacing the rotor, can be converted into a cultivator allowing the operator to till and seed in a single pass.

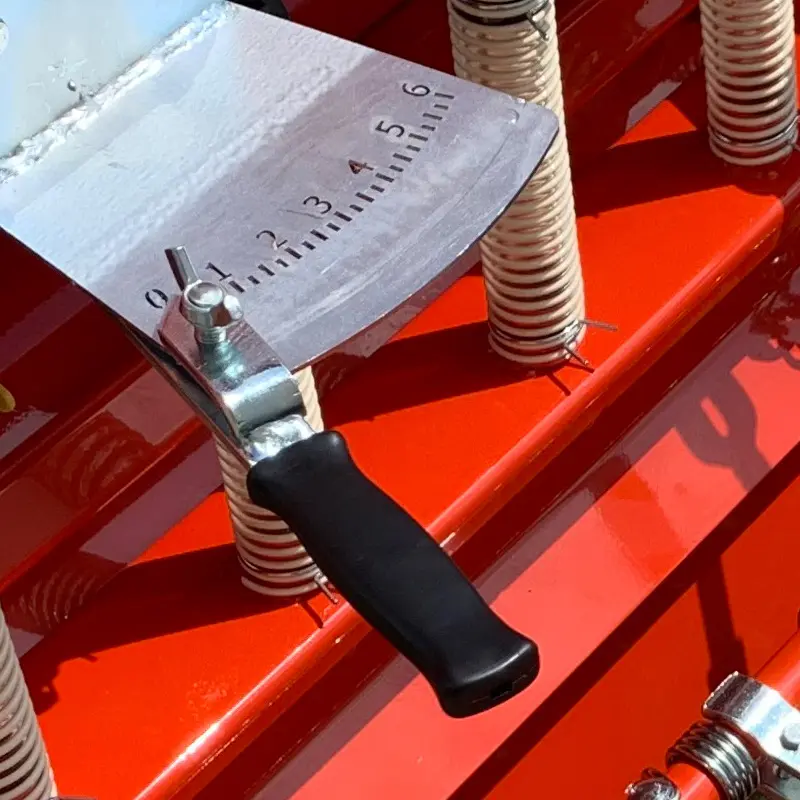

Precise seed calibration
Seed calibration handle allows operator to precisely select the amount of seed to spread.

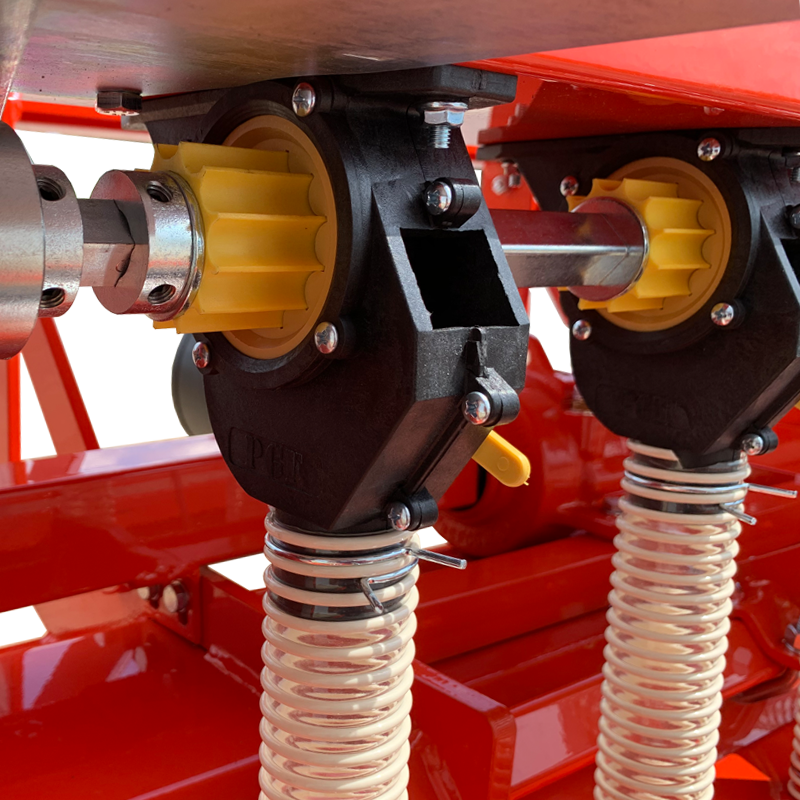

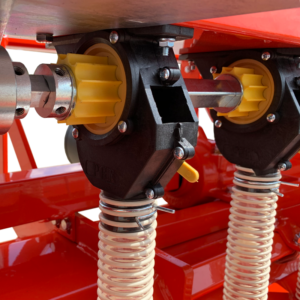

Seed metering cups
BEFCO’s seed metering cups allow for an always accurate and even distribution of a wide variety of seeds.

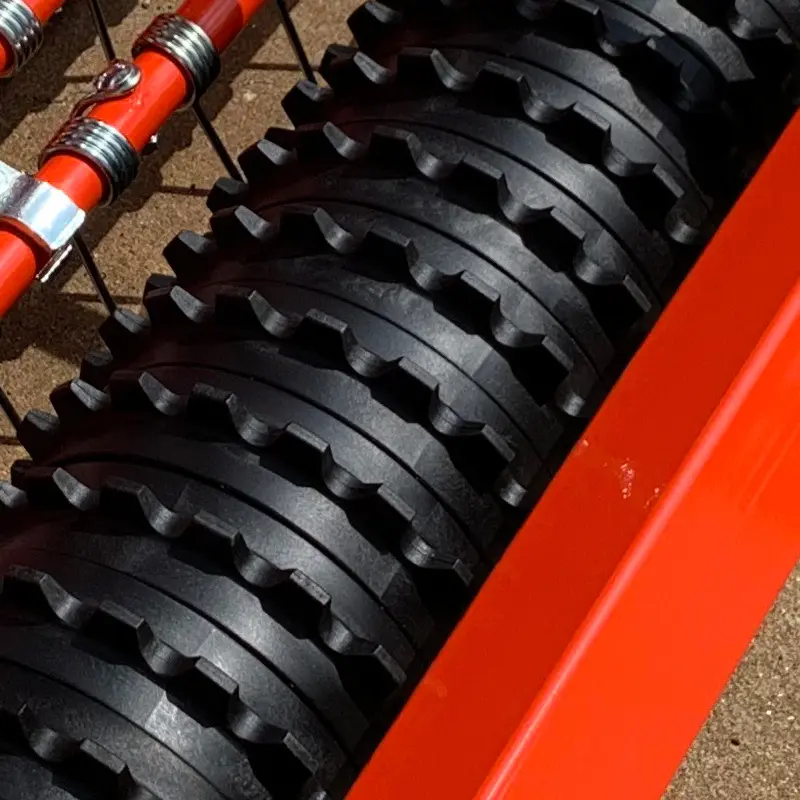

Corrugated rollers
All seeders are equipped with nylon / fiberglass corrugated roller rings to compact the ground for optimal seed germination.

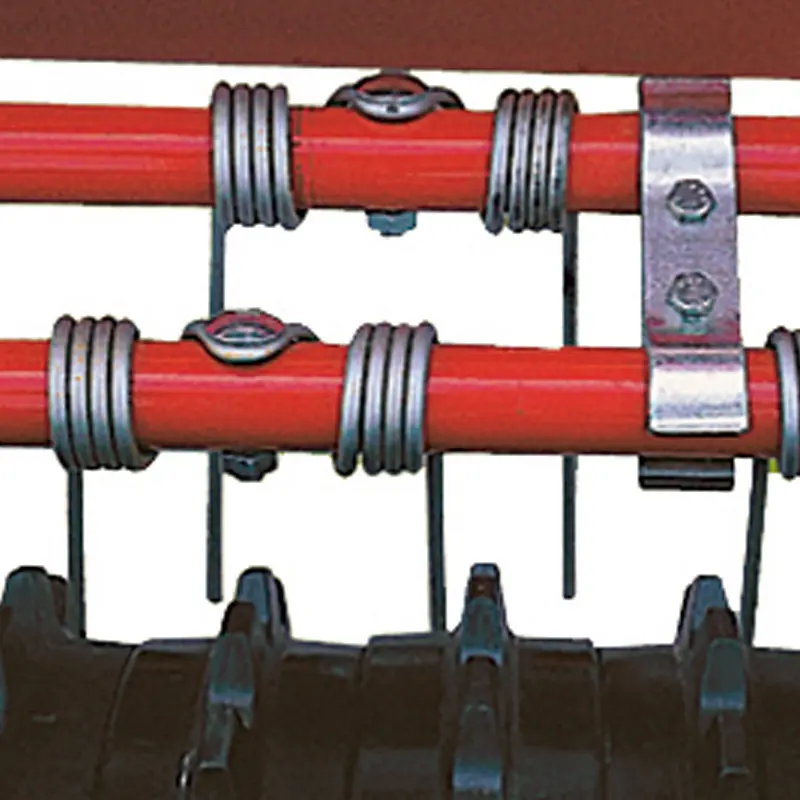

Tickler tines
Tickler tines to help partial or complete seed incorporation into the ground.

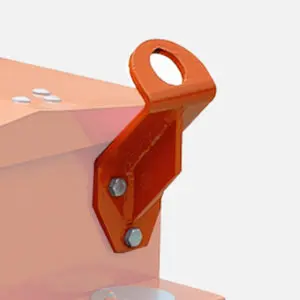

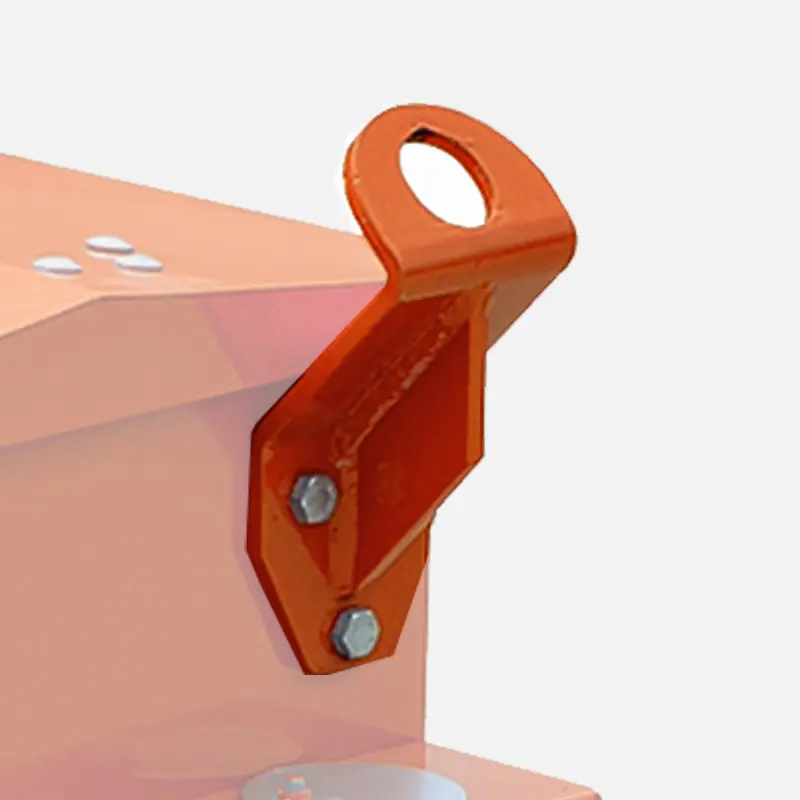

Lift hooks
Lift hooks allow for quick and easy loading and unloading of seeder to and from your jobsite.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.

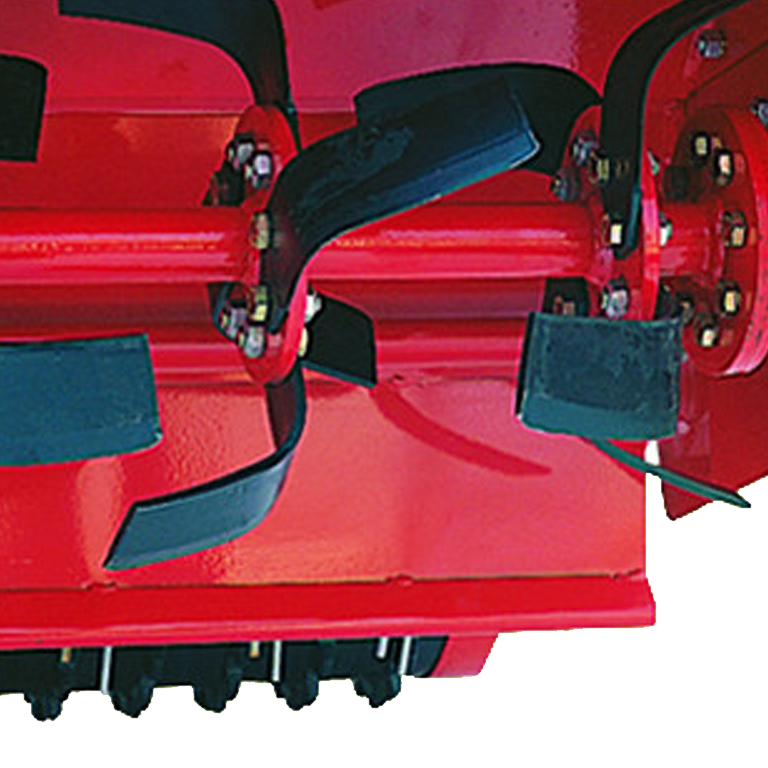

Tiller rotor
0099649 Tiller rotor for GRT-250
0099517 Tiller rotor for GRT-258
0099564 Tiller rotor for GRT-266
0099567 Tiller rotor for GRT-282

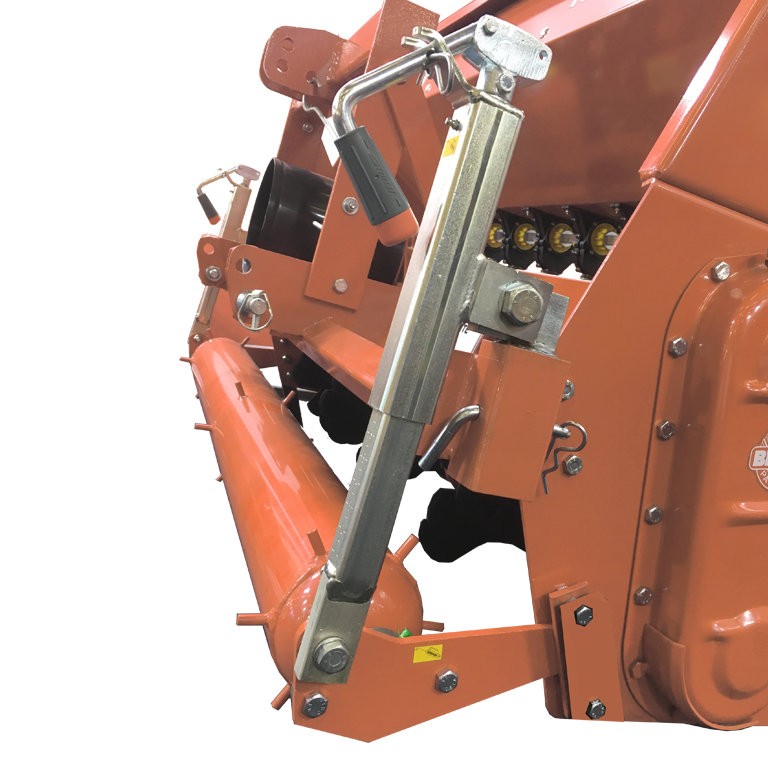

Front roller
0099648 Front roller for GRT-250
0099516 Front roller for GRT-258
0099563 Front roller for GRT-266
0099566 Front roller for GRT-282
Note: cannot be paired with Gauge wheels

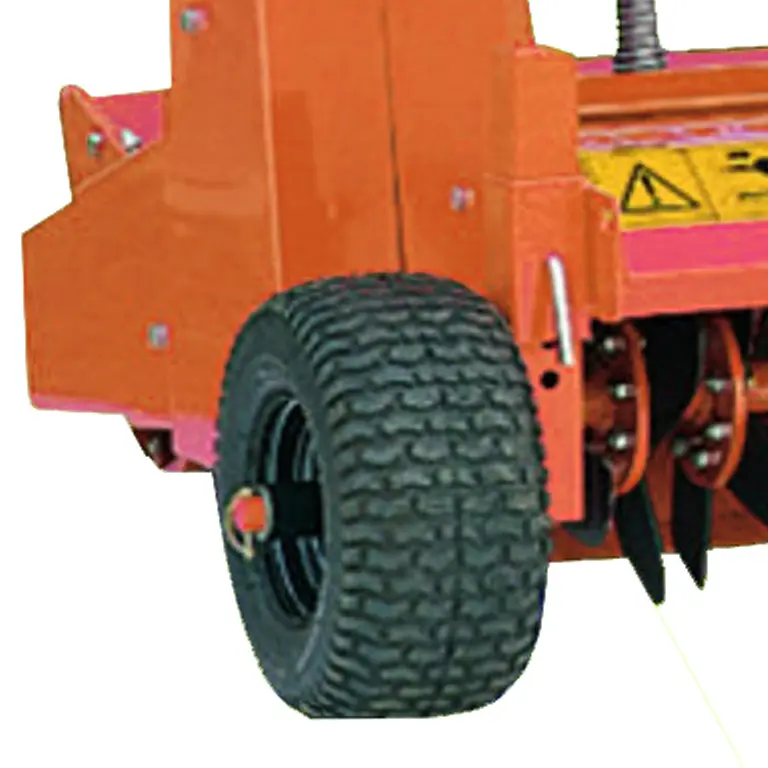

Gauge wheels
0099875 Gauge wheels for all models
Note: cannot be paired with Front roller

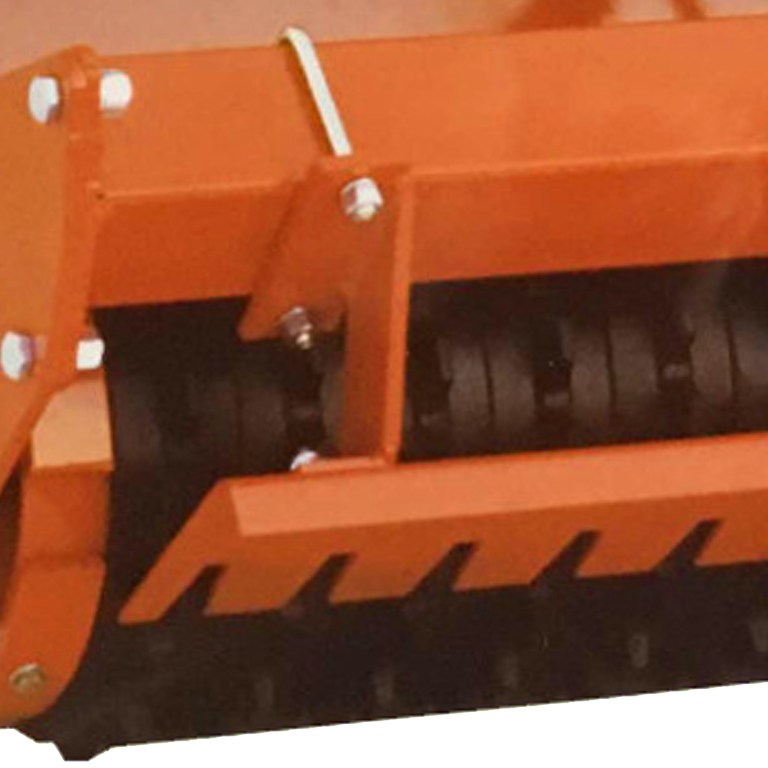

Rear roller scraper
0099650 Rear roller scraper for GRT-250
0099539 Rear roller scraper for GRT-258
0099565 Rear roller scraper for GRT-266
0099192 Rear roller scraper for GRT-282

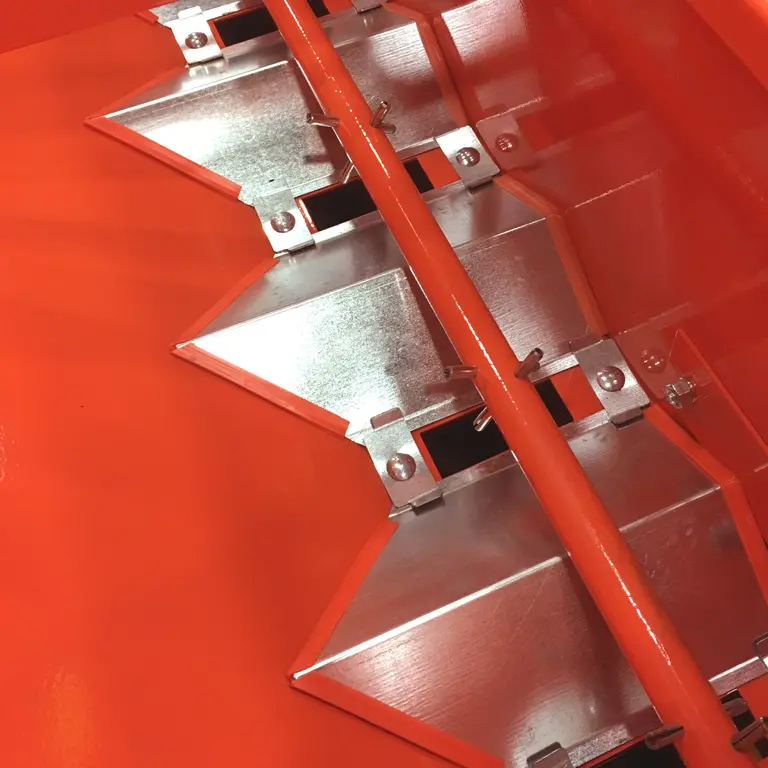

Seed conveyor kit
0099139 Seed conveyors for GRT-250
0099140 Seed conveyors for GRT-258
0099141 Seed conveyors for GRT-266
0099142 Seed conveyors for GRT-282

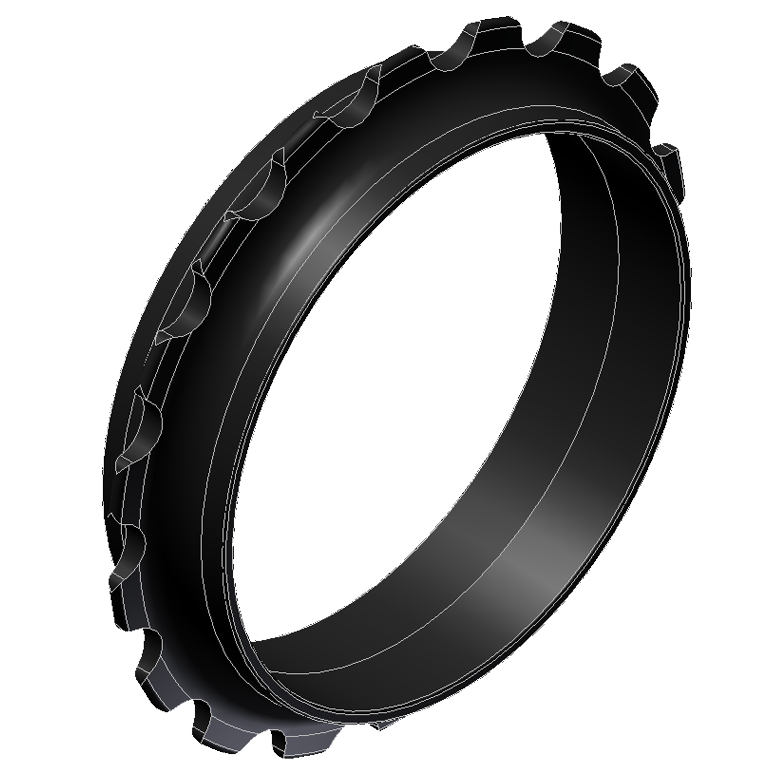

Cast iron roller rings (factory installed)
CSR50GRT Cast iron roller rings for GRT-250
CSR58GRT Cast iron roller rings GRT-258
CSR66GRT Cast iron roller rings GRT-266
CSR82GRT Cast iron roller rings GRT-282
