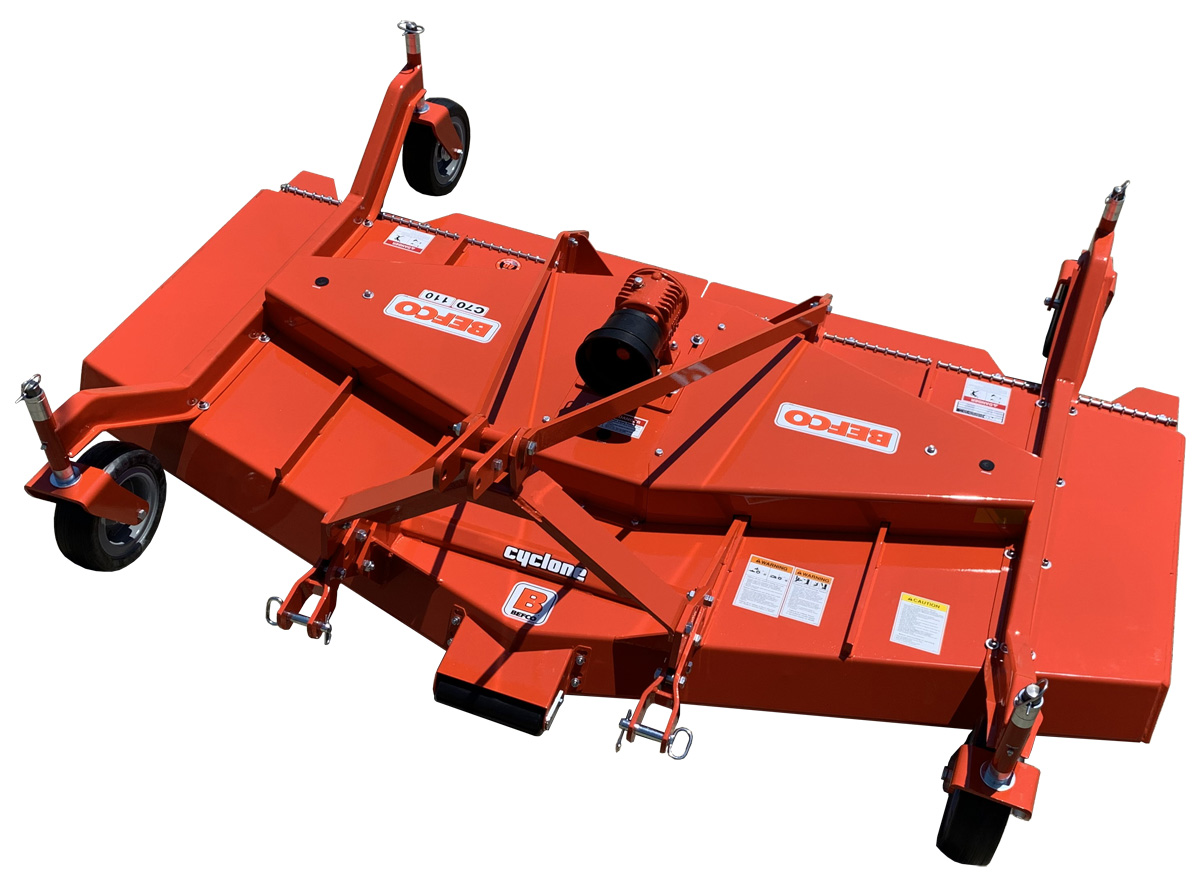

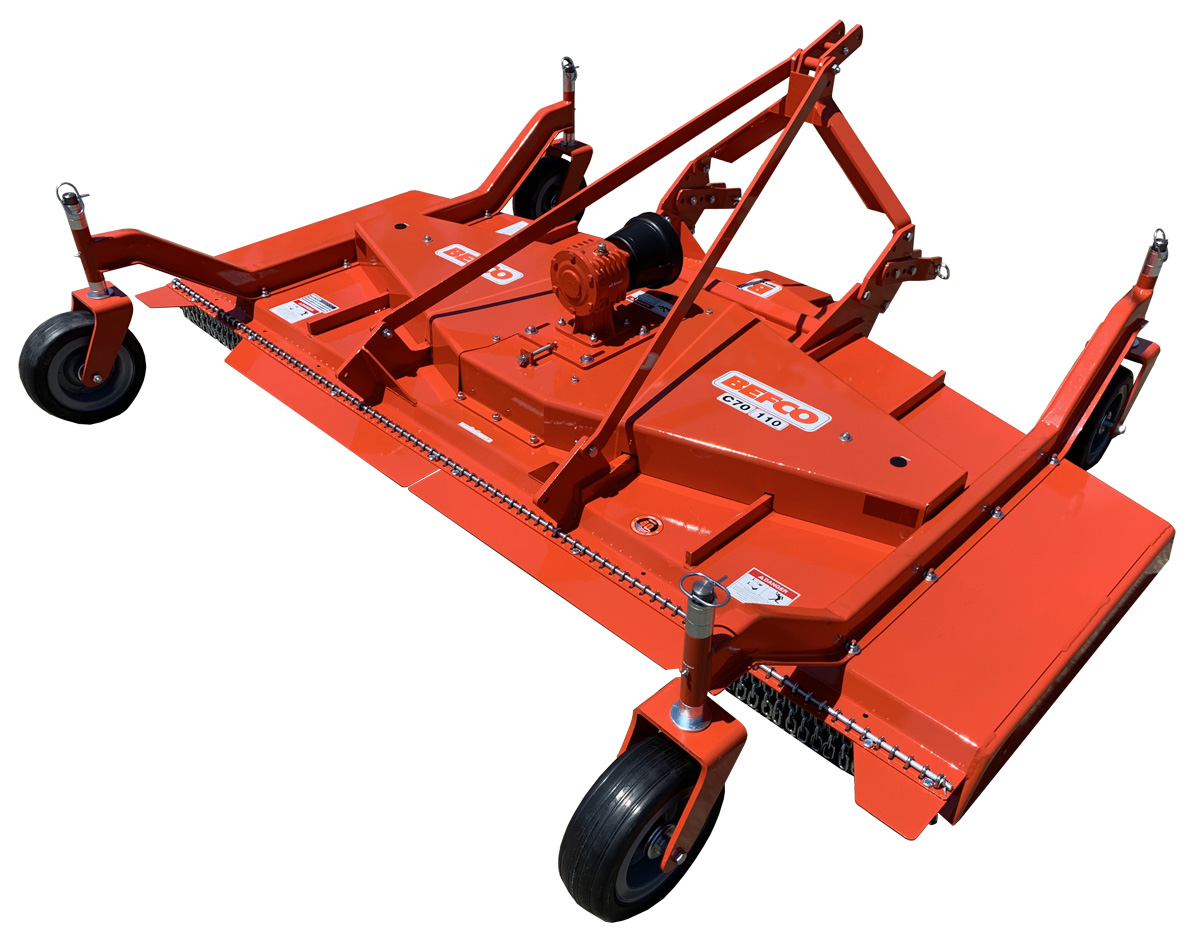

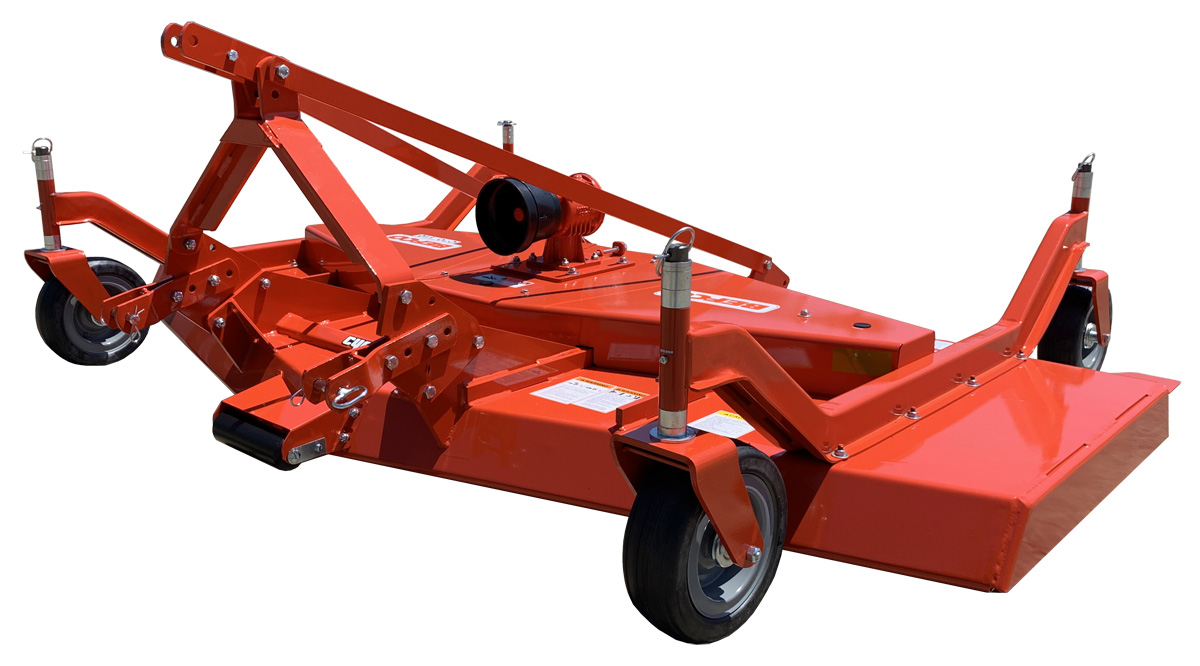

CYCLONE C70
Grooming mowers
30-70 HP (22-52 KW)
540 rpm - Cat. 1
- Highly engineered & rugged gearbox with cooling fins
- Cutting heights: from 1.3″ to 5.3″
- Front and rear tractor mounting
- 4 rubber swivel tires with bearings to guarantee a perfectly level cut
- Stamped steel reinforced wheel arm attached by 8 bolts for maintaining a consistent cutting height
- Floating 3 point linkage, cat. 1
- Front antiscalping roller standard
- 8 gauge reinforced mower deck
- Spindle shafts greased from the top for easy service
- Two heavy duty reinforced belts (CX)
- Heavy duty, one piece, balanced steel pulleys
- Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 4)
- Safety chain shield standard
- Stamped steel wheel yokes
- Six free swinging kick back blades
MODELS WITH SOLID TIRES (SIZE 12"x4")
| Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blade tip speed (ft/min) | # of blades | Cutting height | # Belts & type | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C70-090H | 30-70 | 90" | 92" | 1,237 | 1,267 | 1,750 | 14,106 | 6 | 1.3"-5.3" | 2 CX | ASAE cat. 4 |
| C70-110H | 40-70 | 110" | 112" | 1,390 | 1,420 | 1,562 | 14,998 | 6 | 1.3"-5.3" | 2 CX | ASAE cat. 4 |
MODELS WITH PNEUMATIC TIRES (SIZE 13"x6.5")
| Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blade tip speed (ft/min) | # of blades | Cutting height | # Belts & type | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C70-090A | 30-70 | 90" | 92" | 1,137 | 1,167 | 1,750 | 14,106 | 6 | 1.3"-5.3" | 2 CX | ASAE cat. 4 |
| C70-110A | 40-70 | 110" | 112" | 1,290 | 1,320 | 1,562 | 14,998 | 6 | 1.3"-5.3" | 2 CX | ASAE cat. 4 |
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.
Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.
Front antiscalp roller
All C70 mowers are equipped standard with front antiscalp rollers to help prevent scalping the ground when mowing over uneven terrain.
Manual belt tensioning
Manual belt tensioner maintains constant tension on belts without stretching them like a typical spring loaded idler would. This means that belts last much longer and there is no spring loaded idler that needs to be disassembled at the end of the mowing season to prevent it from stretching the belts during the winter months.
Double belt transmission
Two heavy duty reinforced belts (SPBX) with manual tensioner provide over 180° coverage of all pulleys and reduce belt maintenance.
Cast iron pulleys
Heavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.

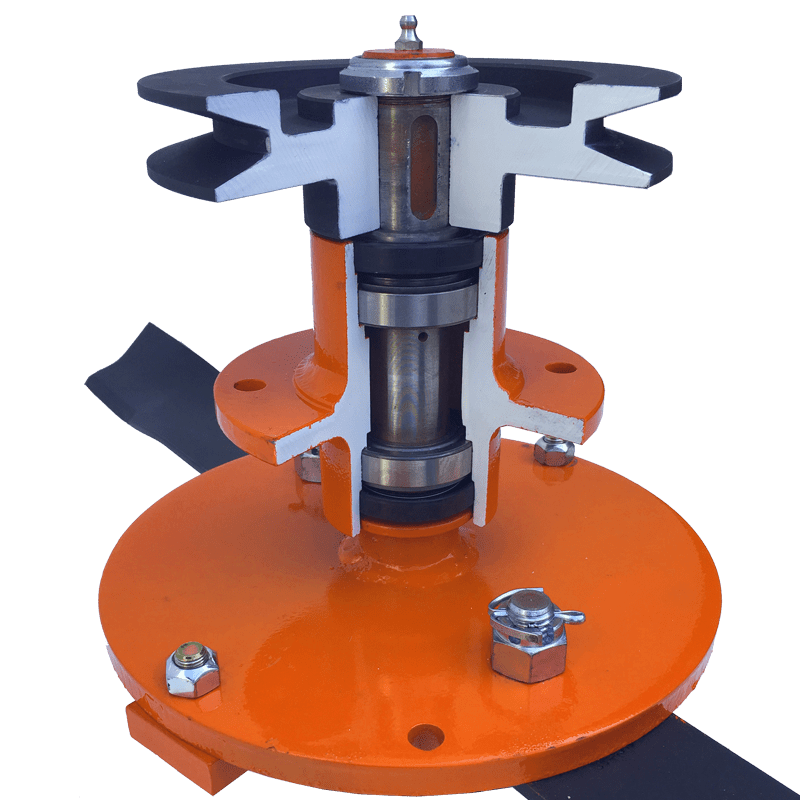

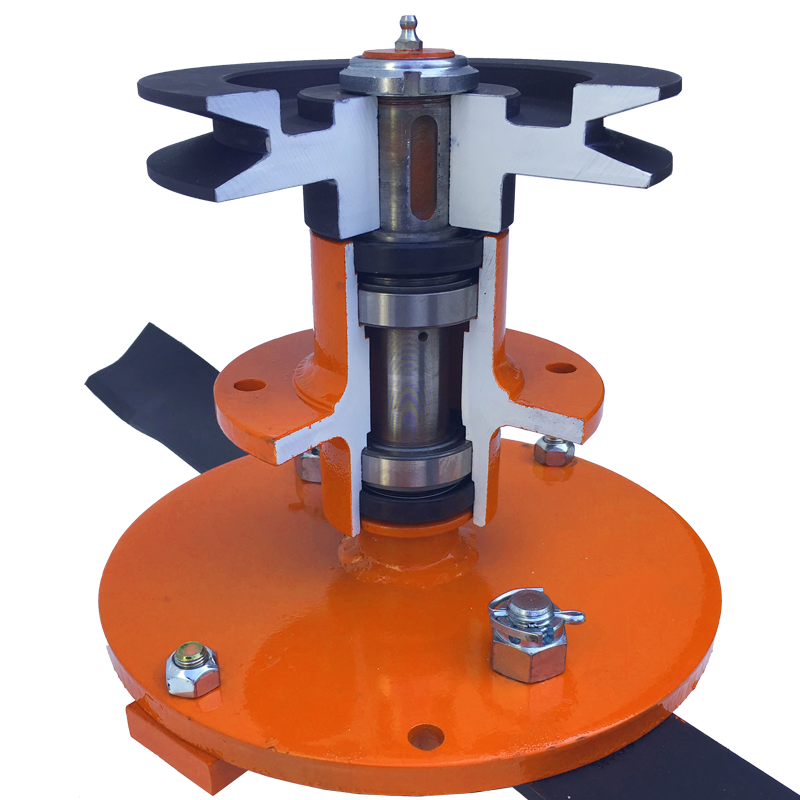

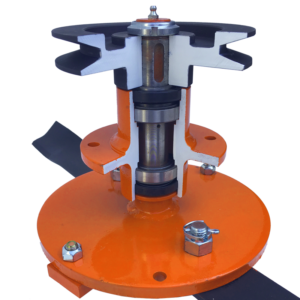

Axial grease fittings
Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.

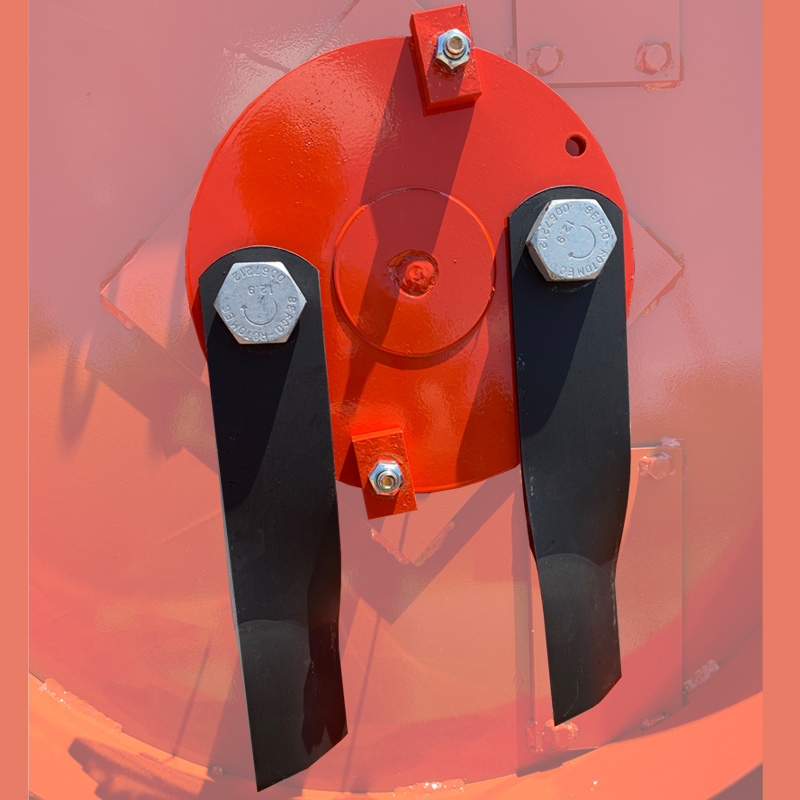

Free swinging blades
C70 mowers have the blade tip speed of a grooming mower and the free swinging blades of a rotary cutter. This hybrid system allows them not only to perform well as a grooming mower but also to handle thicker brush cutting.
Stamped steel reinforced wheel arms
Only BEFCO mowers are equipped with reinforced stamped steel wheel arms. These wheel arms are stronger than the ones made of bent tubing used by the competition and always guarantee a perfectly even surface for the mower to rest on.

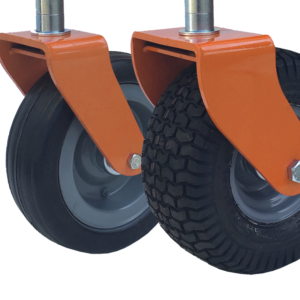

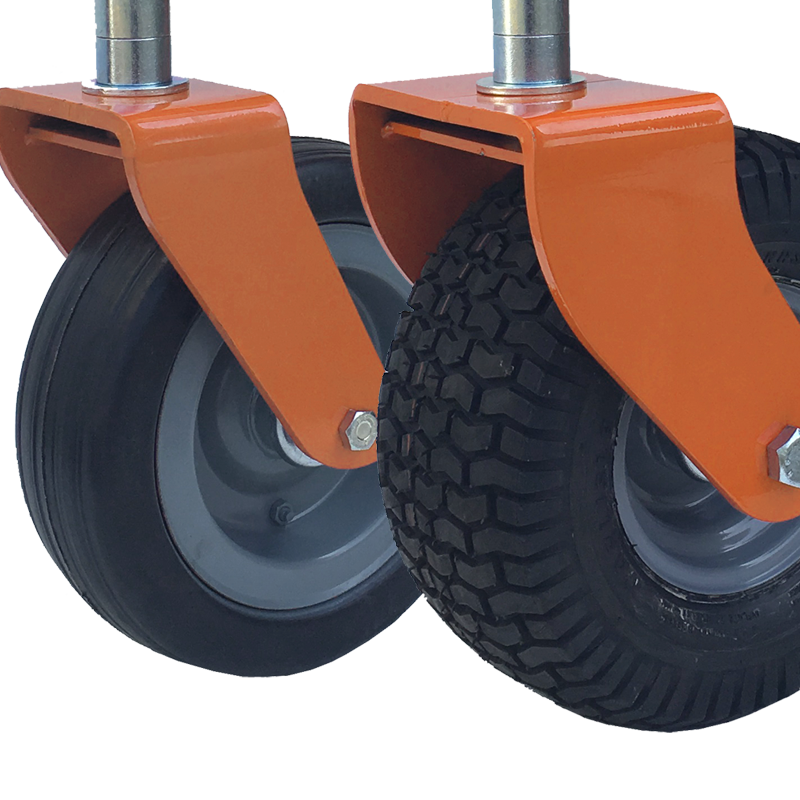

Choice of solid or pneumatic tires
Customers can choose between solid (12″x4″) or pneumatic tires (13″x6.5″).
Pins that stay in place
Mowers that use traditional cotter pins often lose them when the mower gets too close to a bush. This not only causes the loss of the pin but may also cause the loss of the height adjustment spacers and in some cases even the wheel yokes.
For this reason, BEFCO designed and manufactured a pin that will stay securely fastened under almost any circumstances.
Chain shielding
Mowers are equipped with chain shields to provide additional safety from thrown objects.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches when equipped with optional quick hitch adapter.

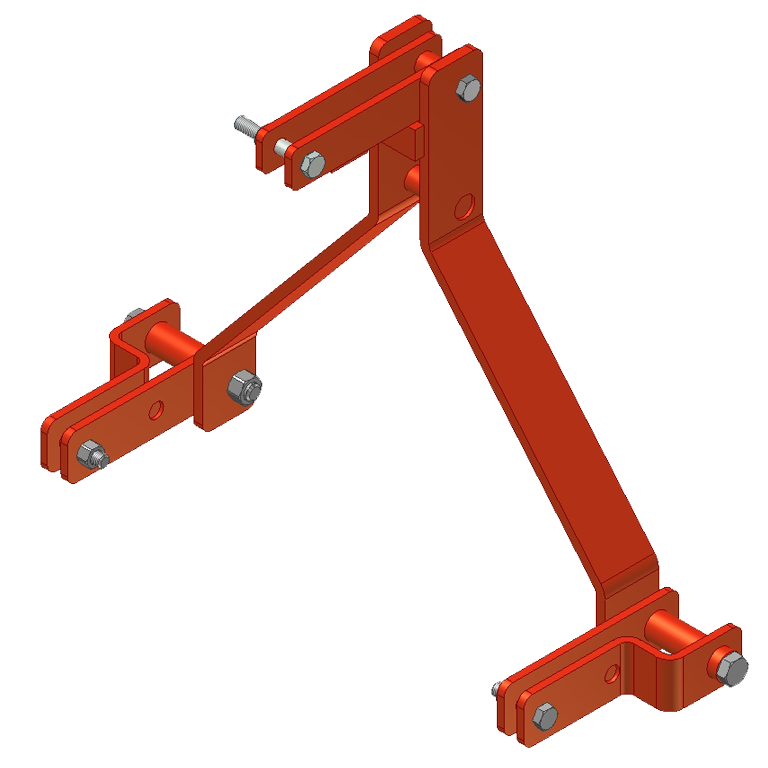

Quick hitch adapter
002800 Quick hitch adapter for models C70-090 and C70-110
Front mount (factory installed)
FRTXXC70 Front mount
Operator’s & Parts manual
