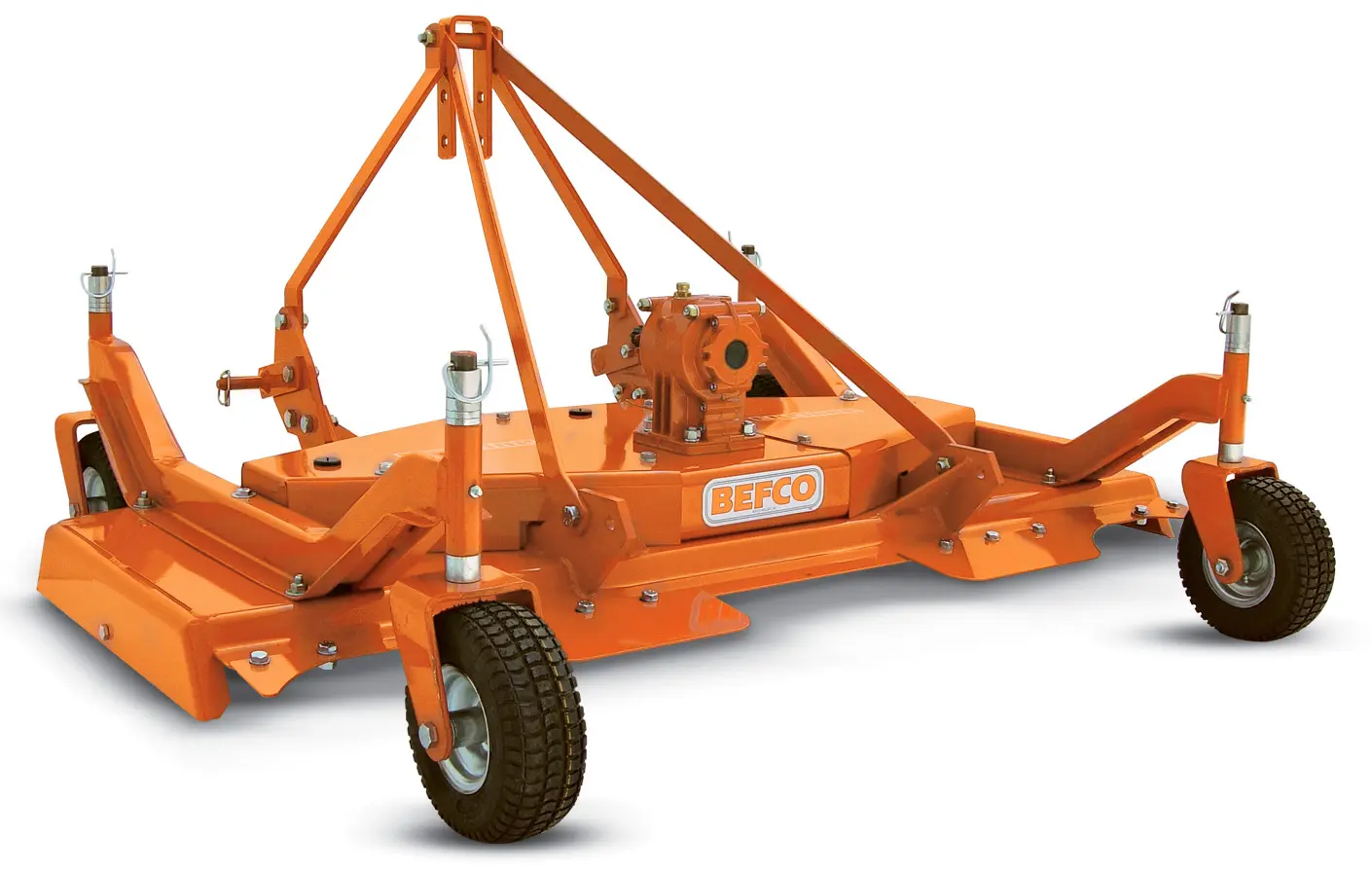

CYCLONE C30
Grooming mowers
16-30 HP (12-22 KW)
540 rpm - Cat. 1
- Highly engineered & rugged gearbox
- Front & rear tractor mounting
- 4 rubber swivel tires to guarantee a perfectly level cut
- Floating three point linkage, cat. 1
- 10 gauge reinforced mower deck
- Stamped steel reinforced wheel arms attached by 5 bolts for maintaining a consistent cutting height
- Stamped steel wheel yokes
- Cutting heights: from 1″ to 4″
- Spindle shafts greased from the top for easy service
- Heavy duty reinforced belt (BX)
- Heavy duty, one piece, balanced steel pulleys
- Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 2)
MODELS WITH SOLID TIRES (SIZE 8.4"x3.2")
| Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blade tip speed (ft/min) | # of blades | Cutting height | # Belts & type | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C30-RD4H | 16-30 | 48" | 51" | 340 | 440 | 3,037 | 13,188 | 3 | 1"-4" | 1 BX | ASAE cat.2 |
| C30-RD5H | 20-30 | 60" | 62" | 375 | 490 | 2,803 | 14,763 | 3 | 1"-4" | 1 BX | ASAE cat.2 |
| C30-RD6H | 25-30 | 72" | 74" | 440 | 570 | 2,278 | 14,566 | 3 | 1"-4" | 1 BX | ASAE cat.2 |
MODELS WITH PNEUMATIC TIRES (SIZE 9"x3.5")
| Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blade tip speed (ft/min) | # of blades | Cutting height | # Belts & type | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C30-RD4A | 16-30 | 48" | 51" | 329 | 429 | 3,037 | 13,188 | 3 | 1"-4" | 1 BX | ASAE cat.2 |
| C30-RD5A | 20-30 | 60" | 62" | 364 | 479 | 2,803 | 14,763 | 3 | 1"-4" | 1 BX | ASAE cat.2 |
| C30-RD6A | 25-30 | 72" | 74" | 429 | 559 | 2,278 | 14,566 | 3 | 1"-4" | 1 BX | ASAE cat.2 |
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.
Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

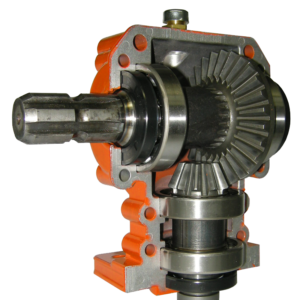

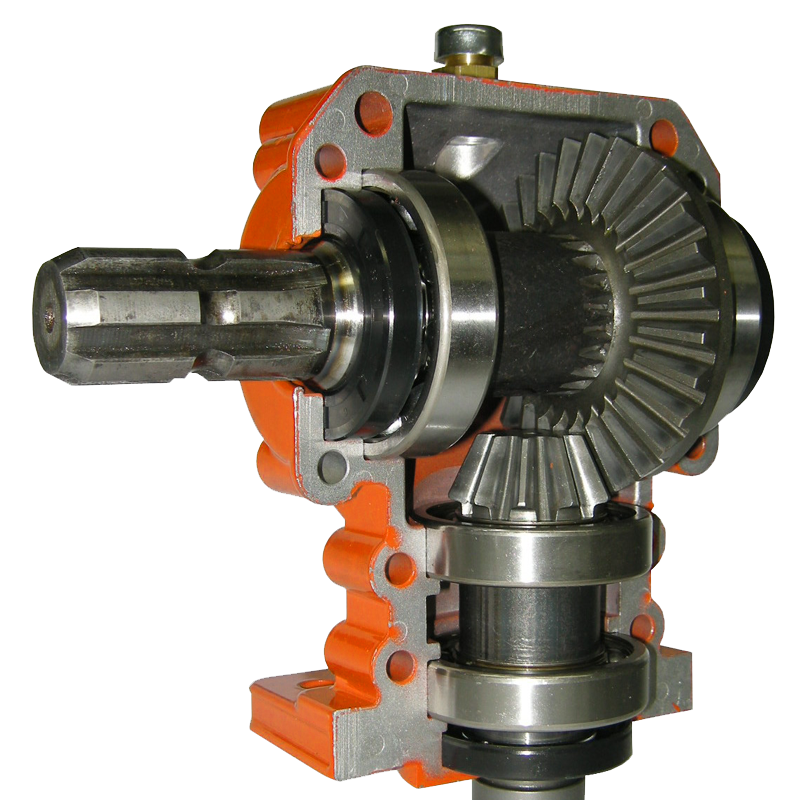

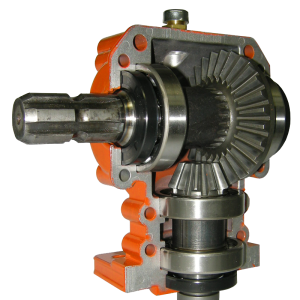

Gearbox by BEFCO
Gearboxes are manufactured by BEFCO and feature a fully enclosed seal housing to protect seals from foreign objects.
Single belt transmission
Heavy duty reinforced belt (BX) with spring loaded tensioner provide over 180° coverage of all pulleys.
Cast iron pulleys
Heavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.
Axial grease fittings
Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.
Stamped steel reinforced wheel arms
Only BEFCO mowers are equipped with reinforced stamped steel wheel arms. These wheel arms are stronger than the ones made of bent tubing used by the competition and always guarantee a perfectly even surface for the mower to rest on.

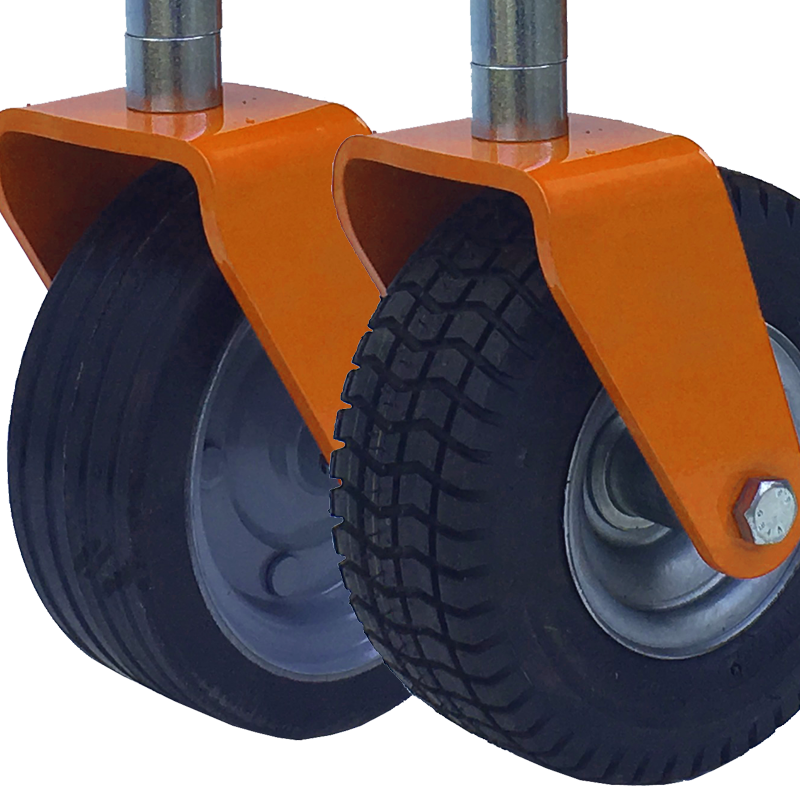

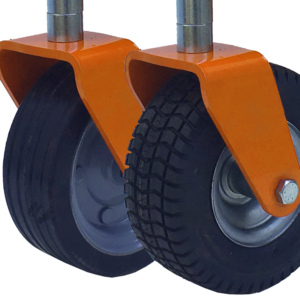

Choice of solid or pneumatic tires
Customers can choose between solid (8.4″x3.2″) or pneumatic tires (9″x3.5″).
Pins that stay in place
Mowers that use traditional cotter pins often lose them when the mower gets too close to a bush. This not only causes the loss of the pin but may also cause the loss of the height adjustment spacers and in some cases even the wheel yokes.
For this reason, BEFCO designed and manufactured a pin that will stay securely fastened under almost any circumstances.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches when equipped with optional quick hitch adapter.

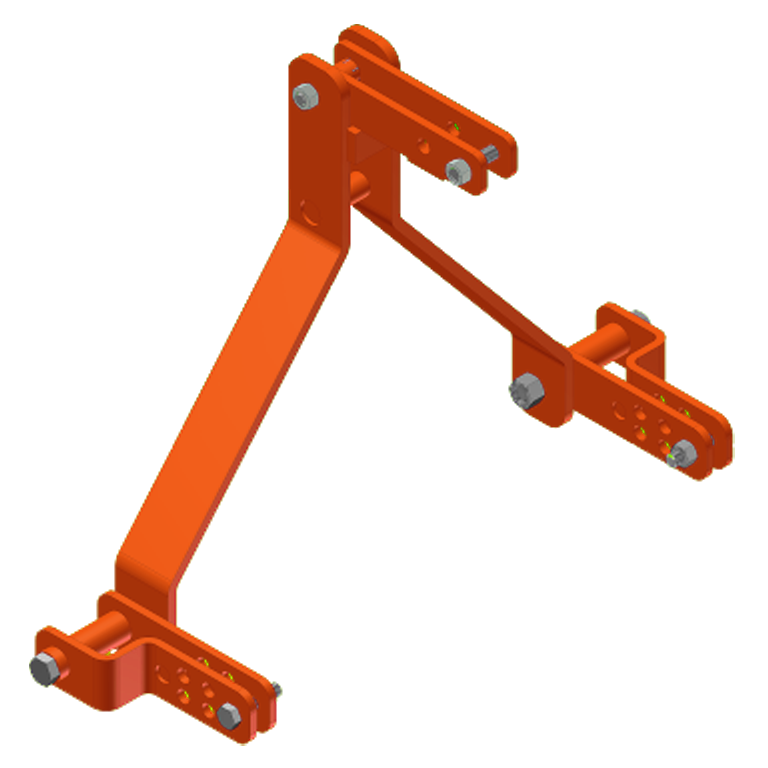

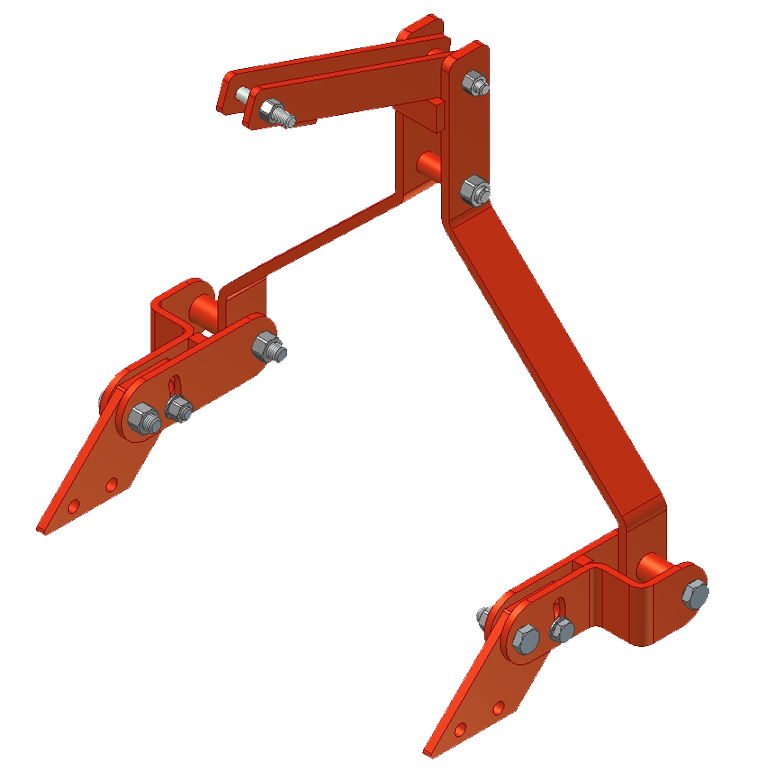

Quick hitch adapter
001700 Quick hitch adapter for models C30-RD4, C30-RD5 and C30-RD6
Mulching kit
004600 Mulching kit for model C30-RD4
005600 Mulching kit for model C30-RD5
006600 Mulching kit for model C30-RD6
Note: Mulching blades are also included in Mulching kits
Front antiscalp roller
001600 Front antiscalping roller

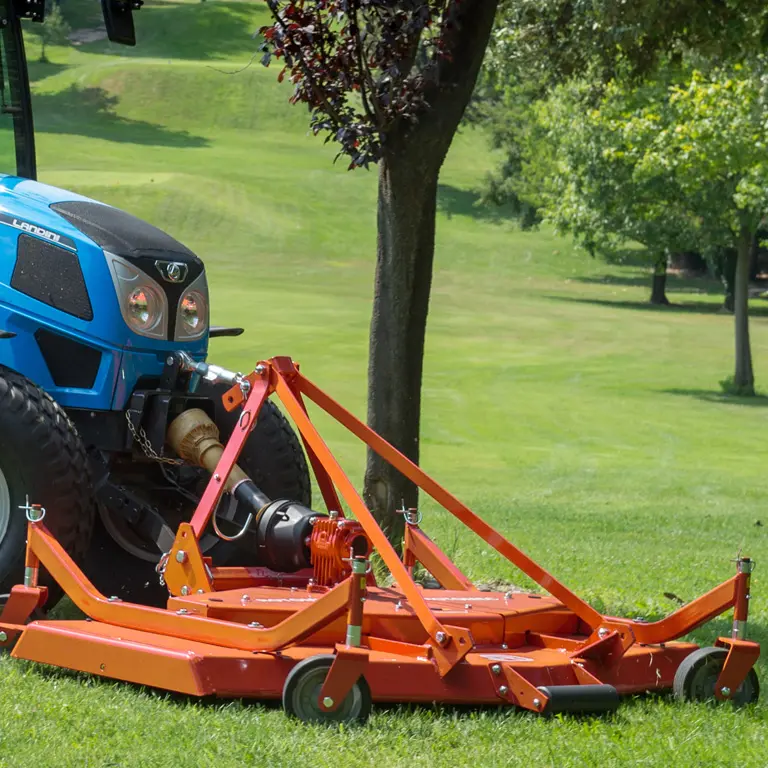

Front mount (factory installed)
FRTXXC30 Front mount
Low lift blades
0006640F Low lift blade for model C30-RD4
0006641F Low lift blade for model C30-RD5
0006845F Low lift blade for model C30-RD6
Standard blades
0006640 Standard blade for model C30-RD4
0006641 Standard blade for model C30-RD5
0006845 Standard blade for model C30-RD6
High lift blades
0006640B High lift blade for model C30-RD4
0006641B High lift blade for model C30-RD5
0006845B High lift blade for model C30-RD6
Mulching blades
0006640M Mulching blade for model C30-RD4
0006641M Mulching blade for model C30-RD5
0006845M Mulching blade for model C30-RD6
Note: Mulching blades are also included in Mulching kits
Operator’s manual
Parts manual
