Box scrapers
16-65 HP (12-48 KW)
Cat. 1

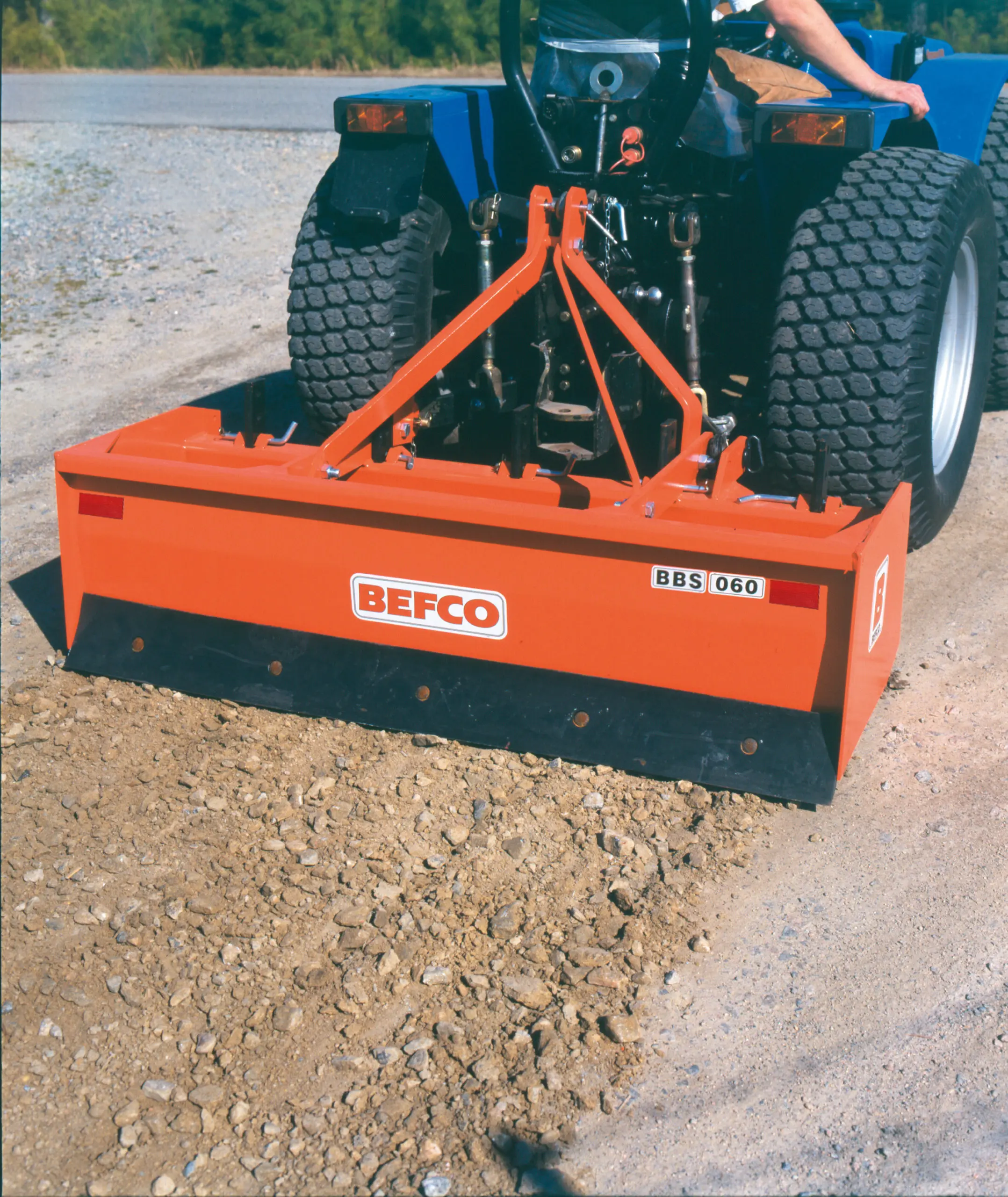

BEFCO Box Scrapers, also known as box blades, are essential tools for construction sites, feedlots, outdoor arenas, and farms, designed for efficiently moving dirt, smoothing surfaces, and contouring land. These versatile tools, scrape soil and carry it inside the box, allowing material to flow out as the blade traverses low spots. Additionally, the back blade enables operators to use the box scraper in reverse, functioning similarly to a dozer blade to push dirt, which can spill out from the bottom or sides for effective grading.
Equipped with retractable scarifier shanks at the front, BEFCO Box Scrapers excel at breaking up hard ground, making them ideal for preparing surfaces for planting or construction.
Enhance your land management capabilities with a BEFCO Box Scraper, the perfect solution for achieving a smooth and level terrain effortlessly.
Equipped with retractable scarifier shanks at the front, BEFCO Box Scrapers excel at breaking up hard ground, making them ideal for preparing surfaces for planting or construction.
Enhance your land management capabilities with a BEFCO Box Scraper, the perfect solution for achieving a smooth and level terrain effortlessly.
Main Features
- Roll formed moldboard
- 3 point linkage, cat. 1

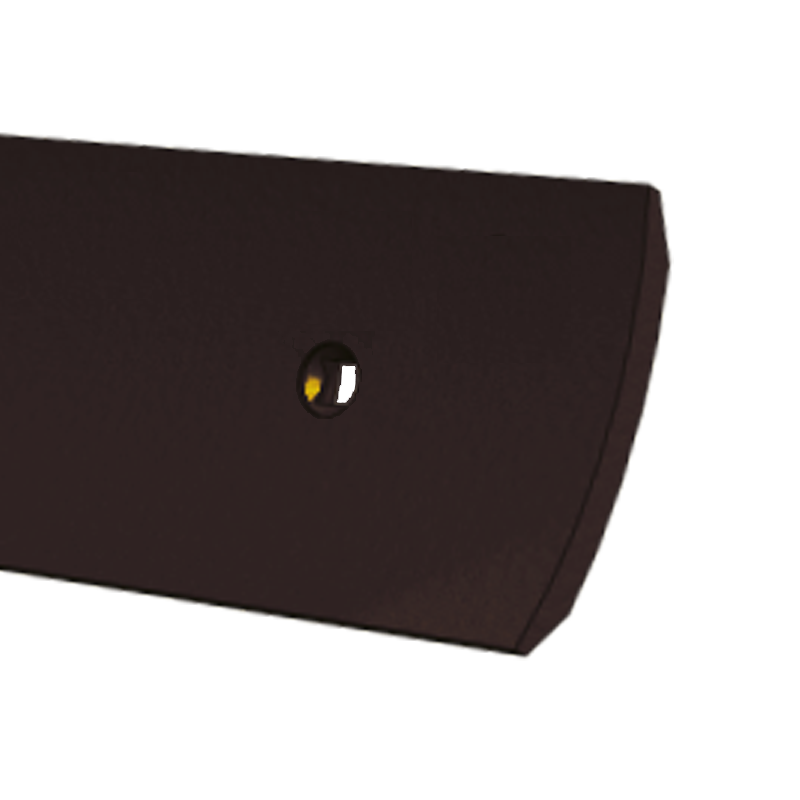

- 2 bolt-on 1/2″ x 6″ heat treated blades with reversible cutting edge

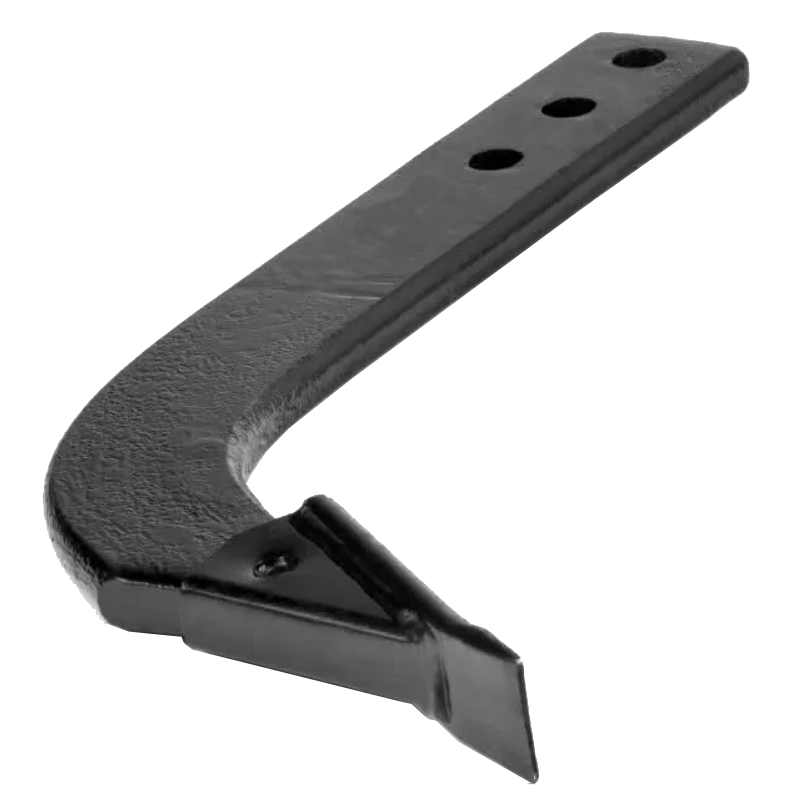

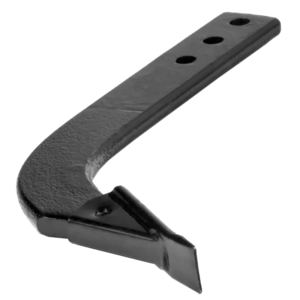

- Hardened steel ripping shanks with replaceable tips
- Reinforced box design
- TECHNICAL FEATURES
- STANDARD FEATURES
- MANUALS
SUB-COMPACT MODELS
Model | HP | Hitch | Working width | Weight lbs | Ship lbs | # of shanks |
---|---|---|---|---|---|---|

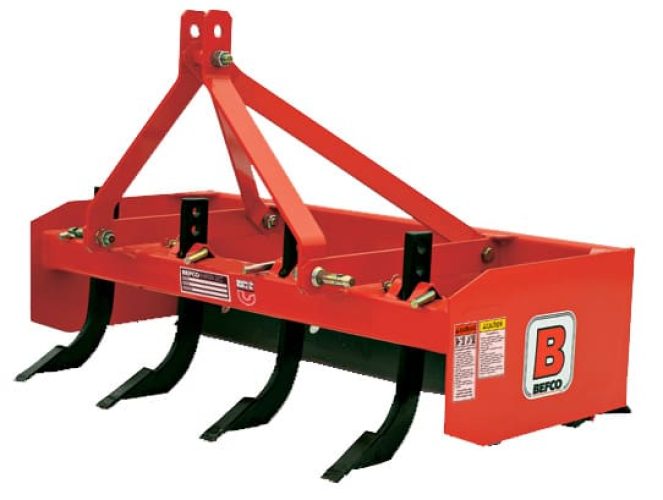

BBS-C48 | 16-30 | Cat. 1 | 48" | 251 | 276 | 4 |
STANDARD DUTY MODELS
Model | HP | Hitch | Working width | Weight lbs | Ship lbs | # of shanks |
---|---|---|---|---|---|---|
BBS-060 | 25-65 | Cat. 1 | 60" | 470 | 505 | 5 |
BBS-072 | 25-65 | Cat. 1 | 72" | 530 | 570 | 6 |

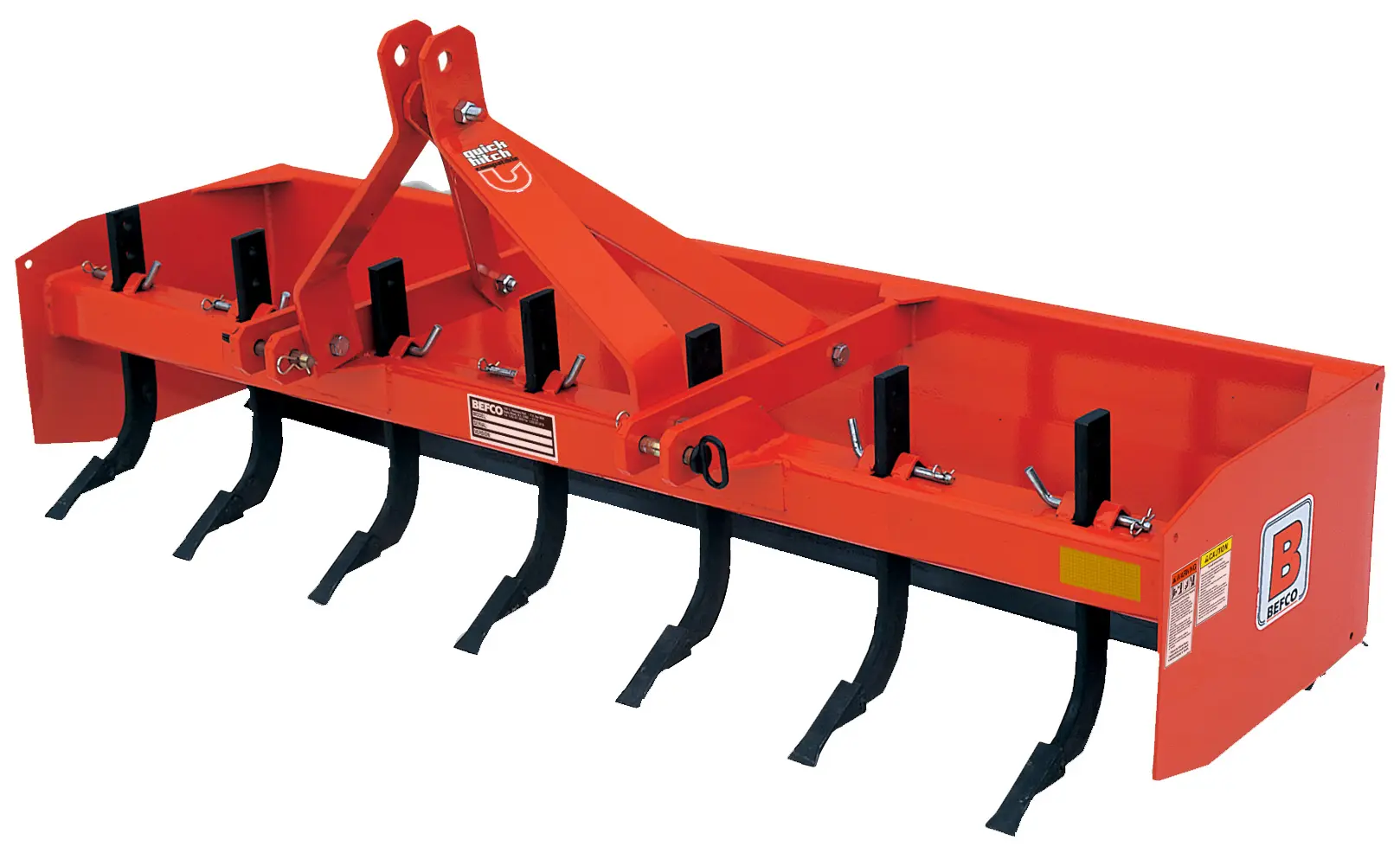

BBS-084 | 25-65 | Cat. 1 | 84" | 630 | 680 | 7 |
