Flail mowers
30-70 HP (22-52 KW)
540 rpm - Cat. 1 & 2

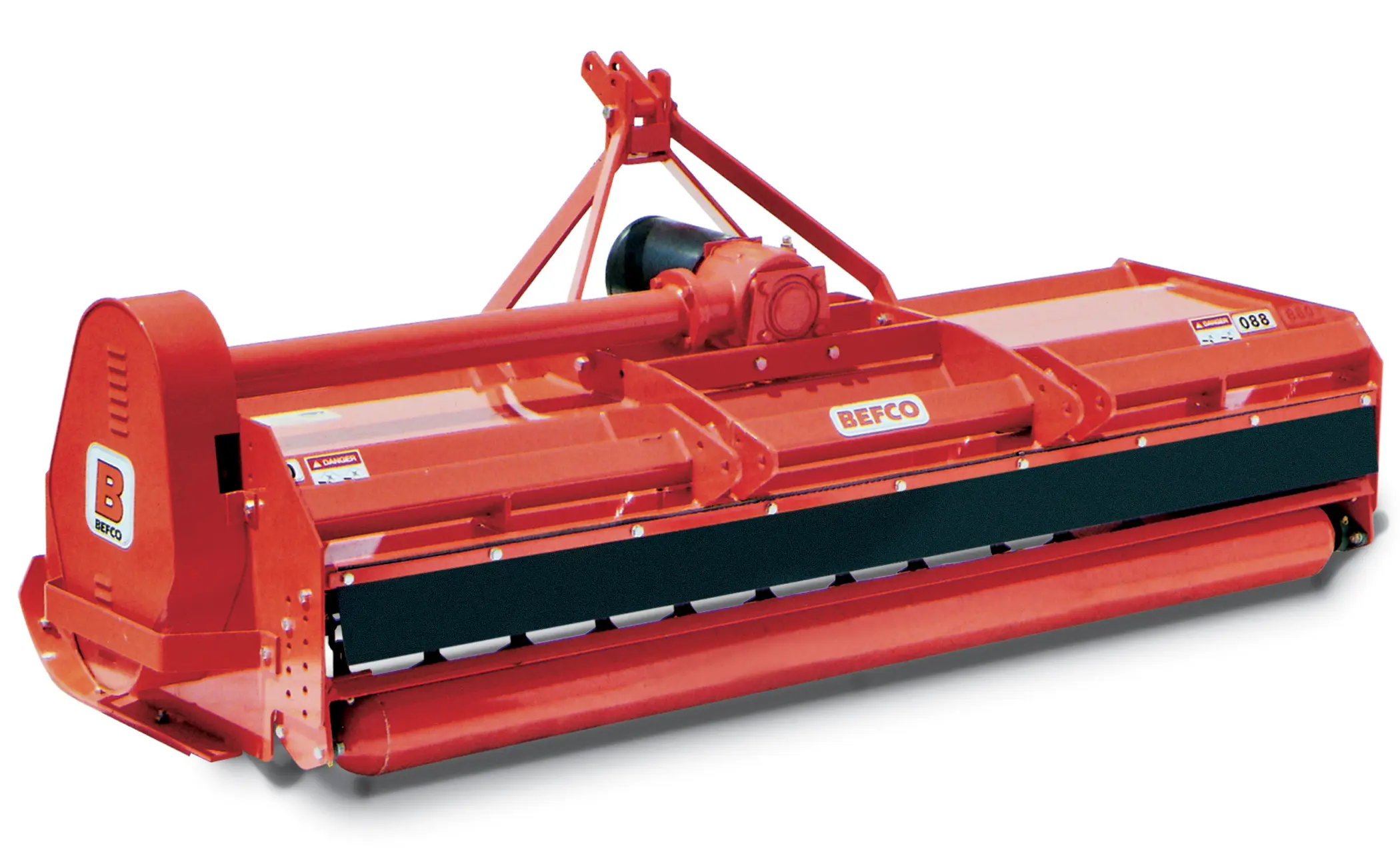

The H70 flail mowers are specifically engineered for category 1 and 2 tractors with horsepower ranging from 30 to 70 HP, making them an excellent choice for a variety of mowing applications.
Available in three generous mowing widths 60″, 72″, and 88″ these mowers are perfect for maintaining recreational areas, roadside mowing, and large commercial landscapes. Built with durability in mind, the H70 features robust cast iron rotor supports that are designed and manufactured in-house, ensuring high-quality performance.
The rotors are assembled using advanced spherical self-aligning bearings, which effectively minimize vibrations and enhance operational stability. To meet diverse mowing requirements, the H70 flail mowers offer five distinct blade options, allowing users to customize their equipment for optimal cutting performance. Whether you’re tackling expansive fields or maintaining public spaces, the H70 flail mower delivers exceptional efficiency and reliability.
Available in three generous mowing widths 60″, 72″, and 88″ these mowers are perfect for maintaining recreational areas, roadside mowing, and large commercial landscapes. Built with durability in mind, the H70 features robust cast iron rotor supports that are designed and manufactured in-house, ensuring high-quality performance.
The rotors are assembled using advanced spherical self-aligning bearings, which effectively minimize vibrations and enhance operational stability. To meet diverse mowing requirements, the H70 flail mowers offer five distinct blade options, allowing users to customize their equipment for optimal cutting performance. Whether you’re tackling expansive fields or maintaining public spaces, the H70 flail mower delivers exceptional efficiency and reliability.
Main Features
- Cutting heights: from 3/4″ to 6″

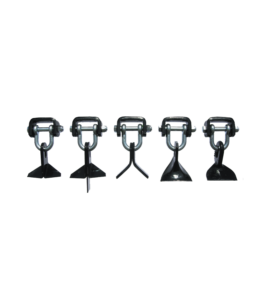

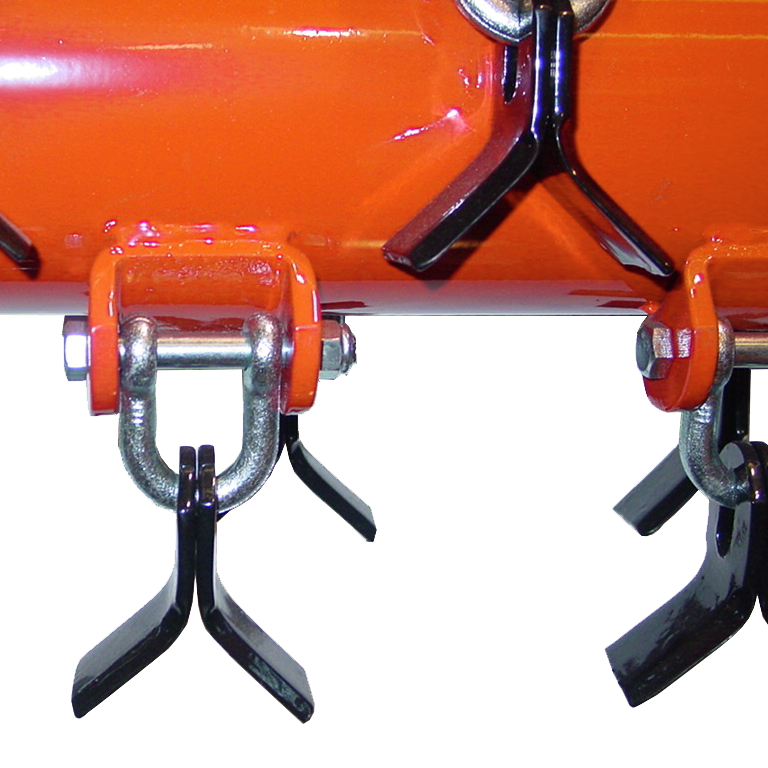

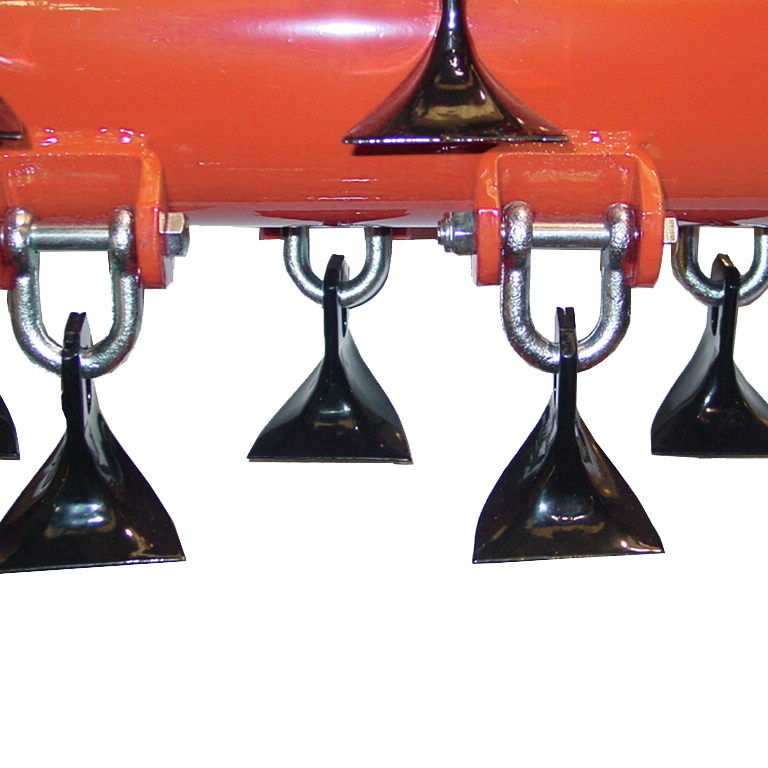

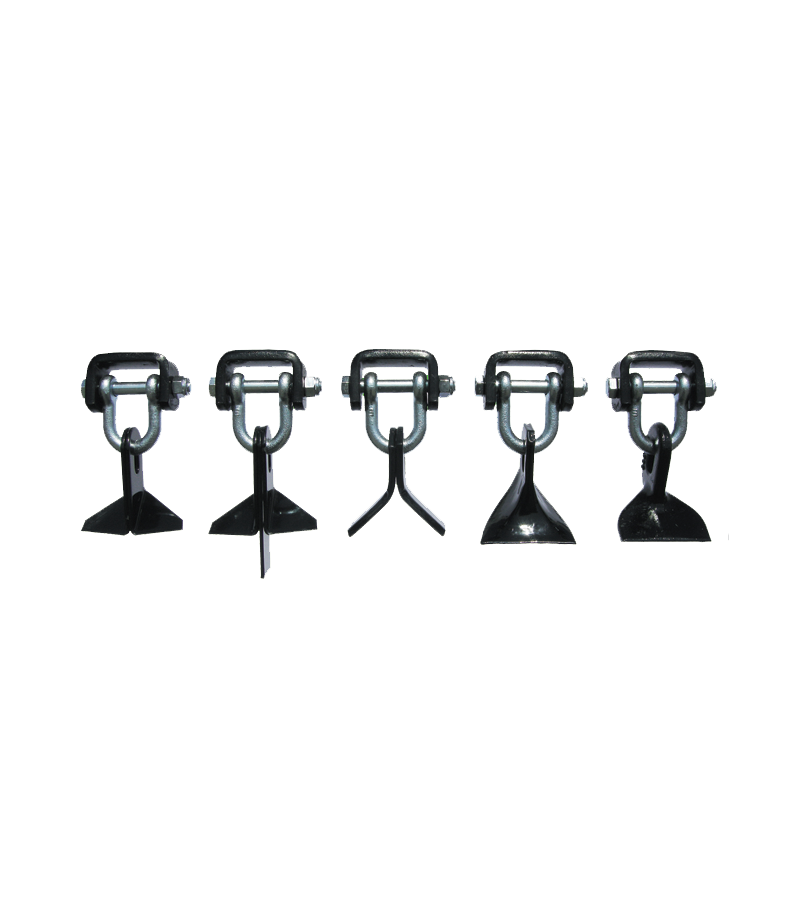

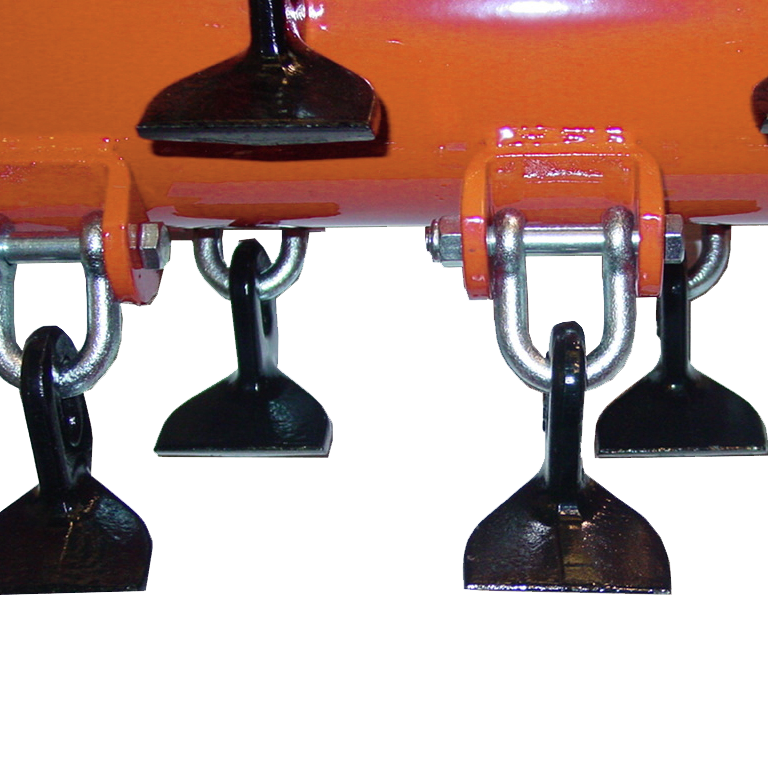

- Choice of fine cut blades at 90° angles, reverse “Y” blades, paddle blades or hammer type blades

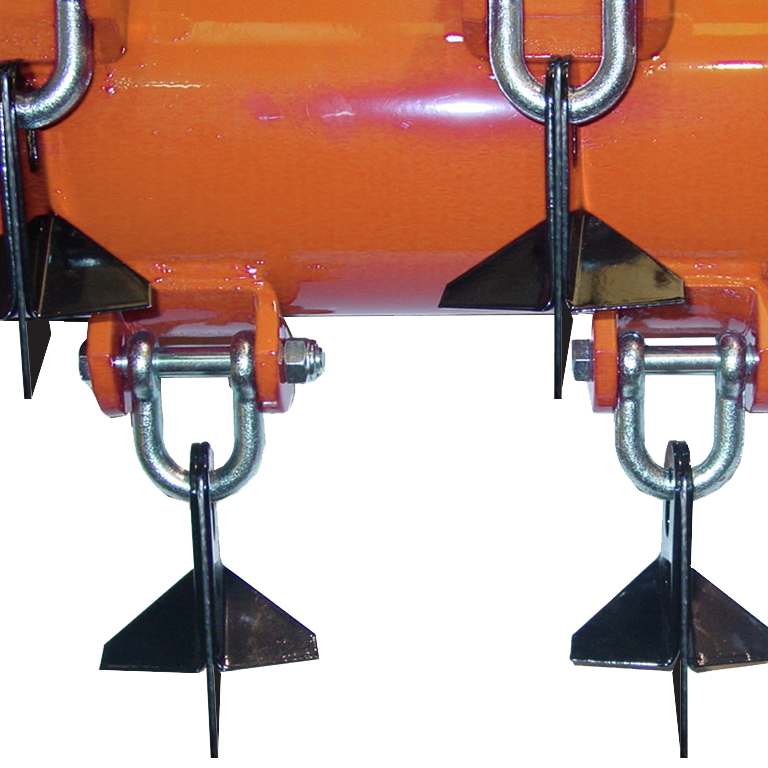

- Dethatching blades available
- Adjustable cutting height roller with scraper
- Driveline with overrunning clutch (1 3/8″ ASAE cat. 4)

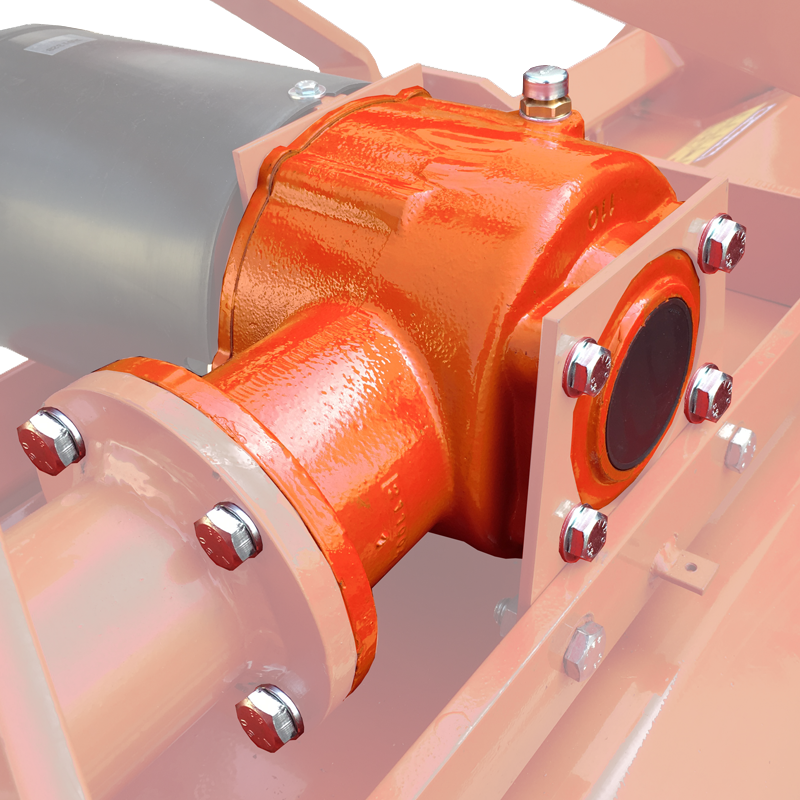

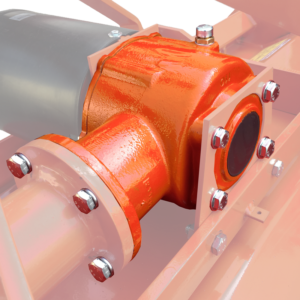

- Highly engineered & rugged gearbox

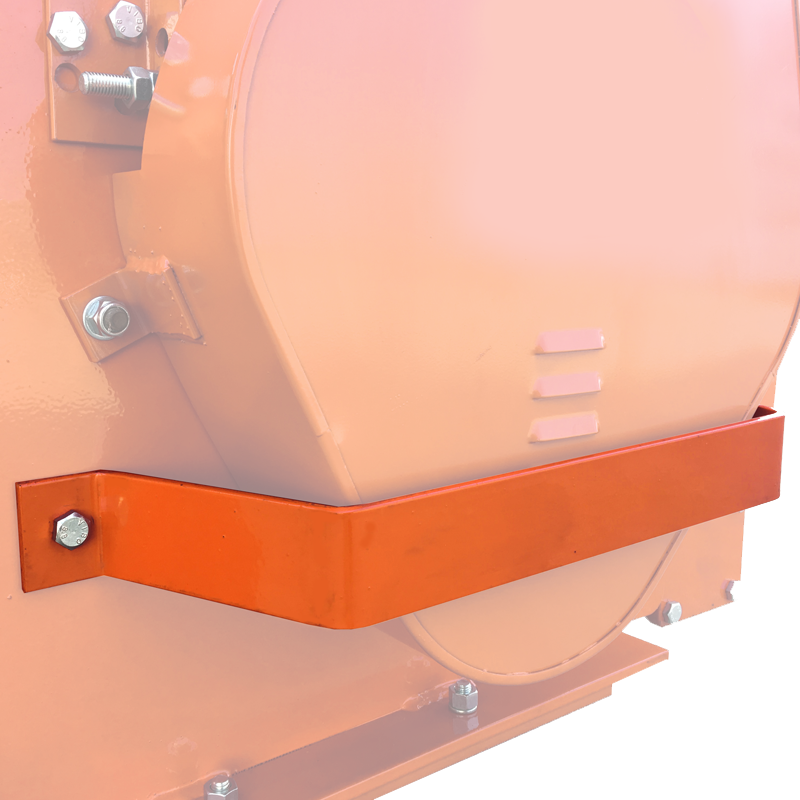

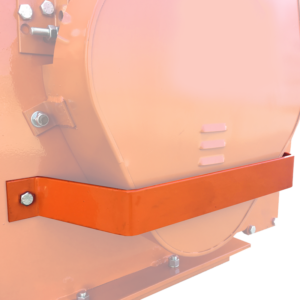

- Belt shield fender

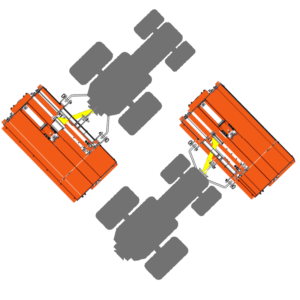

- Front & rear tractor mounting
- Electronically balanced rotor
- Heavy duty, one piece balanced steel pulleys
- Two heavy duty reinforced notched belts (CX)
- Manual belt tensioner
- 3 Point linkage, cat. 1 & 2
- Floating top link

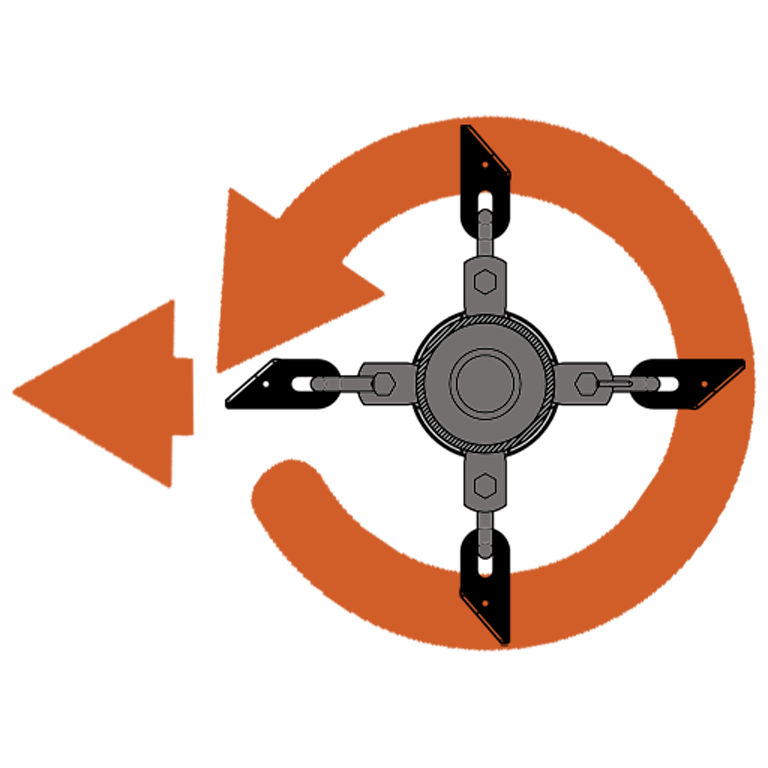

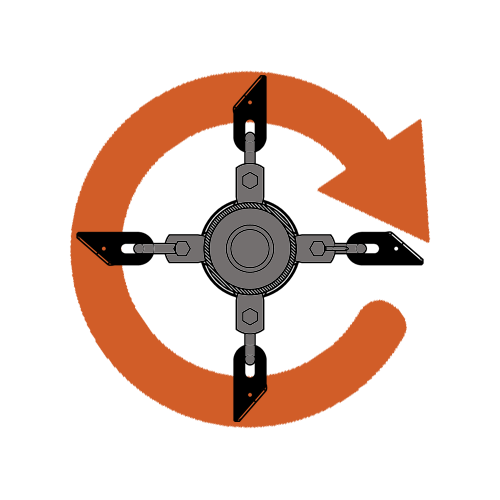

- Forward & reverse rotor rotation; clockwise is standard

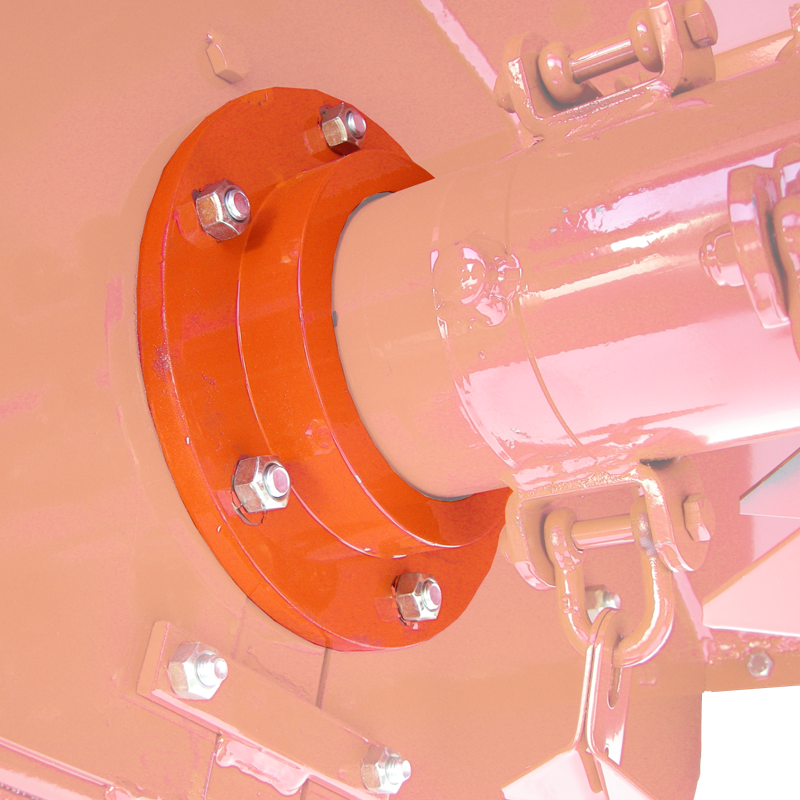

- Rotor supports with spherical roller bearings
- Rubber safety shielding

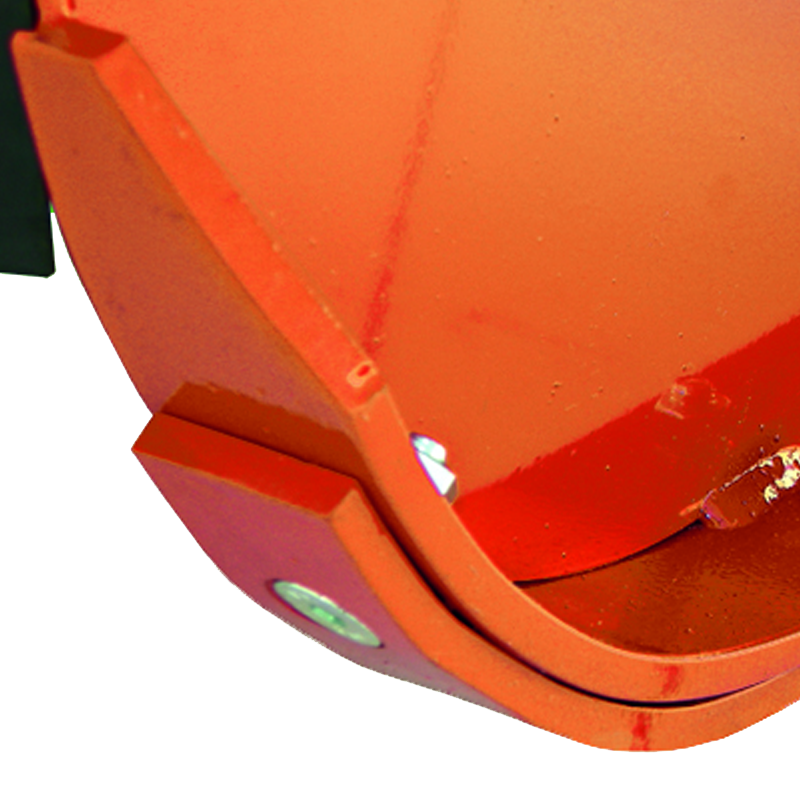

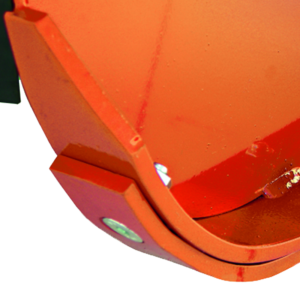

- Replaceable skids
- TECHNICAL FEATURES
- STANDARD FEATURES
- OPTIONAL EQUIPMENT
- VIDEOS
- MANUALS
Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blades tip speed (ft/min) | # of Blades | Cutting height | # Belts & type | Driveline 1 3/8" |
---|---|---|---|---|---|---|---|---|---|---|---|
H70-060 | 30-70 | 60" | 71" | 869 | 1,045 | 2,080 | 8,464 | 64 | 3/4"-6" | 2 CX | ASAE cat. 4 overrunning clutch |
H70-072 | 35-70 | 72" | 85" | 955 | 1,145 | 2,080 | 8,464 | 80 | 3/4"-6" | 2 CX | ASAE cat. 4 overrunning clutch |
H70-088 | 40-70 | 88" | 99" | 1,078 | 1,298 | 2,080 | 8,464 | 96 | 3/4"-6" | 2 CX | ASAE cat. 4 overrunning clutch |
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.
Metal dust skirt
DST88H70 Metal dust skirt for H70-088
