BGS
Grading scrapers
16-65 HP (12-48 KW)
Cat. 1
- 3 point linkage, cat. 1
- Adjustable height grading blades
- Adjustable hardened steel ripping shanks with replaceable tips on Standard duty series
- Heavy duty frame
- 2 reversible and replaceable bolt-on 1/2″ x 6″ heat treated high carbon steel blades
- Replaceable full length skid shoes
SUB-COMPACT MODELS
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | # of shanks | Side panel height | Grading panel adjustment |
|---|---|---|---|---|---|---|---|---|---|

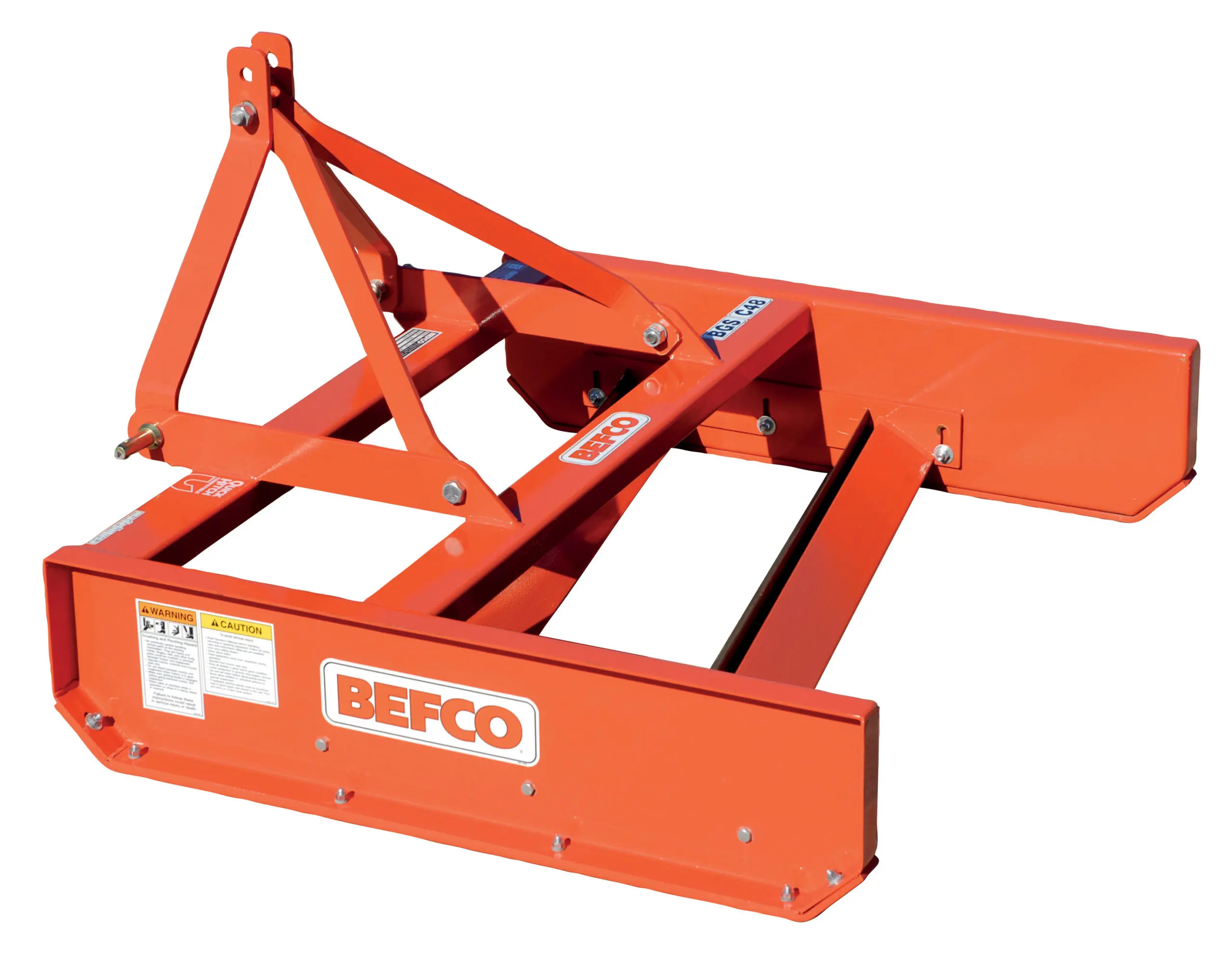

BGS-C48 | 16-30 | Cat. 1 | 48" | 52" | 350 | 386 | - | 10 3/4" | 0" - 1 1/2" |
STANDARD DUTY MODELS
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | # of shanks | Side panel height | Grading panel adjustment |
|---|---|---|---|---|---|---|---|---|---|

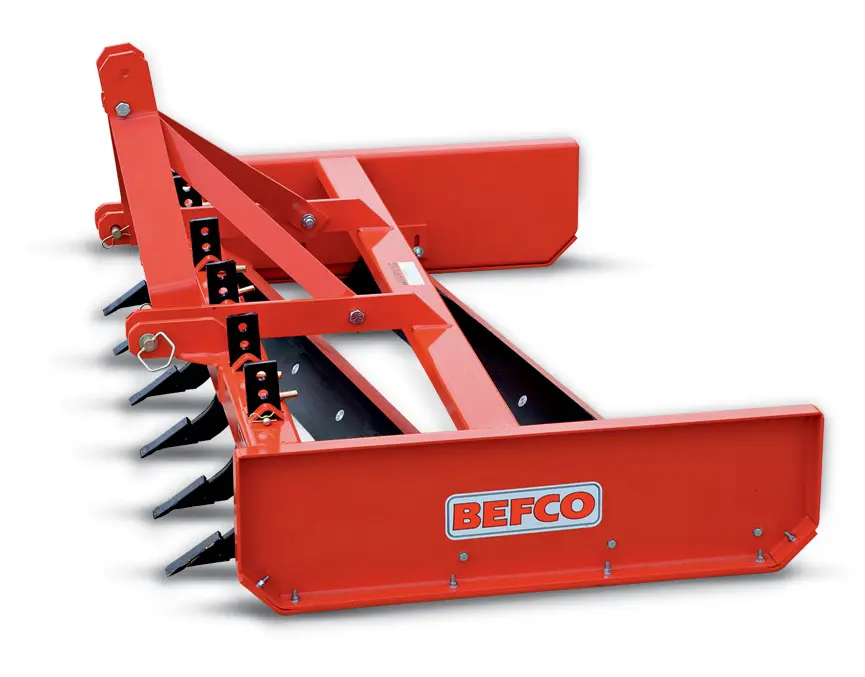

BGS-060 | 25-65 | Cat. 1 | 60" | 64" | 592 | 628 | 5 | 12 1/2" | 0" - 1 1/2" |

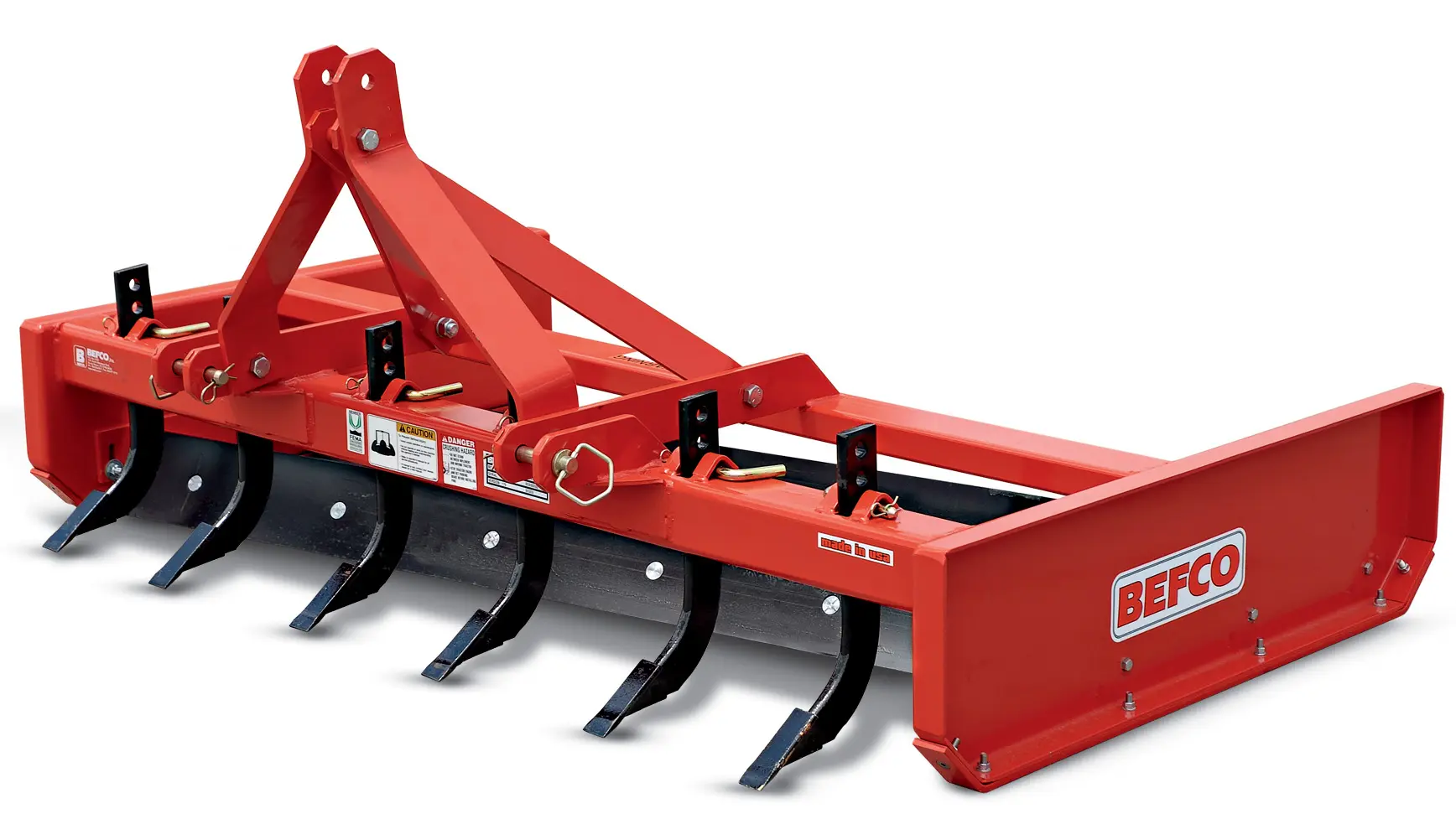

BGS-072 | 25-65 | Cat. 1 | 72" | 76" | 703 | 739 | 6 | 12 1/2" | 0" - 1 1/2" |
BGS-084 | 25-65 | Cat. 1 | 84" | 89" | 764 | 800 | 7 | 12 1/2" | 0" - 1 1/2" |

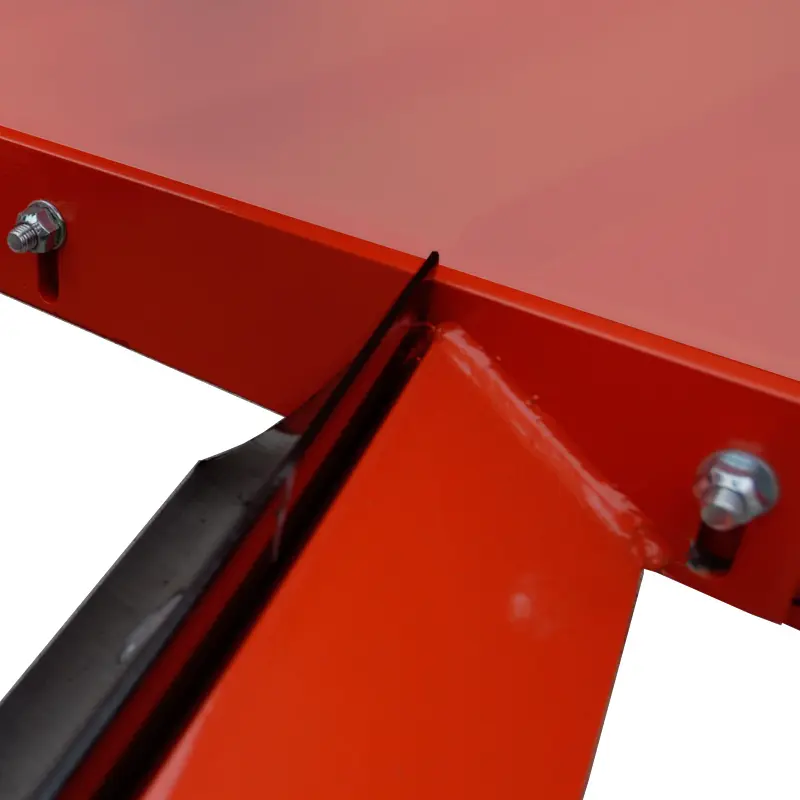

Adjustable grading blades
Adjustable height grading blades allow operator to lower the blade as it gets worn out.

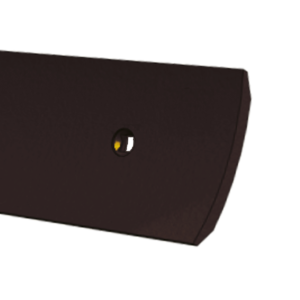

1/2″x6″ heat treated blades
All BGS models are equipped with two 1/2″x6″ heat treated blades with reversible cutting edge.

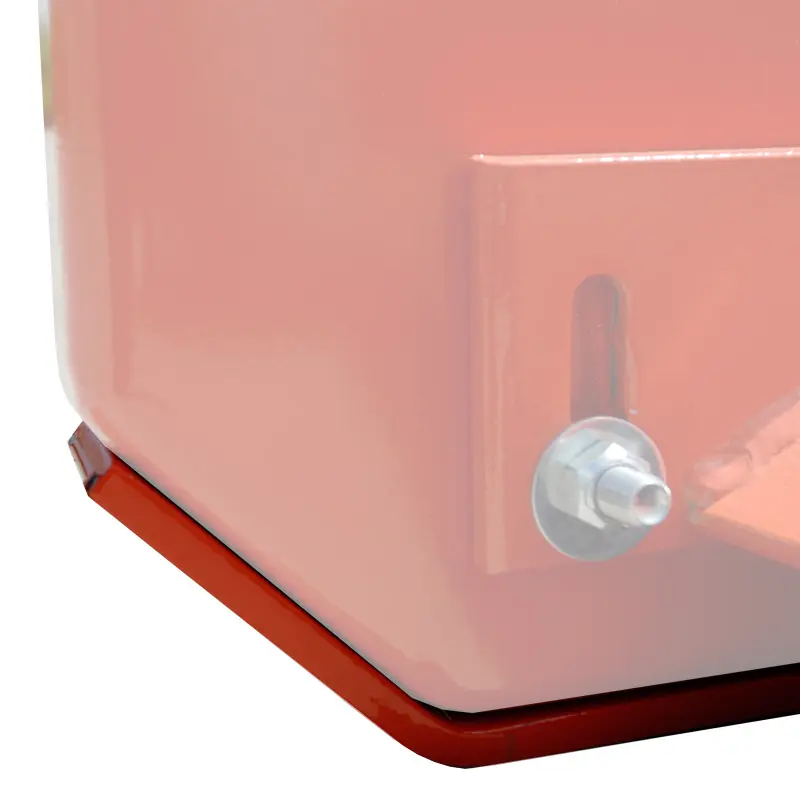

Skid shoes
All models are equipped with replaceable skid shoes.
Hardened steel ripping shanks
All Standard duty models are equipped with adjustable hardened steel ripping shanks with replaceable tips.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.
