BPL SD
Soil pulverizers
25-50 HP (19-37 KW)
Cat. 1
- 3/8″ steel spikes fully welded in a timed scroll pattern on a heavy walled roller with two 160 lbs. compression springs
- 10″ (49.1 lb/ft) frame beam
- Reversible heat treated 1/2″ x 2″ shanks
- 3 point linkage, cat. 1
- 5 9/16″ diameter spiked roller tube
- Self aligning 1″ bearings on roller
- Formed plate “A” frame
| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship lbs | # of shanks | # of roller spikes | Shank spacing | Shank penetration | Spring pressure lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|

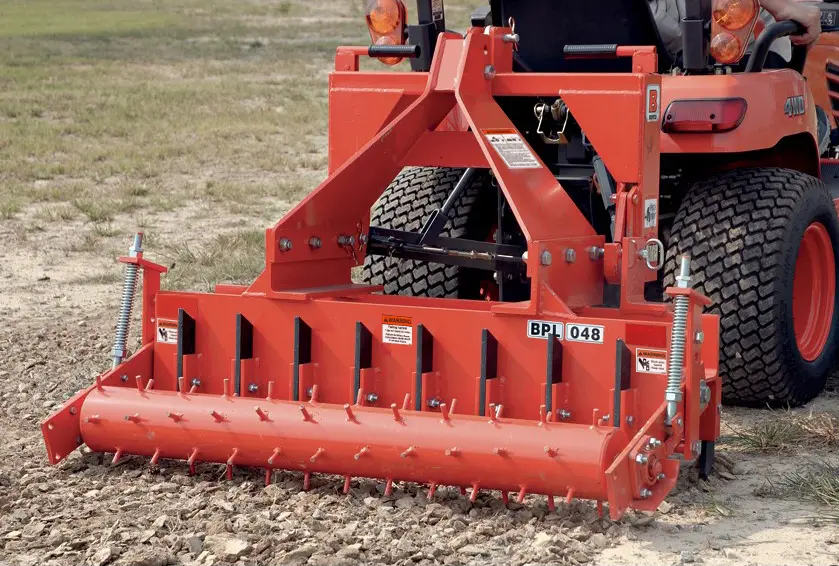

BPL-048 | 25-50 | Cat. 1 | 48" | 52" | 496 | 544 | 17 | 70 | 2 13/16" | 4 1/2" | 160 ea. |
BPL-060 | 25-50 | Cat. 1 | 60" | 64" | 652 | 702 | 21 | 88 | 2 13/16" | 4 1/2" | 160 ea. |

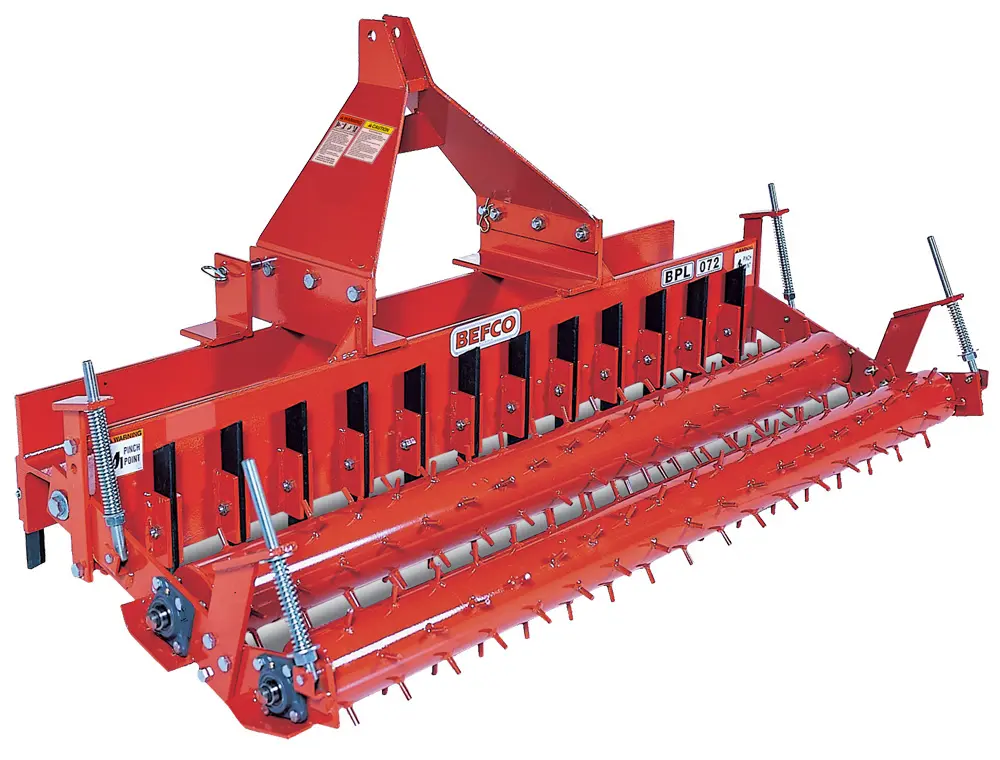

BPL-072 | 25-50 | Cat. 1 | 72" | 76" | 679 | 729 | 25 | 106 | 2 13/16" | 4 1/2" | 160 ea. |
Heavy duty formed plate “A” frame
Our fully welded and formed heavy duty “A” frames resist the toughest working conditions.
Massive 10″ I beam frame construction
Even our Standard duty soil pulverizers are heavier built then most of the competitors Heavy duty units. Standard duty pulverizers utilize a 10″ (49.1 lbs/ft) frame I beam as the main frame structure.
Reversible shanks
Heat treated 1/2″x2″ shanks are heavier duty than the spikes often used by the competition and are reversible giving you twice the use out of them.
Heat treated spikes
3/8″ steel spikes fully welded in a timed scroll pattern on a heavy walled roller.
Self aligning roller bearings
Greasable self angling 1″ roller bearings allow the rear roller to spin freely over the ground.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.
Second spiked roller
0099887 Second spiked roller assembly (Ø 5″) with up to 62 lbs of pressure for BPL-048
0099636 Second spiked roller assembly (Ø 5″) with up to 102 lbs of pressure for BPL-060
0099637 Second spiked roller assembly (Ø 5″) with up to 114 lbs of pressure for BPL-072
