Standard duty rotary cutters
20-60 HP (15-45 KW)
540 rpm - Cat. 1
- Cutting heights: from 1″ to 9 1/4″
- 10 gauge reinforced deck
- Heavy duty shielded PTO shaft with shear bolt or slip clutch safety (1 3/8″ ASAE cat. 4)

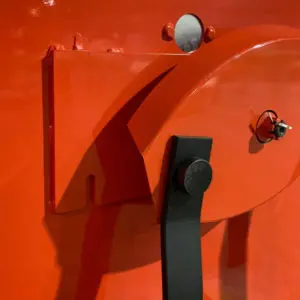

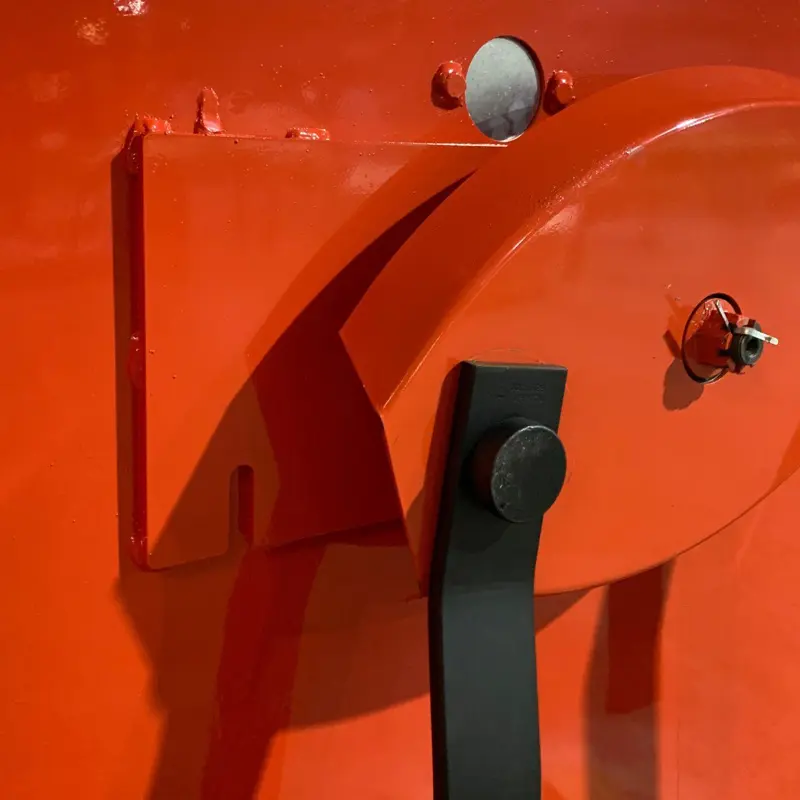

- Oval stump jumper standard on 48″, 60″ & 72″ sizes
- Spring steel blades
- 1″ cutting capacity

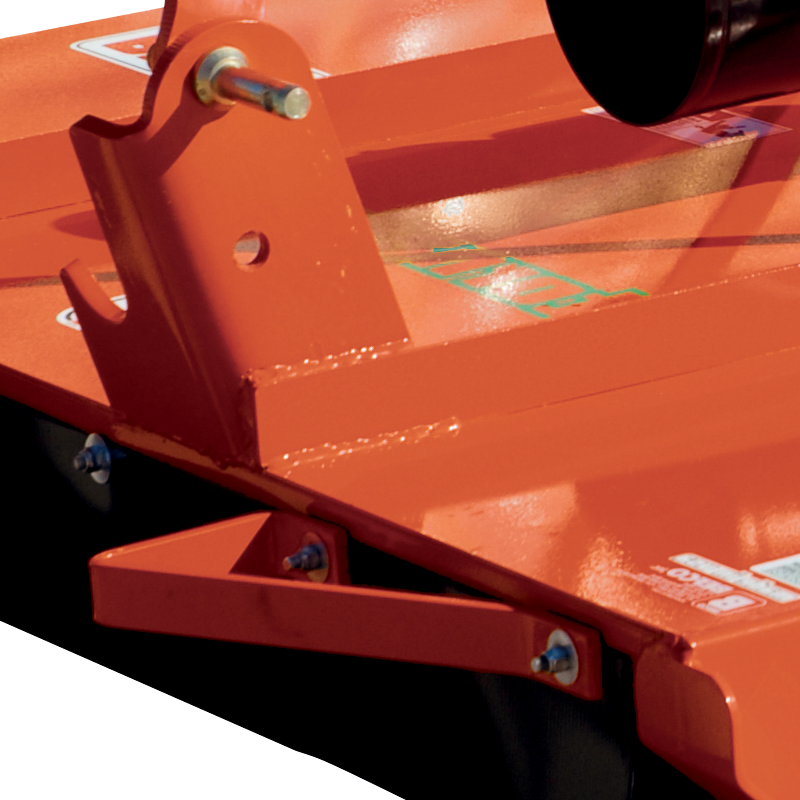

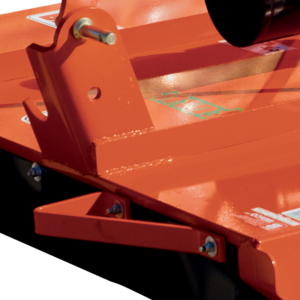

- Front & rear safety shields standard

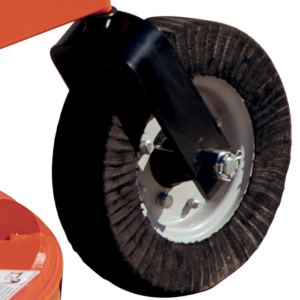

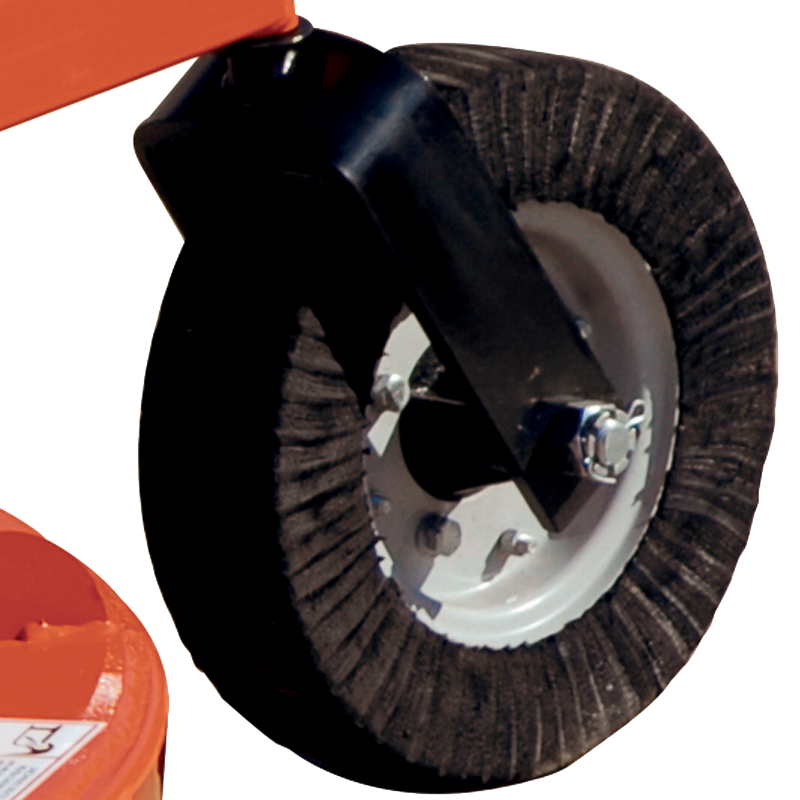

- Laminated tail wheel (4″x8″x15″)

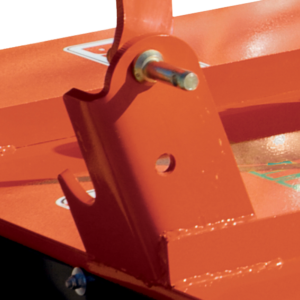

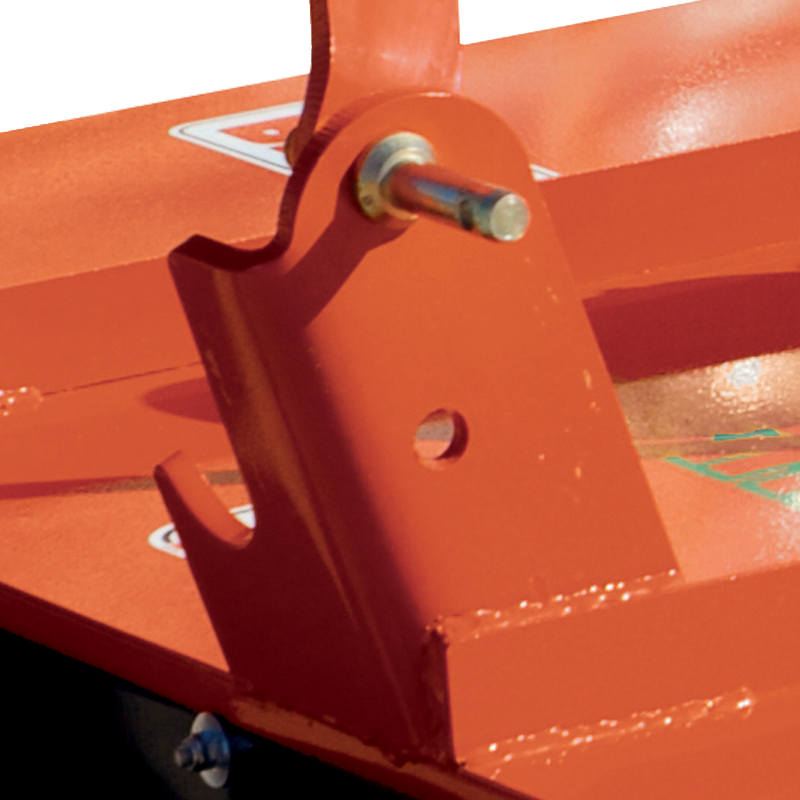

- 3 Point linkage, cat. 1
- Floating top link

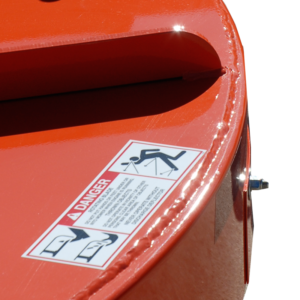

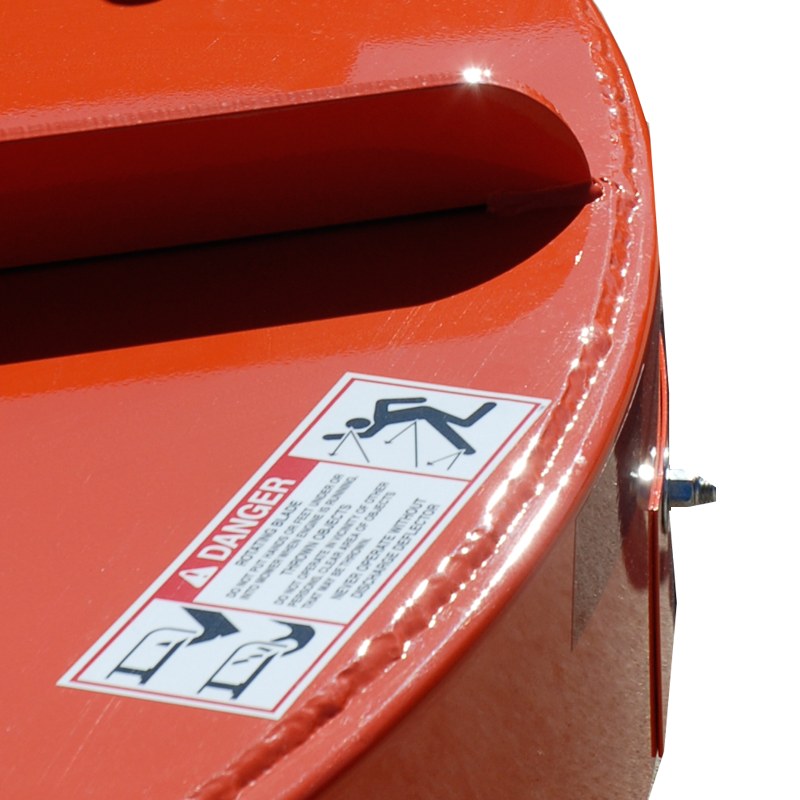

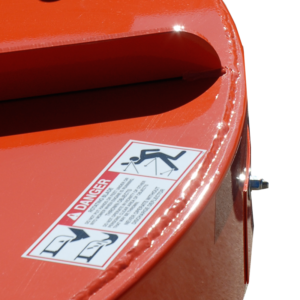

- Fully welded round back frame
- TECHNICAL FEATURES
- STANDARD FEATURES
- OPTIONAL EQUIPMENT
- MANUALS
MODELS WITH SHEAR BOLT
Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blades tip speed (ft/min) | # Blades & sizes | Cutting height | Laminated wheel size | Driveline 1 3/8" |
---|---|---|---|---|---|---|---|---|---|---|---|
BRC-142 | 20-60 | 42" | 47" | 383 | 397 | 1,042 | 11,437 | (2) 3/8"x2 3/4" | 1" to 9 1/4" | 4"x8"x15" | ASAE cat. 4 shear bolt |
BRC-148 | 25-60 | 48" | 56" | 443 | 457 | 1,042 | 12,560 | (2) 3/8"x2 3/4" | 1" to 9 1/4" | 4"x8"x15" | ASAE cat. 4 shear bolt |
BRC-160 | 30-60 | 60" | 68" | 528 | 591 | 794 | 11,948 | (2) 1/2"x3" | 1" to 9 1/4" | 4"x8"x15" | ASAE cat. 4 shear bolt |
BRC-172 | 35-60 | 72" | 79" | 601 | 675 | 794 | 14,232 | (2) 1/2"x3" | 1" to 9 1/4" | 4"x8"x15" | ASAE cat. 4 shear bolt |
MODELS WITH SLIP CLUTCH
Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blades tip speed (ft/min) | # Blades & sizes | Cutting height | Laminated wheel size | Driveline 1 3/8" |
---|---|---|---|---|---|---|---|---|---|---|---|
BRC-242 | 20-60 | 42" | 47" | 401 | 415 | 1,042 | 11,437 | (2) 3/8"x2 3/4" | 1" to 9 1/4" | 4"x8"x15" | ASAE cat. 4 slip clutch |
BRC-248 | 25-60 | 48" | 56" | 461 | 475 | 1,042 | 12,560 | (2) 3/8"x2 3/4" | 1" to 9 1/4" | 4"x8"x15" | ASAE cat. 4 slip clutch |
BRC-260 | 30-60 | 60" | 68" | 539 | 613 | 794 | 11,948 | (2) 1/2"x3" | 1" to 9 1/4" | 4"x8"x15" | ASAE cat. 4 slip clutch |
BRC-272 | 35-60 | 72" | 79" | 612 | 686 | 794 | 14,232 | (2) 1/2"x3" | 1" to 9 1/4" | 4"x8"x15" | ASAE cat. 4 slip clutch |
WARNING: Because of possible injury from thrown objects, all rotary cutters are potenitally dangerous.
Any rotary cutter intedended for use along roadways or other locations where people may be present must be used with safety shielding in place.

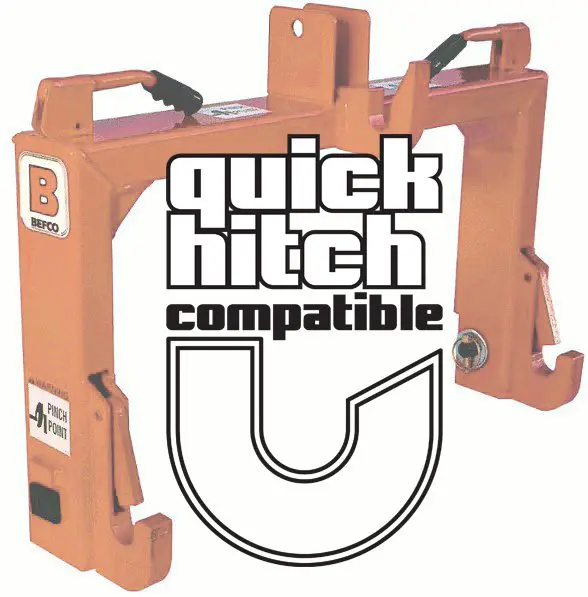

WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.
