Turbo-Hop 303 pendulum spreaders

TURBO-HOP 303

Pendulum spreaders
20-60 HP (15-45 KW)
540 rpm - Cat. 1 & 2

The BEFCO Turbo-Hop 303 Pendulum Spreader is engineered for tractors ranging from 20 to 60 HP, offering a robust design for reliable performance. Its sturdy tubular frame and heavy-duty cast steel gearbox ensure long-lasting durability, while the corrosion-proof polyethylene hopper provides precise distribution of fertilizer, seed, salt, and sand.
With hopper capacities of 1,318, 1,939, and 2,310 ft/lbs, this spreader accommodates various application needs. Whether opting for a full spread, left/right discharge pattern or even band spreading, the Turbo-Hop 303 guarantees accurate material placement. Enhanced by a stainless steel opening control disc and a cast iron anti-wear agitator, it delivers superior efficiency. Additionally, its generous hopper size and low loading height make it the perfect solution for handling large volumes with ease.

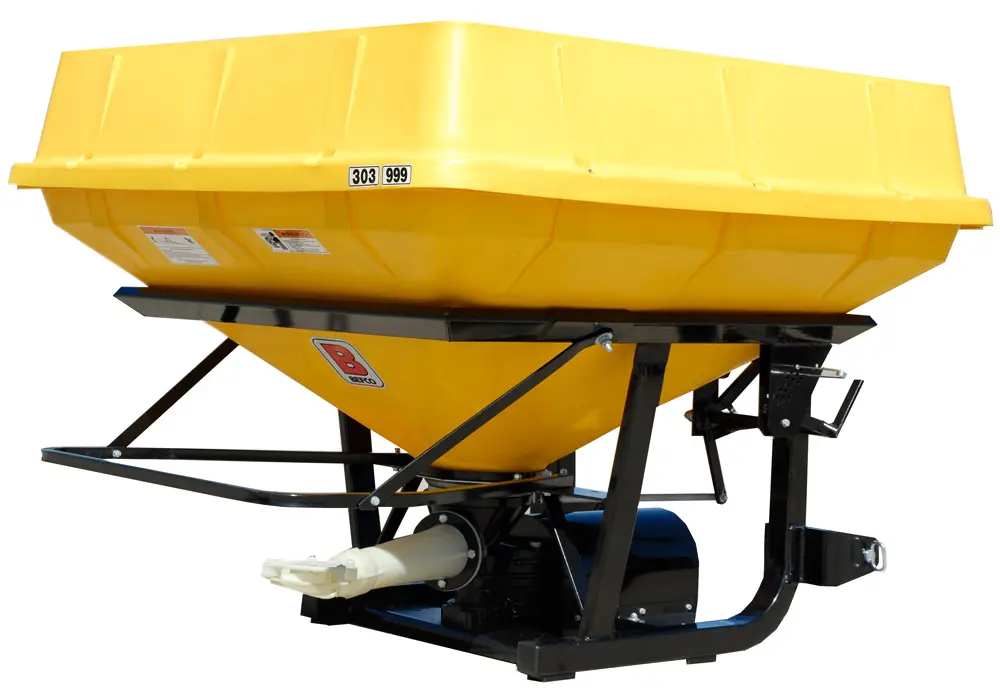

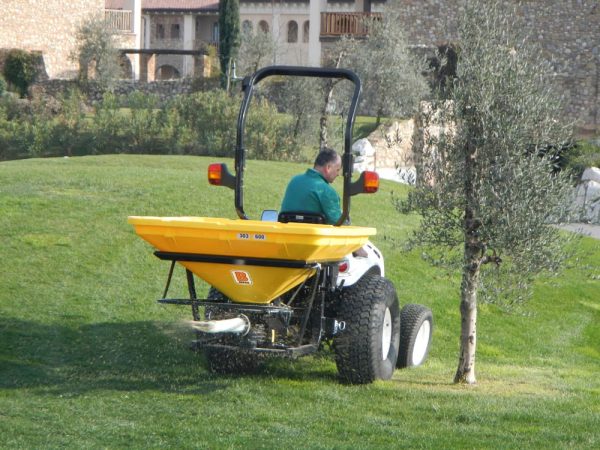

Turbo-Hop 303 pendular spreaders — 303-999

Main Features

Sturdy tubular frame
Heavy duty cast iron gearbox in oil bath
Micrometric flow control adjustment
Ideal for the distribution of fertilizer, seed, salt and sand where accuracy and precision in application are needed
Full spread or left/right discharge pattern
Polyethylene hopper

Spreader spouts made of nylon and reinforced fiberglass
Stainless steel opening control disc
Cast iron anti-wear agitator
3 point linkage, cat. 1 & 2
Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 1) with anti-shock absorber and shear bolt safety
Safety shields standard

TECHNICAL FEATURES
STANDARD FEATURES
OPTIONAL EQUIPMENT
VIDEOS
MANUALS

Model	HP	Weight lbs	Ship lbs	Capacity cu. ft/lbs	Swath spread	Hopper width	Hopper height	Driveline 1 3/8"
303-600	20-60	419	504	20.6/1,318	17'-47'	60"	38"	ASAE cat. 1 shear bolt
303-800	20-60	448	533	30.3/1,939	17'-47'	60"	43"	ASAE cat. 1 shear bolt
303-999	20-60	455	540	36.1/2,310	17'-47'	60"	47"	ASAE cat. 1 shear bolt

NOTE: Capacity in lbs. calculated @ 13-13-13 fertilizer weight of 64 lbs. per cu. ft.

WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.

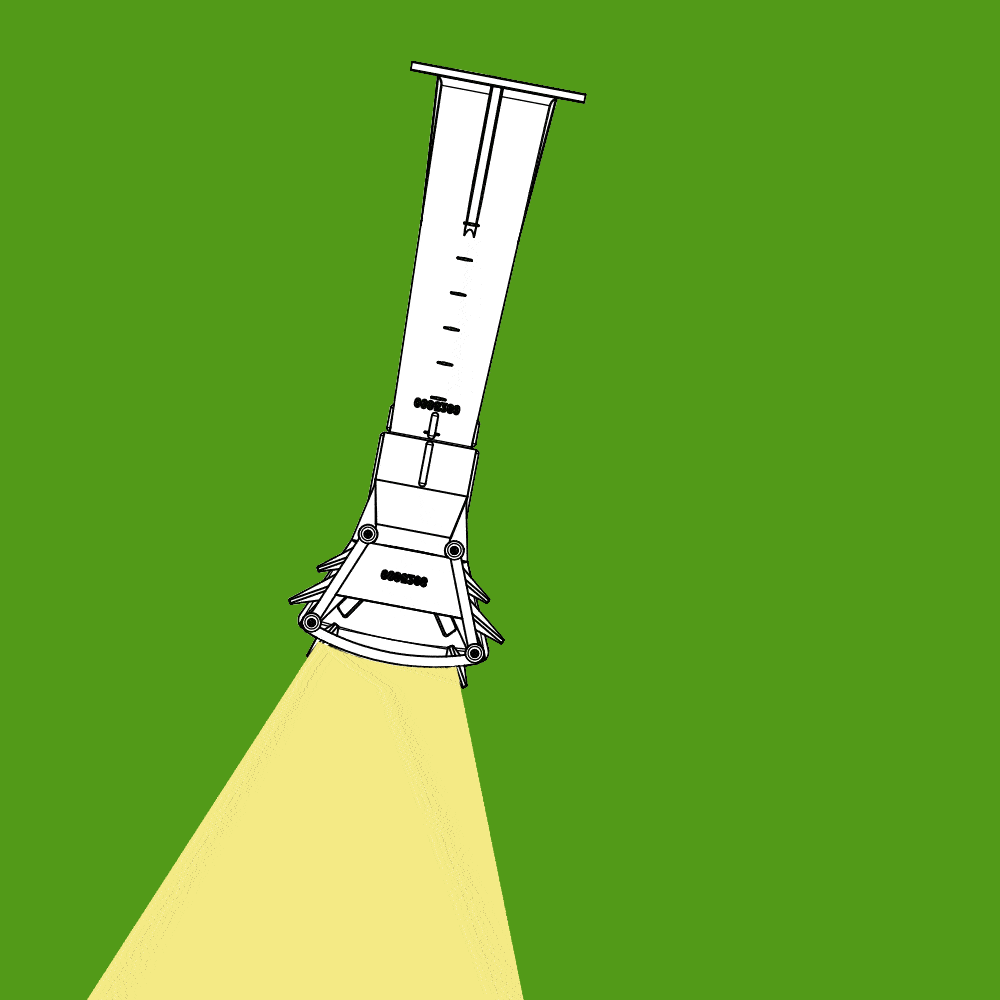

Full width spread pattern

BEFCO pendulum spreaders are uniquely designed to deliver precise material distribution, ensuring an optimal spread pattern. With the standard spout mounted, the spreader will spread powdered materials between 17’ and 20’ and granular materials between 39’ and 47′.
This setup is particularly useful in farming applications when trying to maximize the spread width in order to save time.

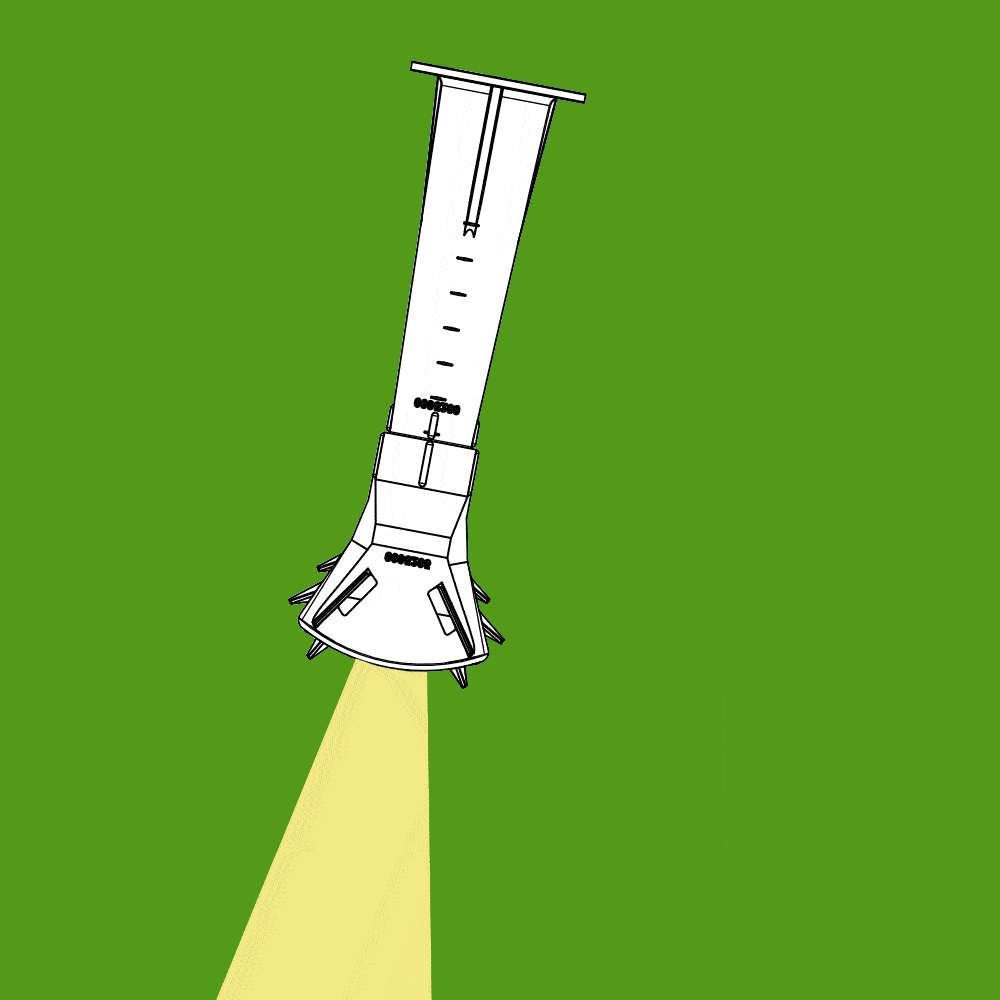

Half width spread pattern

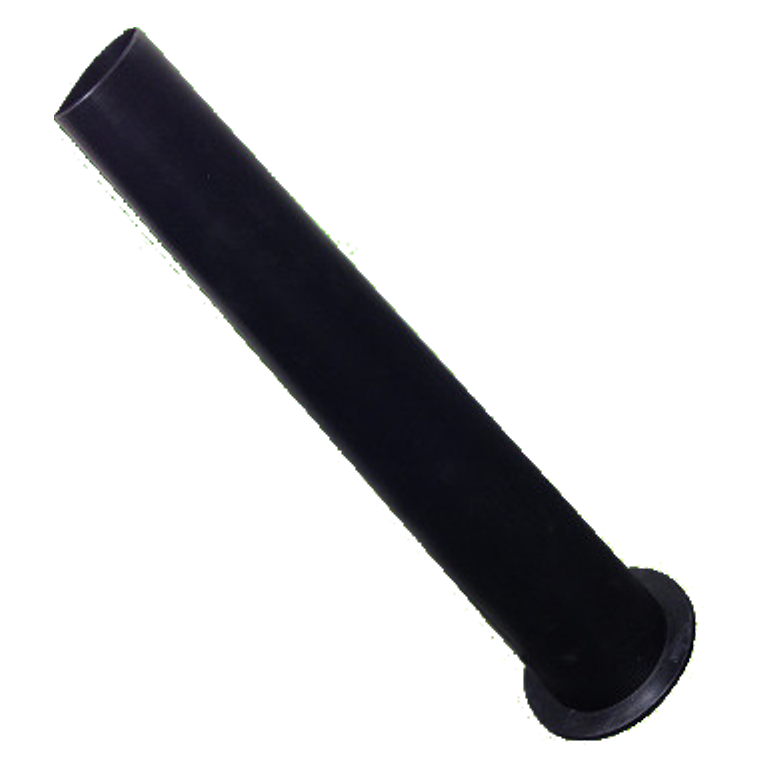

Securing the standard spout facing down wil reduce the spread swath considerably. In addition using the optional short spout will reduce the spread pattern approximately in half.
With the short spout mounted, the spreader will spread powdered materials between 8.5’ and 10’ and granular materials between 19.5’ and 26′.
The short spout is particularly useful when spreading salt or brine on roads.

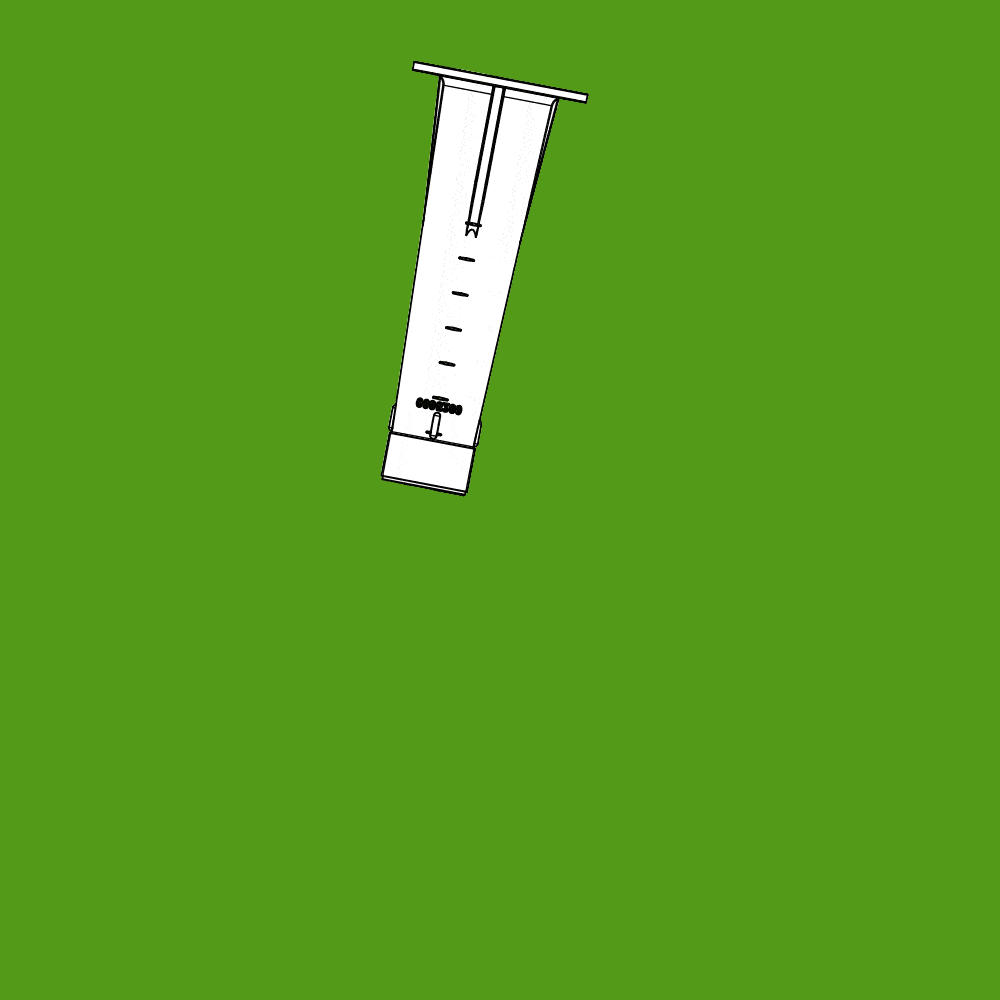

Banding spread pattern

Band spreading is when the spreader only distributes material off to the sides and
none in the middle. By unscrewing the spread deflector from the end of the spout, the spreader will spread material only to the sides. In addition, shortening the spout by cutting it will allow to decrease the width of the band. In its original length the spreading spout will leave a band of approximately 23’ and drop the material in rows roughly 3’ wide. The spout can be cut in small increments if the desired width needs to be reduced. At one quarter of its’ original length the spreader spout will leave a band in the middle of approximately 6.5’ and still drop material in rows roughly 3’ wide.

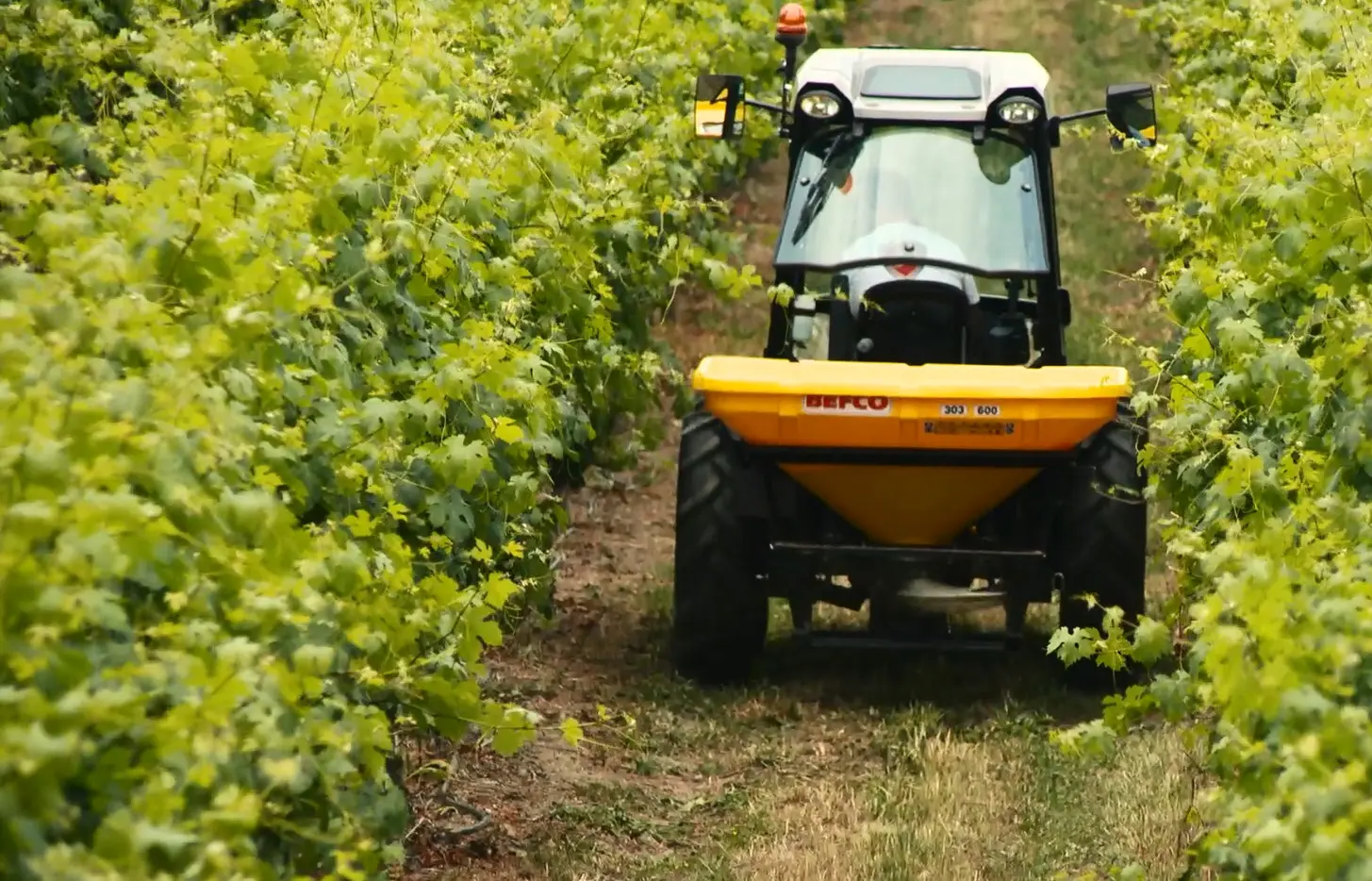

Band spreading is particularly useful when spreading fertilizer in orchards and vineyards, when spreading salt or brine on sidewalks, or when spreading fish food in fish farms.

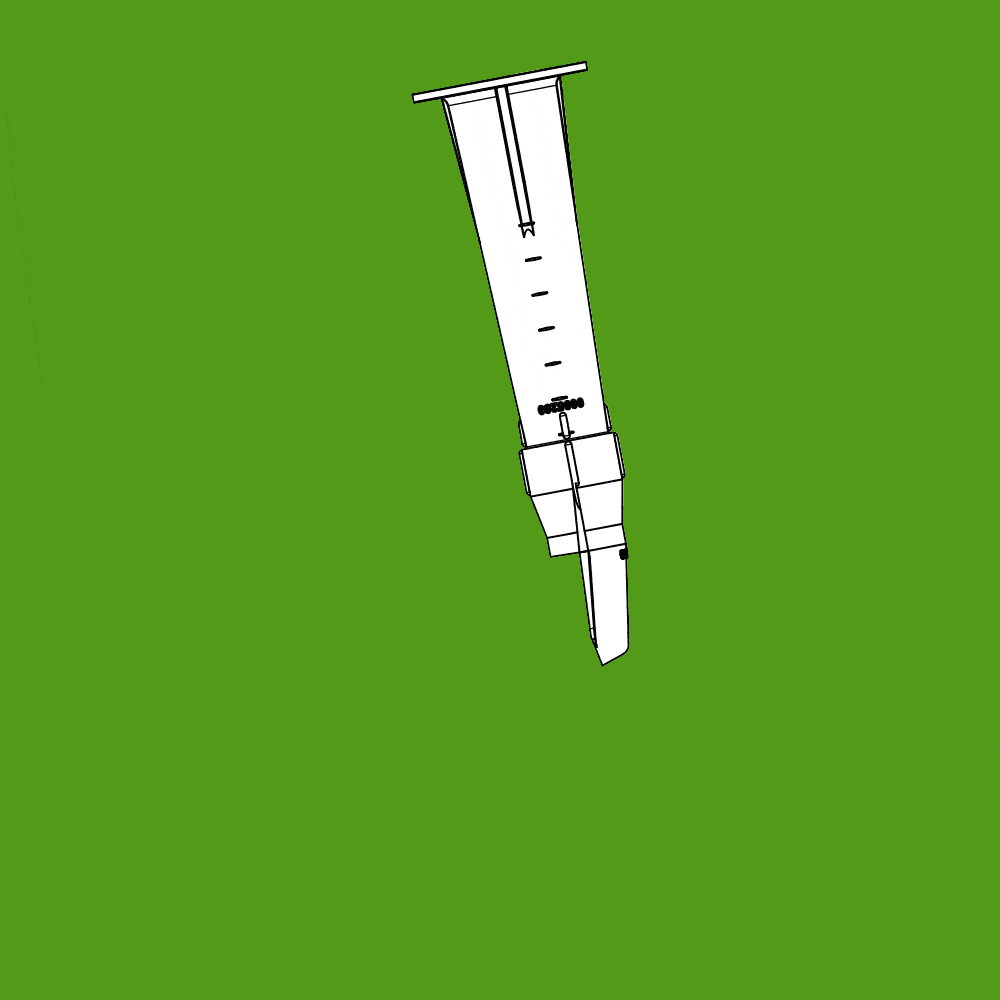

Left only spread pattern

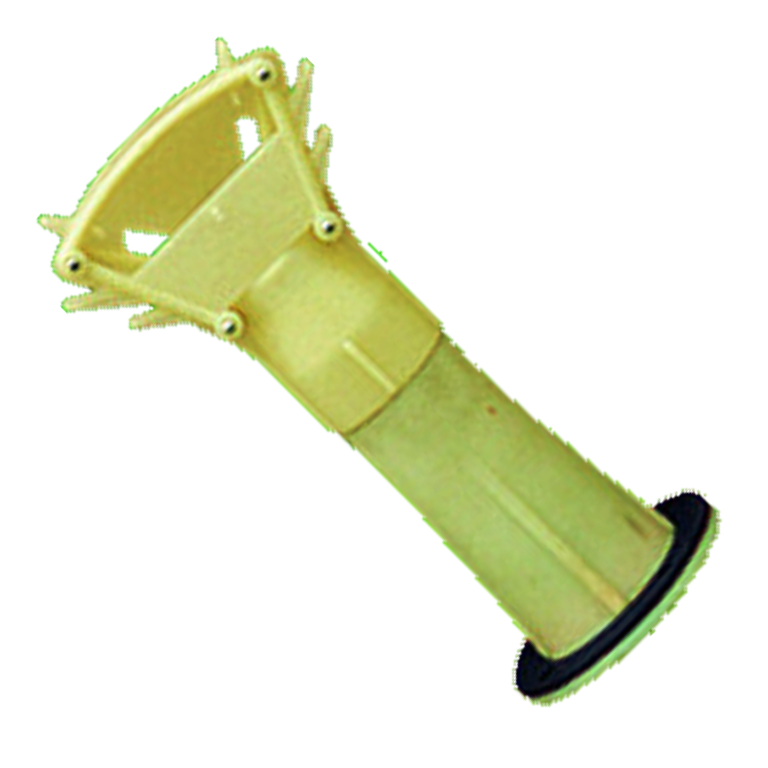

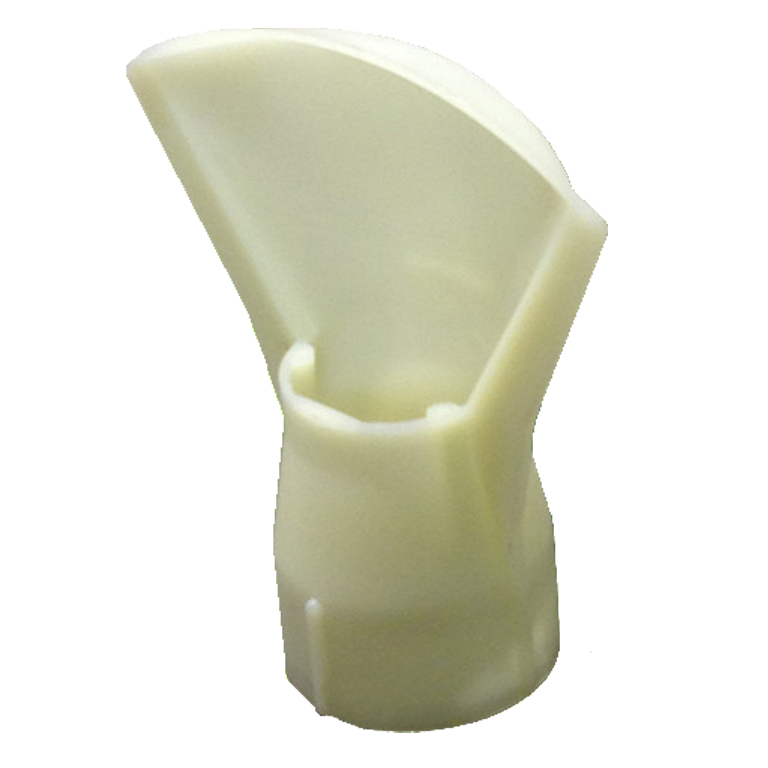

Although the standard spread deflector can be adjusted to spread only to the left the optional directional attachment improves accuracy when spreading in either direction.
Left only spreading is particularly useful when spreading fertilizer in orchards and vineyards or when spreading fish food in fish farms.

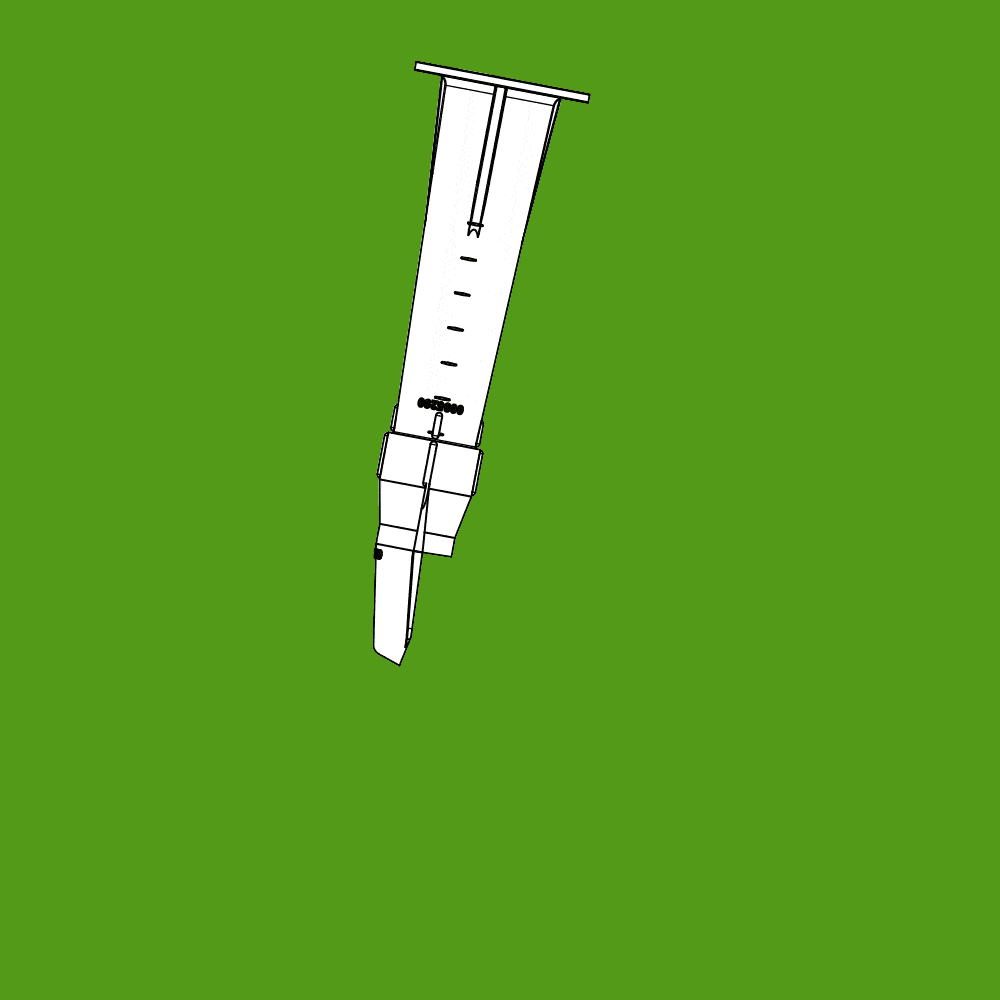

Right only spread pattern

Although the standard spread deflector can be adjusted to spread only to the right, the optional directional attachment improves accuracy when spreading in either direction.
Right only spreading is particularly useful when spreading fertilizer in orchards and vineyards, when spreading salt or brine on sidewalks, or when spreading fish food in fish farms.

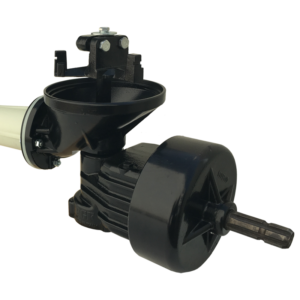

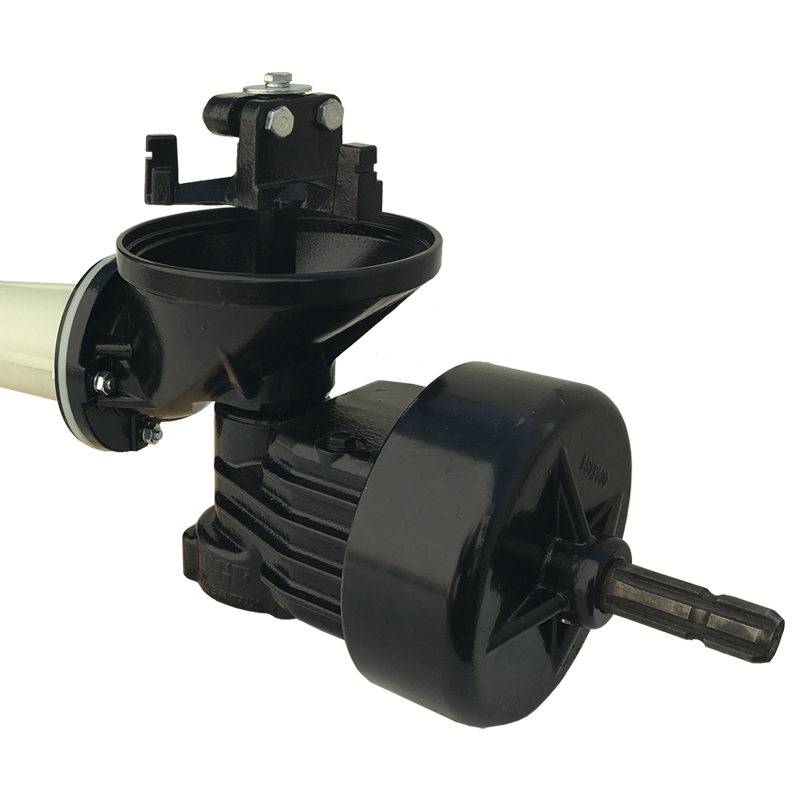

Gearbox by BEFCO

Unlike other pendulum spreaders that have all the moving elements out in the open, Turbo-Hop pendulum spreaders feature a fully enclosed gearbox, with gears in oil bath. This ensures durability and prevents costly and damaging rust build up on moving parts.

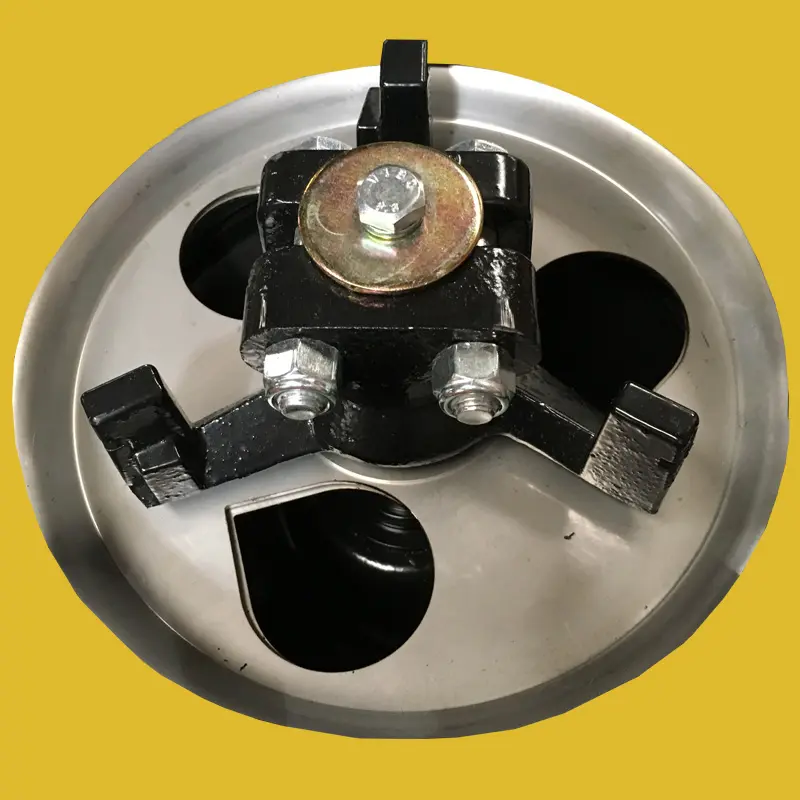

Stainless steel distribution unit

At the bottom of the hopper is a stainless steel distribution unit and a stamped steel agitator to keep material flowing through to the end spout.

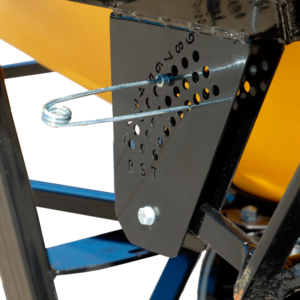

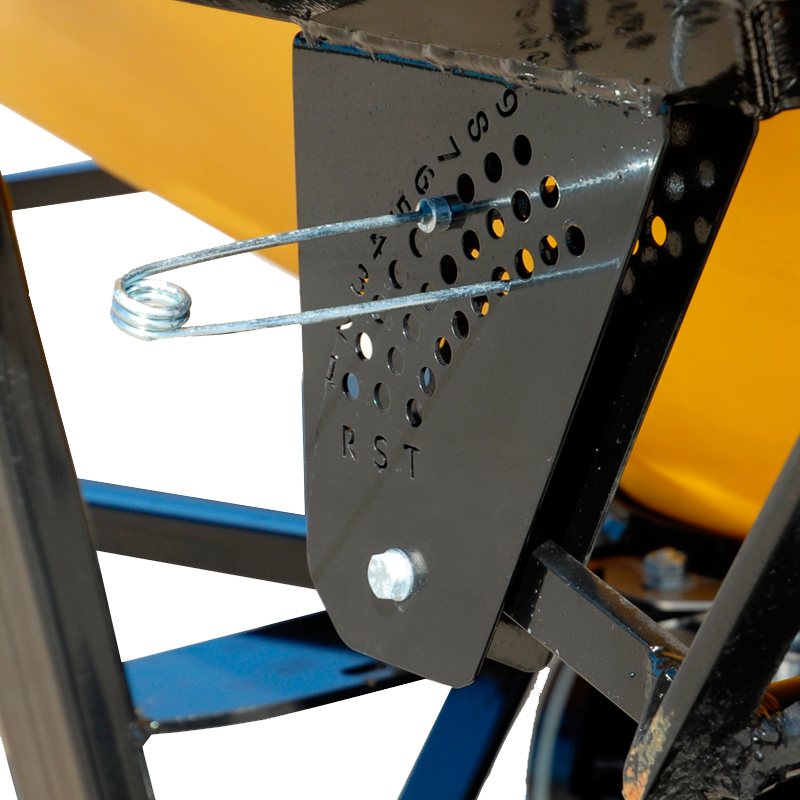

Graded scale

The graded adjustment scale makes selecting the desired opening position a quick and easy task.

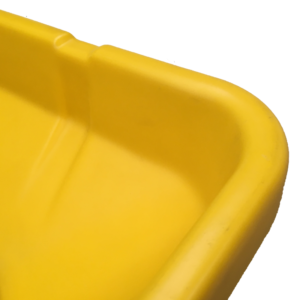

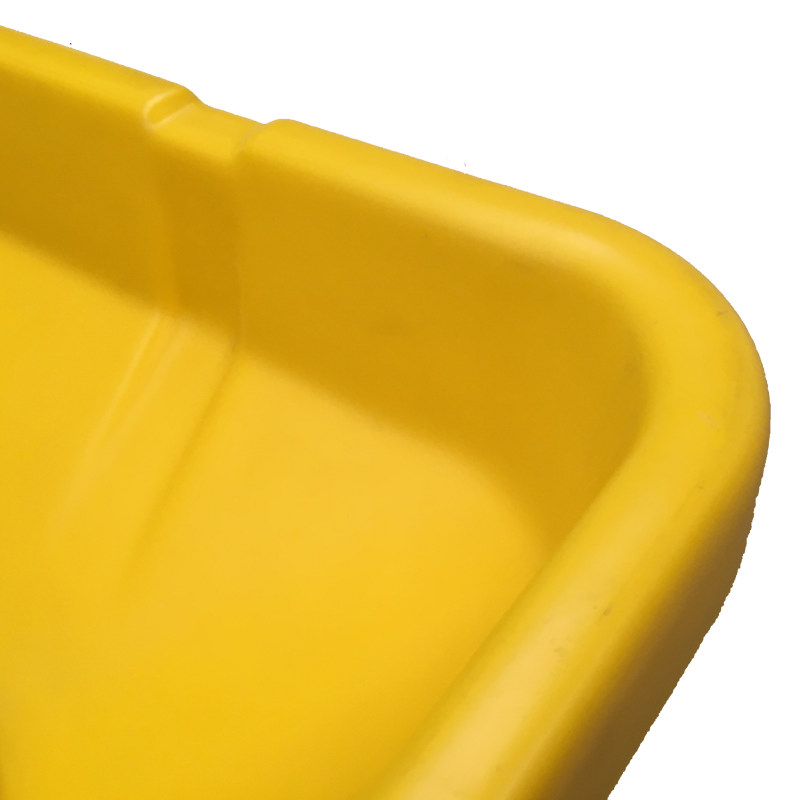

Polyethylene hopper

While other pendulum spreaders utilize fiberglass hoppers that are easily damaged on impact and weather poorly in the elements, Turbo-Hop pendulum spreaders use corrosion proof, impact resistant polyethylene hoppers that still look new after years of exposure to the elements.
