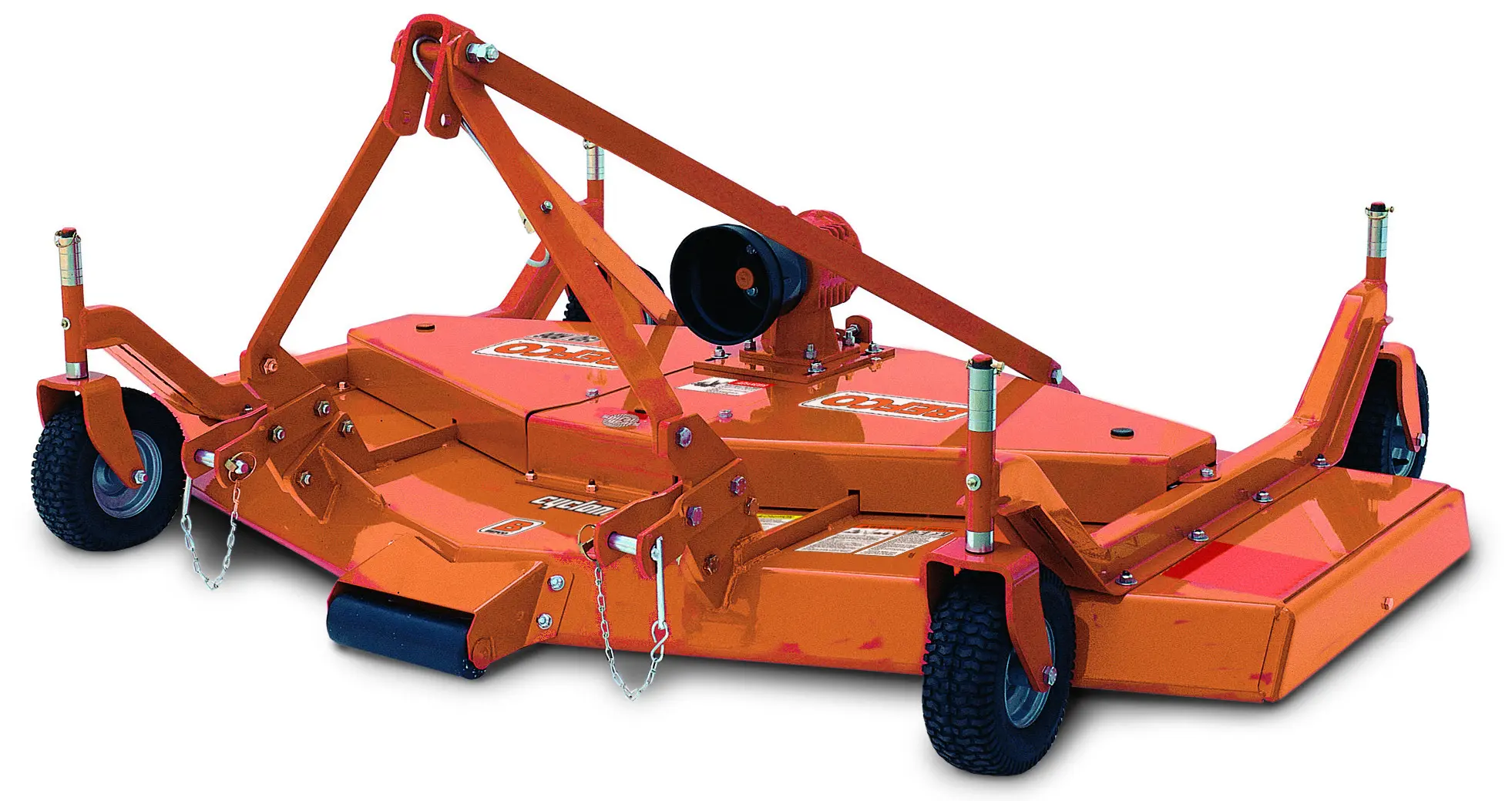

CYCLONE C50

Grooming mowers
20-50 HP (15-37 KW)
540 rpm - Cat. 1

  • Highly engineered & rugged gearbox with cooling fins
  • Spiral gears guarantee strength and quietness
  • Cutting heights: from 1″ to 5″
  • Front & rear tractor mounting
  • 4 rubber swivel tires with bearings to guarantee a perfectly level cut
  • Stamped steel reinforced wheel arm attached by 8 bolts for maintaining a consistent cutting height
  • Floating 3 point linkage, cat. 1
  • 8 gauge reinforced mower deck
  • Spindle shafts greased from the top for easy service
  • Safety chain shield standard
  • Two heavy duty reinforced belts (SPBX)
  • Heavy duty, one piece, balanced steel pulleys
  • Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 3)
  • Stamped steel wheel yokes
  • TECHNICAL FEATURES
  • STANDARD FEATURES
  • OPTIONAL EQUIPMENT
  • VIDEOS
  • MANUALS

MODELS WITH SOLID TIRES (SIZE 10"x3.2")

ModelHPWorking widthOverall widthWeight lbsShip lbsRotor rpmBlade tip speed (ft/min) # of bladesCutting height# Belts & type

Driveline 1 3/8"

C50-RD5H20-50

60"

62"

550665

3,210

16,929

31-52 SPBXASAE cat. 3
C50-RD6H25-50

72"

74"

600730

2,605

16,732

31-52 SPBXASAE cat. 3
C50-RD7H30-50

84"

86"

690835

2,195

16,338

31-52 SPBXASAE cat. 3

MODELS WITH PNEUMATIC TIRES (SIZE 11"x4")

ModelHPWorking widthOverall widthWeight lbsShip lbsRotor rpmBlade tip speed (ft/min) # of bladesCutting height# Belts & type

Driveline 1 3/8"

C50-RD5A20-50

60"

62"

534649

3,210

16,929

31-52 SPBXASAE cat. 3
C50-RD6A25-50

72"

74"

584714

2,605

16,732

31-52 SPBXASAE cat. 3
C50-RD7A30-50

84"

86"

674819

2,195

16,338

31-52 SPBXASAE cat. 3

WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.

Reversible hitch for front and rear mounting

Reversible three point hitch for front and rear tractor mounting.

Gearbox with spiral gears

Gearboxes are manufactured by BEFCO and come equipped with spiral gears that ensure better power transmission, increase longevity and reduce noise.

Manual belt tensionning

Manual belt tensionner maintains constant tension on belts without stretching them like a typical spring loaded idler would. This means that belts last much longer and there is no spring loaded idler that needs to be disassembled at the end of the mowing season to prevent it from stretching the belts during the winter months.

Double belt transmission

Two heavy duty reinforced belts (SPBX) with manual tensionner provide over 180° coverage of all pulleys and reduce belt maintenance.

Cast iron pulleys

Heavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.

Axial grease fittings

Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.

Stamped steel reinforced wheel arms

Only BEFCO mowers are equipped with reinforced stamped steel wheel arms. These wheel arms are stronger than the ones made of bent tubing used by the competition and always guarantee a perfectly even surface for the mower to rest on.

Choice of solid or pneumatic tires

Customers can choose between solid (10″x3.2″) or pneumatic tires (11″x4″).

Pins that stay in place

Mowers that use traditional cotter pins often loose them when the mower gets too close to a bush. This not only causes the loss of the pin but may also cause the loss of the height adjustment spacers and in some cases even the wheel yokes.
For this reason, BEFCO designed and manufactured a pin that will stay securely fastened under almost any circumstances.

Chain shielding

Mowers are equipped with chain shields to provide additional safety from thrown objects.

ASAE Cat. 1 quick hitch compatible

Compatible with ASAE Cat. 1 quick hitches when equipped with optional quick hitch adapter.

Quick hitch adapter

002800 Quick hitch adapter for models C50-RD5, C50-RD6 and C50-RD7

Mulching kit

005700 Mulching kit for model C50-RD5
006700 Mulching kit for model C50-RD6
007700 Mulching kit for model C50-RD7
Note: Mulching blades are also included in Mulching kits

Front antiscalp roller

0099915 Front antiscalping roller (standard on C50-RD7 model)

Rear roller

0099941 Rear striping roller kit for model C50-RD5
0099942 Rear striping roller kit for model C50-RD6
0099943 Rear striping roller kit for model C50-RD7

Front mount (factory installed)

FRTXXC50 Front mount

Low lift blades

0006641F Low lift blade for model C50-RD5
0006845F Low lift blade for model C50-RD6
0006690F Low lift blade for model C50-RD7

Standard blades

0006641 Standard blade for model C50-RD5
0006845 Standard blade for model C50-RD6
0006690 Standard blade for model C50-RD7

High lift blades

0006641B High lift blade for model C50-RD5
0006845B High lift blade for model C50-RD6
0006690B High lift blade for model C50-RD7

Mulching blades

0006641M Mulching blade for model C50-RD5
0006845M Mulching blade for model C50-RD6
0006690M Mulching blade for model C50-RD7
Note: Mulching blades are also included in Mulching kits

Operator’s manual

Parts manual
