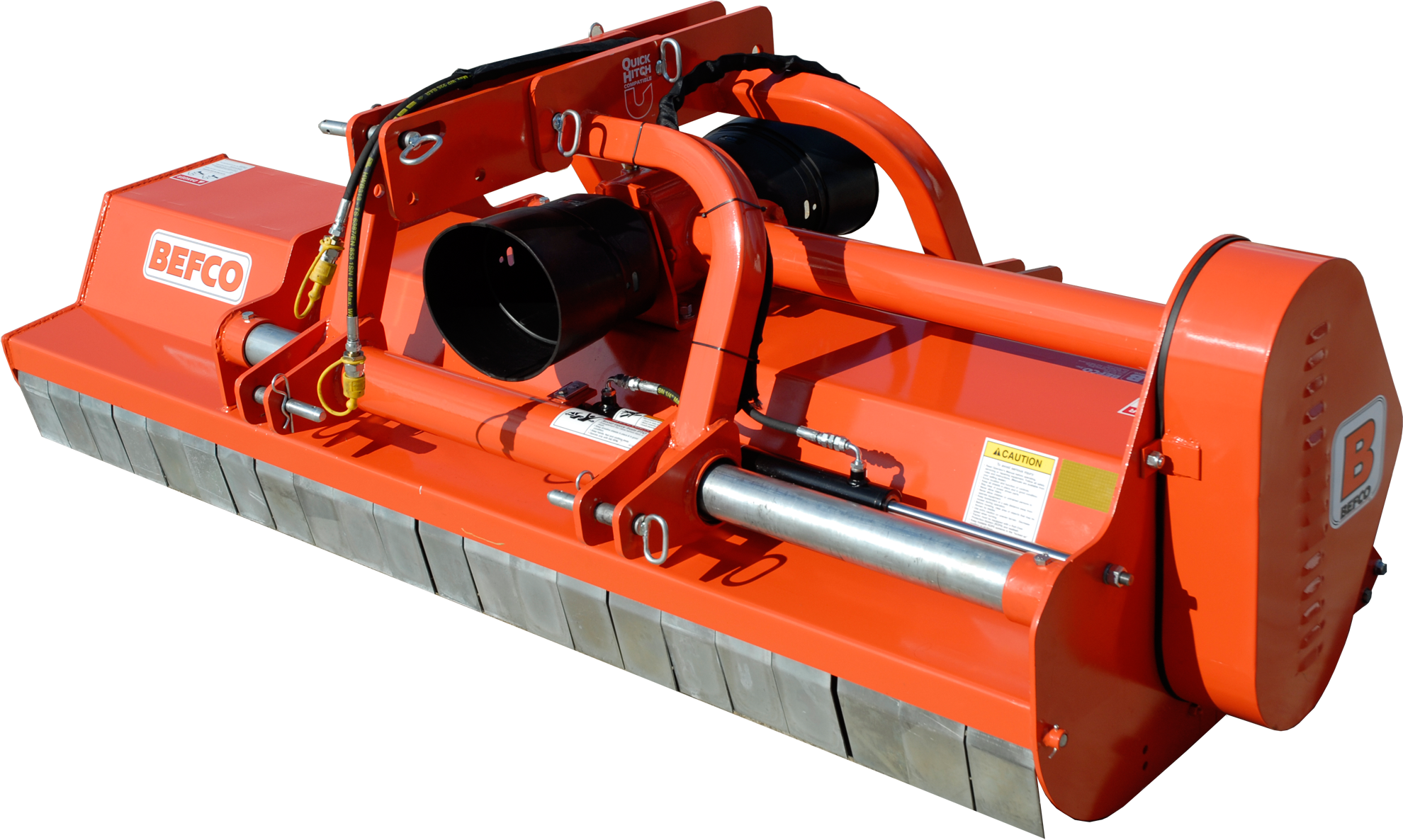

DESTROYER D90
Flail shredders with side shift
40-90 HP (30-67 KW)
540 rpm - Cat. 1 & 2
Featuring robust cast hammer-type blades, the D90 can efficiently shred prunings up to 2″ in diameter, ensuring effective debris management. The durable cast iron rotor supports are designed and manufactured in-house, and they are assembled with advanced spherical self-aligning bearings to minimize vibrations and enhance operational stability. Additionally, all D90 models come equipped with a hydraulic cylinder that allows operators to offset the mower to the right of the tractor. This offset capability provides greater maneuverability and precision when working in tight spaces.

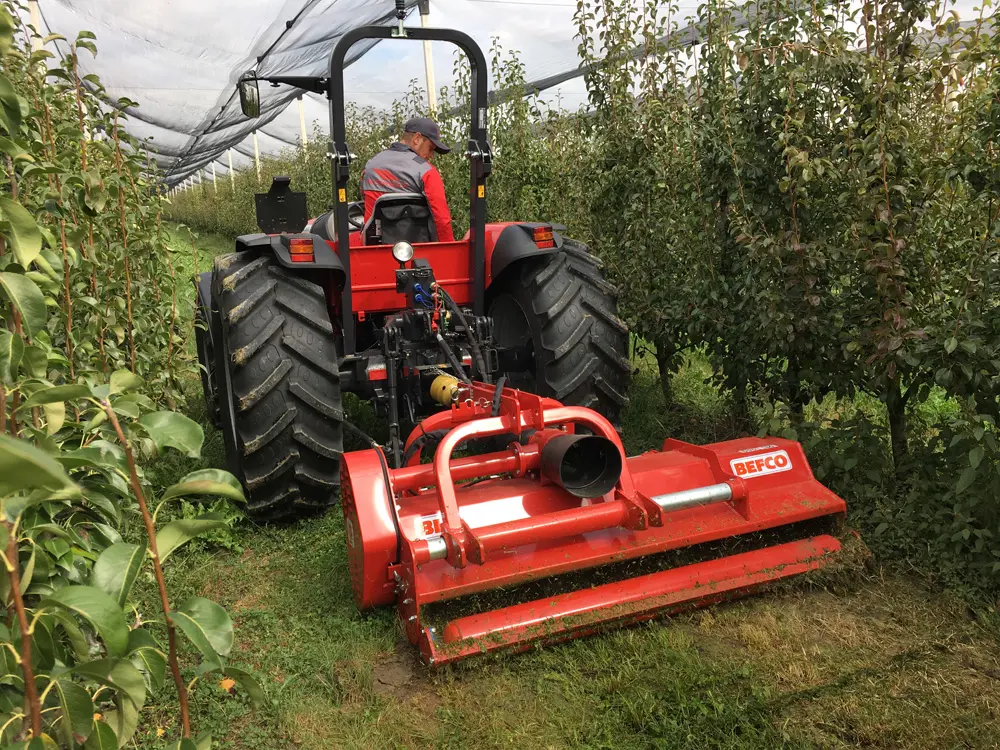

Whether you’re maintaining a vineyard or managing an orchard, the D90 flail shredder delivers exceptional performance and reliability for all your agricultural needs.
Main Features
- Cutting heights: from 3/4″ to 5″
- 3 Point linkage, cat. 1 & 2
- Front & rear tractor mounting
- Driveline with overrunning clutch (1 3/8″ ASAE cat. 6)
- Belt driven transmission with four heavy duty XPBX type belts and manual belt tensioner
- Hydraulic side-shift with dual remotes. 12″ side-shift on 60″ model, 16″ on 72″ & 88″ models
- Heavy duty hammer type blades
- 2″ cutting capacity
- Rotor diameter 5 1/4″, 5/16″ thick rotor tube
- Height adjustment rear roller with scraper standard
- Rear roller diameter 6 5/8″, 3/16″ thick rotor tube
| Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blades tip speed (ft/min) | # of Hammers | Cutting height | # Belts & type | Hydraulic side-shift | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D90-060 | 40-90 | 60" | 69" | 1,257 | 1,360 | 1,961 | 8,268 | 16 | 3/4"-5" | 4 XPBX | 12" | ASAE cat. 6 overrunning clutch |
| D90-072 | 50-90 | 72" | 81" | 1,345 | 1,450 | 1,961 | 8,268 | 20 | 3/4"-5" | 4 XPBX | 16" | ASAE cat. 6 overrunning clutch |
| D90-088 | 60-90 | 88" | 96" | 1,491 | 1,600 | 1,961 | 8,268 | 24 | 3/4"-5" | 4 XPBX | 16" | ASAE cat. 6 overrunning clutch |
WARNING: When using a quick hitch on a PTO driven implement, always ensure there is proper overlap prior to use. If there is not the minimum 6″ overlap, do not use. Contact your dealer to purchase a longer driveline.

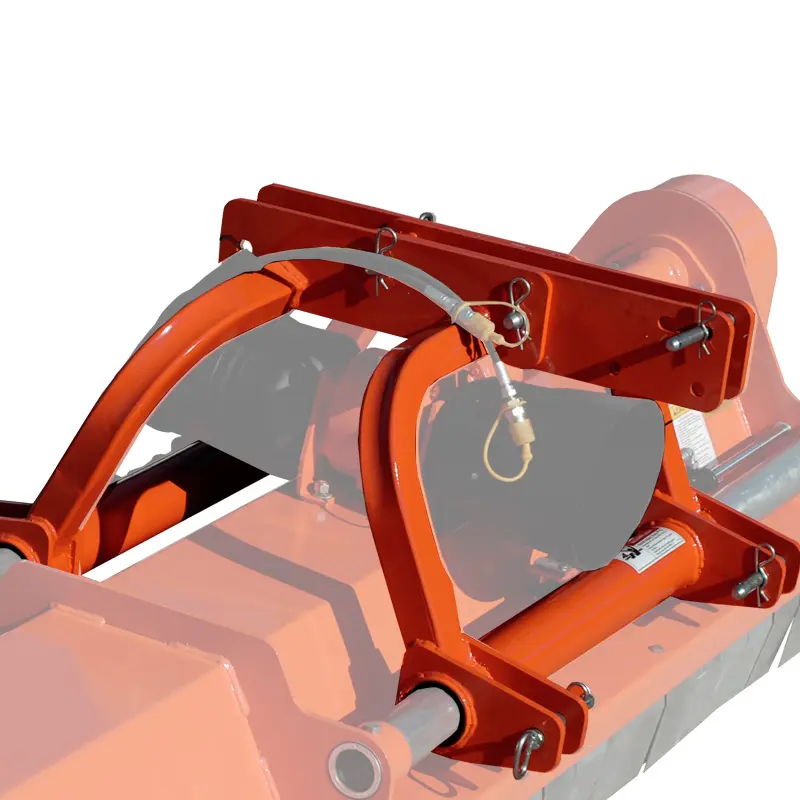

Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.
Reversible “A” frame
“A” frame design supports weight of the unit front and back and allows for quick front or rear tractor mounting.
Gearbox by BEFCO
Gearboxes are manufactured by BEFCO and always assembled with top of the line gears, bearings and seals to ensure years of trouble free usage.
Cast iron rotor supports
Our cast iron rotor supports are designed and built in-house and assembled using spherical self-aligning bearings.

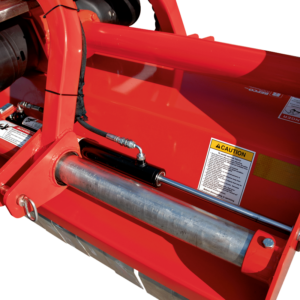

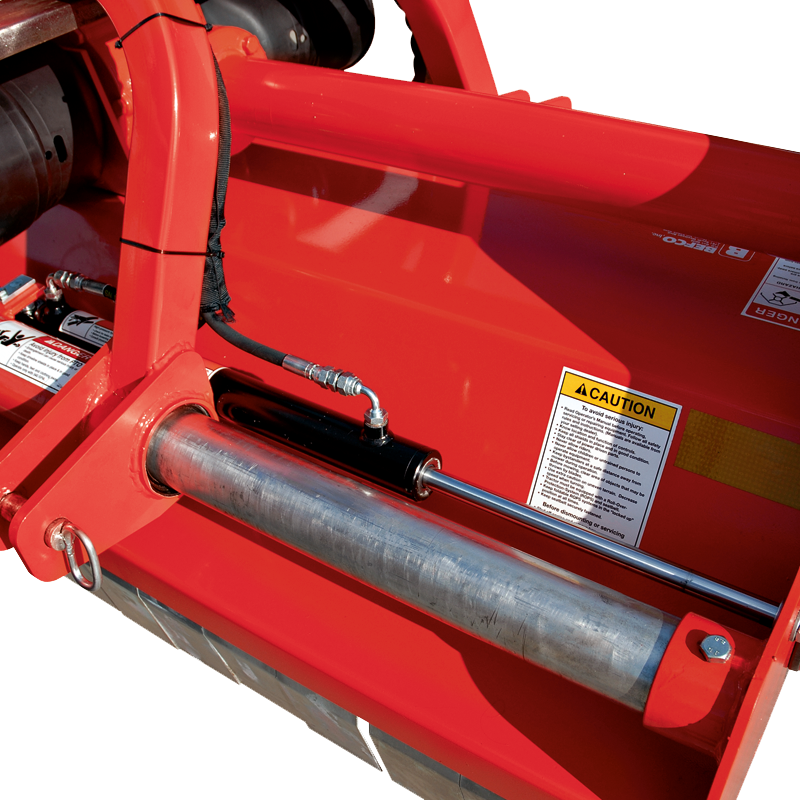

Hydraulic offset cylinder
All D90’s are equipped with a hydraulic cylinder that allows operator to offset the mower to the right of the tractor by 12″ on D90-060 and 16″ on D90-072 and D90-088 models.

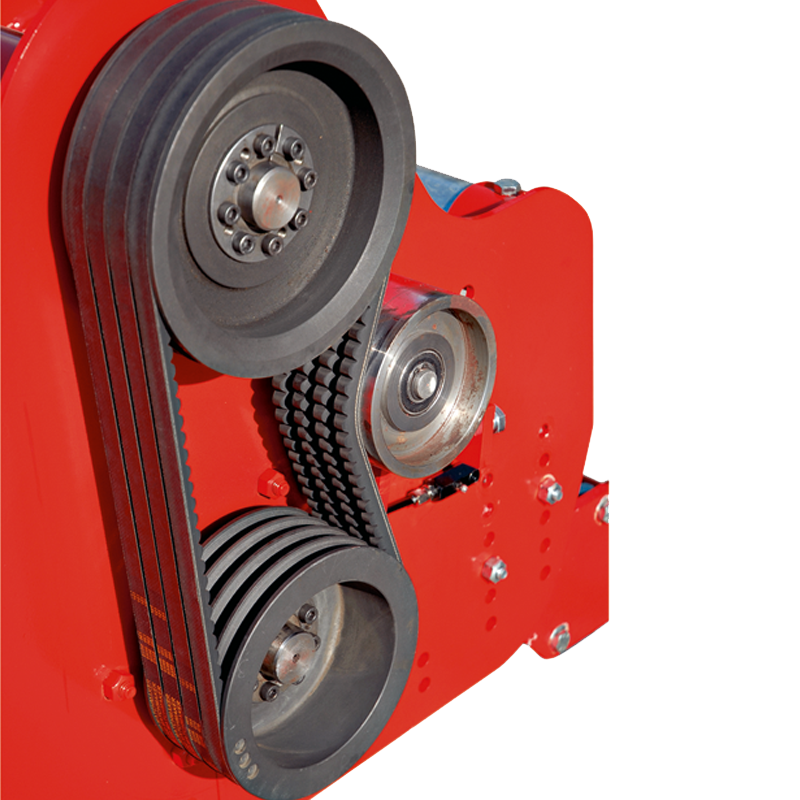

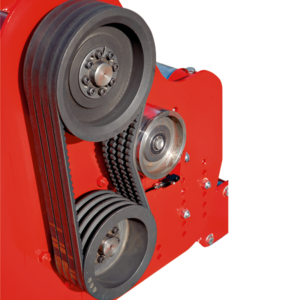

Heavy duty belt driven transmission
Belt driven transmission with four heavy duty XPBX type belts and manual belt tensioner

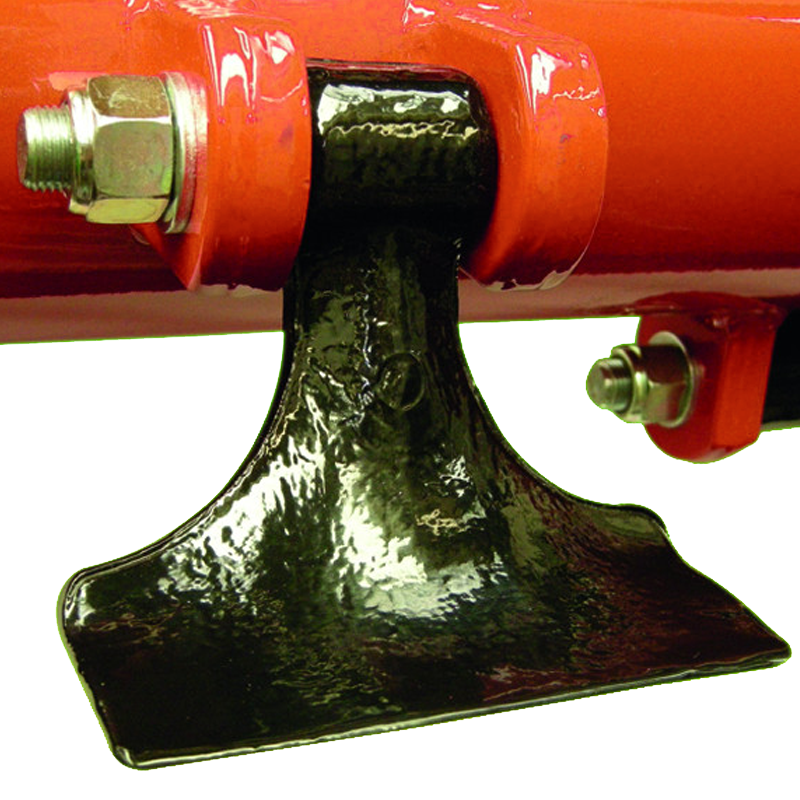

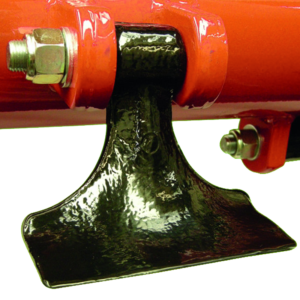

Heavy 2 lbs. hammer blades
Heavy hammer blades allow shredder to mow down material up to 2″ in diameter making it ideal for mowing in orchards, vineyards and set-aside fields.

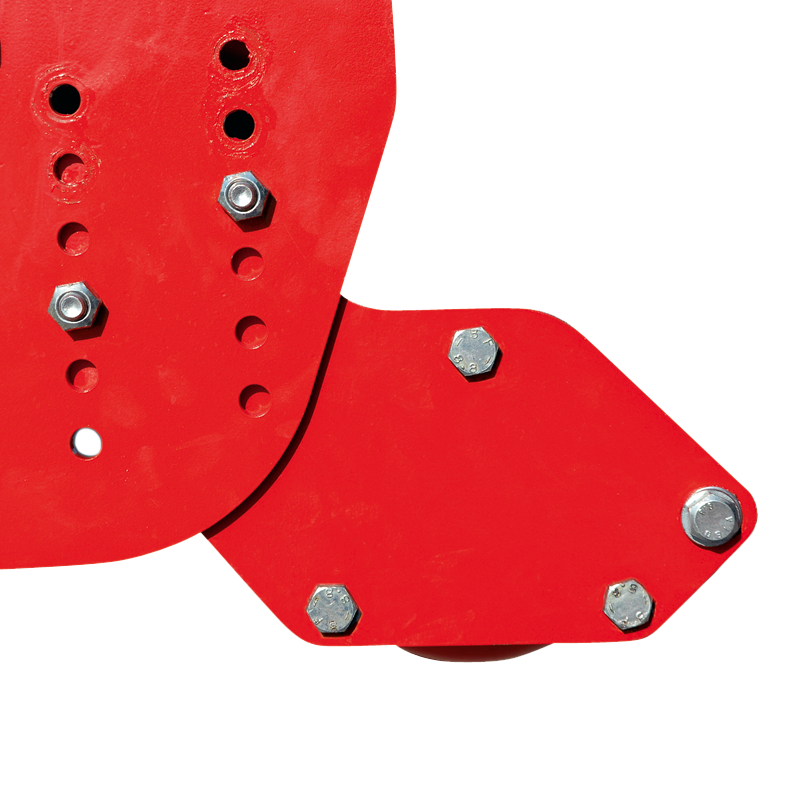

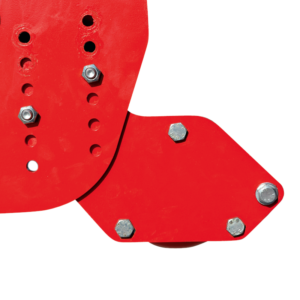

Height adjustment roller
Adjustable cutting height from 3/4″ to 5″ is set by raising and lowering the rear roller.
Clockwise rotor rotation
Clockwise rotor rotation allows cut debris to be thrown up and around the rotor and then straight down into the ground, reducing the risk caused by thrown objects.
ASAE Cat. 1 & 2 quick hitch compatible
Compatible with ASAE Cat. 1 and 2 quick hitches.

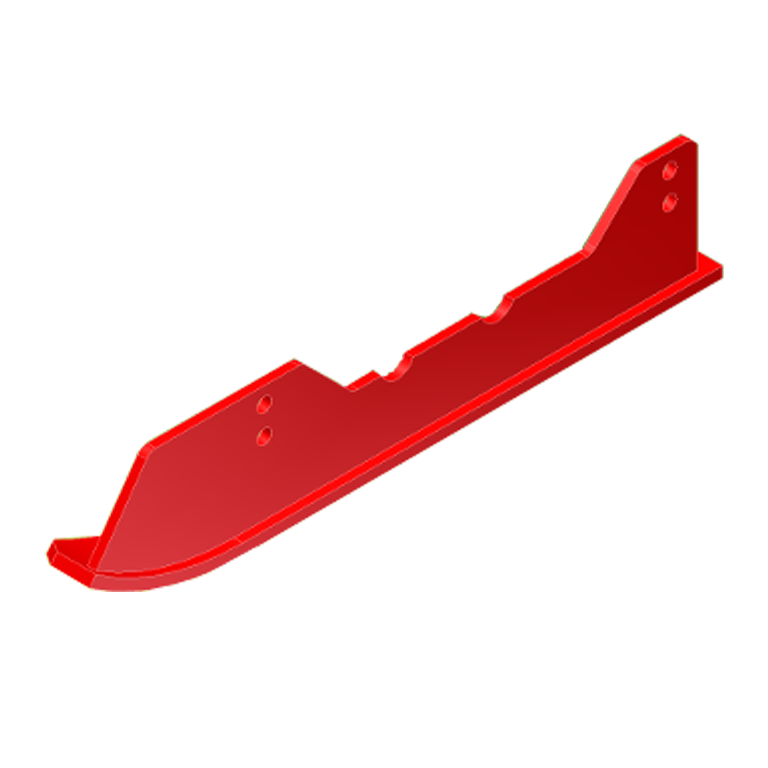

Side skids
0099969 side skids
Front mount (factory installed)
FRTXXD90 Front mount

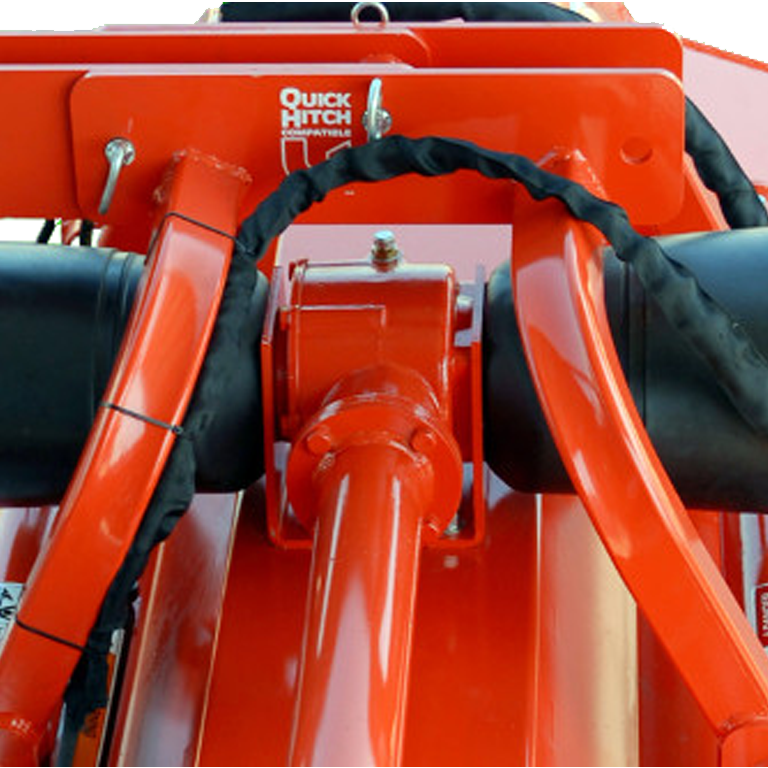

Gearbox with dual PTO (factory installed)
GDTXXD90 Gearbox with dual PTO
Operator’s & Parts manual
